  • 经典论文学习bag of feature(二)

    Bag-of-word

    Bag-of-words模型是信息检索领域常用的文档表示方法。在信息检索中,BOW模型假定对于一个文档,忽略它的单词顺序和语法、句法等要素,将其仅仅看作是若干个词汇的集合,文档中每个单词的出现都是独立的,不依赖于其它单词是否出现。例如有如下两个文档:

    1:Bob likes to play basketball, Jim likes too.      2:Bob also likes to play football games.

    基于这两个文本文档,提取单个单词,并构造一个词典:

    Dictionary = {1:”Bob”, 2. “like”, 3. “to”, 4. “play”, 5. “basketball”, 6. “also”, 7. “football”, 8. “games”, 9. “Jim”, 10. “too”}。

    这个词典一共包含10个不同的单词,根据词典,对上面两个文档中的单词出现次数进行统计,每个文档可表示为10维向量。如下:

    1:[1, 2, 1, 1, 1, 0, 0, 0, 1, 1]      2:[1, 1, 1, 1 ,0, 1, 1, 1, 0, 0]

    若每种类型的文档中单词的直方图统计呈现特定的规律,则可以利用这种规律进行海量文档归类。

    Bag Of Feature

    1.1 [CVPR06] Beyond Bags of Features: Spatial Pyramid Matching for Recognizing Natural Scene Categories

    摘要:将BOW的思想引入到图像中来,word在图像中用一种特定的特征描述子来代替,但这样完全忽略了图像的空间布局关系,incapable of capturing shape or of segmenting an object from its background,因此结合空间金字塔匹配来实现。 Our method involves repeatedly subdividing the image and computing histograms of local features at increasingly fine resolutions.

    比较:以下三方面和传统方法比较:

    1 locally orderless images:SPM as an alternative formulation of a locally orderless image, instead of a Gaussian scale space of apertures,define a fixed hierarchy of rectangular windows.
    2 multiresolution histograms:fixing the resolution at which the features are computed, but varying the spatial resolution at which they are aggregated.
    3 subdivide and disorder:the best subdivision scheme may be achieved when multiple resolutions are combined in a principled way; the reason for the empirical success of “subdivide and disorder” techniques is the fact that they actually perform approximate geometric matching.

    Pyramid Match Kernels:

    xy表示两个矢量 PyramidMatch用来计算xy之间的appriosimate correspondence.通过placing a sequence of increasingly coarser grids over the feature space and taking a weighted sum of the number of matches that occur at each level of resolution.

    Match means they fall into the same cell. Resolution counts from 0 to L.

    At level l,image can be divide into 2exp(d*l) cells(这里的cell应该就是后面的聚类中心?);The number of matchs at level l is given by (1);

    The weight number of level l is set to 1/(2exp(L-l)),Note lower(coarser) level include the num of finer level, so the num of level l is given by .The Pyramid match kernel can be given by(2);

    (1)(2)

    Spatial Matching Scheme

    perform pyramid matching in the two-dimensional image space, and use traditional clustering techniques in feature space.(对于图像中feature空间,图像的坐标已经包含了几何空间信息,只需要按照坐标顺序排列vector即可)(特征空间用聚类将特征聚到M个类别channel,大概就是上面讲的fall into the same cell,H就是用直方图统计,I越小表示二者相关度越小)

    (3)

    Dimension  is:(上式中k(x,y) 中并不是相加 而是每level的I矢量连接成一个很长的矢量) ;  M=400 L=3 d=34000 is long and sparse.

    Normalize all histograms by the total weight of all features in the image.

       (1)   (2)

    histogram intersection function

    用来对特征构成的直方图进行相似度匹配.计算公式(即式(1)):

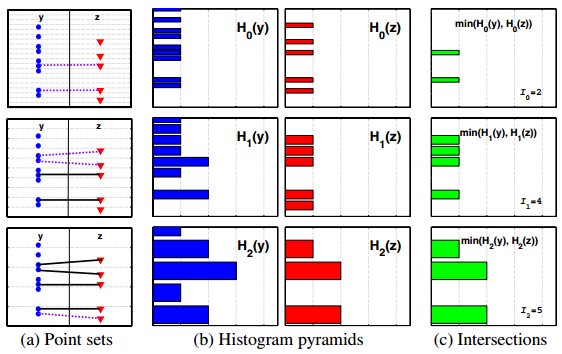

    上图(2)是对直方图交叉核函数的描述图:(a)里的y和z代表两种数据分布,三幅图代表三层金字塔,每一层里有间距相等的虚线,表示直方图宽度,金字塔L越大宽度越小,间隔越多。可以看到红点蓝点的位置是固定的,但是根据直方图宽度的不同可以划到不同的直方图里,如(b)所示。(c)图就是L的计算结果,是通过(b)里两种直方图取交集得来的,c图每个图的下方都给出了交集数目,比如x0=2,x1=4,x2=3(原图里是5,是不是错了?)

    Q:

    对照例子和代码:(1)在此处的作用应该是通过类似SPM的可核函数(2)/(3)计算得到H/H'(包含特征的直方图统计结果,但是其中的I含义和原文不一样),cell是聚类中心,match是指在同一个聚类中心,H是通过同cluster的统计直方图,然后用(1)计算I,即numofmatchs,通过直方图内核函数来计算(the histogram intersection function).

    按照文章理解:应该是先计算1  然后 2/3来计算。进一步可以看:The Pyramid Match Kernel:Discriminative Classification with Sets of Image Features理解。自己理解是:(2)/(3)权重常数和channel可以乘进去或者一开始就考虑,所以例子和代码看起来就是先考虑2/3,然后1最后计算决定numofmatch的,即两个直方图的相似度(交叉核)。原文中有的表示。

    局部和全局特征表示:本文中说到SPM是一种approximate global geometric correspondence,又如何理解an alternative formulation of a locally orderless image,传统的局部和全局特征是怎样定义的,有哪些??

    ps:

    部分来源于:http://blog.csdn.net/v_JULY_v
