  • Python机器学习(7)——SVM支持向量机

    SVM支持向量机是建立于统计学习理论上的一种分类算法,适合与处理具备高维特征的数据集。

    SVM算法的数学原理相对比较复杂,好在由于SVM算法的研究与应用如此火爆,CSDN博客里也有大量的好文章对此进行分析,下面给出几个本人认为讲解的相当不错的:

    支持向量机通俗导论(理解SVM的3层境界):http://blog.csdn.net/v_july_v/article/details/7624837

    JULY大牛讲的是如此详细,由浅入深层层推进,以至于关于SVM的原理,我一个字都不想写了。。强烈推荐。

    还有一个比较通俗的简单版本的:手把手教你实现SVM算法:http://blog.csdn.net/alvine008/article/details/9097105

    SVN原理比较复杂,但是思想很简单,一句话概括,就是通过某种核函数,将数据在高维空间里寻找一个最优超平面,能够将两类数据分开。

    针对不同数据集,不同的核函数的分类效果可能完全不一样。可选的核函数有这么几种:

    线性函数:形如K(x,y)=x*y这样的线性函数;

    多项式函数:形如K(x,y)=[(x·y)+1]^d这样的多项式函数;

    径向基函数:形如K(x,y)=exp(-|x-y|^2/d^2)这样的指数函数;

    Sigmoid函数:就是上一篇文章中讲到的Sigmoid函数。

    我们就利用之前的几个数据集,直接给出Python代码,看看运行效果:

    测试1:身高体重数据

    # -*- coding: utf-8 -*-
    import numpy as np
    import scipy as sp
    from sklearn import svm
    from sklearn.cross_validation import train_test_split
    import matplotlib.pyplot as plt

    data   = []
    labels = []
    with open("data\1.txt") as ifile:
            for line in ifile:
                tokens = line.strip().split(' ')
                data.append([float(tk) for tk in tokens[:-1]])
                labels.append(tokens[-1])
    x = np.array(data)
    labels = np.array(labels)
    y = np.zeros(labels.shape)
    y[labels=='fat']=1
    x_train, x_test, y_train, y_test = train_test_split(x, y, test_size = 0.0)

    h = .02
    # create a mesh to plot in
    x_min, x_max = x_train[:, 0].min() - 0.1, x_train[:, 0].max() + 0.1
    y_min, y_max = x_train[:, 1].min() - 1, x_train[:, 1].max() + 1
    xx, yy = np.meshgrid(np.arange(x_min, x_max, h),
                         np.arange(y_min, y_max, h))

    ''' SVM '''
    # title for the plots
    titles = ['LinearSVC (linear kernel)',
              'SVC with polynomial (degree 3) kernel',
              'SVC with RBF kernel',
              'SVC with Sigmoid kernel']
    clf_linear  = svm.SVC(kernel='linear').fit(x, y)
    #clf_linear  = svm.LinearSVC().fit(x, y)
    clf_poly    = svm.SVC(kernel='poly', degree=3).fit(x, y)
    clf_rbf     = svm.SVC().fit(x, y)
    clf_sigmoid = svm.SVC(kernel='sigmoid').fit(x, y)

    for i, clf in enumerate((clf_linear, clf_poly, clf_rbf, clf_sigmoid)):
        answer = clf.predict(np.c_[xx.ravel(), yy.ravel()])
        print(clf)
        print(np.mean( answer == y_train))
        print(answer)
        print(y_train)

        plt.subplot(2, 2, i + 1)
        plt.subplots_adjust(wspace=0.4, hspace=0.4)

        # Put the result into a color plot
        z = answer.reshape(xx.shape)
        plt.contourf(xx, yy, z, cmap=plt.cm.Paired, alpha=0.8)

        # Plot also the training points
        plt.scatter(x_train[:, 0], x_train[:, 1], c=y_train, cmap=plt.cm.Paired)
        plt.xlabel(u'身高')
        plt.ylabel(u'体重')
        plt.xlim(xx.min(), xx.max())
        plt.ylim(yy.min(), yy.max())
        plt.xticks(())
        plt.yticks(())
        plt.title(titles[i])

    plt.show()

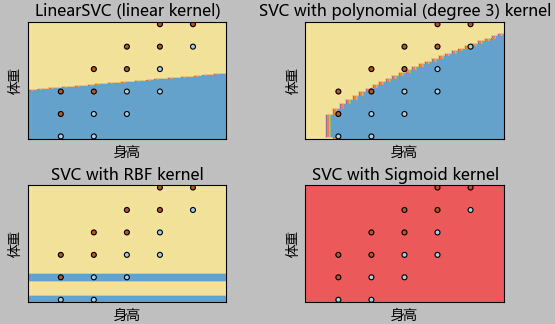

    运行结果如下:

    可以看到,针对这个数据集,使用3次多项式核函数的SVM,得到的效果最好。

    测试2:影评态度

    下面看看SVM在康奈尔影评数据集上的表现:(代码略)

    SVC(C=1.0, cache_size=200, class_weight=None, coef0=0.0, degree=3, gamma=0.0,  kernel='linear', max_iter=-1, probability=False, random_state=None,
      shrinking=True, tol=0.001, verbose=False)
    0.814285714286


    SVC(C=1.0, cache_size=200, class_weight=None, coef0=0.0, degree=3, gamma=0.0,  kernel='poly', max_iter=-1, probability=False, random_state=None,  shrinking=True, tol=0.001, verbose=False)
    0.492857142857


    SVC(C=1.0, cache_size=200, class_weight=None, coef0=0.0, degree=3, gamma=0.0,  kernel='rbf', max_iter=-1, probability=False, random_state=None,  shrinking=True, tol=0.001, verbose=False)
    0.492857142857


    SVC(C=1.0, cache_size=200, class_weight=None, coef0=0.0, degree=3, gamma=0.0,  kernel='sigmoid', max_iter=-1, probability=False, random_state=None,
      shrinking=True, tol=0.001, verbose=False)
    0.492857142857
    可见在该数据集上,线性分类器效果最好。

    测试3:圆形边界

    最后我们测试一个数据分类边界为圆形的情况:圆形内为一类,原型外为一类。看这类非线性的数据SVM表现如何:

    测试数据生成代码如下所示:

    ''' 数据生成 '''
    h = 0.1
    x_min, x_max = -1, 1
    y_min, y_max = -1, 1
    xx, yy = np.meshgrid(np.arange(x_min, x_max, h),
                         np.arange(y_min, y_max, h))
    n = xx.shape[0]*xx.shape[1]
    x = np.array([xx.T.reshape(n).T, xx.reshape(n)]).T
    y = (x[:,0]*x[:,0] + x[:,1]*x[:,1] < 0.8)
    y.reshape(xx.shape)

    x_train, x_test, y_train, y_test
        = train_test_split(x, y, test_size = 0.2)

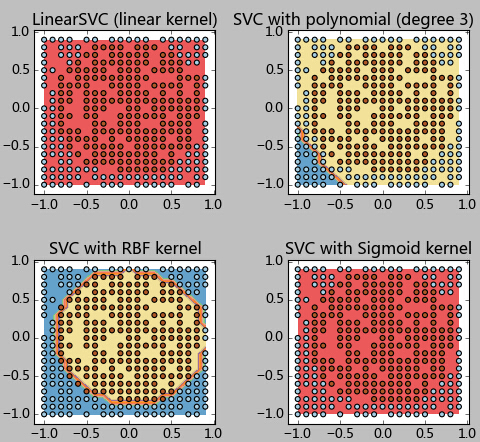

    测试结果如下:

    SVC(C=1.0, cache_size=200, class_weight=None, coef0=0.0, degree=3, gamma=0.0,  kernel='linear', max_iter=-1, probability=False, random_state=None,
      shrinking=True, tol=0.001, verbose=False)
    0.65
    SVC(C=1.0, cache_size=200, class_weight=None, coef0=0.0, degree=3, gamma=0.0,  kernel='poly', max_iter=-1, probability=False, random_state=None,
      shrinking=True, tol=0.001, verbose=False)
    0.675
    SVC(C=1.0, cache_size=200, class_weight=None, coef0=0.0, degree=3, gamma=0.0,  kernel='rbf', max_iter=-1, probability=False, random_state=None,
      shrinking=True, tol=0.001, verbose=False)
    0.9625
    SVC(C=1.0, cache_size=200, class_weight=None, coef0=0.0, degree=3, gamma=0.0,  kernel='sigmoid', max_iter=-1, probability=False, random_state=None,
      shrinking=True, tol=0.001, verbose=False)
    0.65


    可以看到,对于这种边界,径向基函数的SVM得到了近似完美的分类结果。而其他的分类器显然束手无策。
