When you create attachments for your business objects via cl_crm_documents=>create_with_table, you have to pass in an internal table for attachment property.
The name-list of attribute name could be got from attachment class via function module SDOK_PHIO_ATTRIBUTES_GET.

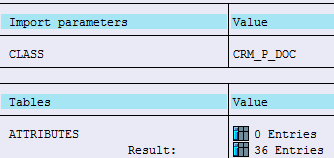

For example, attachment class CRM_P_DOC has 36 attributes.

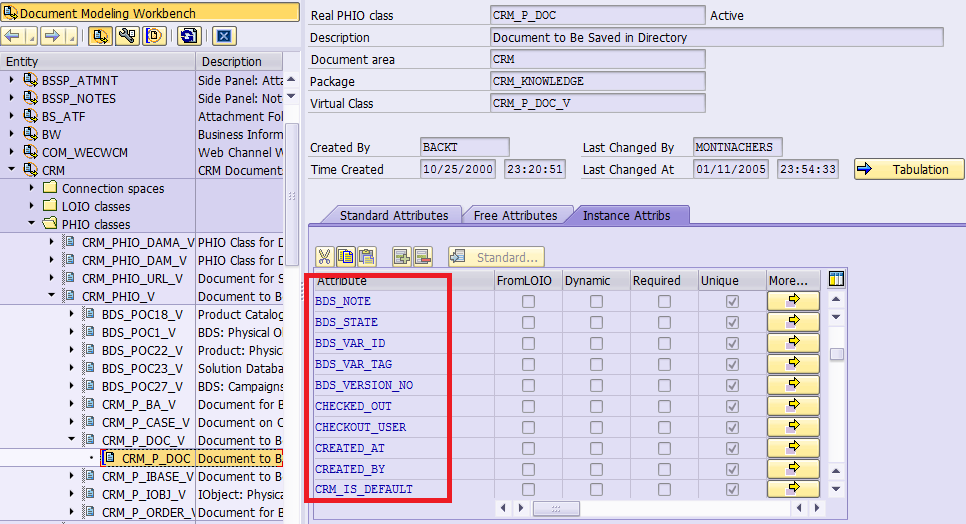

The attributes could also be viewed in tcode DMWB:

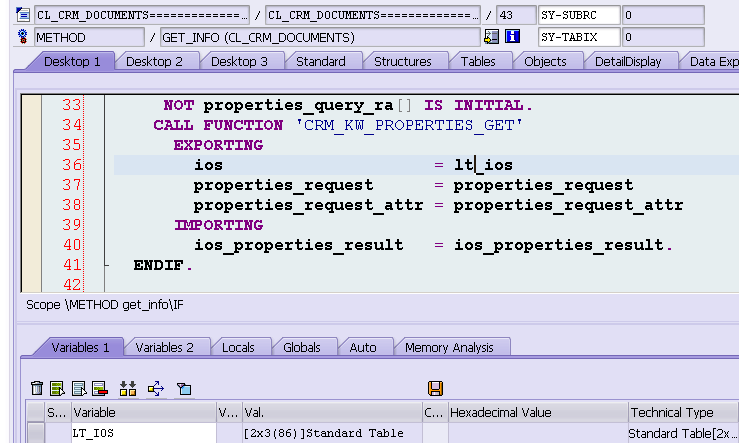

The actual attribute value could be got via function module CRM_KW_PROPERTIES_GET:

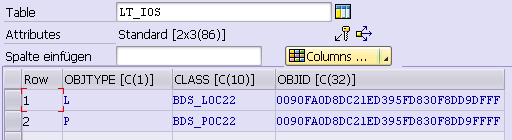

The importing parameters are guid of logical/physical object instances:

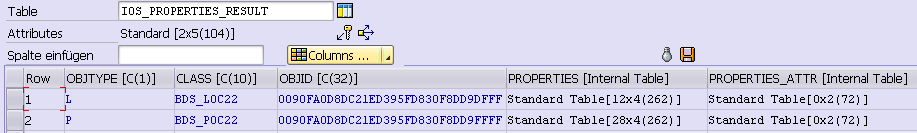

The attribute values are stored in PROPERTIES internal table.

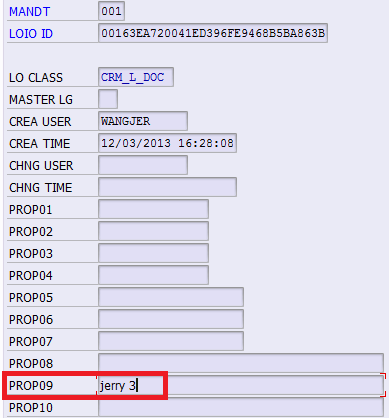

Do you know why in the backend table, the property is stored in field PROP09?

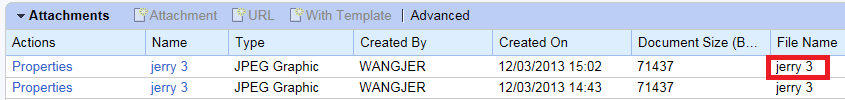

actually it is because I hard code the content of relative url as the attachment file name.
ls_prop-name = 'KW_RELATIVE_URL'.
ls_prop-value = iv_file_name.
APPEND ls_prop TO lt_prop.

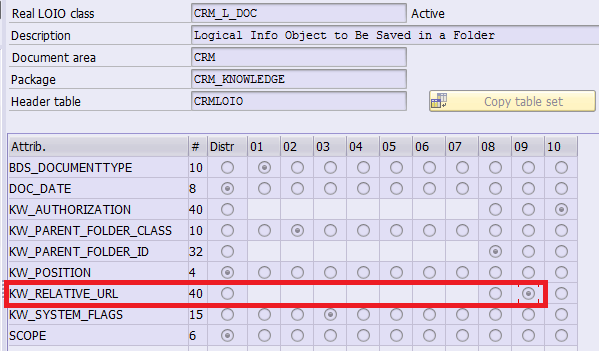

The index of attribute could also be found in tcode DMWB.
