  • SAP CRM WebClient UI异常的持久化机制

    When I am working together with local partner to resolve one issue caused by incorrect enhancement set configuration for new custom Product set type, I have realized that if the UI exception is raised and caught by framework, there would be no entry in ST22, which causes the difficulties for later trouble shooting.

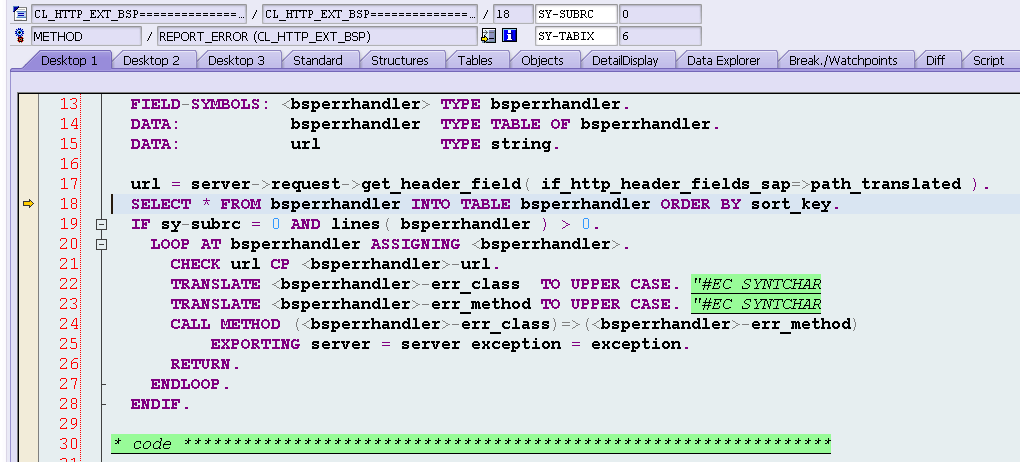

    When I am debugging the code how the framework handles with the exception, I found there is the possibility to let the framework call the error handler defined by ourselves being registered in table bsperrhandler.

    So I think it is worthy to create a simple error handler class to persist the exception information into a new transparent table for later checking.

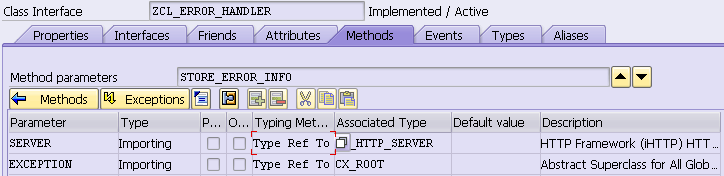

    (1) create a class ZCL_ERROR_HANDLER with a static public method STORE_ERROR_INFO, signature as below:

    Source code as below. Just extract error message text and the exact position which line of source code has raised the exception:

    METHOD store_error_info.
      DATA: lv_header_text TYPE string,
            l_einternal TYPE REF TO cx_bsp_einternal,
            l_exception      TYPE REF TO cx_root,
            l_program_name   TYPE syrepid,
            l_include_name   TYPE syrepid,
            l_source_line    TYPE i,
            lv_log_text      TYPE string,
            ls_log           TYPE zbsplog.
      l_exception = exception.
      CHECK server IS NOT INITIAL AND exception IS NOT INITIAL.
      lv_header_text = exception->get_text( ).
      TRY.
          l_einternal ?= exception.
        CATCH cx_root.
      ENDTRY.
      IF l_einternal IS BOUND.
        CALL METHOD l_einternal->get_source_position
          IMPORTING
            program_name = l_program_name
            include_name = l_include_name
            source_line  = l_source_line.
      ELSE.
        WHILE l_exception->previous IS BOUND.
          l_exception = l_exception->previous.
        ENDWHILE.
        CALL METHOD l_exception->get_source_position
          IMPORTING
            program_name = l_program_name
            include_name = l_include_name
            source_line  = l_source_line.
      ENDIF.
      CALL FUNCTION 'GUID_CREATE'
        IMPORTING
          ev_guid_16 = ls_log-uuid.
      ls_log-error_date = sy-datlo.
      ls_log-error_time = sy-timlo.
      ls_log-error_string = |<head><h1>{ lv_header_text }</h1><h2>Error Date:{ sy-datlo }</h2><h2>Error Time:{ sy-timlo }</h2>| &&
      |<h3>Error program:{ l_program_name }</h3><h3>Error include:{ l_include_name }</h3><h3>Source code line number:{ l_source_line }</h3>|
      && |</head>|.
      INSERT zbsplog FROM ls_log.
      COMMIT WORK AND WAIT.
    ENDMETHOD.

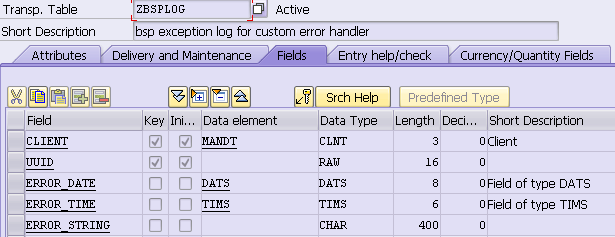

    (2) Create a new transparent table to store the exception detail:

    (3) Register the new error handler into table bsperrhandler:

    (4) Write a simple report to list the exception information. Of course more elegant UI like ALV could be used:

    data: lt_table type STANDARD TABLE OF zbsplog,
          lv_error TYPE zbsplog-error_string.
    FIELD-SYMBOLS:<item> TYPE zbsplog.
    START-OF-SELECTION.
       SELECT * INTO TABLE lt_table FROM zbsplog.
       LOOP AT lt_table ASSIGNING <item>.
          WRITE:/ 'guid: ', <item>-uuid,'date: ', <item>-error_date, <item>-error_time.
          lv_error = <item>-error_string.
          HIDE lv_error.
       ENDLOOP.
       AT LINE-SELECTION.
          cl_demo_output=>display_html( lv_error ).


    execute the report and double click one line item, the detail information would be displayed via the handy class cl_demo_output.
    With the include name and source code line number available, you could implement further handling like automatically navigation to the source code in ABAP editor by calling function module RS_TOOL_ACCESS with include name and source code number passed in.

    要获取更多Jerry的原创文章,请关注公众号"汪子熙":
