  • SAP CRM订单模型CRMD_SHIPPING的单元测试方法

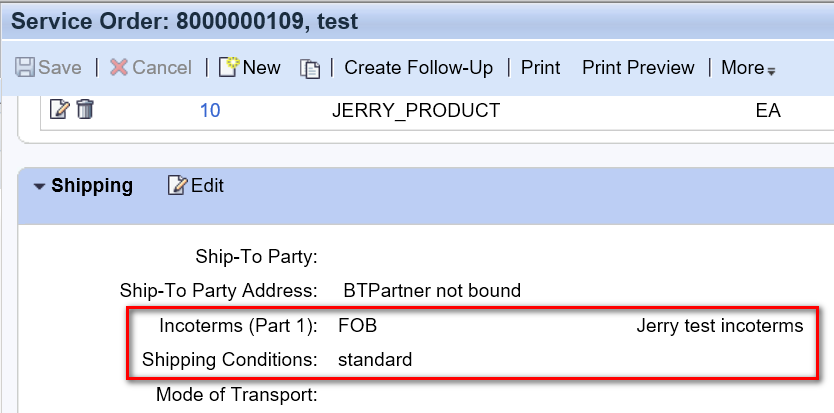

    For example the following shipping fields of One order document are stored in Database table CRMD_SHIPPING.

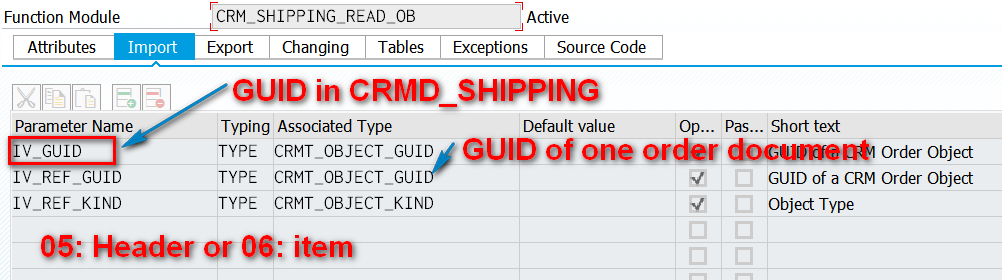

    The data could be read out via function module CRM_SHIPPING_READ_OB.

    This blog introduces the step how to generate fake data which will be returned by function module CRM_SHIPPING_READ_OB for unit test purpose.

    Step1. Create fake data in Shipping object buffer

    DATA: ls_shipping TYPE crmt_shipping_wrk.
    DATA: lv_order_guid TYPE crmt_object_guid,
          lv_ship_guid  LIKE lv_order_guid,
          lt_link_com   TYPE crmt_link_comt,
          ls_link_com   LIKE LINE OF lt_link_com.

    CALL FUNCTION 'GUID_CREATE'
      IMPORTING
        ev_guid_16 = lv_order_guid.
    CALL FUNCTION 'GUID_CREATE'
      IMPORTING
        ev_guid_16 = lv_ship_guid.
    ls_shipping-incoterms1 = 'FOB'.
    ls_shipping-incoterms2 = 'Jerry Fake incoterms'.
    ls_shipping-guid = lv_ship_guid.

    CALL FUNCTION 'CRM_SHIPPING_PUT_OB'
      EXPORTING
        is_shipping_wrk = ls_shipping.


    Step2. Create a link between Order and shipping data via function module CRM_LINK_CREATE_OW

    ls_link_com-guid_hi     = lv_order_guid.
    ls_link_com-guid_set    = lv_ship_guid.
    ls_link_com-objname_set = 'SHIPPING'.
    ls_link_com-objtype_set = '12'.
    ls_link_com-objname_hi  = 'ORDERADM_H'.
    ls_link_com-objtype_hi  = '05'.

    INSERT ls_link_com INTO TABLE lt_link_com.
    CALL FUNCTION 'CRM_LINK_CREATE_OW'
      EXPORTING
        iv_guid_hi = lv_order_guid
        it_link    = lt_link_com
      EXCEPTIONS
        OTHERS     = 0.


    Step3. perform read via Object buffer function call

    CLEAR: ls_shipping.

    CALL FUNCTION 'CRM_SHIPPING_READ_OB'
      EXPORTING
        iv_ref_guid         = lv_order_guid
        iv_ref_kind         = 'A'
      IMPORTING
        es_shipping_wrk = ls_shipping.

    WRITE:/ 'Incoterms1:', ls_shipping-incoterms1.
    WRITE:/ 'Incoterms2:', ls_shipping-incoterms2.

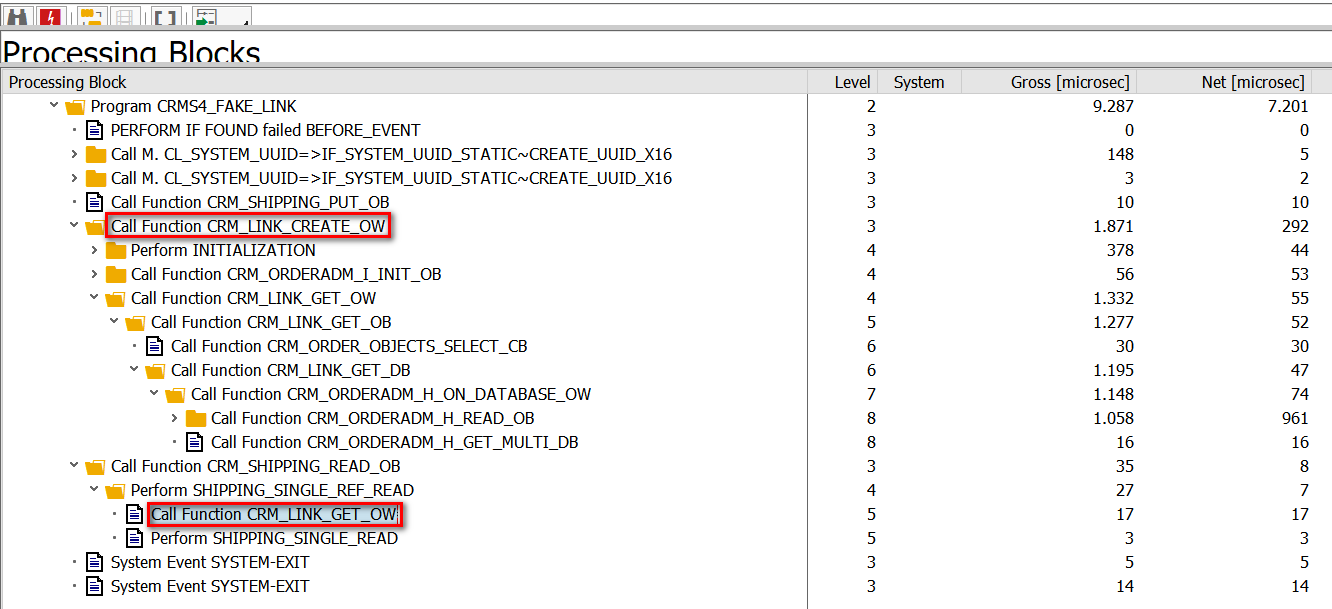

    Callstack of link manipulation and object buffer insert and read for Shipping.

    execution result:
