  • SAP CRM里的user parameter之COM_IOITF_DEBUG

    The object event history could record the event of the object involvement in business scenario such as adding an individual object to a business transaction.

    The record is done via IOITF ( Object integration framework ). The detail functionality explanation and necessary could be found in SAP help.

    There is a useful user parameter which is not clearly documented in SAP help:

    My issue

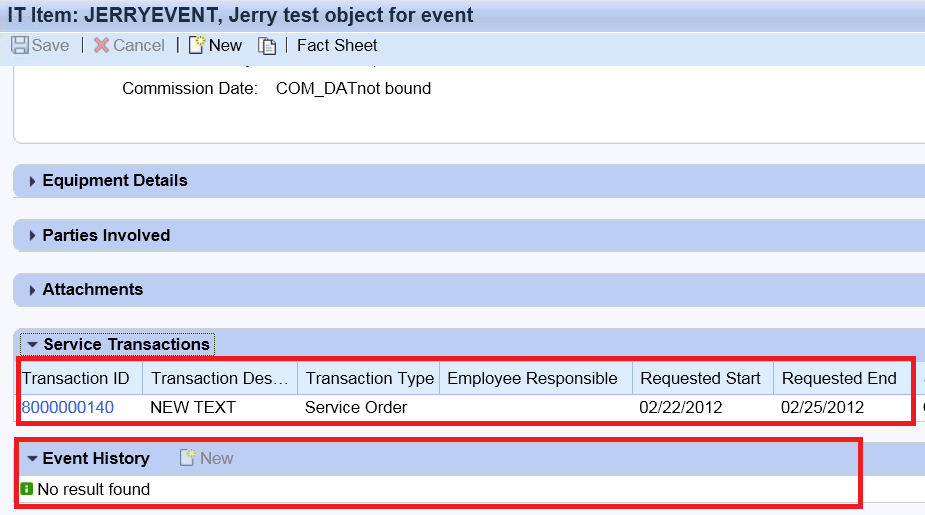

    After I finish all necessary customizing and add one object to service order, the event history assignment block is empty. I expect there is one entry which records the

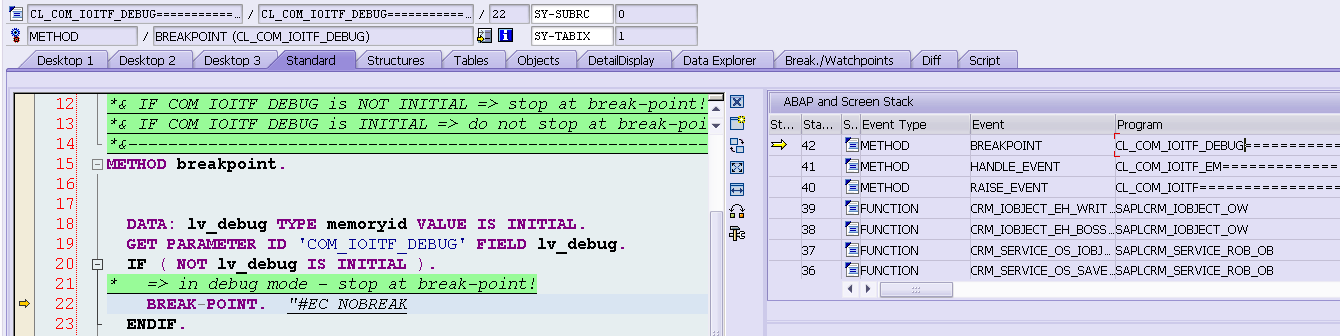

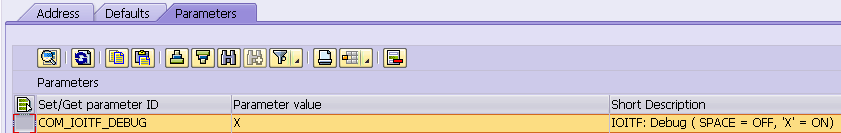

    I set the user parameter as X in SU3 and remove the object from service order and add it once again, it will stop everywhere the method CL_COM_IOITF_DEBUG~BREAKPOINT is called. So we can debug to investigate the handling logic of IOITF framework.

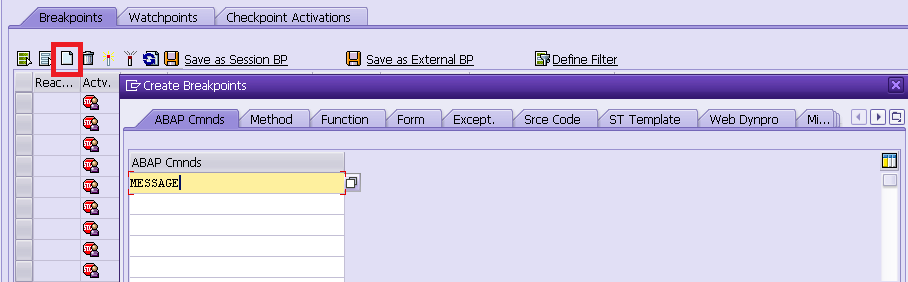

    In order to find the root cause for my dedicated issue, I create a dynamic breakpoint on ABAP keyword MESSAGE, since I assume there must be some error message raised which blocks the event creation.

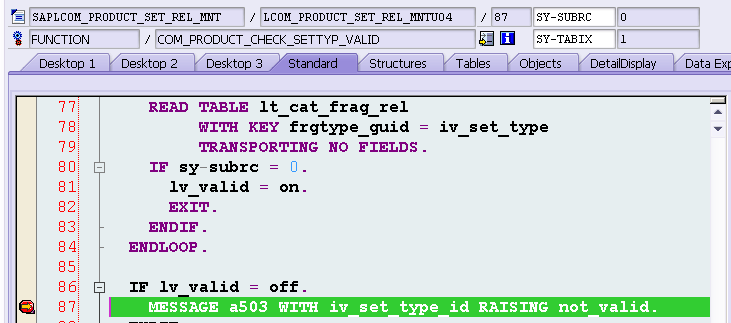

    After I click F8 the debugger stops at the code where one error message is raised:

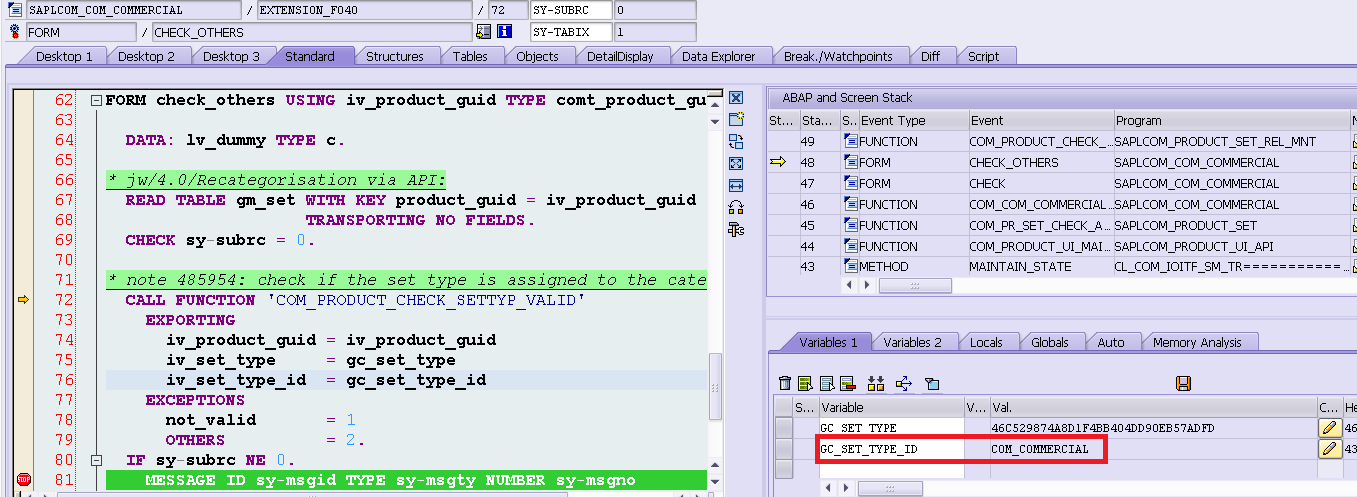

    Go upper callstack and I know the framework complains the necessary settype COM_COMMERCIAL is not assigned to object category.

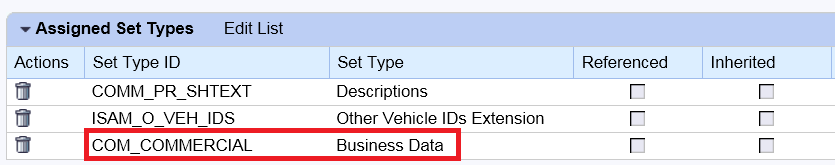

    After I add this set type to object category,

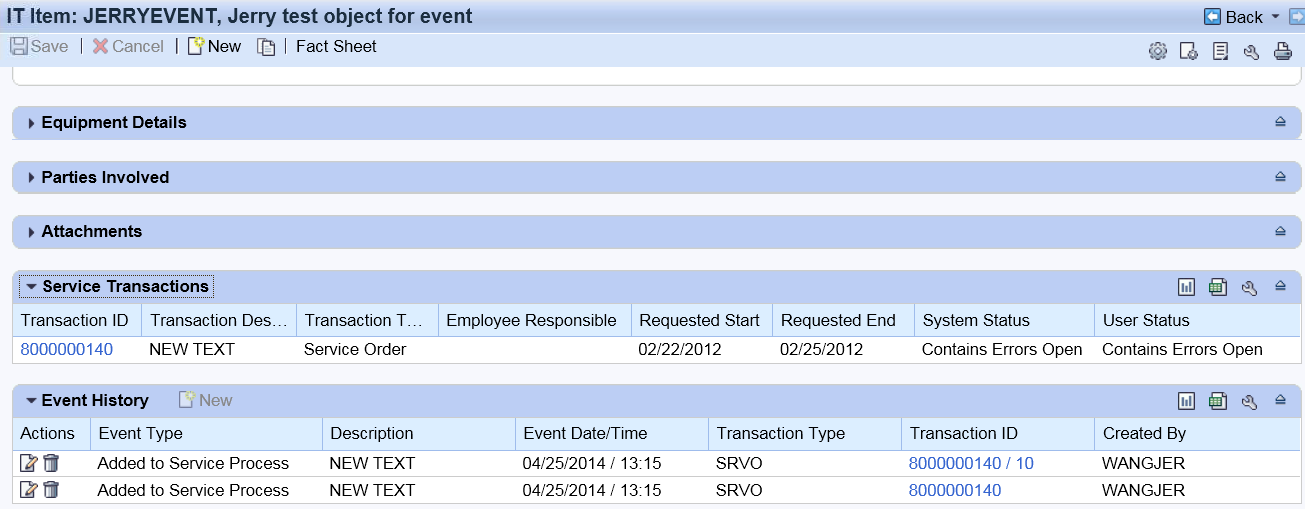

    After that once I add the object to service order, I could see the expected record in object Event History assignment block.

    要获取更多Jerry的原创文章,请关注公众号"汪子熙":
