Created by Jerry Wang on Feb 06, 2014

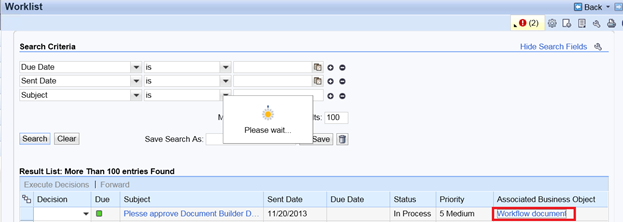

(1) Click Hyperlink “Workflow document”:

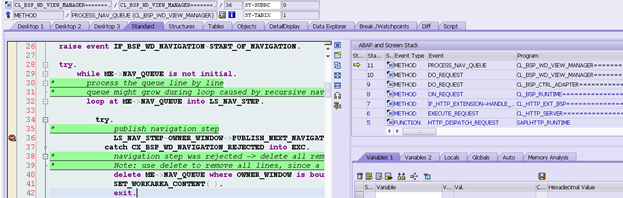

The following method is called to handle the navigation.
Step into method SET_WORKAREA_CONTENT.

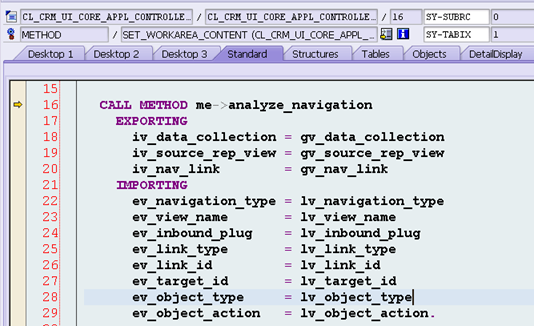

(2) Inside method SET_WORKAREA_CONTENT, there is a method analyze_navigation:
The information of navigation target is contained in the importing parameters.

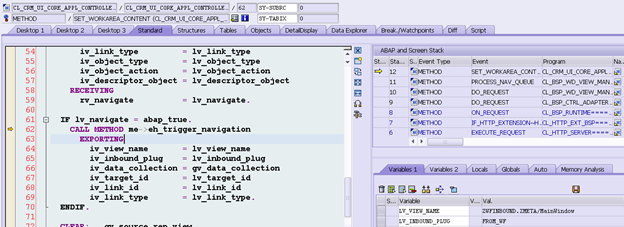

(3) Inside method SET_WORKAREA_CONTENT, there is a method analyze_navigation:
The information of navigation target is contained in the importing parameters.
Inside method analyze_navigation,

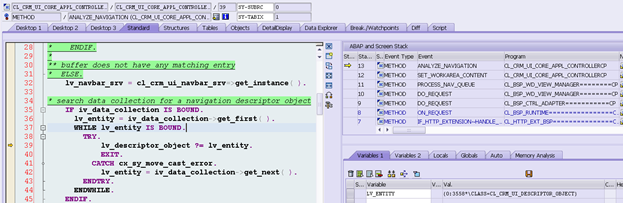

The navigation descriptor object is got from lv_entity:

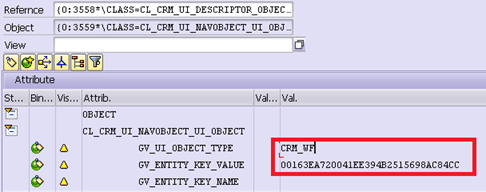

The variable GV_UI_OBJECT_TYPE contains the ui object type for navigation target:

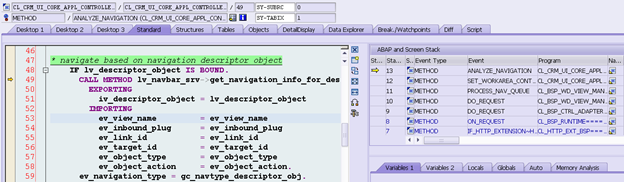

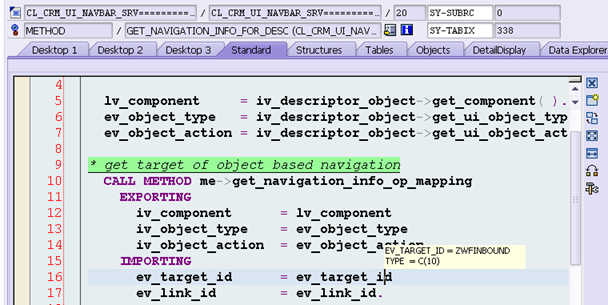

The descriptor object lv_descriptor_object is used to get the navigation target:
Target ID: ZWFINBOUND
Regarding how to configure the target ID ZWFINBOUND, please refer to this blog.

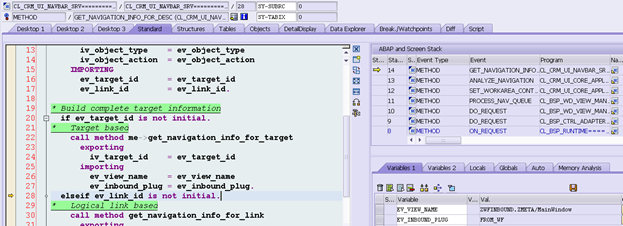

After method get_navigation_info_for_target is called, the target UI component view and inbound plug is determined.

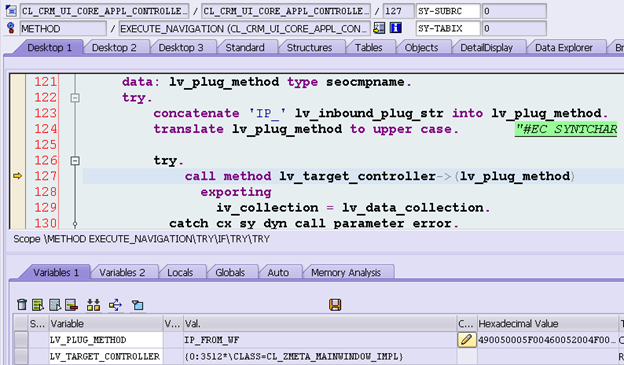

(4) The inbound plug of determined target UI component view will be called by UI framework:
