VirtualBox网络的Host-Only配置

创建host-only虚拟网卡

VBox管理器页面-管理-主机网络管理器，如果已经存在默认的虚拟网卡则下一步，如果不存在则创建一个虚拟网卡，不启用DHCP服务器，这里ip地址为192.168.137.1，实际我本地设置为192.168.102.1，掩码设置为255.255.255.0。

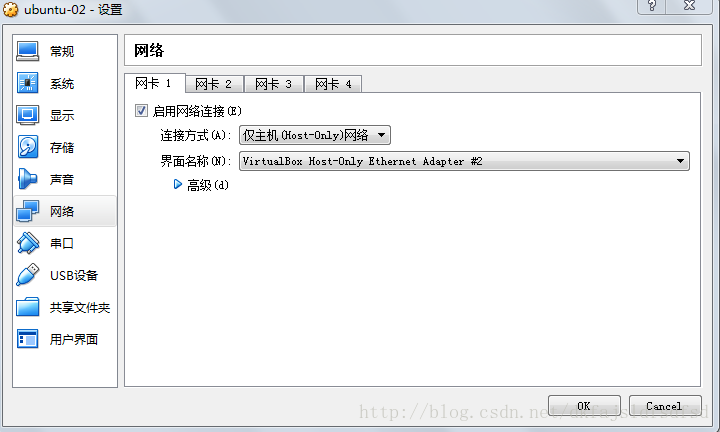

设置虚拟机master和slave1, slave2为Host-Only模式



配置各台虚拟机的网络

vi /etc/sysconfig/network-scripts/ifcfg-eth0



master

DEVICE=eth0
HWADDR=08:00:27:5D:52:BC
TYPE=Ethernet
UUID=d2cdd853-f19c-4dd7-bfdf-ea6b8a954b54
ONBOOT=yes
NM_CONTROLLED=yes
BOOTPROTO=none
IPADDR=192.168.102.3
NETMASK=255.255.255.0
GATEWAY=192.168.102.1
DNS1=192.168.102.1

slave1

DEVICE=eth0
HWADDR=08:00:27:DC:F2:46
TYPE=Ethernet
UUID=14155cf0-7177-4ed7-94cd-5325f9f94c8a
ONBOOT=yes
NM_CONTROLLED=yes
BOOTPROTO=none
IPADDR=192.168.102.4
NETMASK=255.255.255.0
GATEWAY=192.168.102.1
DNS1=192.168.102.1

slave2

DEVICE=eth0
HWADDR=08:00:27:DC:F2:46
TYPE=Ethernet
UUID=14155cf0-7177-4ed7-94cd-5325f9f94c8a
ONBOOT=yes
NM_CONTROLLED=yes
BOOTPROTO=none
IPADDR=192.168.102.5
NETMASK=255.255.255.0
GATEWAY=192.168.102.1
DNS1=192.168.102.1

重启各台虚拟机网络服务

service network restart

关闭各台虚拟机的防火墙

1. 永久性生效

开启：chkconfig iptables on

关闭：chkconfig iptables off

2. 即时生效，重启后失效

开启：service iptables start

关闭：service iptables stop

Fedora 18以上用一个名叫firewalld的玩意，所以需要：

systemctl stop firewalld.service有必要的话就

systemctl disable firewalld.service





测试互联

[root@master ~]# ifconfig
eth0      Link encap:Ethernet  HWaddr 08:00:27:5D:52:BC
          inet addr:192.168.102.3  Bcast:192.168.102.255  Mask:255.255.255.0
          inet6 addr: fe80::a00:27ff:fe5d:52bc/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:2463 errors:0 dropped:0 overruns:0 frame:0
          TX packets:1350 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:208042 (203.1 KiB)  TX bytes:143877 (140.5 KiB)

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:16436  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:0 (0.0 b)  TX bytes:0 (0.0 b)

[root@master ~]# ping 192.168.102.4
PING 192.168.102.4 (192.168.102.4) 56(84) bytes of data.
64 bytes from 192.168.102.4: icmp_seq=1 ttl=64 time=1.14 ms
64 bytes from 192.168.102.4: icmp_seq=2 ttl=64 time=0.350 ms
64 bytes from 192.168.102.4: icmp_seq=3 ttl=64 time=0.246 ms
64 bytes from 192.168.102.4: icmp_seq=4 ttl=64 time=0.267 ms
64 bytes from 192.168.102.4: icmp_seq=5 ttl=64 time=0.223 ms
64 bytes from 192.168.102.4: icmp_seq=6 ttl=64 time=0.256 ms

 更全面的说明参考https://blog.csdn.net/hliq5399/article/details/78193113
