CFS完全公平调度算法

转自：https://blog.csdn.net/helloanthea/article/details/30081627?utm_medium=distribute.pc_relevant.none-task-blog-BlogCommendFromMachineLearnPai2-2.channel_param&depth_1-utm_source=distribute.pc_relevant.none-task-blog-BlogCommendFromMachineLearnPai2-2.channel_param

kernel/sched/fair.c

负载衰减计算函数decay_load()

1.
   /*
2.
   * We choose a half-life close to 1 scheduling period.
3.
   * Note: The tables below are dependent on this value.
4.
   */
5.
   #define LOAD_AVG_PERIOD 32
6.
   #define LOAD_AVG_MAX 47742 /* maximum possible load avg */
7.
   #define LOAD_AVG_MAX_N 345 /* number of full periods to produce LOAD_MAX_AVG */
8.

9.
   /* Precomputed fixed inverse multiplies for multiplication by y^n */
10.
    static const u32 runnable_avg_yN_inv[] = {
11.
    0xffffffff, 0xfa83b2da, 0xf5257d14, 0xefe4b99a, 0xeac0c6e6, 0xe5b906e6,
12.
    0xe0ccdeeb, 0xdbfbb796, 0xd744fcc9, 0xd2a81d91, 0xce248c14, 0xc9b9bd85,
13.
    0xc5672a10, 0xc12c4cc9, 0xbd08a39e, 0xb8fbaf46, 0xb504f333, 0xb123f581,
14.
    0xad583ee9, 0xa9a15ab4, 0xa5fed6a9, 0xa2704302, 0x9ef5325f, 0x9b8d39b9,
15.
    0x9837f050, 0x94f4efa8, 0x91c3d373, 0x8ea4398a, 0x8b95c1e3, 0x88980e80,
16.
    0x85aac367, 0x82cd8698,
17.
    };
18.

19.
    /*
20.
    * Approximate:
21.
    * val * y^n, where y^32 ~= 0.5 (~1 scheduling period)
22.
    */
23.
    //负载衰减计算，val * y^n, 将val的值衰减n次并返回（其中y^32 ~= 0.5，也就是约定了32ms之前调度实体的负载，对调度实体的累计负载的影响因子为0.5）
24.
    static __always_inline u64 decay_load(u64 val, u64 n)
25.
    {
26.
    unsigned int local_n;
27.

28.
    if (!n)
29.
    return val;
30.
    else if (unlikely(n > LOAD_AVG_PERIOD * 63))
31.
    return 0;
32.

33.
    /* after bounds checking we can collapse to 32-bit */
34.
    local_n = n;
35.

36.
    /*
37.
    * As y^PERIOD = 1/2, we can combine
38.
    * y^n = 1/2^(n/PERIOD) * k^(n%PERIOD)
39.
    * With a look-up table which covers k^n (n<PERIOD)
40.
    *
41.
    * To achieve constant time decay_load.
42.
    */
43.
    if (unlikely(local_n >= LOAD_AVG_PERIOD)) {
44.
    val >>= local_n / LOAD_AVG_PERIOD;
45.
    local_n %= LOAD_AVG_PERIOD;
46.
    }
47.

48.
    val *= runnable_avg_yN_inv[local_n];
49.
    /* We don't use SRR here since we always want to round down. */
50.
    return val >> 32;
51.
    }

连续n个整周期的负载累计贡献值__compute_runnable_contrib()

1.
   /*
2.
   * Precomputed Sum y^k { 1<=k<=n }. These are floor(true_value) to prevent
3.
   * over-estimates when re-combining.
4.
   */
5.
   static const u32 runnable_avg_yN_sum[] = {
6.
   0, 1002, 1982, 2941, 3880, 4798, 5697, 6576, 7437, 8279, 9103,
7.
   9909,10698,11470,12226,12966,13690,14398,15091,15769,16433,17082,
8.
   17718,18340,18949,19545,20128,20698,21256,21802,22336,22859,23371,
9.
   };
10.

11.
    /*
12.
    * For updates fully spanning n periods, the contribution to runnable
13.
    * average will be: Sum 1024*y^n
14.
    *
15.
    * We can compute this reasonably efficiently by combining:
16.
    * y^PERIOD = 1/2 with precomputed Sum 1024*y^n {for n <PERIOD}
17.
    */
18.
    //为了方便计算连续n个整周期的负载累计贡献值，封装了该函数，计算1024*(y + y^2 + y^3 + …… +y^n)
19.
    static u32 __compute_runnable_contrib(u64 n)
20.
    {
21.
    u32 contrib = 0;
22.

23.
    if (likely(n <= LOAD_AVG_PERIOD)) //如果n<=32,直接从表runnable_avg_yN_sum中取已经计算好的1024*(y + y^2 + y^3 + …… +y^n)
24.
    return runnable_avg_yN_sum[n];
25.
    else if (unlikely(n >= LOAD_AVG_MAX_N)) //如果n>=345,直接返回1024*(y + y^2 + y^3 + …… +y^n)的极限值47742。
26.
    return LOAD_AVG_MAX;
27.

28.
    /* Compute Sum k^n combining precomputed values for k^i, Sum k^j */
29.
    //如果32<=n<=345,每递进32个衰减周期，负载贡献值衰减一半（y^32 = 1/2），并累加。
30.
    do {
31.
    contrib /= 2; /* y^LOAD_AVG_PERIOD = 1/2 */
32.
    contrib += runnable_avg_yN_sum[LOAD_AVG_PERIOD];
33.

34.
    n -= LOAD_AVG_PERIOD;
35.
    } while (n > LOAD_AVG_PERIOD);
36.

37.
    contrib = decay_load(contrib, n);// 最后衰减n中不能凑成32个衰减周期的剩余周期数
38.
    return contrib + runnable_avg_yN_sum[n];// n中不能凑成32个衰减周期的剩余周期数，单独计算衰减，并累加
39.
    }

更新调度实体的累计负载平均值__update_entity_runnable_avg()

1.
   /*
2.
   * We can represent the historical contribution to runnable average as the
3.
   * coefficients of a geometric series. To do this we sub-divide our runnable
4.
   * history into segments of approximately 1ms (1024us); label the segment that
5.
   * occurred N-ms ago p_N, with p_0 corresponding to the current period, e.g.
6.
   * [<- 1024us ->|<- 1024us ->|<- 1024us ->| ...
7.
   * p0 p1 p2
8.
   * (now) (~1ms ago) (~2ms ago)
9.
   *
10.
    * Let u_i denote the fraction of p_i that the entity was runnable.
11.
    *
12.
    * We then designate the fractions u_i as our co-efficients, yielding the
13.
    * following representation of historical load:
14.
    * u_0 + u_1*y + u_2*y^2 + u_3*y^3 + ...
15.
    *
16.
    * We choose y based on the with of a reasonably scheduling period, fixing:
17.
    * y^32 = 0.5
18.
    *
19.
    * This means that the contribution to load ~32ms ago (u_32) will be weighted
20.
    * approximately half as much as the contribution to load within the last ms
21.
    * (u_0).
22.
    *
23.
    * When a period "rolls over" and we have new u_0`, multiplying the previous
24.
    * sum again by y is sufficient to update:
25.
    * load_avg = u_0` + y*(u_0 + u_1*y + u_2*y^2 + ... )
26.
    * = u_0 + u_1*y + u_2*y^2 + ... [re-labeling u_i --> u_{i+1}]
27.
    */
28.
    //更新调度实体的累计负载平均值
29.
    static __always_inline int __update_entity_runnable_avg(u64 now,
30.
    struct sched_avg *sa,
31.
    int runnable)
32.
    {
33.
    u64 delta, periods;
34.
    u32 runnable_contrib;
35.
    int delta_w, decayed = 0;
36.

37.
    delta = now - sa->last_runnable_update;//delta，本次更新累计负载与上次更新累计负载的时间差，单位ns。
38.
    /*
39.
    * This should only happen when time goes backwards, which it
40.
    * unfortunately does during sched clock init when we swap over to TSC.
41.
    */
42.
    if ((s64)delta < 0) {//如果delta为负，不需要更新累计负载，将累计负载更新时间刷新成最新时间，并返回0
43.
    sa->last_runnable_update = now;
44.
    return 0;
45.
    }
46.

47.
    /*
48.
    * Use 1024ns as the unit of measurement since it's a reasonable
49.
    * approximation of 1us and fast to compute.
50.
    */
51.
    delta >>= 10;//delta除以1024，将ns换算为us，用右移是为了提高效率。
52.
    if (!delta)//如果delta为0us，时间太短，则直接返回0，且不需要刷新累计负载更新时间。
53.
    return 0;
54.
    sa->last_runnable_update = now;//将累计负载更新时间刷新成最新时间。
55.

56.
    /* delta_w is the amount already accumulated against our next period */
57.

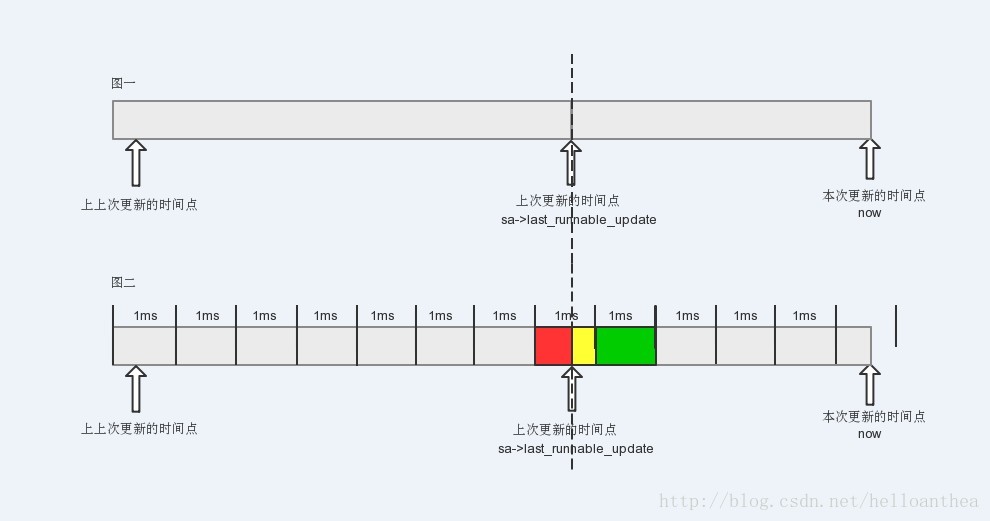

    delta_w = sa->runnable_avg_period % 1024;//delta_w为上次更新调度实体的累计负载runnable_avg_period时，不能凑成1024us的剩余us，对应图二的红色部分，该部分已经被计算过累计负载。
58.
    if (delta + delta_w >= 1024) {//如果delta与delta_w的和大于等于1024us，说明至少一个周期（1024us）已经过去了
59.
    /* period roll-over */
60.
    decayed = 1; //将衰减标志decayed置位
61.

62.
    /*
63.
    * Now that we know we're crossing a period boundary, figure
64.
    * out how much from delta we need to complete the current
65.
    * period and accrue it.
66.
    */
67.
    delta_w = 1024 - delta_w; //这里是计算上次更新累计负载时，未被计算的剩余部分的累计负载，也就是（1024-delta_w），对应图二的黄色部分
68.
    if (runnable)
69.
    sa->runnable_avg_sum += delta_w;//如果是可运行的调度实体，才累加runnable_avg_sum
70.
    sa->runnable_avg_period += delta_w;//累加runnable_avg_period
71.

72.
    delta -= delta_w;//计算除了（1024-delta_w）以外的剩余的delta
73.

74.
    /* Figure out how many additional periods this update spans */
75.
    periods = delta / 1024;//计算本次更新与上次更新之间，总共跨越了几个周期，也就是有多少个周期（1024us）调度实体是一直运行的，对应图二的蓝色部分。
76.
    delta %= 1024;//本次更新中不能凑成1024us的剩余us，类似于上次更新中的delta_w，对应图二的绿色部分。
77.

78.
    //分别对调度实体的runnable_avg_sum和runnable_avg_period执行衰减计算，即分别乘以y^(periods+1)
79.
    sa->runnable_avg_sum = decay_load(sa->runnable_avg_sum,
80.
    periods + 1);
81.
    sa->runnable_avg_period = decay_load(sa->runnable_avg_period,
82.
    periods + 1);
83.

84.
    /* Efficiently calculate sum (1..n_period) 1024*y^i */
85.
    runnable_contrib = __compute_runnable_contrib(periods);//调度实体在periods个周期（1024us）是一直运行的(u_i=1),所以直接计算y+y^2+y^3+……+y^period的累加值。
86.
    if (runnable)
87.
    sa->runnable_avg_sum += runnable_contrib;
88.
    sa->runnable_avg_period += runnable_contrib;
89.
    }
90.

91.
    //如果delta与delta_w的和小于1024us，说明上次更新和这次更新还在同一个衰减周期（1024us）内，不需要执行衰减计算，直接将时间差加到runnable_avg_sum和runnable_avg_period即可。
92.
    /* Remainder of delta accrued against u_0` */
93.
    if (runnable)
94.
    sa->runnable_avg_sum += delta;//如果是可运行的调度实体，才累加runnable_avg_sum
95.
    sa->runnable_avg_period += delta;//累加runnable_avg_period
96.

97.
    return decayed;//返回衰减标志
