RHEL7 系统ISCSI存储环境搭建

            **ISCSI存储环境的搭建**

iSCSI的工作过程：当iSCSI主机应用程序发出数据读写请求后，操作系统会生成一个相应的SCSI命令，该SCSI命令在iSCSI initiator层被封装成ISCSI消息包并通过TCP/IP传送到设备侧，设备侧的iSCSI target层会解开iSCSI消息包，得到SCSI命令的内容，然后传送给SCSI设备执行；设备执行SCSI命令后的响应，在经过设备侧iSCSI target层时被封装成ISCSI响应PDU，通过TCP/IP网络传送给主机的ISCSI initiator层，iSCSI initiator会从ISCSI响应PDU里解析出SCSI响应并传送给操作系统，操作系统再响应给应用程序。
iSCSI技术是一种由IBM公司研究开发的，是一个供硬件设备使用的可以在IP协议的上层运行的SCSI指令集，这种指令集合可以实现在IP网络上运行SCSI协议，使其能够在诸如高速千兆以太网上进行路由选择。iSCSI技术是一种新储存技术，该技术是将现有SCSI接口与以太网络(Ethernet)技术结合，使服务器可与使用IP网络的储存装置互相交换资料。

一、创建模式

选项：-C

专用选项：

-l 级别

-n 设备个数

-a {yes|no} 自动为其创建设备文件

-c 指定数据块大小（chunk）

-x 指定空闲盘（热备磁盘）个数，空闲盘（热备磁盘）能在工作盘损坏后自动顶替

注意：创建阵列时，阵列所需磁盘数为-n参数和-x参数的个数和

客户机IP192.168.10.20
服务器IP192.168.10.10

服务器配置

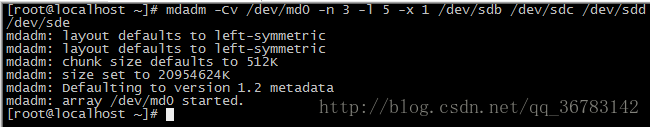

创建raid5

[root@localhost ~]# mdadm -Cv /dev/md0 -n 3 -l 5 -x 1 /dev/sdb /dev/sdc /dev/sdd /dev/sde
mdadm: layout defaults to left-symmetric
mdadm: layout defaults to left-symmetric
mdadm: chunk size defaults to 512K
mdadm: size set to 2095616K
mdadm: Defaulting to version 1.2 metadata
mdadm: array /dev/md0 started.

查看记录 UUID

[root@localhost ~]# mdadm -D /dev/md0
/dev/md0:
        Version : 1.2
  Creation Time : Thu Jul 13 03:55:35 2017
     Raid Level : raid5
     Array Size : 4191232 (4.00 GiB 4.29 GB)
  Used Dev Size : 2095616 (2046.84 MiB 2145.91 MB)
   Raid Devices : 3
  Total Devices : 4
    Persistence : Superblock is persistent

    Update Time : Thu Jul 13 03:55:46 2017
          State : clean
 Active Devices : 3
Working Devices : 4
 Failed Devices : 0
  Spare Devices : 1

         Layout : left-symmetric
     Chunk Size : 512K

           Name : localhost.localdomain:0  (local to host localhost.localdomain)
           UUID : 4b2604f1:c8ffccd2:833a1fd0:ee37bc43
         Events : 18

    Number   Major   Minor   RaidDevice State
       0       8       16        0      active sync   /dev/sdb
       1       8       32        1      active sync   /dev/sdc
       4       8       48        2      active sync   /dev/sdd

       3       8       64        -      spare   /dev/sde

创建RAID阵列的配置文件

[root@localhost ~]# vim /etc/mdadm.conf
DEVICE /dev/sdb /dev/sdc /dev/sdd /dev/sde
ARRAY /dev/md0 UUID=4b2604f1:c8ffccd2:833a1fd0:ee37bc43

安装ISCSI target服务

[root@localhost ~]# yum -y install targetd targetcli
Loaded plugins: langpacks, product-id, subscription-manager
This system is not registered to Red Hat Subscription Management. You can use subscription-manager to register.
Resolving Dependencies

启动targetd服务并加入开机启动项

[root@localhost ~]#
 systemctl enable targetd
ln -s '/usr/lib/systemd/system/targetd.service' '/etc/systemd/system/multi-user.target.wants/targetd.service

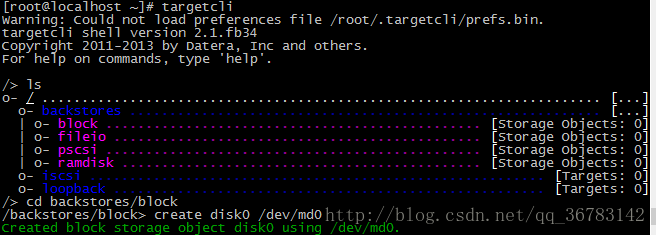

创建存储对象

[root@localhost ~]# targetcli
Warning: Could not load preferences file /root/.targetcli/prefs.bin.
targetcli shell version 2.1.fb34
Copyright 2011-2013 by Datera, Inc and others.
For help on commands, type 'help'.

查看当前的存储目录树

/> ls
o- / ...................................................................... [...]
  o- backstores ........................................................... [...]
  | o- block ............................................... [Storage Objects: 0]
  | o- fileio .............................................. [Storage Objects: 0]
  | o- pscsi ............................................... [Storage Objects: 0]
  | o- ramdisk ............................................. [Storage Objects: 0]
  o- iscsi ......................................................... [Targets: 0]
  o- loopback ...................................................... [Targets: 0]

进入backstores/block 使用/dev/md0创建disk0

/> cd backstores/block
/backstores/block> create disk0 /dev/md0
Created block storage object disk0 using /dev/md0.

创建iscsi target目标 创建lun设备

/> cd iscsi
/iscsi> create
Created target iqn.2003-01.org.linux-iscsi.localhost.x8664:sn.9d393e04cca1.
Created TPG 1.
/iscsi> cd iqn.2003-01.org.linux-iscsi.localhost.x8664:sn.9d393e04cca1/
/iscsi/iqn.20....9d393e04cca1> cd tpg1/
/iscsi/iqn.20...3e04cca1/tpg1> cd luns
/iscsi/iqn.20...ca1/tpg1/luns> create /backstores/block/disk0
Created LUN 0.

设置访问控制列表

/iscsi/iqn.20...3e04cca1/tpg1> cd acls
/iscsi/iqn.20...ca1/tpg1/acls> create iqn.2003-01.org.linux-iscsi.localhost.x8664:sn.9d393e04cca1:client
Created Node ACL for iqn.2003-01.org.linux-iscsi.localhost.x8664:sn.9d393e04cca1:client
Created mapped LUN 0.
/iscsi/iqn.20...ca1/tpg1/acls>


..................................path|keyword=

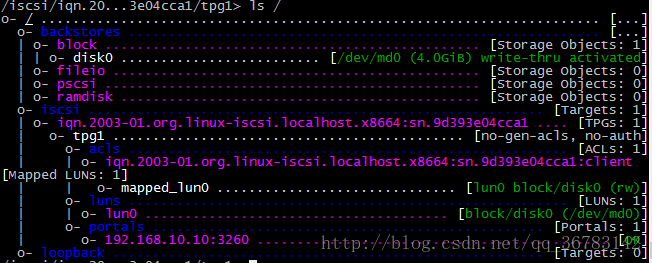

/iscsi/iqn.20...3e04cca1/tpg1> cd portals

添加允许监听的ip地址

/iscsi/iqn.20.../tpg1/portals> create 192.168.10.10
Using default IP port 3260
Created network portal 192.168.10.10:3260.

创建防火墙允许规则

[root@localhost ~]# firewall-cmd --permanent --add-port=3260/tcp
success
[root@localhost ~]# firewall-cmd --reload
success

客户机

安装 iscsi-initiator-utils

[root@client ~]# yum -y install iscsi-initiator-utils

编辑的iscsi客户端名称文件

[root@client ~]# cat /etc/iscsi/initiatorname.iscsi
InitiatorName=iqn.1994-05.com.redhat:248056a6629
InitiatorName=iqn.2003-01.org.linux-iscsi.localhost.x8664:sn.9d393e04cca1:client

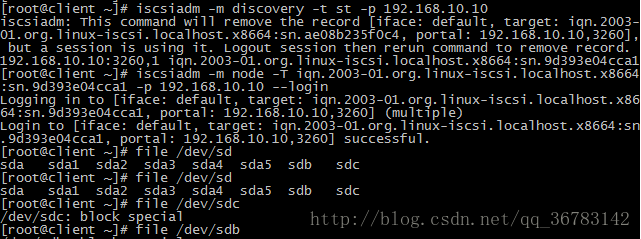

连接iscsi服务端的可用存储设备

[root@client ~]# iscsiadm -m discovery -t st -p 192.168.10.10
192.168.10.10:3260,1 iqn.2003-01.org.linux-iscsi.localhost.x8664:sn.9d393e04cca1
[root@client ~]# iscsiadm -m node -T iqn.2003-01.org.linux-iscsi.localhost.x8664:sn.9d393e04cca1 -p 192.168.10.10 --login
Logging in to [iface: default, target: iqn.2003-01.org.linux-iscsi.localhost.x8664:sn.9d393e04cca1, portal: 192.168.10.10,3260] (multiple)
Login to [iface: default, target: iqn.2003-01.org.linux-iscsi.localhost.x8664:sn.9d393e04cca1, portal: 192.168.10.10,3260] successful.

#发现多了一块硬盘设备
[root@client ~]# file /dev/sdc
/dev/sdc: block special

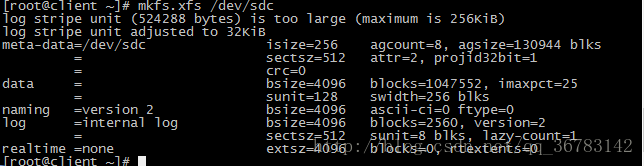

格式化硬盘

[root@client ~]# mkfs.xfs /dev/sdc
log stripe unit (524288 bytes) is too large (maximum is 256KiB)
log stripe unit adjusted to 32KiB
meta-data=/dev/sdc               isize=256    agcount=8, agsize=130944 blks
         =                       sectsz=512   attr=2, projid32bit=1
         =                       crc=0
data     =                       bsize=4096   blocks=1047552, imaxpct=25
         =                       sunit=128    swidth=256 blks
naming   =version 2              bsize=4096   ascii-ci=0 ftype=0
log      =internal log           bsize=4096   blocks=2560, version=2
         =                       sectsz=512   sunit=8 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0

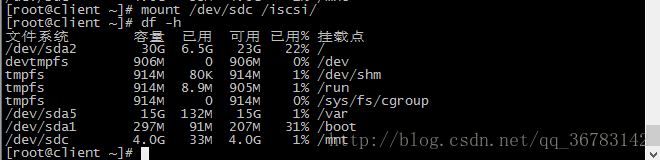

挂载

[root@client ~]# mount /dev/sdc /iscsi/
[root@client ~]# df -h
文件系统        容量  已用  可用 已用% 挂载点
/dev/sda2        30G  6.5G   23G   22% /
devtmpfs        906M     0  906M    0% /dev
tmpfs           914M   80K  914M    1% /dev/shm
tmpfs           914M  8.9M  905M    1% /run
tmpfs           914M     0  914M    0% /sys/fs/cgroup
/dev/sda5        15G  132M   15G    1% /var
/dev/sda1       297M   91M  207M   31% /boot
/dev/sdc        4.0G   33M  4.0G    1% /iscsi

添加到开机挂载项

[root@client ~]# blkid | grep /dev/sdc
/dev/sdc: UUID="195b8cf9-e8c9-4d42-93f7-a745fc0aa470" TYPE="xfs"
[root@client ~]# vim /etc/fstab
#在最后一行加入下面代码
UUID=195b8cf9-e8c9-4d42-93f7-a745fc0aa470 /iscsi xfs defualt_netdev 0 0
