首先在此声明，本文章仅仅用于研究学习，不可用于任何商业活动，否则后果自负。如侵权请与我联系，立即删除。
唠嗑
俺来自河南，愿望我大河南平安！
没错今天，我又来搞事情了，咱们今天学习一下某东登录时的滑块的加密。废话不多说了，开干。
加密分析与定位
当我们输入账号密码后，点击登录，首先映入眼帘的是一个滑块，那我们先分析一下滑块吧。

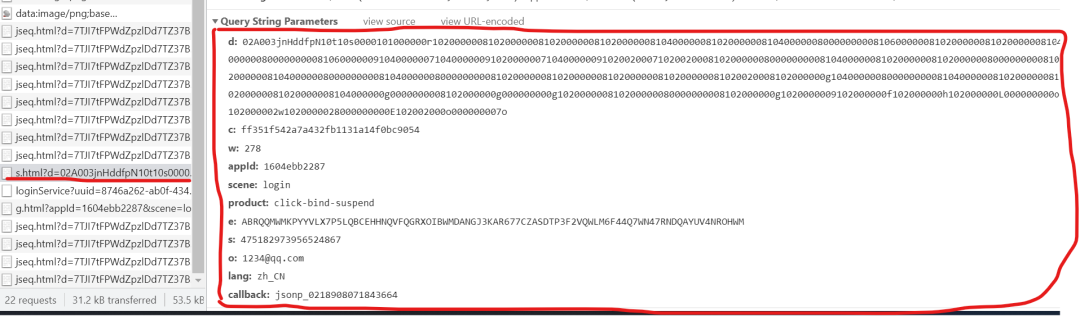

上图是滑块的有关信息，左边的横线是请求的url，右边是参数，很显然，里面有好多参数。但经过分析，d就是滑块轨迹的加密，c跟下图获取滑块图片一起返回的，下图中challenge就是参数c,参数e可以从网页源码中获取到，而参数appId是定值，参数o就是我们的账号，
下面我们就分析一下参数d,看它怎么加密。
这里我是通过下图调用栈，找到的，点击下图画横线的，然后格式化一下，再搜索appId就可以找到。
最后找到的就是下图这个，这里我已经打上断点。
我们再次登录，会自动断在这里。我们滑动滑块，就会停到这里
可以清除看到，g为一个数组，其实就是我一定滑块的轨迹，这里我们可以借鉴一个文章里面的滑块轨迹思路
https://www.52pojie.cn/thread-1162979-1-1.html
这里我提供一下代码（改写文章里面的）。
# -*- encoding: utf-8 -*-
"""
@File : trances.py
@Contact : jyj345559953@qq.com
@Author : Esword
"""
"""
用于生成坐标轨迹
"""
import random
import matplotlib.pyplot as plt
import numpy as np
class GTrace(object):
def __init__(self):
self.__pos_x = []
self.__pos_y = []
self.__pos_z = []
def __set_pt_time(self):
"""
设置各节点的时间
分析不同时间间隔中X坐标数量的占比
统计结果: 1. 80%~90%的X坐标在15~20毫秒之间
2. 10%~15%在20~200及以上，其中 [-a, 0, x, ...] 这里x只有一个，取值在110~200之间
坐标集最后3~5个坐标取值再50~400之间，最后一个坐标数值最大
滑动总时间的取值规则: 图片宽度260，去掉滑块的宽度剩下200;
如果距离小于100，则耗时1300~1900之间
如果距离大于100，则耗时1700~2100之间
"""
__end_pt_time = []
__move_pt_time = []
self.__pos_z = []
total_move_time = self.__need_time * random.uniform(0.8, 0.9)
start_point_time = random.uniform(110, 200)
__start_pt_time = [0, 0, int(start_point_time)]
sum_move_time = 0
_tmp_total_move_time = total_move_time
while True:
delta_time = random.uniform(15, 20)
if _tmp_total_move_time < delta_time:
break
sum_move_time += delta_time
_tmp_total_move_time -= delta_time
__move_pt_time.append(int(start_point_time+sum_move_time))
last_pt_time = __move_pt_time[-1]
__move_pt_time.append(last_pt_time+_tmp_total_move_time)
sum_end_time = start_point_time + total_move_time
other_point_time = self.__need_time - sum_end_time
end_first_ptime = other_point_time / 2
while True:
delta_time = random.uniform(110, 200)
if end_first_ptime - delta_time <= 0:
break
end_first_ptime -= delta_time
sum_end_time += delta_time
__end_pt_time.append(int(sum_end_time))
__end_pt_time.append(int(sum_end_time + (other_point_time/2 + end_first_ptime)))
self.__pos_z.extend(__start_pt_time)
self.__pos_z.extend(__move_pt_time)
self.__pos_z.extend(__end_pt_time)
def __set_distance(self, _dist):
"""
设置要生成的轨迹长度
"""
self.__distance = _dist
if _dist < 100:
self.__need_time = int(random.uniform(500, 1500))
else:
self.__need_time = int(random.uniform(1000, 2000))
def __get_pos_z(self):
return self.__pos_z
def __get_pos_y(self):
_pos_y = [random.uniform(-40, -18), 0]
point_count = len(self.__pos_z)
x = np.linspace(-10, 15, point_count - len(_pos_y))
arct_y = np.arctan(x)
for _, val in enumerate(arct_y):
_pos_y.append(val)
return _pos_y
def __get_pos_x(self, _distance):
"""
绘制标准的数学函数图像: 以 tanh 开始 以 arctan 结尾
根据此模型用等比时间差生成X坐标
"""
# first_val = random.uniform(-40, -18)
# _distance += first_val
_pos_x = [random.uniform(-40, -18), 0]
self.__set_distance(_distance)
self.__set_pt_time()
point_count = len(self.__pos_z)
x = np.linspace(-1, 19, point_count-len(_pos_x))
ss = np.arctan(x)
th = np.tanh(x)
for idx in range(0, len(th)):
if th[idx] < ss[idx]:
th[idx] = ss[idx]
th += 1
th *= (_distance / 2.5)
i = 0
start_idx = int(point_count/10)
end_idx = int(point_count/50)
delta_pt = abs(np.random.normal(scale=1.1, size=point_count-start_idx-end_idx))
for idx in range(start_idx, point_count):
if idx*1.3 > len(delta_pt):
break
th[idx] += delta_pt[i]
i+=1
_pos_x.extend(th)
return _pos_x[-1], _pos_x
def get_mouse_pos_path(self, distance):
"""
获取滑动滑块鼠标的滑动轨迹坐标集合
"""
result = []
_distance, x = self.__get_pos_x(distance)
y = self.__get_pos_y()
z = self.__get_pos_z()
for idx in range(len(x)):
result.append([int(x[idx]), int(y[idx]), int(z[idx])])
import matplotlib.pyplot as plt
plt.plot(z,x)
plt.show()
return int(_distance), result
import random
import time
from trances import GTrace
def timestamp():
return int(time.time()*1000)
trace = GTrace()
# distance = random.uniform(70, 150)
distance = 125
print("长度为: %d " % distance)
distance, mouse_pos_path = trace.get_mouse_pos_path(distance)
print("长度为: %d , 坐标为: " % distance, mouse_pos_path)
# num = len(mouse_pos_path)
# print(num)
# 842,368
base_t = timestamp()
trace = []
for i in mouse_pos_path:
x,y,t = i
x += 842
y += 368
t += base_t
trace.append([str(x),str(y),t])
print(trace)
我们把数组copy下来，本地画一下图，然后看看是怎样的轨迹。
（这里我就直接剽窃人家的图了，我的找不到了，哈哈哈，其实就是上面上面文章里面的。）
基本上都是这样的一个轨迹。我们用那个文章的代码跑一下，然后生成跟g一样的数组，本地生成的数组替换滑块的，看看能不能过，经过我的尝试，是可以的，至于那个移动长度，其实数组的第一个（从第0个开始）的第0个参数，被最后一个数组的第0个减去，然后就是移动距离。
[["808","211",1626942564294],["856","240",1626942564294],["857","240",1626942564406],["859","240",1626942564413],["860","240",1626942564421],["861","240",1626942564437],["864","240",1626942564445],["865","240",1626942564453],["866","240",1626942564461],["867","240",1626942564469],["870","240",1626942564477],["872","240",1626942564485],["875","240",1626942564502],["877","240",1626942564510],["879","240",1626942564517],["881","240",1626942564525],["884","240",1626942564533],["886","240",1626942564549],["889","240",1626942564557],["891","240",1626942564565],["894","240",1626942564574],["895","240",1626942564581],["897","240",1626942564589],["899","240",1626942564597],["901","240",1626942564605],["904","240",1626942564613],["905","240",1626942564621],["907","240",1626942564629],["910","240",1626942564637],["914","240",1626942564645],["916","240",1626942564653],["920","240",1626942564661],["924","240",1626942564669],["926","240",1626942564677],["927","240",1626942564685],["931","240",1626942564693],["932","240",1626942564701],["936","240",1626942564709],["937","240",1626942564717],["940","240",1626942564725],["942","240",1626942564733],["945","239",1626942564741],["947","239",1626942564749],["950","239",1626942564758],["951","239",1626942564765],["954","239",1626942564775],["956","239",1626942564781],["957","239",1626942564789],["960","238",1626942564797],["962","238",1626942564806],["964","238",1626942564813],["965","238",1626942564822],["967","238",1626942564829],["969","238",1626942564837],["970","238",1626942564845],["972","238",1626942564853],["975","238",1626942564861],["976","238",1626942564877],["979","238",1626942564885],["980","238",1626942564893],["981","238",1626942564910],["982","238",1626942565013],["984","238",1626942565678],["983","238",1626942565950],["981","238",1626942565974],["980","238",1626942566110],["979","238",1626942566126],["981","238",1626942568326],["981","238",1626942568861]]
上面就是那个数组，距离就是981-856，则125就是移动距离。我本地生成一下。然后复制，令g = 本地生成的数组（控制台操作）。
通过上图可以看出,g发生了改变，没错，就是我们本地生成的数组。我们接着让它运行，看一下结果。
可以发现已经成功了，还有就是滑块缺口识别用opencv的模板匹配就好了，完全可以识别出来。
上图是生成的轨迹图。
下面我们就要看它的加密了，
就是上图这个，我们点进去看一下，
就是上面这个函数，这里很好扣的，就不多说了，扣下来，稍微改一改就好了，代码如下。
function string10to64(d) {
var c = "0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ-~".split("")
, b = c.length
, e = +d
, a = [];
do {
mod = e % b;
e = (e - mod) / b;
a.unshift(c[mod])
} while (e);
return a.join("")
}
function prefixInteger(a, b) {
return (Array(b).join(0) + a).slice(-b)
}
function pretreatment(d, c, b) {
var e = string10to64(Math.abs(d));
var a = "";
if (!b) {
a += (d > 0 ? "1" : "0")
}
a += prefixInteger(e, c);
return a
}
function getCoordinate(c) {
var b = new Array();
for (var e = 0; e < c.length; e++) {
if (e == 0) {
b.push(pretreatment(c[e][0] < 262143 ? c[e][0] : 262143, 3, true));
b.push(pretreatment(c[e][1] < 16777215 ? c[e][1] : 16777215, 4, true));
b.push(pretreatment(c[e][2] < 4398046511103 ? c[e][2] : 4398046511103, 7, true))
} else {
var a = c[e][0] - c[e - 1][0];
var f = c[e][1] - c[e - 1][1];
var d = c[e][2] - c[e - 1][2];
b.push(pretreatment(a < 4095 ? a : 4095, 2, false));
b.push(pretreatment(f < 4095 ? f : 4095, 2, false));
b.push(pretreatment(d < 16777215 ? d : 16777215, 4, true))
}
}
return b.join("")
}
function slide(array) {
g = array
return getCoordinate(g)
}
总结
说实话京东这个滑块的加密不难，对我而言要学的就是怎么模拟生成这个轨迹，这里我们不要一味的复制别人的代码，而是要真正懂其原理，然后再化为己用，如果你也不会滑块轨迹生成，可以好好看看那个文章。
这里仅仅是京东滑块的加密，后面还有，我们下期再见。
