前言：在arcgis openlayer 都会用到迁徙图，这些图都是为了展示一些是数据所需要的，做了一年的gis开发，给我的感受WebGIS始终围绕的是对数据的展示，并不是侧重于数据的深挖掘，WebGIS在分析上还欠完善，个人认为，现在的WebGIS还是查一查，看一看，和前几年的三维可视化差不多，废话不多说，说到用到展示数据，echarts是一个很好的工具，让leaflet和Echarts相结合，
下面是个关于插件的地址：https://github.com/wandergis/leaflet-echarts3

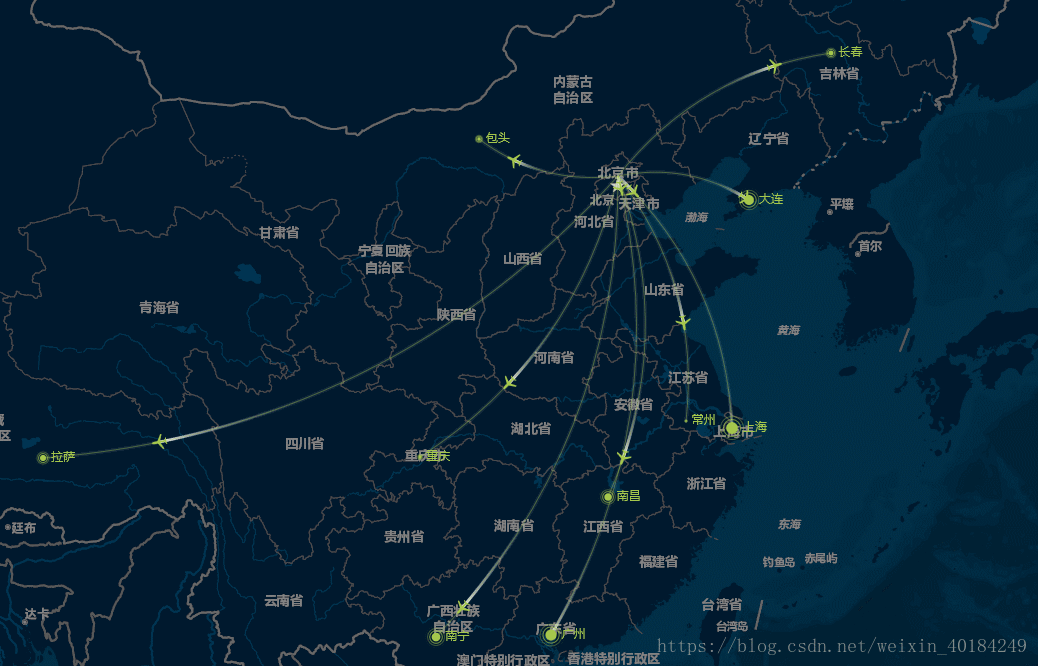

一、来张图
效果并没有太炫酷，能展示数据，达到预想的效果即可。
二、全部代码
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Leaflet 加载 Echarts3</title>
<link href="../script/leaflet/leaflet.css" rel="stylesheet" />
<style>
html, body, #map {
height: 100%;
padding: 0;
margin: 0;
}
</style>
<script src="../script/leaflet-echarts/main.min.js"></script>
</head>
<body>
<div id="map"></div>
<script>
var map = L.map('map');
var baseLayers = {
"高德地图": L.tileLayer('http://webrd0{s}.is.autonavi.com/appmaptile?lang=zh_cn&size=1&scale=1&style=8&x={x}&y={y}&z={z}', {
subdomains: "1234"
}),
'高德影像': L.layerGroup([L.tileLayer('http://webst0{s}.is.autonavi.com/appmaptile?style=6&x={x}&y={y}&z={z}', {
subdomains: "1234"
}), L.tileLayer('http://t{s}.tianditu.cn/DataServer?T=cta_w&X={x}&Y={y}&L={z}', {
subdomains: "1234"
})]),
"立体地图": L.tileLayer('https://a.tiles.mapbox.com/v3/examples.c7d2024a/{z}/{x}/{y}.png', {
attribution: 'Map © Pacific Rim Coordination Center (PRCC). Certain data © <a href="http://openstreetmap.org">OpenStreetMap</a> contributors, <a href="http://creativecommons.org/licenses/by-sa/2.0/">CC-BY-SA</a>',
key: 'BC9A493B41014CAABB98F0471D759707',
styleId: 22677
}),
"Foursquare": L.tileLayer('https://a.tiles.mapbox.com/v3/foursquare.map-0y1jh28j/{z}/{x}/{y}.png', {
attribution: 'Map © Pacific Rim Coordination Center (PRCC). Certain data © <a href="http://openstreetmap.org">OpenStreetMap</a> contributors, <a href="http://creativecommons.org/licenses/by-sa/2.0/">CC-BY-SA</a>',
key: 'BC9A493B41014CAABB98F0471D759707',
styleId: 22677
}),
'GeoQ灰色底图': L.tileLayer('http://map.geoq.cn/ArcGIS/rest/services/ChinaOnlineStreetPurplishBlue/MapServer/tile/{z}/{y}/{x}').addTo(map)
};
L.tileLayer('https://a.tiles.mapbox.com/v3/foursquare.map-0y1jh28j/{z}/{x}/{y}.png', {
attribution: 'Map © Pacific Rim Coordination Center (PRCC). Certain data © <a href="http://openstreetmap.org">OpenStreetMap</a> contributors, <a href="http://creativecommons.org/licenses/by-sa/2.0/">CC-BY-SA</a>',
key: 'BC9A493B41014CAABB98F0471D759707',
styleId: 22677
});
var layercontrol = L.control.layers(baseLayers,{}, {
position: "topleft"
}).addTo(map);
map.setView(L.latLng(37.550339, 104.114129), 4);
var overlay = new L.echartsLayer3(map, echarts);
var chartsContainer = overlay.getEchartsContainer();
var myChart = overlay.initECharts(chartsContainer);
var geoCoordMap = {
'上海': [121.4648, 31.2891],
'东莞': [113.8953, 22.901],
'东营': [118.7073, 37.5513],
'中山': [113.4229, 22.478],
'临汾': [111.4783, 36.1615],
'临沂': [118.3118, 35.2936],
'丹东': [124.541, 40.4242],
'丽水': [119.5642, 28.1854],
'乌鲁木齐': [87.9236, 43.5883],
'佛山': [112.8955, 23.1097],
'保定': [115.0488, 39.0948],
'兰州': [103.5901, 36.3043],
'包头': [110.3467, 41.4899],
'北京': [116.4551, 40.2539],
'北海': [109.314, 21.6211],
'南京': [118.8062, 31.9208],
'南宁': [108.479, 23.1152],
'南昌': [116.0046, 28.6633],
'南通': [121.1023, 32.1625],
'厦门': [118.1689, 24.6478],
'台州': [121.1353, 28.6688],
'合肥': [117.29, 32.0581],
'呼和浩特': [111.4124, 40.4901],
'咸阳': [108.4131, 34.8706],
'哈尔滨': [127.9688, 45.368],
'唐山': [118.4766, 39.6826],
'嘉兴': [120.9155, 30.6354],
'大同': [113.7854, 39.8035],
'大连': [122.2229, 39.4409],
'天津': [117.4219, 39.4189],
'太原': [112.3352, 37.9413],
'威海': [121.9482, 37.1393],
'宁波': [121.5967, 29.6466],
'宝鸡': [107.1826, 34.3433],
'宿迁': [118.5535, 33.7775],
'常州': [119.4543, 31.5582],
'广州': [113.5107, 23.2196],
'廊坊': [116.521, 39.0509],
'延安': [109.1052, 36.4252],
'张家口': [115.1477, 40.8527],
'徐州': [117.5208, 34.3268],
'德州': [116.6858, 37.2107],
'惠州': [114.6204, 23.1647],
'成都': [103.9526, 30.7617],
'扬州': [119.4653, 32.8162],
'承德': [117.5757, 41.4075],
'拉萨': [91.1865, 30.1465],
'无锡': [120.3442, 31.5527],
'日照': [119.2786, 35.5023],
'昆明': [102.9199, 25.4663],
'杭州': [119.5313, 29.8773],
'枣庄': [117.323, 34.8926],
'柳州': [109.3799, 24.9774],
'株洲': [113.5327, 27.0319],
'武汉': [114.3896, 30.6628],
'汕头': [117.1692, 23.3405],
'江门': [112.6318, 22.1484],
'沈阳': [123.1238, 42.1216],
'沧州': [116.8286, 38.2104],
'河源': [114.917, 23.9722],
'泉州': [118.3228, 25.1147],
'泰安': [117.0264, 36.0516],
'泰州': [120.0586, 32.5525],
'济南': [117.1582, 36.8701],
'济宁': [116.8286, 35.3375],
'海口': [110.3893, 19.8516],
'淄博': [118.0371, 36.6064],
'淮安': [118.927, 33.4039],
'深圳': [114.5435, 22.5439],
'清远': [112.9175, 24.3292],
'温州': [120.498, 27.8119],
'渭南': [109.7864, 35.0299],
'湖州': [119.8608, 30.7782],
'湘潭': [112.5439, 27.7075],
'滨州': [117.8174, 37.4963],
'潍坊': [119.0918, 36.524],
'烟台': [120.7397, 37.5128],
'玉溪': [101.9312, 23.8898],
'珠海': [113.7305, 22.1155],
'盐城': [120.2234, 33.5577],
'盘锦': [121.9482, 41.0449],
'石家庄': [114.4995, 38.1006],
'福州': [119.4543, 25.9222],
'秦皇岛': [119.2126, 40.0232],
'绍兴': [120.564, 29.7565],
'聊城': [115.9167, 36.4032],
'肇庆': [112.1265, 23.5822],
'舟山': [122.2559, 30.2234],
'苏州': [120.6519, 31.3989],
'莱芜': [117.6526, 36.2714],
'菏泽': [115.6201, 35.2057],
'营口': [122.4316, 40.4297],
'葫芦岛': [120.1575, 40.578],
'衡水': [115.8838, 37.7161],
'衢州': [118.6853, 28.8666],
'西宁': [101.4038, 36.8207],
'西安': [109.1162, 34.2004],
'贵阳': [106.6992, 26.7682],
'连云港': [119.1248, 34.552],
'邢台': [114.8071, 37.2821],
'邯郸': [114.4775, 36.535],
'郑州': [113.4668, 34.6234],
'鄂尔多斯': [108.9734, 39.2487],
'重庆': [107.7539, 30.1904],
'金华': [120.0037, 29.1028],
'铜川': [109.0393, 35.1947],
'银川': [106.3586, 38.1775],
'镇江': [119.4763, 31.9702],
'长春': [125.8154, 44.2584],
'长沙': [113.0823, 28.2568],
'长治': [112.8625, 36.4746],
'阳泉': [113.4778, 38.0951],
'青岛': [120.4651, 36.3373],
'韶关': [113.7964, 24.7028]
};
var BJData = [
[{name: '北京'}, {name: '上海', value: 95}],
[{name: '北京'}, {name: '广州', value: 90}],
[{name: '北京'}, {name: '大连', value: 80}],
[{name: '北京'}, {name: '南宁', value: 70}],
[{name: '北京'}, {name: '南昌', value: 60}],
[{name: '北京'}, {name: '拉萨', value: 50}],
[{name: '北京'}, {name: '长春', value: 40}],
[{name: '北京'}, {name: '包头', value: 30}],
[{name: '北京'}, {name: '重庆', value: 20}],
[{name: '北京'}, {name: '常州', value: 10}]
];
var SHData = [
[{name: '上海'}, {name: '包头', value: 95}],
[{name: '上海'}, {name: '昆明', value: 90}],
[{name: '上海'}, {name: '广州', value: 80}],
[{name: '上海'}, {name: '郑州', value: 70}],
[{name: '上海'}, {name: '长春', value: 60}],
[{name: '上海'}, {name: '重庆', value: 50}],
[{name: '上海'}, {name: '长沙', value: 40}],
[{name: '上海'}, {name: '北京', value: 30}],
[{name: '上海'}, {name: '丹东', value: 20}],
[{name: '上海'}, {name: '大连', value: 10}]
];
var GZData = [
[{name: '广州'}, {name: '福州', value: 95}],
[{name: '广州'}, {name: '太原', value: 90}],
[{name: '广州'}, {name: '长春', value: 80}],
[{name: '广州'}, {name: '重庆', value: 70}],
[{name: '广州'}, {name: '西安', value: 60}],
[{name: '广州'}, {name: '成都', value: 50}],
[{name: '广州'}, {name: '常州', value: 40}],
[{name: '广州'}, {name: '北京', value: 30}],
[{name: '广州'}, {name: '北海', value: 20}],
[{name: '广州'}, {name: '海口', value: 10}]
];
var planePath = 'path://M1705.06,1318.313v-89.254l-319.9-221.799l0.073-208.063c0.521-84.662-26.629-121.796-63.961-121.491c-37.332-0.305-64.482,36.829-63.961,121.491l0.073,208.063l-319.9,221.799v89.254l330.343-157.288l12.238,241.308l-134.449,92.931l0.531,42.034l175.125-42.917l175.125,42.917l0.531-42.034l-134.449-92.931l12.238-241.308L1705.06,1318.313z';
var convertData = function (data) {
var res = [];
for (var i = 0; i < data.length; i++) {
var dataItem = data[i];
var fromCoord = geoCoordMap[dataItem[0].name];
var toCoord = geoCoordMap[dataItem[1].name];
if (fromCoord && toCoord) {
res.push([{
coord: fromCoord
}, {
coord: toCoord
}]);
}
}
return res;
};
var color = ['#a6c84c', '#ffa022', '#46bee9'];
var series = [];
[['北京', BJData], ['上海', SHData], ['广州', GZData]].forEach(function (item, i) {
series.push({
name: item[0] + ' Top10',
type: 'lines',
zlevel: 1,
effect: {
show: true,
period: 6,
trailLength: 0.7,
color: '#fff',
symbolSize: 3
},
lineStyle: {
normal: {
color: color[i],
0,
curveness: 0.2
}
},
data: convertData(item[1])
},
{
name: item[0] + ' Top10',
type: 'lines',
zlevel: 2,
effect: {
show: true,
period: 6,
trailLength: 0,
symbol: planePath,
symbolSize: 15
},
lineStyle: {
normal: {
color: color[i],
1,
opacity: 0.4,
curveness: 0.2
}
},
data: convertData(item[1])
},
{
name: item[0] + ' Top10',
type: 'effectScatter',
coordinateSystem: 'geo',
zlevel: 2,
rippleEffect: {
brushType: 'stroke'
},
label: {
normal: {
show: true,
position: 'right',
formatter: '{b}'
}
},
symbolSize: function (val) {
return val[2] / 8;
},
itemStyle: {
normal: {
color: color[i]
}
},
data: item[1].map(function (dataItem) {
return {
name: dataItem[1].name,
value: geoCoordMap[dataItem[1].name].concat([dataItem[1].value])
};
})
});
});
option = {
// backgroundColor: '#404a59',
title: {
text: 'Leaflet扩展Echarts3之模拟迁徙',
subtext: 'Develop By WanderGIS',
left: 'center',
textStyle: {
color: '#fff'
}
},
tooltip: {
trigger: 'item'
},
legend: {
orient: 'vertical',
top: 'bottom',
left: 'right',
data: ['北京 Top10', '上海 Top10', '广州 Top10'],
textStyle: {
color: '#fff'
},
selectedMode: 'single'
},
geo: {
map: '',
label: {
emphasis: {
show: false
}
},
roam: true,
itemStyle: {
normal: {
areaColor: '#323c48',
borderColor: '#404a59'
},
emphasis: {
areaColor: '#2a333d'
}
}
},
series: series
};
// 使用刚指定的配置项和数据显示图表。
overlay.setOption(option);
</script>
</body>
</html>
