  • 实验 7:OpenDaylight 实验——Python 中的 REST API 调用

    一、实验目的

    对 Python 调用 OpenDaylight 的 REST API 方法有初步了解。

    二、实验任务

    本实验需要用另一种方法完成上一个实验相同的功能,即通过 Python 程序调用
    OpenDaylight 的北向接口下发关于硬超时的流表,实现拓扑内主机在一定时间
    内的网络通断。实验拓扑如下:

    三、实验步骤

    1. 实验环境

    安装了 Ubuntu 18.04.5 Desktop amd64 的虚拟机

    2. 实验过程

    (1)生成拓扑

    $ sudo mn --topo=single,3 --controller=remote,ip=127.0.0.1,port=6633 --switch
    ovsk,protocols=OpenFlow13


    生成拓扑的方法同之前的实验一致。
    (2)编写 Python 代码和 JSON 格式的请求内容

    $ nano odlnorth.py

    #!/usr/bin/python
    import requests
    from requests.auth import HTTPBasicAuth
    def http_put(url,jstr):
     url= url
     headers = {'Content-Type':'application/json'}
     resp = requests.put(url,jstr,headers=headers,auth=HTTPBasicAuth('admin', 'admin'))
     return resp

    if __name__ == "__main__":
          url = 'http://127.0.0.1:8181/restconf/config/opendaylight-inventory:nodes/node/openflow:1/flownode-inventory:table/0/flow/1'
          with open('hardtimeout.json') as f:
          jstr = f.read()
          resp = http_put(url,jstr)
          print (resp.content)


    由于是下发流表,因此需要有 http 请求的具体内容,同之前的 Postman 一样,
    也是以 JSON 格式来表示。
    编辑 hardtimeout.json 文件:

    $ nano hardtimeout.json


    文件中不包含 http 请求的 url 地址

    {
        "flow": [{
            "id": "1",
            "match": {
                "in-port": "1",
                "ethernet-match": {
                    "ethernet-type": {
                        "type": "0x0800"
                    }
                },
                "ipv4-destination": "10.0.0.3/32"
            },
            "instructions": {
                "instruction": [{
                    "order": "0",
                    "apply-actions": {
                        "action": [{
                            "order": "0",
                            "drop-action": {}
                        }]
                    }
                }]
            },
            "flow-name": "flow1",
            "priority": "65535",
            "hard-timeout": "10",
            "cookie": "2",
            "table_id": "0"
        }]
    }

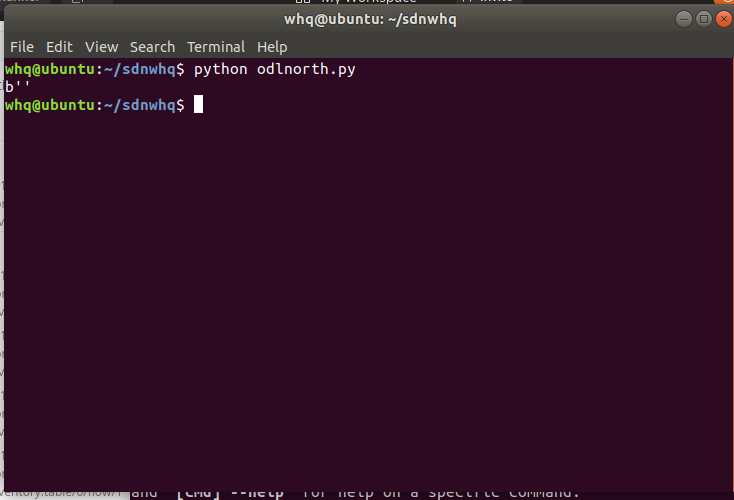

    (3)运行 Python 代码,完成流表下发
    $ python odlnorth.py
    结果验证方法同实验 6

    • 建立拓扑

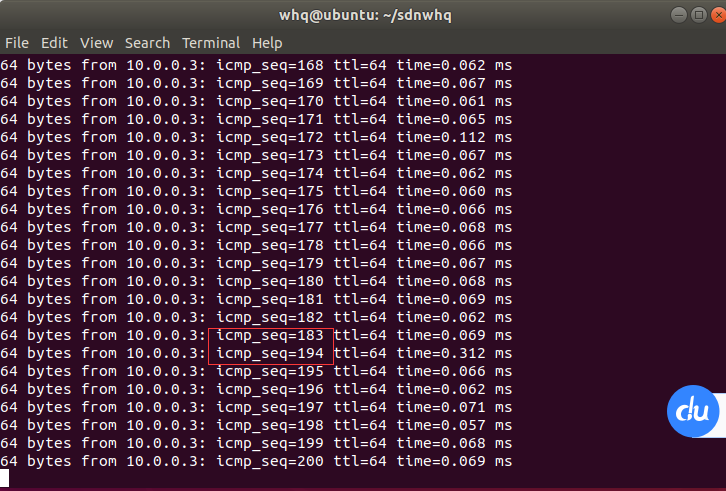

    • 运行 h1 ping h3
    • 运行 odlnorth.py
    • 得到正确结果
