  • Qt编程中qmake的使用详解

    首先说一下qt编程的步骤,然后再仔细说一下qmake的使用。我看书上的都是编写好cpp文件后,分别执行命令: qmake -project、qmake、make,然后执行就可以了,但是要是我在一个文件夹下有多个cpp文件,qmake怎么识别?make生成的最后执行文件的名,我怎么能随心所欲的自己定?带着疑问,找了网上的资料,不如所衣,然后尝试着gcc编译的思想竟然撞到了。

      其实我感觉要要真正了解qmake的使用方法,直接在终端下输入命令:qmake -help就可以了,我也是这样做的,帮助内容如下

    1. Usage: qmake [mode] [options] [files]
    2.
    3. QMake has two modes, one mode for generating project files based on
    4. some heuristics, and the other for generating makefiles. Normally you
    5. shouldn't need to specify a mode, as makefile generation is the default
    6. mode for qmake, but you may use this to test qmake on an existing project
    7.
    8. Mode:
    9.   -project       Put qmake into project file generation mode
    10.                  In this mode qmake interprets files as files to
    11.                  be built,
    12.                  defaults to *.c; *.ui; *.y; *.l; *.ts; *.xlf; *.qrc; *.h; *.hpp; *.hh; *.hxx; *.H; *.cpp; *.cc; *.cxx; *.C
    13.                  Note: The created .pro file probably will
    14.                  need to be edited. For example add the QT variable to
    15.                  specify what modules are required.
    16.   -makefile      Put qmake into makefile generation mode (default)
    17.                  In this mode qmake interprets files as project files to
    18.                  be processed, if skipped qmake will try to find a project
    19.                  file in your current working directory
    20.
    21. Warnings Options:
    22.   -Wnone         Turn off all warnings; specific ones may be re-enabled by
    23.                  later -W options
    24.   -Wall          Turn on all warnings
    25.   -Wparser       Turn on parser warnings
    26.   -Wlogic        Turn on logic warnings (on by default)
    27.   -Wdeprecated   Turn on deprecation warnings (on by default)
    28.
    29. Options:
    30.    * You can place any variable assignment in options and it will be     *
    31.    * processed as if it was in [files]. These assignments will be parsed *
    32.    * before [files].                                                     *
    33.   -o file        Write output to file
    34.   -d             Increase debug level
    35.   -t templ       Overrides TEMPLATE as templ
    36.   -tp prefix     Overrides TEMPLATE so that prefix is prefixed into the value
    37.   -help          This help
    38.   -v             Version information
    39.   -after         All variable assignments after this will be
    40.                  parsed after [files]
    41.   -norecursive   Don't do a recursive search
    42.   -recursive     Do a recursive search
    43.   -set <prop> <value> Set persistent property
    44.   -unset <prop>  Unset persistent property
    45.   -query <prop>  Query persistent property. Show all if <prop> is empty.
    46.   -cache file    Use file as cache           [makefile mode only]
    47.   -spec spec     Use spec as QMAKESPEC       [makefile mode only]
    48.   -nocache       Don't use a cache file      [makefile mode only]
    49.   -nodepend      Don't generate dependencies [makefile mode only]
    50.   -nomoc         Don't generate moc targets  [makefile mode only]
    51.   -nopwd         Don't look for files in pwd [project mode only]
    52. song@ubuntu:~/lianxi/qt$ clear
    53.
    54. song@ubuntu:~/lianxi/qt$ qmake -help
    55. Usage: qmake [mode] [options] [files]
    56.
    57. QMake has two modes, one mode for generating project files based on
    58. some heuristics, and the other for generating makefiles. Normally you
    59. shouldn't need to specify a mode, as makefile generation is the default
    60. mode for qmake, but you may use this to test qmake on an existing project
    61.
    62. Mode:
    63.   -project       Put qmake into project file generation mode
    64.                  In this mode qmake interprets files as files to
    65.                  be built,
    66.                  defaults to *.c; *.ui; *.y; *.l; *.ts; *.xlf; *.qrc; *.h; *.hpp; *.hh; *.hxx; *.H; *.cpp; *.cc; *.cxx; *.C
    67.                  Note: The created .pro file probably will
    68.                  need to be edited. For example add the QT variable to
    69.                  specify what modules are required.
    70.   -makefile      Put qmake into makefile generation mode (default)
    71.                  In this mode qmake interprets files as project files to
    72.                  be processed, if skipped qmake will try to find a project
    73.                  file in your current working directory
    74.
    75. Warnings Options:
    76.   -Wnone         Turn off all warnings; specific ones may be re-enabled by
    77.                  later -W options
    78.   -Wall          Turn on all warnings
    79.   -Wparser       Turn on parser warnings
    80.   -Wlogic        Turn on logic warnings (on by default)
    81.   -Wdeprecated   Turn on deprecation warnings (on by default)
    82.
    83. Options:
    84.    * You can place any variable assignment in options and it will be     *
    85.    * processed as if it was in [files]. These assignments will be parsed *
    86.    * before [files].                                                     *
    87.   -o file        Write output to file
    88.   -d             Increase debug level
    89.   -t templ       Overrides TEMPLATE as templ
    90.   -tp prefix     Overrides TEMPLATE so that prefix is prefixed into the value
    91.   -help          This help
    92.   -v             Version information
    93.   -after         All variable assignments after this will be
    94.                  parsed after [files]
    95.   -norecursive   Don't do a recursive search
    96.   -recursive     Do a recursive search
    97.   -set <prop> <value> Set persistent property
    98.   -unset <prop>  Unset persistent property
    99.   -query <prop>  Query persistent property. Show all if <prop> is empty.
    100.   -cache file    Use file as cache           [makefile mode only]
    101.   -spec spec     Use spec as QMAKESPEC       [makefile mode only]
    102.   -nocache       Don't use a cache file      [makefile mode only]
    103.   -nodepend      Don't generate dependencies [makefile mode only]
    104.   -nomoc         Don't generate moc targets  [makefile mode only]
    105.   -nopwd         Don't look for files in pwd [project mode only]
    Usage: qmake [mode] [options] [files]

    QMake has two modes, one mode for generating project files based on
    some heuristics, and the other for generating makefiles. Normally you
    shouldn't need to specify a mode, as makefile generation is the default
    mode for qmake, but you may use this to test qmake on an existing project

    Mode:
      -project       Put qmake into project file generation mode
                     In this mode qmake interprets files as files to
                     be built,
                     defaults to *.c; *.ui; *.y; *.l; *.ts; *.xlf; *.qrc; *.h; *.hpp; *.hh; *.hxx; *.H; *.cpp; *.cc; *.cxx; *.C
                     Note: The created .pro file probably will
                     need to be edited. For example add the QT variable to
                     specify what modules are required.
      -makefile      Put qmake into makefile generation mode (default)
                     In this mode qmake interprets files as project files to
                     be processed, if skipped qmake will try to find a project
                     file in your current working directory

    Warnings Options:
      -Wnone         Turn off all warnings; specific ones may be re-enabled by
                     later -W options
      -Wall          Turn on all warnings
      -Wparser       Turn on parser warnings
      -Wlogic        Turn on logic warnings (on by default)
      -Wdeprecated   Turn on deprecation warnings (on by default)

    Options:
       * You can place any variable assignment in options and it will be     *
       * processed as if it was in [files]. These assignments will be parsed *
       * before [files].                                                     *
      -o file        Write output to file
      -d             Increase debug level
      -t templ       Overrides TEMPLATE as templ
      -tp prefix     Overrides TEMPLATE so that prefix is prefixed into the value
      -help          This help
      -v             Version information
      -after         All variable assignments after this will be
                     parsed after [files]
      -norecursive   Don't do a recursive search
      -recursive     Do a recursive search
      -set <prop> <value> Set persistent property
      -unset <prop>  Unset persistent property
      -query <prop>  Query persistent property. Show all if <prop> is empty.
      -cache file    Use file as cache           [makefile mode only]
      -spec spec     Use spec as QMAKESPEC       [makefile mode only]
      -nocache       Don't use a cache file      [makefile mode only]
      -nodepend      Don't generate dependencies [makefile mode only]
      -nomoc         Don't generate moc targets  [makefile mode only]
      -nopwd         Don't look for files in pwd [project mode only]
    song@ubuntu:~/lianxi/qt$ clear

    song@ubuntu:~/lianxi/qt$ qmake -help
    Usage: qmake [mode] [options] [files]

    QMake has two modes, one mode for generating project files based on
    some heuristics, and the other for generating makefiles. Normally you
    shouldn't need to specify a mode, as makefile generation is the default
    mode for qmake, but you may use this to test qmake on an existing project

    Mode:
      -project       Put qmake into project file generation mode
                     In this mode qmake interprets files as files to
                     be built,
                     defaults to *.c; *.ui; *.y; *.l; *.ts; *.xlf; *.qrc; *.h; *.hpp; *.hh; *.hxx; *.H; *.cpp; *.cc; *.cxx; *.C
                     Note: The created .pro file probably will
                     need to be edited. For example add the QT variable to
                     specify what modules are required.
      -makefile      Put qmake into makefile generation mode (default)
                     In this mode qmake interprets files as project files to
                     be processed, if skipped qmake will try to find a project
                     file in your current working directory

    Warnings Options:
      -Wnone         Turn off all warnings; specific ones may be re-enabled by
                     later -W options
      -Wall          Turn on all warnings
      -Wparser       Turn on parser warnings
      -Wlogic        Turn on logic warnings (on by default)
      -Wdeprecated   Turn on deprecation warnings (on by default)

    Options:
       * You can place any variable assignment in options and it will be     *
       * processed as if it was in [files]. These assignments will be parsed *
       * before [files].                                                     *
      -o file        Write output to file
      -d             Increase debug level
      -t templ       Overrides TEMPLATE as templ
      -tp prefix     Overrides TEMPLATE so that prefix is prefixed into the value
      -help          This help
      -v             Version information
      -after         All variable assignments after this will be
                     parsed after [files]
      -norecursive   Don't do a recursive search
      -recursive     Do a recursive search
      -set <prop> <value> Set persistent property
      -unset <prop>  Unset persistent property
      -query <prop>  Query persistent property. Show all if <prop> is empty.
      -cache file    Use file as cache           [makefile mode only]
      -spec spec     Use spec as QMAKESPEC       [makefile mode only]
      -nocache       Don't use a cache file      [makefile mode only]
      -nodepend      Don't generate dependencies [makefile mode only]
      -nomoc         Don't generate moc targets  [makefile mode only]
      -nopwd         Don't look for files in pwd [project mode only]


    qmake命令格式

       qmake [mode] [options] [files]

    mode选项

       -project  生成.pro文件

       -makefile 生成Makefile文件

    options选项(这里介绍几个常用的,其它的自己去翻译上面,其实我也是刚学,用到的时候再学习哈)

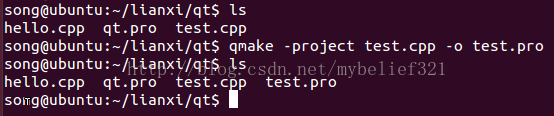

      -o file 输出文件名,比如qmake -project  hello.cpp -o  hello.pro,就会生成一个hello.pro文件,如果是qmake -project  hello.cpp -o  hello11.pro,就会生成一个hello11.pro文件



    实验1

     1、编写代码,命名为hello.cpp,如下



     hello.cpp代码如下



    1. #include<qapplication.h>
    2. #include<qpushbutton.h>
    3.
    4. int main(int argc,char *argv[])
    5. {
    6.     QApplication a(argc,argv);
    7.     QPushButton hellobtn("Hello World!",0);
    8.     hellobtn.resize(200,50);
    9.     hellobtn.show();
    10.     return a.exec();
    11. }
    #include<qapplication.h>
    #include<qpushbutton.h>

    int main(int argc,char *argv[])
    {
        QApplication a(argc,argv);
        QPushButton hellobtn("Hello World!",0);
        hellobtn.resize(200,50);
        hellobtn.show();
        return a.exec();
    }


     2、qmake -project (用于创建.pro文件,将所有的文件编译成一个与平台无关的工程文件)



     可见默认生成的文件名为 qt.pro

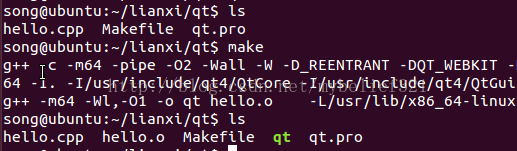

     3、qmake (读取本身的Qt设置,生成与库一致的相应的Makefile)



     4、make (根据生成的Makefile,将文件编译为二进制可执行程序)

      可见生成了qt可执行程序

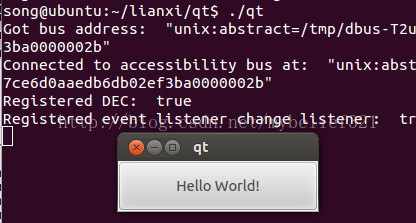

    5、执行命令:./qt

    实验2

    本实验中并没有用到上面所讲的方式,而是直接使用了默认值,但是假设说该文件夹下有两个cpp文件,如下图



    这时候再执行命令:qmake -project会怎么样呢?会出现下面的结果

    有点意思,竟然不出错,但是你知道它生成的qt.pro是哪个cpp文件的吗?我不知道,加入这里我想对test.cpp操作,这时候就要按照上面的格式了。

    1、qmake -project test.cpp -o test.pro

     这时候生成了test.pro

    2、qmake  -makefile test.pro,这里生成test.pro的Makefile

    3、make

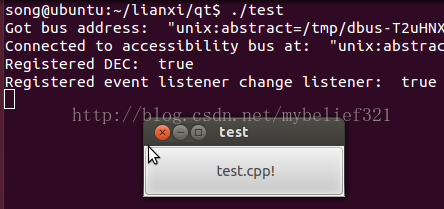

    4、执行命令 ./test

  • 相关阅读:
    URAL——DFS找规律——Nudnik Photographer
    URAL1353——DP——Milliard Vasya's Function
    URAL1203——DPor贪心——Scientific Conference
    递推DP HDOJ 5389 Zero Escape
    区间DP UVA 1351 String Compression
    树形DP UVA 1292 Strategic game
    Manacher HDOJ 5371 Hotaru's problem
    同余模定理 HDOJ 5373 The shortest problem
    递推DP HDOJ 5375 Gray code
    最大子序列和 HDOJ 1003 Max Sum
  • 原文地址:https://www.cnblogs.com/wwwbdabc/p/11677260.html
Copyright © 2011-2022 走看看
