  • Matlab 高脚杯模型切片

    前言:此文为去年我替人做的一个课题,觉得比较简洁,图形也比较美观,因此放在博文里

    数据源我放到了百度云盘高脚杯数据源

    有兴趣的可以下载数据,跑程序试一下。也可以单独看看代码,看下实现过程。

    • 主函数
    % xls_data=xlsread('data_more.xls');
    % x=xls_data(1:3:end);
    % y=xls_data(2:3:end+1);
    % data=[x,y];
    % save('data.mat','data');
    clc,clear
    load data.mat
    x=data(:,2);
    y=data(:,1);
    yy=smooth(y);
    figure
    plot(yy,x,'.r');
    axis equal
    grid on
    title('orig data');
    %%  拟合
    % xx=[min(x):0.1:max(x)]';
    % fitsize=4;%拟合次数自己定义
    % p=polyfit(x,y,fitsize);
    % f=polyval(p,xx);
    % figure
    % plot(f,xx,'linewidth',2);
    % axis equal
    % grid on
    % title('fit data')
    %%
    figure
    [X,Y,Z] = cylinder(yy(end:-1:1));
    [m,n]=size(X);
    color=ones(m,n);
    h=surf(X,Y,Z);
    alpha(0.8)%设定透明度
    CM=[1,0,1];
    CM=repmat(CM,32,1);
    colormap(CM);
    lighting gouraud;camlight;shading interp
    title('the model')
    %%
    % figure
    % pcolor(X,Y,Z);shading interp%伪彩色图
    % figure
    % contourf(X,Y,Z) %等高线图
    % view(3)
    % figure,surf(X,Y,Z)%三维曲面

    %%   曲线个数为20  slice图
    figure
    plot_hor(X,Y,Z,1,10,518,'m');
    grid on
    plot_hor(X,Y,Z,100,5,400,'m');
    title('slice')
    %%   骨架图  virtical and horizontal
    figure
    plot3(X,Y,Z,'linewidth',2,'color','b')
    hold on
    plot_hor(X,Y,Z,1,5,518,'b');
    grid on
    title('framework');



    • 被调用函数,用于绘制高脚杯骨架
    function plot_hor(x,y,z,First1,Step1,End1,color)

    for i=First1:Step1:End1
    x_hor=x(i,1:21);y_hor=y(i,1:21);z_hor=z(i,1:21);
    plot3(x_hor,y_hor,z_hor,'linewidth',2,'color',color);
    hold on
    end

    end

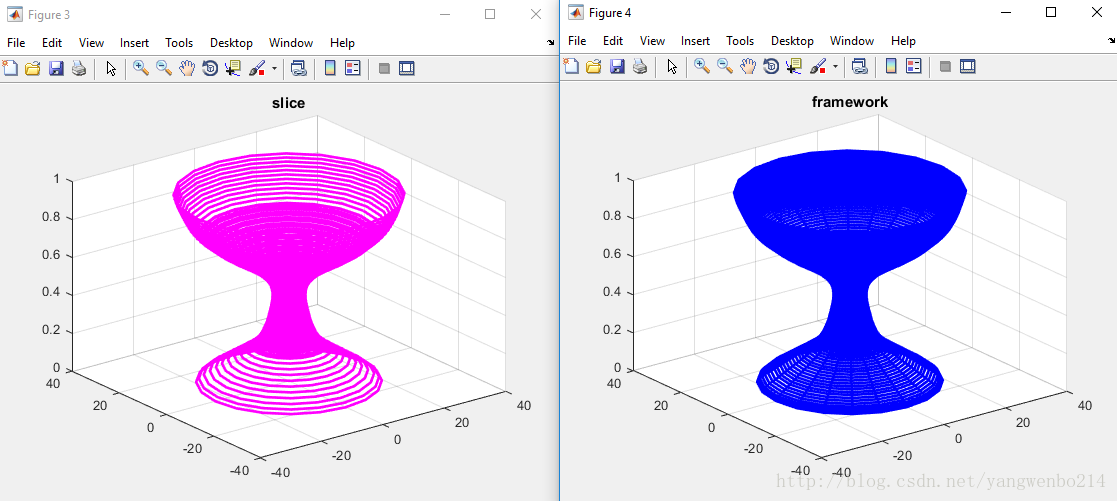

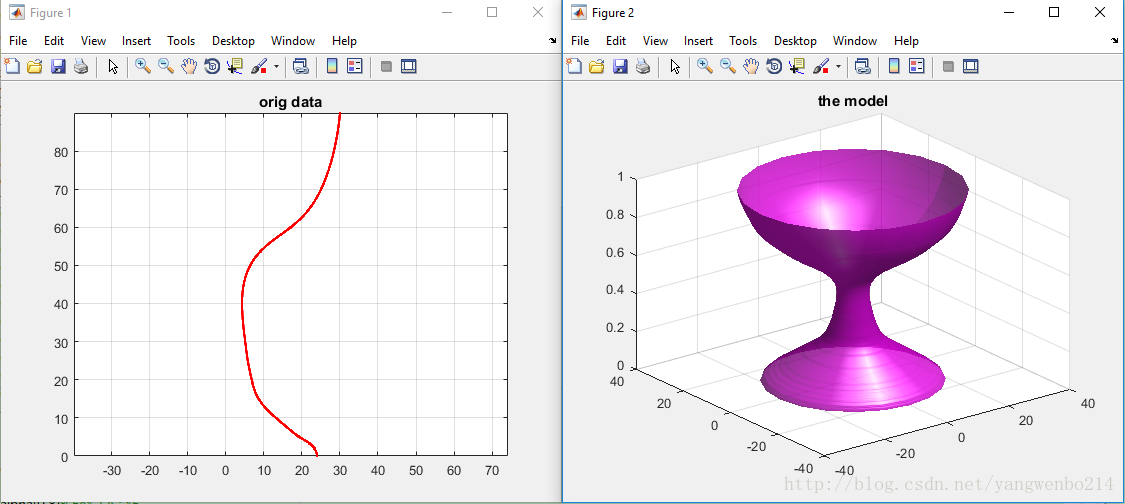

    • 大致结果如下:

    这里写图片描述
    这里写图片描述
