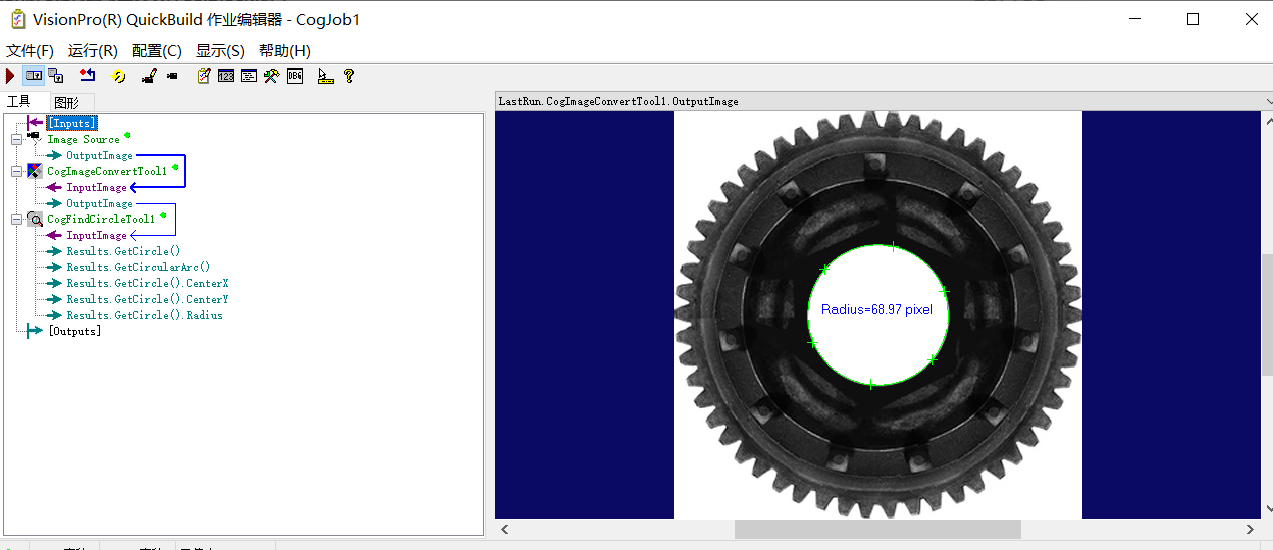

在脚本中添加相应代码便可显示相应字符：
VisionPro中添加如下工具并建立链接：
脚本中添加变量Radius、CogFindCircleToolObject、myCircle如下：
1 #region Private Member Variables
2 private Cognex.VisionPro.ToolBlock.CogToolBlock mToolBlock;
3 private double Radius = 0;
4 private CogFindCircleTool CogFindCircleToolObject;
5 private CogCircle myCircle;
6 #endregion
脚本GroupRun中添加代码如下：
1 public override bool GroupRun(ref string message, ref CogToolResultConstants result)
2 {
3 // To let the execution stop in this script when a debugger is attached, uncomment the following lines.
4 // #if DEBUG
5 // if (System.Diagnostics.Debugger.IsAttached) System.Diagnostics.Debugger.Break();
6 // #endif
7
8
9 // Run each tool using the RunTool function
10 foreach(ICogTool tool in mToolBlock.Tools)
11 mToolBlock.RunTool(tool, ref message, ref result);
12
13 CogFindCircleToolObject = (CogFindCircleTool) mToolBlock.Tools["CogFindCircleTool1"];
14
15 myCircle = CogFindCircleToolObject.Results.GetCircle();
16
17 Radius = double.Parse(myCircle.Radius.ToString("0.00"));
18
19 return false;
20 }
脚本ModifyLastRunRecord中添加代码如下：
1 public override void ModifyLastRunRecord(Cognex.VisionPro.ICogRecord lastRecord)
2 {
3 CogGraphicLabel ResultLabel = new CogGraphicLabel();
4 string labelStr = string.Format("Radius={0:F2} pixel", Radius);
5 ResultLabel.SetXYText(myCircle.CenterX, myCircle.CenterY, labelStr);
6 ResultLabel.Color = Cognex.VisionPro.CogColorConstants.Blue;
7 mToolBlock.AddGraphicToRunRecord(ResultLabel, lastRecord, "CogImageConvertTool1.OutputImage", "script");
8 }
完整脚本代码：
1 #region namespace imports
2 using System;
3 using System.Collections;
4 using System.Drawing;
5 using System.IO;
6 using System.Windows.Forms;
7 using Cognex.VisionPro;
8 using Cognex.VisionPro.ToolBlock;
9 using Cognex.VisionPro3D;
10 using Cognex.VisionPro.QuickBuild.Implementation.Internal;
11 using Cognex.VisionPro.ImageProcessing;
12 using Cognex.VisionPro.Caliper;
13 #endregion
14
15 public class CogToolBlockAdvancedScript : CogToolBlockAdvancedScriptBase
16 {
17 #region Private Member Variables
18 private Cognex.VisionPro.ToolBlock.CogToolBlock mToolBlock;
19 private double Radius = 0;
20 private CogFindCircleTool CogFindCircleToolObject;
21 private CogCircle myCircle;
22 #endregion
23
24 /// <summary>
25 /// Called when the parent tool is run.
26 /// Add code here to customize or replace the normal run behavior.
27 /// </summary>
28 /// <param name="message">Sets the Message in the tool's RunStatus.</param>
29 /// <param name="result">Sets the Result in the tool's RunStatus</param>
30 /// <returns>True if the tool should run normally,
31 /// False if GroupRun customizes run behavior</returns>
32 public override bool GroupRun(ref string message, ref CogToolResultConstants result)
33 {
34 // To let the execution stop in this script when a debugger is attached, uncomment the following lines.
35 // #if DEBUG
36 // if (System.Diagnostics.Debugger.IsAttached) System.Diagnostics.Debugger.Break();
37 // #endif
38
39
40 // Run each tool using the RunTool function
41 foreach(ICogTool tool in mToolBlock.Tools)
42 mToolBlock.RunTool(tool, ref message, ref result);
43
44 CogFindCircleToolObject = (CogFindCircleTool) mToolBlock.Tools["CogFindCircleTool1"];
45
46 myCircle = CogFindCircleToolObject.Results.GetCircle();
47
48 Radius = double.Parse(myCircle.Radius.ToString("0.00"));
49
50 return false;
51 }
52
53 #region When the Current Run Record is Created
54 /// <summary>
55 /// Called when the current record may have changed and is being reconstructed
56 /// </summary>
