  • FreeRTOS计数型信号量

    API函数

    //创建
    #if( configSUPPORT_DYNAMIC_ALLOCATION == 1 )
        #define xSemaphoreCreateCounting( uxMaxCount, uxInitialCount )
                                    xQueueCreateCountingSemaphore( ( uxMaxCount ), ( uxInitialCount ) )
        QueueHandle_t xQueueCreateCountingSemaphore( const UBaseType_t uxMaxCount,
                                                    const UBaseType_t uxInitialCount )
    #endif

    //释放
    #define xSemaphoreGive( xSemaphore )
    xQueueGenericSend( ( QueueHandle_t ) ( xSemaphore ), NULL, semGIVE_BLOCK_TIME, queueSEND_TO_BACK )
    BaseType_t xQueueGenericSend( QueueHandle_t xQueue, const void * const pvItemToQueue,
                                TickType_t xTicksToWait, const BaseType_t xCopyPosition )

    //获取信号量值
    #define uxSemaphoreGetCount( xSemaphore ) uxQueueMessagesWaiting( ( QueueHandle_t ) ( xSemaphore ) )
    UBaseType_t uxQueueMessagesWaiting( const QueueHandle_t xQueue )

    //等待
    #define xSemaphoreTake( xSemaphore, xBlockTime )
    xQueueGenericReceive( ( QueueHandle_t ) ( xSemaphore ), NULL, ( xBlockTime ), pdFALSE )
    BaseType_t xQueueGenericReceive( QueueHandle_t xQueue, void * const pvBuffer,
                                    TickType_t xTicksToWait, const BaseType_t xJustPeeking )

    使用举例

    SemaphoreHandle_t semaphore;

    void start_task(void *pvParameters)
    {
        semaphore = xSemaphoreCreateCounting(10, 0);
    }

    void give_task(void *pvParameters)
    {
        UBaseType_t count;

        while(1)
        {
            key = KEY_Scan(0);
            if(key == WKUP_PRES)
            {
                err = xSemaphoreGive(semaphore);

                count = uxSemaphoreGetCount(semaphore);

                printf("give_task uxSemaphoreGetCount %d
    ", count);
            }

            vTaskDelay(10);
        }
    }

    void take_task(void *pvParameters)
    {
        while(1)
        {
            xSemaphoreTake(semaphore, portMAX_DELAY);

            count = uxSemaphoreGetCount(semaphore);

            printf("take_task uxSemaphoreGetCount %d
    ", count);

            vTaskDelay(1000);
        }
    }

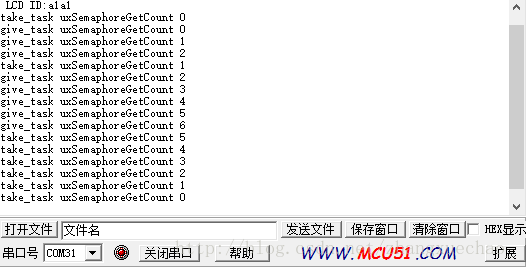

    实验现象
    1
