  • S5PV210 时钟

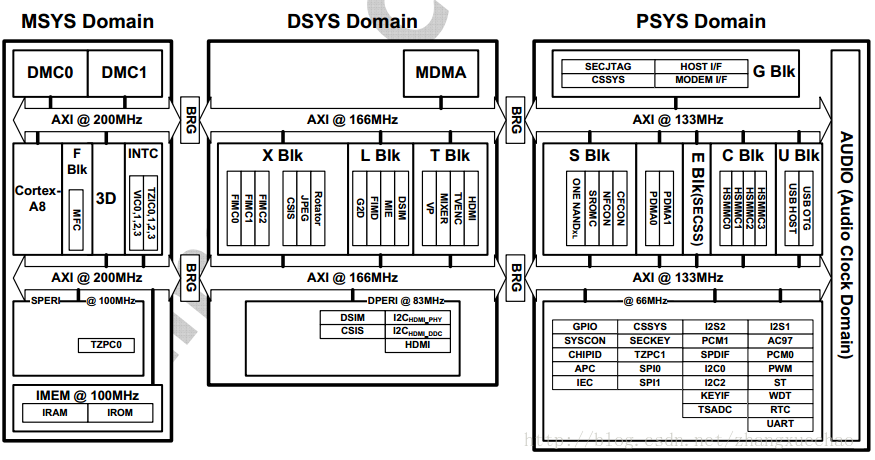

    CLOCK DOMAINS 时钟域

    S5PV210 consists of three clock domains, namely, main system (MSYS), display system (DSYS), and peripheral system (PSYS)

    1

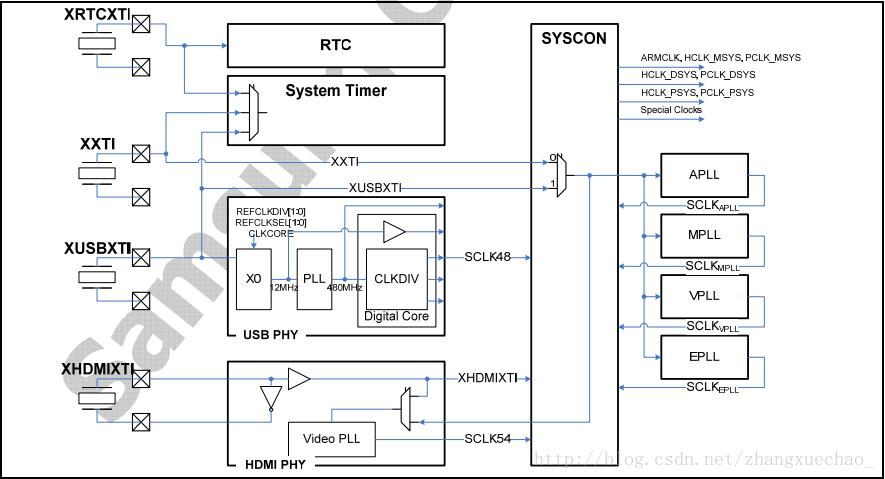

    时钟源
    外部焊接:

    1.XRTCXTI:实时时钟
    2.XXTI:CPU时钟
    3.XUSBXTI:USB时钟
    4.XHDMIXTI:HDMI时钟

    1

    CMU典型应用:

    1.MSYS clock domain uses APLL (that is, ARMCLK, HCLK_MSYS, and PCLK_MSYS)
    2.DSYS and PSYS clock domain (that is, HCLK_DSYS, HCLK_PSYS, PCLK_DSYS, and PCLK_PSYS) and other peripheral clocks (that is, audio IPs, SPI, and so on) use MPLL and EPLL
    3.Video clocks uses VPLL

    1

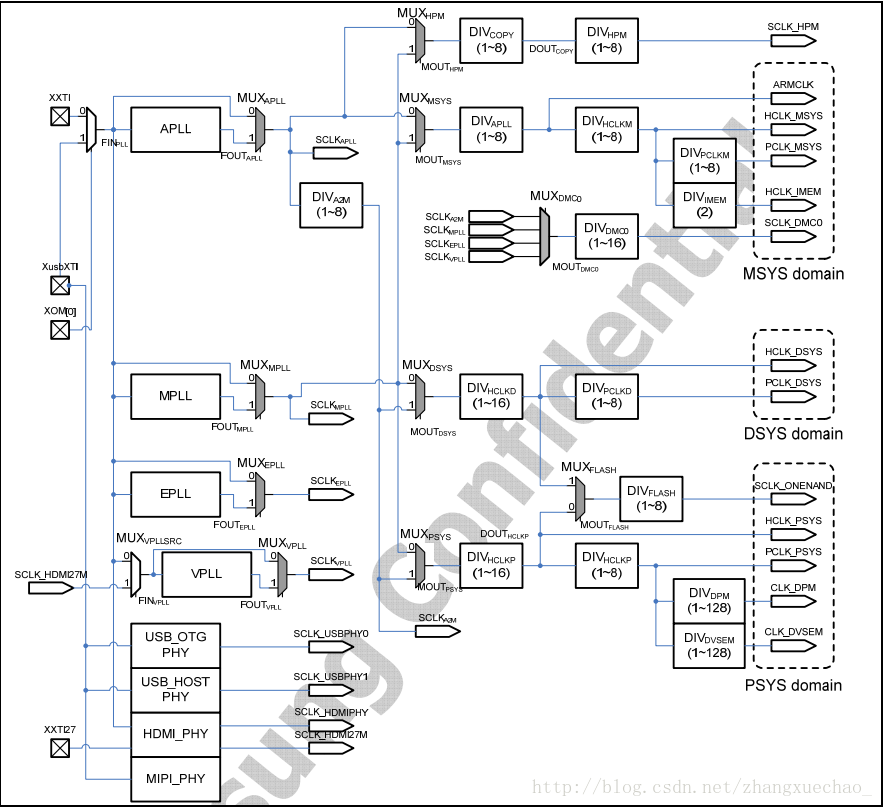

    时钟关系

    MSYS clock domain
    − freq(ARMCLK) = freq(MOUT_MSYS) / n, where n = 1 ~ 8
    − freq(HCLK_MSYS) = freq(ARMCLK) / n, where n = 1 ~ 8 //高速
    − freq(PCLK_MSYS) = freq(HCLK_MSYS) / n, where n = 1 ~ 8 //低速
    − freq(HCLK_IMEM) = freq(HCLK_MSYS) / 2 //内存
    • DSYS clock domain
    − freq(HCLK_DSYS) = freq(MOUT_DSYS) / n, where n = 1 ~ 16
    − freq(PCLK_DSYS) = freq(HCLK_DSYS) / n, where n = 1 ~ 8
    • PSYS clock domain
    − freq(HCLK_PSYS) = freq(MOUT_PSYS) / n, where n = 1 ~ 16
    − freq(PCLK_PSYS) = freq(HCLK_PSYS) / n, where n = 1 ~ 8
    − freq(SCLK_ONENAND) = freq(HCLK_PSYS) / n, where n = 1 ~ 8 //nand

    PLL 锁相环

    1.APLL can drive MSYS domain and DSYS domain
    2.MPLL can drive MSYS domain and DSYS domain
    3.EPLL is mainly used to generate audio clock
    4.VPLL is mainly used to generate video system operating clock

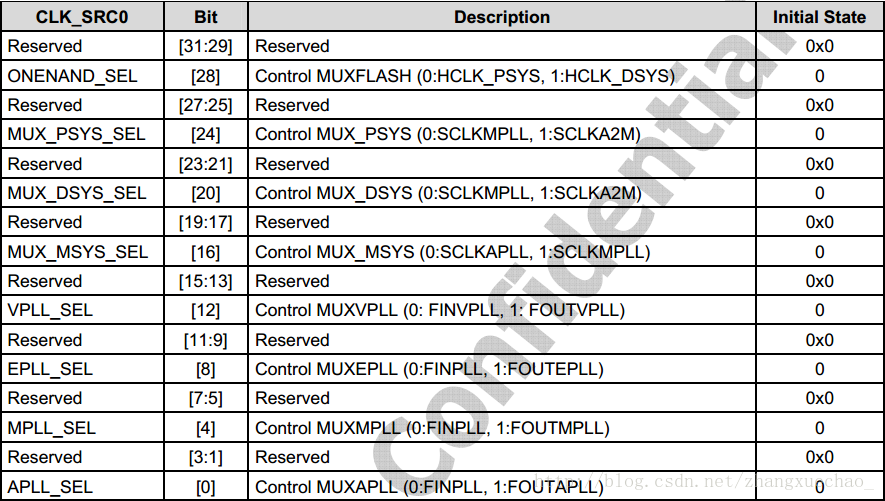

    CLK_SRC0, R/W, Address = 0xE010_0200
    PLL选择,通过设置相应的位
    1

    倍频
    以APLL举例

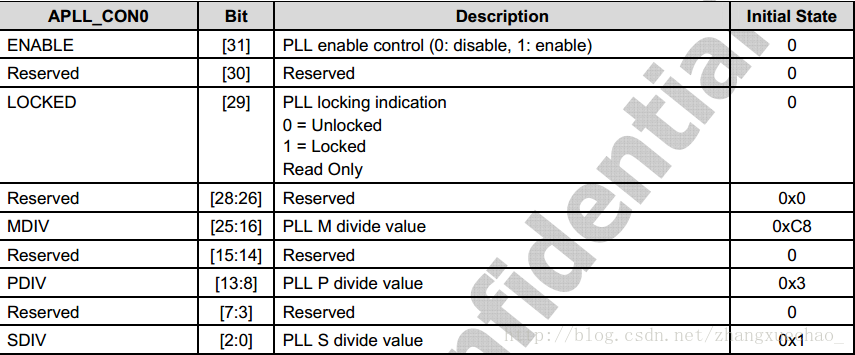

    APLL_CON0, R/W, Address = 0xE010_0100
    1

    FOUT = MDIV * FIN / (PDIV * 2^(SDIV-1))

    PDIV: 1 ≤ PDIV ≤ 63
    MDIV: 16 ≤ MDIV ≤ 1023
    SDIV: 0 ≤ SDIV ≤ 5

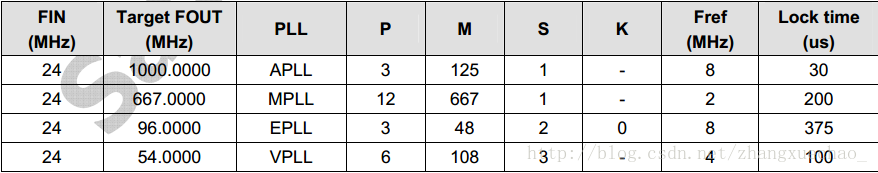

    常用参考值
    1

    倍频到1G
    输入频率,默认24M

    FOUT = 125 * 24 / (3 * 2^(1-1)) = 1000

  • 相关阅读:
    [收集]Grid Animation-01
    陕西航天大学横幅动态测试
    IPC机制
    Android使用权限
    DDMS
    看懂UML类图和时序图
    Frameworks detected: Android framework is detected in the project
    CoordinatorLayout父布局的Behavior
    Android权限记录
    AndroidManifest.xml文件中属性记录
  • 原文地址:https://www.cnblogs.com/zhangxuechao/p/11709528.html
