A.Kaw矩阵代数初步学习笔记 3. Binary Matrix Operations

“矩阵代数初步”(Introduction to MATRIX ALGEBRA)课程由Prof. A.K.Kaw(University of South Florida)设计并讲授。
PDF格式学习笔记下载（Academia.edu）
第3章课程讲义下载（PDF）

Summary

• Addition of matrices
  Two matrices $[A]$ and $[B]$ can be added only if they are the same size. The addition is then shown as $$[C]=[A]+[B]$$ where $$c_{ij}=a_{ij} + b_{ij}$$ For example $$egin{bmatrix}5& 2& 3\ 1& 2& 7end{bmatrix} + egin{bmatrix}6& 7& -2\ 3& 5& 19end{bmatrix}$$ $$= egin{bmatrix}5 + 6& 2 + 7& 3 - 2\ 1 + 3& 2 + 5& 7 + 19end{bmatrix} = egin{bmatrix}11& 9& 1\ 4& 7& 26end{bmatrix}$$
• Subtraction of matrices Two matrices $[A]$ and $[B]$ can be subtracted only if they are the same size. The subtraction is then given by $$[D] = [A]-[B]$$ where $$d_{ij}=a_{ij} - b_{ij}$$ For example $$egin{bmatrix}5& 2& 3\ 1& 2& 7end{bmatrix} - egin{bmatrix}6& 7& -2\ 3& 5& 19end{bmatrix}$$ $$= egin{bmatrix}5 - 6& 2 - 7& 3 -(-2)\ 1 - 3& 2 - 5& 7 - 19end{bmatrix} = egin{bmatrix}-1& -5& 5\ -2& -3& -12end{bmatrix}$$
• Multiplication of matrices
  Two matrices $[A]$ and $[B]$ can be multiplied only if the number of columns of $[A]$ is equal to the number of rows of $[B]$ to give $$[C]_{m imes n}=[A]_{m imes p}cdot[B]_{p imes n}$$ where $$c_{ij}=a_{i1}b_{1j}+a_{i2}b_{2j}+cdots+a_{ip}b_{pj}= sum_{k=1}^{p}a_{ik}b_{kj}$$ for each $i=1, cdots, m$ and $j=1, cdots, n$. That is, the $i$-th row and the $j$-th column of $[C]$ is calculated by multiplying the $i$-th row of $[A]$ by the $j$-th column of $[B]$: $$c_{ij}=egin{bmatrix}a_{i1} & a_{i2}& cdots & a_{ip}end{bmatrix}cdot egin{bmatrix}b_{1j}\ b_{2j}\ vdots\ b_{pj}end{bmatrix}$$ For example, $$A=egin{bmatrix}5& 2& 3\ 1& 2& 7end{bmatrix}, B=egin{bmatrix}3& -2\ 5& -8\ 9& -10end{bmatrix}, C=Acdot B$$ we have $$c_{11}=egin{bmatrix}5& 2& 3end{bmatrix}cdot egin{bmatrix}3\ 5\ 9end{bmatrix}=15+10+27=52, c_{12}=egin{bmatrix}5& 2& 3end{bmatrix}cdot egin{bmatrix}-2\ -8\ -10end{bmatrix}=-10 -16 -30 = -56,$$ $$c_{21}=egin{bmatrix}1& 2& 7end{bmatrix}cdot egin{bmatrix}3\ 5\ 9end{bmatrix}=3+10+63=76, c_{22}=egin{bmatrix}1& 2& 7end{bmatrix}cdot egin{bmatrix}-2\ -8\ -10end{bmatrix}=-2-16-70=-88,$$ $$Rightarrow C=egin{bmatrix}52& -56\ 76& -88end{bmatrix}.$$
• Scalar product of matrices
  If $[A]$ is a $m imes n$ matrix and $k$ is a real number, then the multiplication $[A]$ by a scalar $k$ is another $m imes n$ matrix $[B]$, where $b_{ij}=ka_{ij}$ for all $i$, $j$. For example, $$2cdotegin{bmatrix}5& 2& 3\ 1& 2& 7end{bmatrix} = egin{bmatrix}10& 4& 6\ 2& 4& 14end{bmatrix}$$
• Linear combination of matrices
  If $[A_1]$, $[A_2]$, $cdots$, $[A_{p}]$ are matrices of the same size and $k_1$, $k_2$, $cdots$, $k_p$ are scalars, then $$k_1A_1 + k_2A_2 + cdots + k_pA_p$$ is called a linear combination of $[A_1]$, $[A_2]$, $cdots$, $[A_{p}]$.
• Rules of binary matrix operation
  • Commutative law of addition
    If $[A]$ and $[B]$ are $m imes n$ matrices, then $$[A]+[B] = [B] + [A]$$
  • Associative law of addition
    If $[A]$, $[B]$, and $[C]$ are all $m imes n$ matrices, then $$[A]+([B] + [C]) = ([A] + [B]) + [C]$$
  • Associate law of multiplication
    If $[A]$, $[B]$, and $[C]$ are $m imes n$, $n imes p$, and $p imes r$ size matrices. respectively. Then $$[A]cdot([B]cdot[C]) = ([A]cdot[B])cdot[C]$$ and the resulting matrix size on both sides of the equation is $m imes r$.
  • Distributive law
    If $[A]$ and $[B]$ are $m imes n$ size matrices, and $[C]$ and $[D]$ are $n imes p$ size matrices, then $$[A]cdot([C] + [D]) = [A]cdot[C] + [A]cdot[D]$$ $$([A] + [B])cdot[C] = [A]cdot[C] + [B]cdot[C]$$ and the resulting matrix size on both sides of the equation is $m imes p$.

Selected Problems

1. For the following matrices $$A=egin{bmatrix}3& 0\ -1& 2\ 1& 1end{bmatrix}, B=egin{bmatrix}4& -1\ 0& 2end{bmatrix}, C=egin{bmatrix}5& 2\ 3& 5\ 6& 7end{bmatrix}.$$ Find where possible $4[A] + 5[C]$, $[A]cdot[B]$, $[A]-2[C]$.
Solution:
$$4[A] + 5[C] = egin{bmatrix}12& 0\ -4& 8\ 4& 4end{bmatrix} + egin{bmatrix}25& 10\ 15& 25\ 30& 35end{bmatrix} = egin{bmatrix}37& 10\ 11& 33\ 34& 39end{bmatrix}$$ $$[A] cdot [B] = egin{bmatrix}12& -3\ -4& 5\ 4& 1end{bmatrix}$$ $$[A]-2[C] = egin{bmatrix}3& 0\ -1& 2\ 1& 1end{bmatrix} - egin{bmatrix}10& 4\ 6& 10\ 12& 14end{bmatrix} = egin{bmatrix}-7& -4\ -7& -8\ -11& -13end{bmatrix}$$

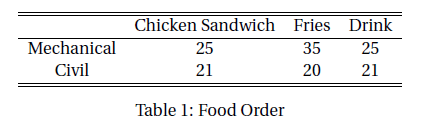

2. Food orders are taken from two engineering departments for a takeout. The order is tabulated in Table 1.

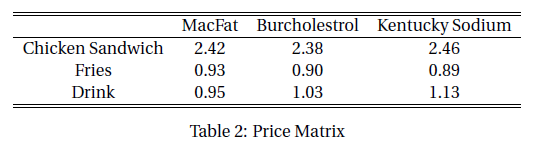

However they have a choice of buying this food from three different restaurants. Their prices for the three food items are tabulated in Table 2.

Show how much each department will pay for their order at each restaurant. Which restaurant would be more economical to order from for each department?
Solution:

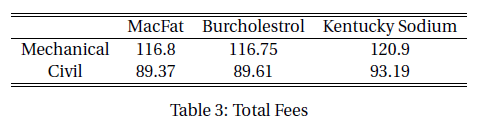

Denote the food order and price matrices as $$[A]=egin{bmatrix}25& 35& 25\ 21& 20& 21end{bmatrix}, [B]=egin{bmatrix}2.42 & 2.38 & 2.46\ 0.93 & 0.90 & 0.89\ 0.95 & 1.03 & 1.13 end{bmatrix}$$ The total fees matrix $[C]$ is the product of $[A]$ and $[B]$: $$[C]=[A]cdot [B] = egin{bmatrix}116.8 & 116.75 & 120.9\ 89.37 & 89.61 & 93.19end{bmatrix}$$ Covert it using tabular is shown in Table 3.

Thus, Burcholestrol is the cheapest for the Mechanocal department, which is 116.75. And MacFat is the cheapest for the Civil department, which is 89.37.

3. Given $$[A] = egin{bmatrix}2& 3& 5\ 6& 7& 9\ 2& 1& 3end{bmatrix}, [B]= egin{bmatrix}3& 5\ 2& 9\ 1& 6end{bmatrix} , [C]= egin{bmatrix}5& 2\ 3& 9\ 7& 6end{bmatrix}.$$ Illustrate the distributive law of binary matrix operations: $$[A]cdot([B]+[C]) = [A]cdot[B] + [A]cdot[C]$$
Solution: $$[B]+[C] = egin{bmatrix}8& 7\ 5& 18\ 8& 12end{bmatrix}, [A]cdot([B]+[C]) = egin{bmatrix}71& 128\ 155& 276\ 45& 68end{bmatrix}$$ $$[A]cdot [B]=egin{bmatrix}17& 67\ 41& 147\ 11& 37end{bmatrix}, [A]cdot [C] = egin{bmatrix}54& 61\ 114& 129\ 34& 31end{bmatrix}\, [A]cdot [B]+[A]cdot [C]= egin{bmatrix}71& 128\ 155& 276\ 45& 68end{bmatrix}$$ Thus $$[A]cdot([B]+[C]) = [A]cdot[B] + [A]cdot[C]$$

4. Let $[I]$ be a $n imes n$ identity matrix. Show that $[A]cdot[I] = [I]cdot[A]=[A]$ for every $n imes n$ matrix $[A]$.
Solution:
Let $[C]_{n imes n}=[A]_{n imes n}cdot[I]_{n imes n}$. So we have $$c_{ij}=a_{i1}i_{1j} + cdots + a_{i, j-1}i_{j-1, j} + a_{ij}i_{jj} + a_{i, j+1}i_{j+1, j}+cdots + a_{in}i_{nj} = sum_{p=1}^{n} a_{ip}i_{pj}$$ for each of $i=1, cdots, n$ and $j=1, cdots, n$. Since $$i_{ij}=egin{cases}0 & i eq j \ 1 & i=jend{cases}$$ Thus $$c_{ij} = sum_{p=1}^{n} a_{ip}i_{pj} = a_{ij}i_{jj} = a_{ij}$$ That is, $[A]cdot[I] = [A]$. Similarly, denote $[D]_{n imes n}=[I]_{n imes n}cdot [A]_{n imes n}$, and $$d_{ij}=i_{i1}a_{1j} + cdots + i_{i, i-1}a_{i-1, j} + i_{ii}a_{ij} + i_{i, i+1}a_{i+1, j}+cdots + i_{in}a_{nj} = sum_{p=1}^{n} i_{ip}a_{pj}$$ Because $i_{ij}=1$ when $i=j$, otherwise $i_{ij}=0$. Thus, $$d_{ij}= sum_{p=1}^{n} i_{ip}a_{pj} = a_{ij}$$ That is, $[I]cdot[A]=[A]$.

5. Consider there are only two computer companies in a country. The companies are named Dude and Imac. Each year, company Dude keeps ${1/5}^{th}$ of its customers, while the rest switch to Imac. Each year, Imac keeps ${1/3}^{rd}$ of its customers, while the rest switch to Dude. If in 2002, Dude has ${1/6}^{th}$ of the market and Imac has ${5/6}^{th}$ of the market.
(A) What is the distribution of the customers between the two companies in 2003? Write the answer first as multiplication of two matrices.
(B) What would be distribution when the market becomes stable?
Solution:
(A) Denote $D_n$ and $M_n$ as the market share of Dude and Imac in the $n$-th year, respectively. $$egin{bmatrix}D_n \ M_n end{bmatrix} = egin{bmatrix}{1over5} & {2over3} \ {4over5} & {1over3}end{bmatrix}cdot egin{bmatrix}D_{n-1} \ M_{n-1} end{bmatrix}$$ Thus $$egin{bmatrix}D_{2003} \ M_{2003} end{bmatrix} = egin{bmatrix}{1over5} & {2over3} \ {4over5} & {1over3}end{bmatrix}cdot egin{bmatrix}D_{2002} \ M_{2002} end{bmatrix} = egin{bmatrix}{1over5} & {2over3} \ {4over5} & {1over3}end{bmatrix}cdot egin{bmatrix}{1over6} \ {5over6} end{bmatrix}= egin{bmatrix}{53over90} \ {37over90} end{bmatrix}$$
(B) The stable system means the market share will not be changed from year to year, that is, $$egin{cases}D = {1over5}D+{2over3}M \ M = {4over5}D + {1over3}Mend{cases}Rightarrow {4over5}D-{2over3}M=0$$ On the other hand, $D + M =1$, thus we have $$egin{cases}{4over5}D-{2over3}M=0\ D + M =1end{cases}Rightarrowegin{cases}D={5over11}\ M={6over11}end{cases}$$ Hence the stable market share of Dude and Imac is ${5over11}$ and ${6over11}$, respectively.

6. Given $$[A]=egin{bmatrix}12.3& -12.3& 10.3\ 11.3& -10.3& -11.3\ 10.3& -11.3& -12.3end{bmatrix}, [B]=egin{bmatrix}2& 4\ -5& 6\ 11& -20end{bmatrix}$$ if $[C] = [A]cdot[B]$, then what is $c_{31}$?
Solution:
$$c_{31} = egin{bmatrix}10.3& -11.3& -12.3end{bmatrix} cdot egin{bmatrix}2\-5\11end{bmatrix} = 10.3 imes2+11.3 imes5-12.3 imes11 = -58.2$$

7. $[A]$ and $[B]$ are square matrices of $n imes n$ order. Then $([A] - [B])([A] - [B])$ is equal to ( ).
Solution:
$$([A]-[B])([A]-[B]) = [A]([A]-[B])-[B]([A]-[B])=[A]^2-[A][B]-[B][A]+[B]^2$$ Note that $[A][B]$ and $[B][A]$ is not equal to each other unless $[A][B]=[B][A]$.

8. Given $[A]$ is a rectangular matrix and $c[A]=0$, then what are the values of $c$ and $[A]$?
Solution:
$c[A]=0Rightarrow c=0$ or $[A]=[0]$.

9. You sell Jupiter and Fickers Candy bars. The sales in January are 25 and 30 of Jupiter and Fickers, respectively. In February, the sales are 75 and 35 of Jupiter and Fickers, respectively. If a Jupiter bar costs 2 dollars and a Fickers bar costs 7 dollars, then what is the total sales amount in each month?
Solution:
$$egin{bmatrix}25& 30\ 75& 35end{bmatrix}cdotegin{bmatrix} 2 \ 7 end{bmatrix} =egin{bmatrix} 260 \ 395 end{bmatrix} $$ Thus, the total sales amount in January and February are 260 dollars and 395 dollars, respectively.
