  • WCF双工实现

    1. Windows Communication Foundation(WCF)是由微软发展的一组数据通信的应用程序开发接口
    2. WCF双工:客户端请求服务端,服务端处理完后再主动调用客户端;

    服务端步骤

    1. 服务端:新增2个接口(1个服务契约接口、1个回调接口),1个服务契约接口派生实现类、配置文件新增配置、启动服务监听端口,
        //1 服务契约接口, (CallbackContract = typeof(ICallback)) 要实现双工这个一定要加上,指定服务锲约为 ICallback
        [ServiceContract(CallbackContract = typeof(ICallback))]
        public interface ICalculateService
        {
            //操作契约, IsOneWay = true 要实现双工这个一定要加上
            [OperationContract(IsOneWay = true)]
            void Add(int x, int y);
        }

    	//2 回调接口,接口名称自定义
        public interface ICallback
        {
            //回调契约
            [OperationContract(IsOneWay =true)]
            void Show(int n);
        }

        //3 服务契约的实现类
        public class CalculateService : ICalculateService
        {
            public void Add(int x, int y)
            {
                int result = x + y;
                Thread.Sleep(2000);
                //通过客户端实例通道
                ICallback callback = OperationContext.Current.GetCallbackChannel<ICallback>();
                //对客户端调用
                callback.Show(result);
            }
        }

    1. 服务端:WCF配置文件,在web.config/app.config里
    <system.serviceModel>
    		<behaviors>
    			<serviceBehaviors>
    				<!--WCF-->
    				<behavior name="CalculateServicebehavior">
    					<serviceDebug httpHelpPageEnabled="false"/>
    					<serviceMetadata httpGetEnabled="false"/>
    					<serviceTimeouts transactionTimeout="00:10:00"/>
    					<serviceThrottling maxConcurrentCalls="1000" maxConcurrentInstances="1000" maxConcurrentSessions="1000"/>
    				</behavior>
    			</serviceBehaviors>
    		</behaviors>

    		<!--WCF-->
    		<bindings>
    			<netTcpBinding>
    				<binding name="tcpbinding">
    					<security mode="None">
    						<transport clientCredentialType="None" protectionLevel="None"/>
    					</security>
    				</binding>
    			</netTcpBinding>
    		</bindings>

    		<!--WCF-->
    		<services>
    			<service name="MySOA.Service.CalculateService" behaviorConfiguration="CalculateServicebehavior">
    				<host>
    					<baseAddresses>
    						<add baseAddress="net.tcp://localhost:11111/CalculatorService"/>
    					</baseAddresses>
    				</host>
    				<endpoint address="" binding="netTcpBinding" bindingConfiguration="tcpbinding" contract="MySOA.Interface.ICalculateService"/>
    				<endpoint address="mex" binding="mexTcpBinding" contract="IMetadataExchange"/>
    			</service>
    		</services>

    	</system.serviceModel>

    1. 启动WCF服务,比如用控制台程序
            static void InitService()
            {
                List<ServiceHost> serviceHosts = new List<ServiceHost>()
                {
                    new ServiceHost(typeof(CalculateService))
                };

                foreach (var serviceHost in serviceHosts)
                {
                    serviceHost.Opened += (s, e) => { Console.WriteLine(serviceHost.GetType().Name + "启动了..."); };
                    serviceHost.Open();

                }
                Console.WriteLine("输入任何字符,中止服务");
                Console.ReadKey();
                foreach (var serviceHost in serviceHosts)
                {
                    serviceHost.Close();
                }
            }


    客户端步骤

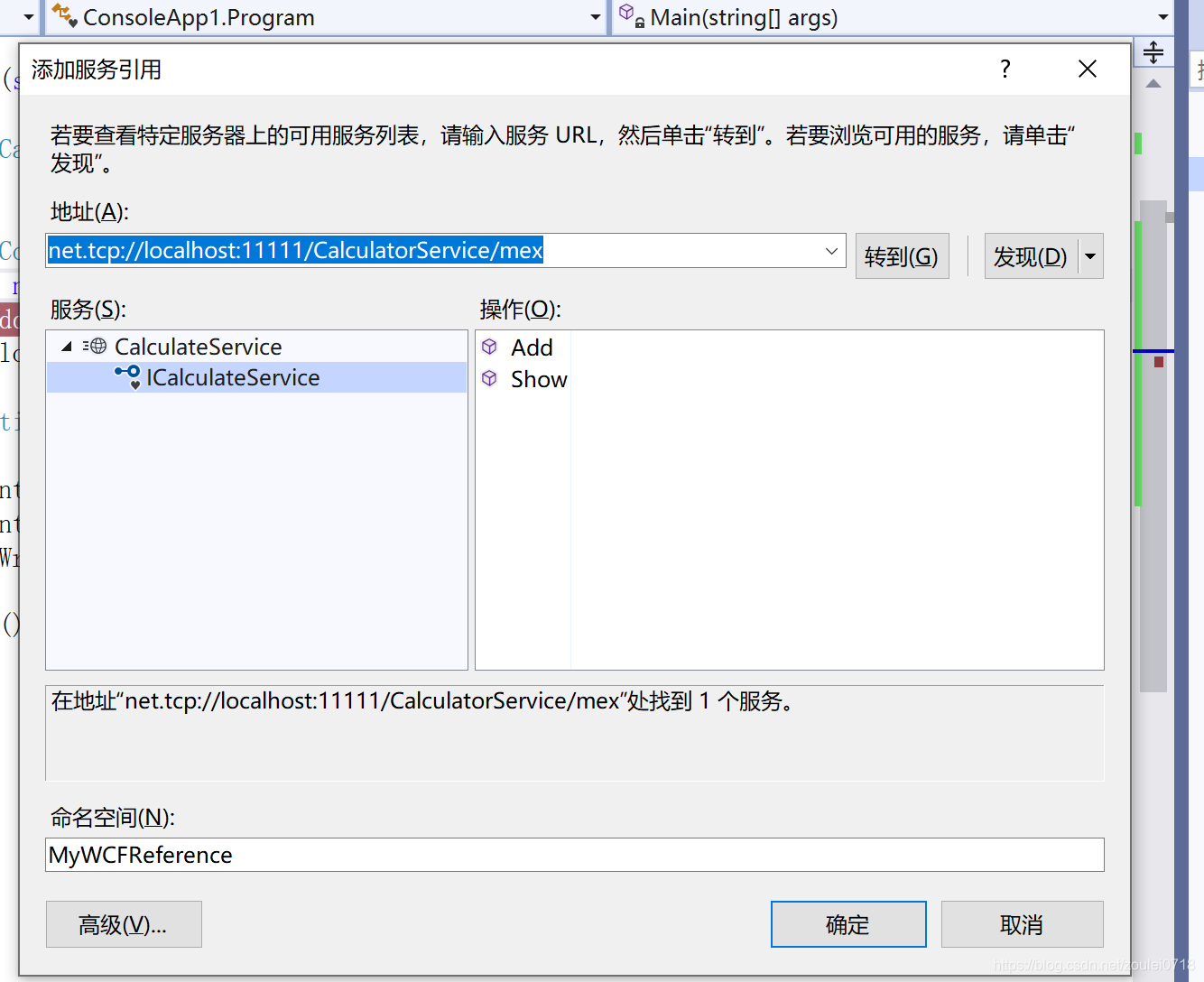

    1. 引用——添加服务引用,输入服务端配置文件里的地址;
      添加服务引用
    2. 创建一个类,继承服务引用里的Callback接口(MySOAClient.ICalculateServiceCallback),并实现方法,此方法届时为服务端主动调用的;
        public class MyCallback : MySOAClient.ICalculateServiceCallback
        {
            public void Show(int n)
            {
                Console.WriteLine($"n:{n}");
            }
        }

    1. 在主函数里创建MyCallback实例并作为参数传入CalculateServiceClient对象,最后调用服务端的方法Add
            static void Main(string[] args)
            {
                MySOAClient.CalculateServiceClient client = null;
                try
                {
                    InstanceContext context = new InstanceContext(new MyCallback());
                    client = new MySOAClient.CalculateServiceClient(context);
                    client.Add(3, 9);
                    client.Close();
                }
                catch (Exception ex)
                {
                    if (client != null)
                        client.Abort();
                    Console.WriteLine(ex.Message);
                }
                Console.Read();
            }

    1. 客户端启动后,调用Add方法,服务端收到并执行Add方法,再执行Callback,再实现对对客户端的回调;
