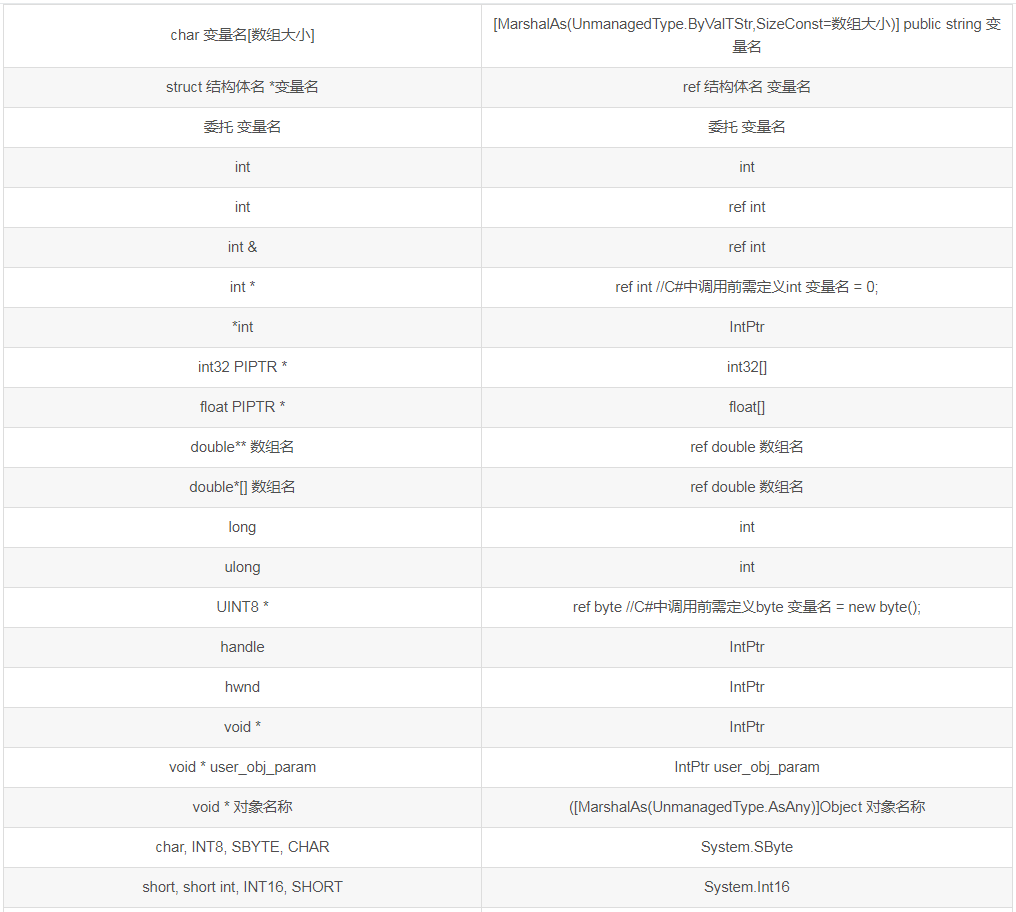

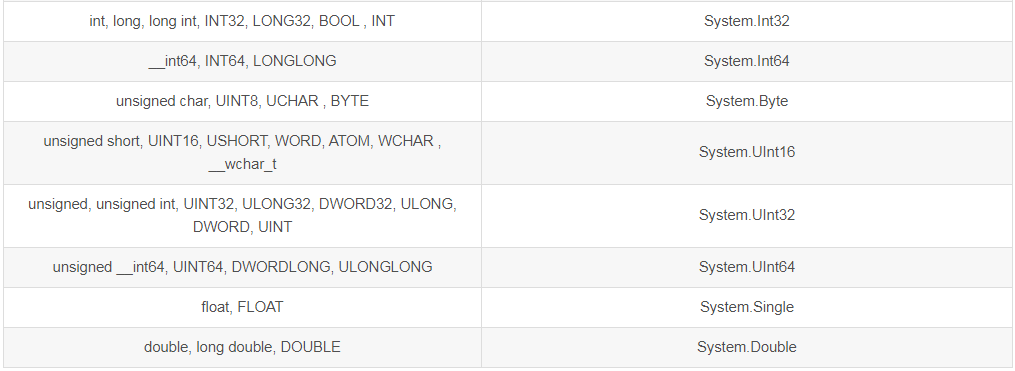

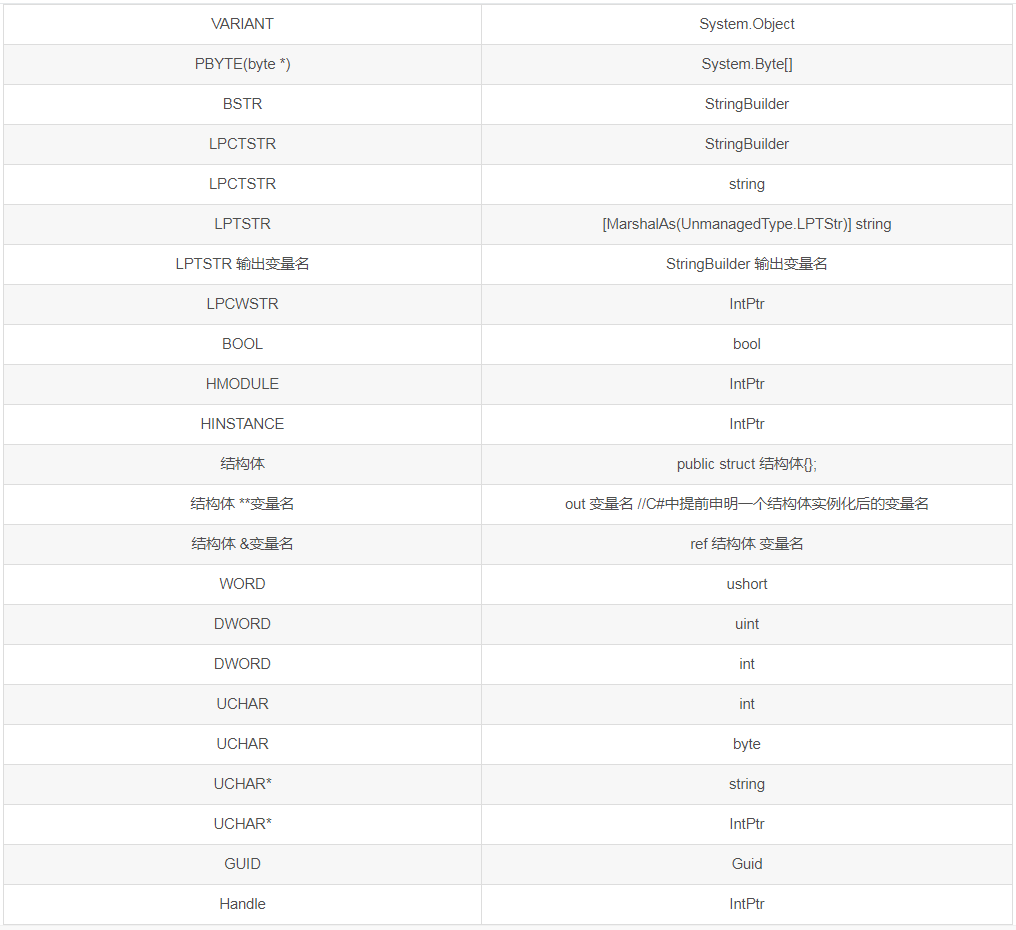

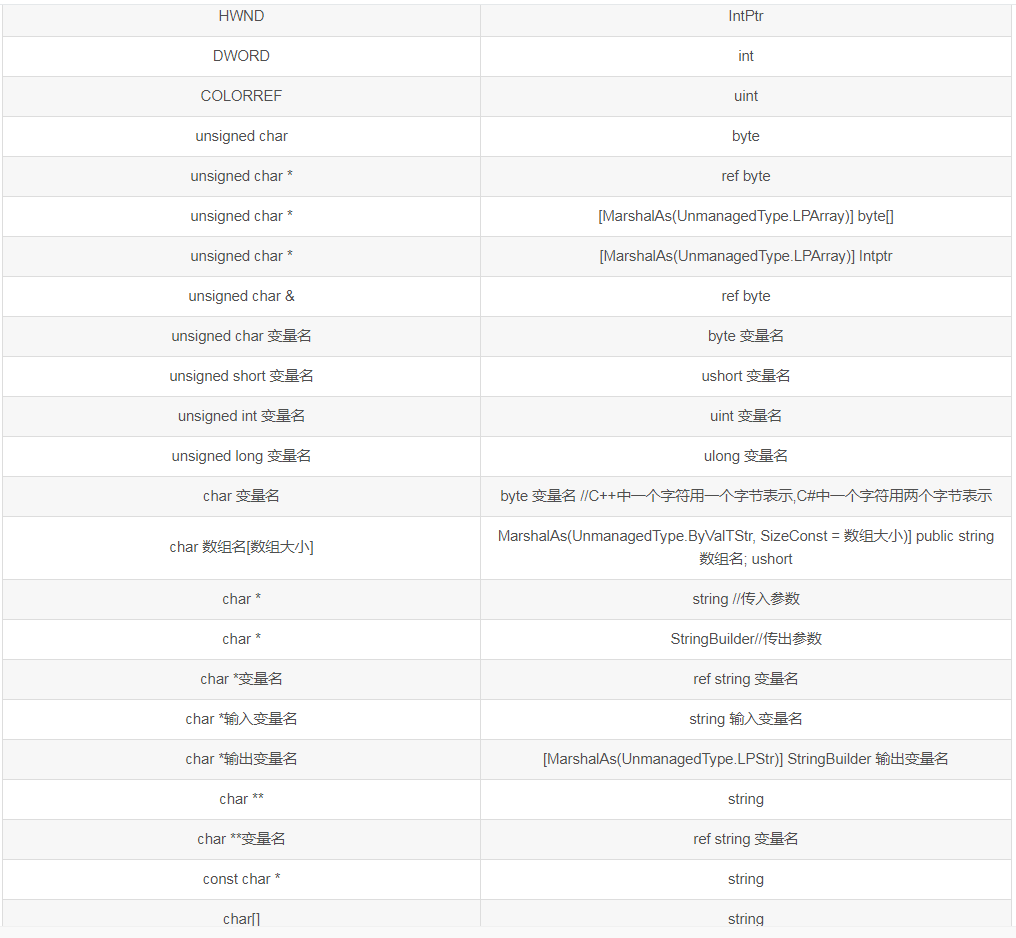

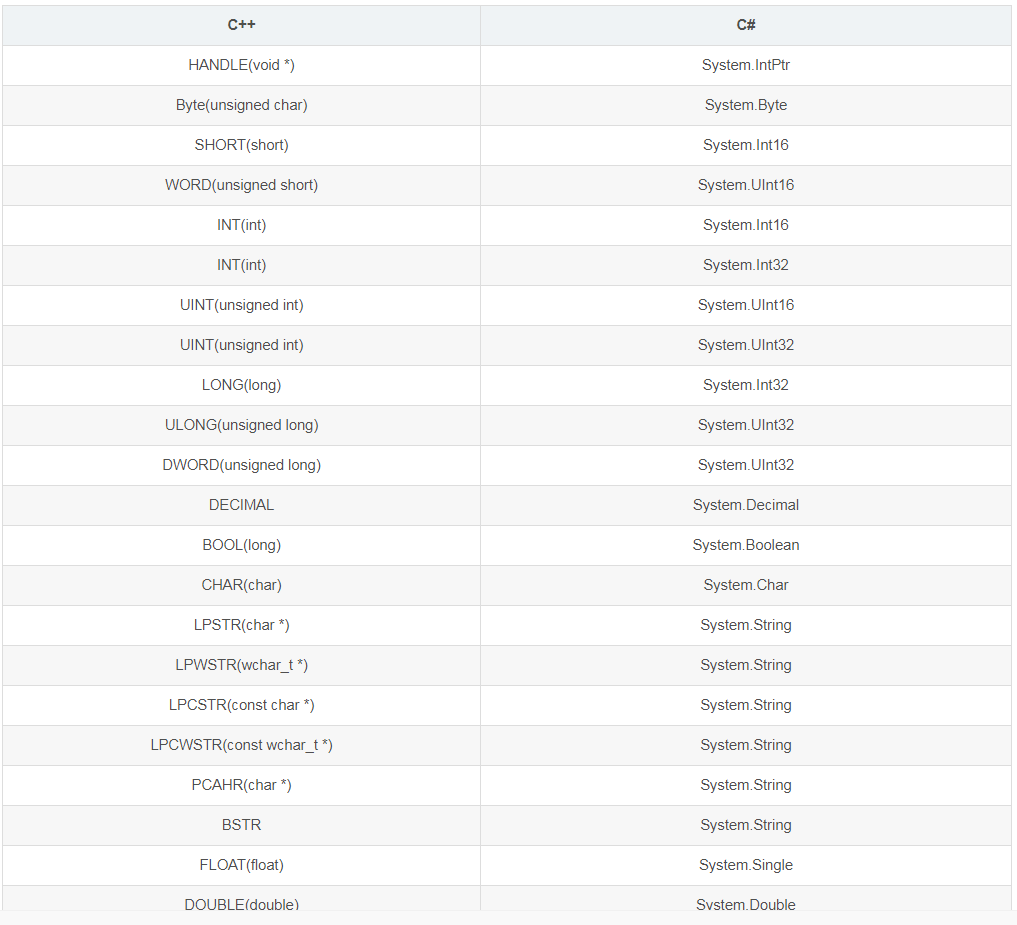

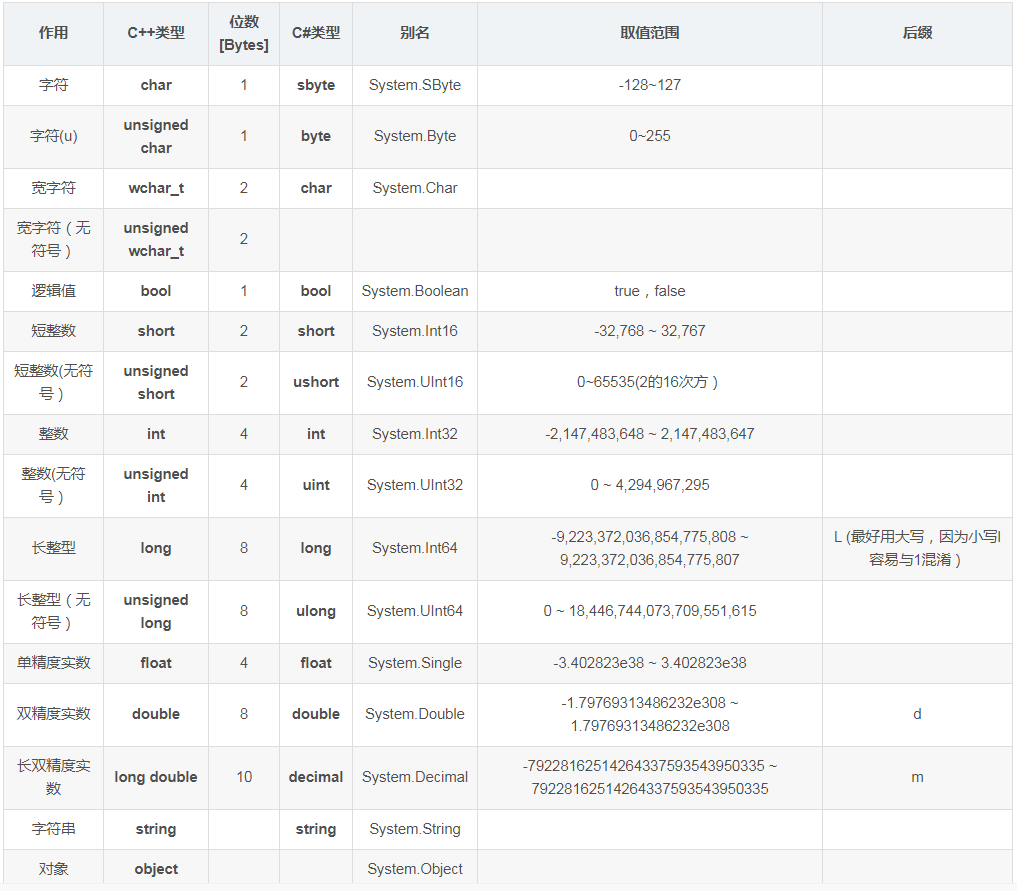

    C++与C#数据类型总结




    C#调用C++的DLL搜集整理的所有数据类型转换方式,可能会有重复或者多种方案。












    Win32 Types —- CLR Type

    Struct需要在C#里重新定义一个Struct
    CallBack回调函数 需要封装在一个委托里,delegate static extern int FunCallBack(string str);
    unsigned char ppImage** 替换成 IntPtr ppImage
    int& nWidth 替换成 ref int nWidth
    int, int&, 则都可用 ref int 对应
    双针指类型参数,可以用 ref IntPtr
    函数指针使用c++: typedef double (
    fun_type1)(double); 对应 c#:public delegate double fun_type1(double);
    char* 的操作c++: char* 对应 c#: StringBuilder
    c#中使用指针:在需要使用指针的地方 加 unsafe

    unsigned char对应public byte

     typedef void (*CALLBACKFUN1W)(wchar_t*, void* pArg);
     typedef void (*CALLBACKFUN1A)(char*, void* pArg);
     bool BIOPRINT_SENSOR_API dllFun1(CALLBACKFUN1 pCallbackFun1, void* pArg);


    调用方式为

    [UnmanagedFunctionPointer(CallingConvention.Cdecl)]
    public delegate void CallbackFunc1([MarshalAs(UnmanagedType.LPWStr)] StringBuilder strName, IntPtr pArg);


    原文链接:https://blog.csdn.net/humanking7/article/details/50981922
