  • Qt-QML-自定义个自己的文本Text

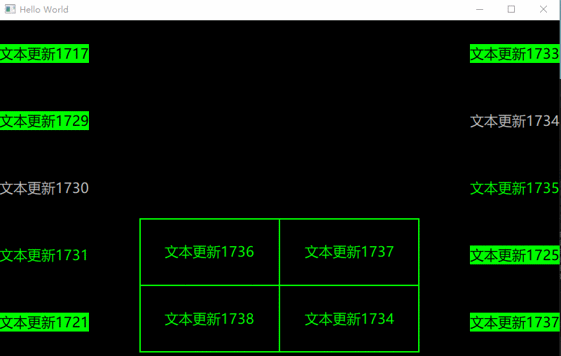

    好久都没有正经的更新自己的文章了,这段时间也辞职了,听了小爱的,准备买个碗,自己当老板,下面请欣赏效果图

    这个界面布局就是自己是在想不到啥了,按照常规汽车导航的布局布局了一下,主要看内容哈,看看这个文本文件

    问个文本文件的状态了有一下三种

    1. 正常 normal

    2. 激活 active

    3. 不可用 enable

    位置可以有一下方式组合

    1. 上

    2. 下

    3. 左

    4. 右

    5. 中心

    等等,自己组合了就不写了

    颜色目前默认是写了绿色,用了一些军事上面的颜色 。大家可以自行更改

    下面附上文本文件的源代码

    import QtQuick 2.0

    /*
      作者:张建伟
      日期:2018年3月28日
      简述:这是一个针对UFCP专门自定义的一个Text文本显示控件,该模块只适用于某种特定软件开发
     */


    Item {

        property string textState: "normal"        //声明一个属性,用来表示当前文本的状态,/*激活:active*/ /*正常:normal*/ /*不可用:enable*/
        property string textDetails: "测试文本"      //声明一个属性,用来表示文本内容
        property string textPositionH: "center"     //声明一个属性,用来表示水平位置布局   /*左:left*/  /*右:right*/  /*中:center*/
        property string textPositionV: "center"     //声明一个属性,用来表示垂直位置布局   /*上: top*/   /*下:bottom*/   /*中:center*/
         200      //默认宽度
        height: 96      //默认高度

        Rectangle                       //用来显示文本的背景颜色
        {
            id: background
             m_Text.width < 200 ? m_Text.width : 200
            height: m_Text.height
            color:
            {

                /*
                 颜色根据文本不同的状态显示不同的颜色
                 */

                if(textState == "active")
                {
                    "#00FF00"
                }
                else
                {
                    "#0000FF00"
                }
            }

            Text {
                id: m_Text
                color:
                {

                    /*
                      文本颜色根据文本状态显示不同颜色
                      */

                    if(textState == "active")
                    {
                        "#000000"
                    }
                    else if(textState == "normal")
                    {
                        "#00FF00"
                    }
                    else
                    {
                        "#c0c0c0"
                    }
                }
                font.pixelSize: 20                      //字体大小20像素
                font.family: "微软雅黑"                  //字体 微软雅黑
                font.bold: false                        //关闭粗体显示
                anchors.centerIn: parent
                text: qsTr(textDetails)                 //文本显示内容
            }

            /*
              文字布局,根据实际需求调整文本布局
              */

            anchors.top:
            {
                if(textPositionV == "top")
                {
                    parent.top
                }
            }
            anchors.bottom:
            {
                if(textPositionV == "bottom")
                {
                    parent.bottom
                }
            }
            anchors.left:
            {
                if(textPositionH == "left")
                {
                    parent.left
                }
            }
            anchors.right:
            {
                if(textPositionH == "right")
                {
                    parent.right
                }
            }
            anchors.centerIn:
            {
                if(textPositionH == "center" && textPositionV == "center")
                {
                    parent.Center
                }
            }

            anchors.horizontalCenter:
            {
                if(textPositionH == "center")
                {
                    parent.horizontalCenter
                }
            }
            anchors.verticalCenter:
            {
                if(textPositionV == "center")
                {
                    parent.verticalCenter
                }
            }

        }




    }
