  • 区块链Hyperledger Fabric 学习记录(一)开发环境搭建(ubuntu16.04/ubuntu18.04)

    Fabric开发环境搭建

    Author:ljo0412@live.com

    更新说明

    在根据Fabric手册进行学习的过程中,遇到了一个严重的问题,导致无法向下继续,总结原因为Fabric版本问题。原文选择了Fabric v1.2(master)版本进行开发学习,在build your first network一节中发现无法正常的执行invoke操作。将版本退回到v1.1,发现可以正常运行,故将此篇博客改为v1.1版本。整体步骤不发生改变,仅在执行bootstrap.sh脚本时更改参数。


    教程环境及软件版本

    OS: ubuntu16.04/ubuntu18.04

    • Docker:18.06.0-ce
    • Go:1.10.3
    • Node.js:8.11.3 && npm:5.6.0
    • Python:2.7
    • Fabric:1.2.0

    提示: 以下安装均在普通用户中安装

    Docker

    安装Docker

    这里使用Daocloud镜像进行安装

    ubuntu:~$ curl -sSL https://get.daocloud.io/docker | sh


    配置用户组

    添加$user到docker用户组,免除每次运行docker都需要使用sudo root权限

    ubuntu:~$ sudo usermod -aG docker $USER


    重新登录系统,检查docker是否安装成功。

    ubuntu:~$ docker --version


    显示版本信息证明安装成功

    ubuntu:~$ docker --version
    Docker version 18.06.0-ce, build 0ffa825


    这里我所安装的版本18.06.0-ce。

    配置Aliyun Docker加速器

    由于Docker镜像服务器在国外,所以下载速度非常缓慢甚至失败,阿里云为我们提供了优秀的解决方案。

    访问Aliyun Docker Service,点击创建我的容器镜像,点击镜像加速器,选择ubuntu,根据提示执行命令。

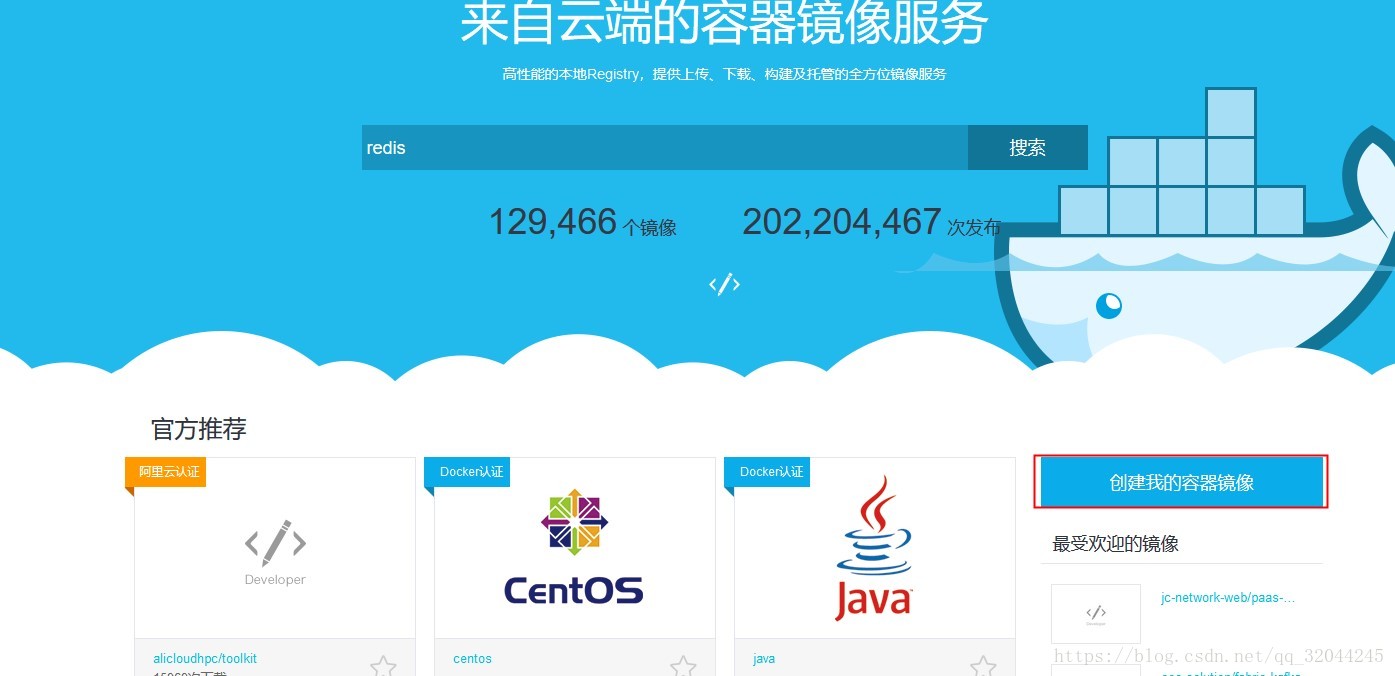

    step1

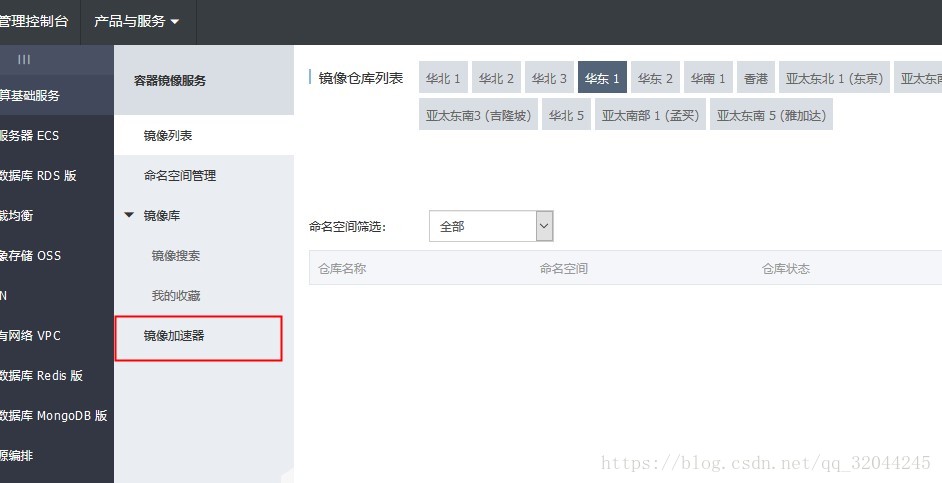

    step2

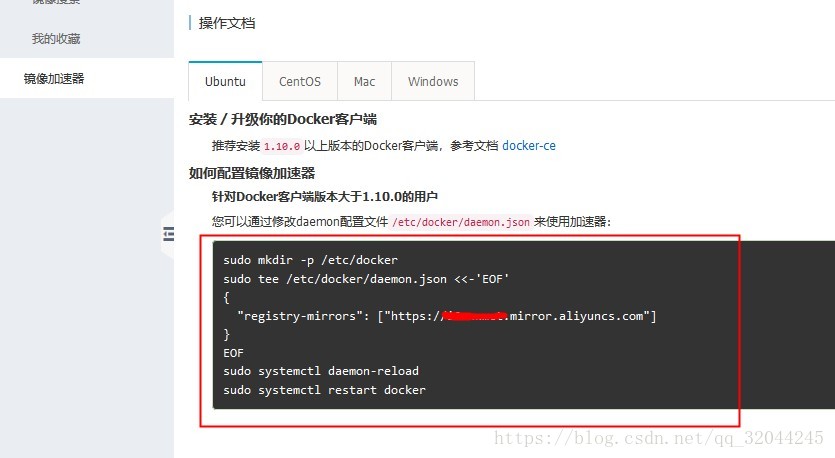

    step3

    命令示例如下(注意替换相应的*******):

    ubuntu:~$ sudo mkdir -p /etc/docker
    ubuntu:~$ sudo tee /etc/docker/daemon.json <<-'EOF'
    {
      "registry-mirrors": ["https://*******.mirror.aliyuncs.com"]
    }
    EOF
    ubuntu:~$ sudo systemctl daemon-reload
    ubuntu:~$ sudo systemctl restart docker


    安装docker-compose

    ubuntu:~$ sudo apt install docker-compose


    至此,整个Docker的安装完毕。

    Go

    下载源码

    访问Golang.org下载最新版的GO源码。

    这里我选择的go1.10.3.linux-amd64

    也可以通过命令行下载

    ubuntu:~$ wget https://dl.google.com/go/go1.10.3.linux-amd64.tar.gz


    安装源码

    详细教程可以查看官方手册

    解压代码到用户自定义目录下,这里选择~/,即主目录

    ubuntu:~$ tar -C ~/ -xzf go1.10.3.linux-amd64.tar.gz


    添加环境变量

    ubuntu:~$ vi ~/.profile
    # 在最后添加如下代码
    export GOROOT=$HOME/go
    export PATH=$PATH:$GOROOT/bin


    使环境变量生效

    ubuntu:~$ source ~/.profile


    注意这里只是使当前终端生效,其他已打开的终端需重新打开

    检查是否安装成功

    ubuntu:~$ go version
    go version go1.10.3 linux/amd64


    提示如上版本信息证明,安装成功。

    Node.js && NPM

    Node.js源码安装

    下载最新版的源码,这里我选择8.11.3版本。

    注意:Node.js 9.x版本不再被支持,请选择8.9.x 或更新的版本

    ubuntu:~$ wget https://nodejs.org/dist/v8.11.3/node-v8.11.3.tar.gz


    解压源码

    ubuntu:~$ tar -zxf node-v8.11.3.tar.gz


    编译安装

    ubuntu:~$ cd node-v8.11.3/
    ubuntu:~/node-v1.8.11.3$ ./configure
    ubuntu:~/node-v1.8.11.3$ make
    ubuntu:~/node-v1.8.11.3$ sudo make install


    make过程可能会比较长,建议做点有意思的事吧~

    验证是否安装成功

    ubuntu:~$ node -v
    v8.11.3

    ubuntu:~$ npm -version
    5.6.0


    安装Python

    ubuntu16.04默认安装了python3.5,而Fabric Node.js SDK需要Python 2.7

    ubuntu:~$ sudo apt-get install python


    检查Python版本号

    ubuntu:~$ python --version


    安装Fabric范例、源码和Docker镜像

    在执行官方手册中的步骤时,未能正确通过,分析过后应该是curl命令版本太低的问题,未能解决。

    错误如下:

    ubuntu:~$ curl -sSL http://bit.ly/2ysbOFE | bash -s 1.2.0
    curl: (56) Recv failure: Connection reset by peer


    这里采用官方手册中的替代解决方案。

    复制官方提供的bootstrap.sh脚本内容到本机

    2018-7-21版本内容如下:

    #!/bin/bash
    #
    # Copyright IBM Corp. All Rights Reserved.
    #
    # SPDX-License-Identifier: Apache-2.0
    #

    # if version not passed in, default to latest released version
    export VERSION=1.2.0
    # if ca version not passed in, default to latest released version
    export CA_VERSION=$VERSION
    # current version of thirdparty images (couchdb, kafka and zookeeper) released
    export THIRDPARTY_IMAGE_VERSION=0.4.10
    export ARCH=$(echo "$(uname -s|tr '[:upper:]' '[:lower:]'|sed 's/mingw64_nt.*/windows/')-$(uname -m | sed 's/x86_64/amd64/g')")
    export MARCH=$(uname -m)

    printHelp() {
      echo "Usage: bootstrap.sh [<version>] [<ca_version>] [<thirdparty_version>][-d -s -b]"
      echo
      echo "-d - bypass docker image download"
      echo "-s - bypass fabric-samples repo clone"
      echo "-b - bypass download of platform-specific binaries"
      echo
      echo "e.g. bootstrap.sh 1.2.0 -s"
      echo "would download docker images and binaries for version 1.2.0"
    }

    dockerFabricPull() {
      local FABRIC_TAG=$1
      for IMAGES in peer orderer ccenv tools; do
          echo "==> FABRIC IMAGE: $IMAGES"
          echo
          docker pull hyperledger/fabric-$IMAGES:$FABRIC_TAG
          docker tag hyperledger/fabric-$IMAGES:$FABRIC_TAG hyperledger/fabric-$IMAGES
      done
    }

    dockerThirdPartyImagesPull() {
      local THIRDPARTY_TAG=$1
      for IMAGES in couchdb kafka zookeeper; do
          echo "==> THIRDPARTY DOCKER IMAGE: $IMAGES"
          echo
          docker pull hyperledger/fabric-$IMAGES:$THIRDPARTY_TAG
          docker tag hyperledger/fabric-$IMAGES:$THIRDPARTY_TAG hyperledger/fabric-$IMAGES
      done
    }

    dockerCaPull() {
          local CA_TAG=$1
          echo "==> FABRIC CA IMAGE"
          echo
          docker pull hyperledger/fabric-ca:$CA_TAG
          docker tag hyperledger/fabric-ca:$CA_TAG hyperledger/fabric-ca
    }

    samplesInstall() {
      # clone (if needed) hyperledger/fabric-samples and checkout corresponding
      # version to the binaries and docker images to be downloaded
      if [ -d first-network ]; then
        # if we are in the fabric-samples repo, checkout corresponding version
        echo "===> Checking out v${VERSION} branch of hyperledger/fabric-samples"
        git checkout v${VERSION}
      elif [ -d fabric-samples ]; then
        # if fabric-samples repo already cloned and in current directory,
        # cd fabric-samples and checkout corresponding version
        echo "===> Checking out v${VERSION} branch of hyperledger/fabric-samples"
        cd fabric-samples && git checkout v${VERSION}
      else
        echo "===> Cloning hyperledger/fabric-samples repo and checkout v${VERSION}"
        git clone -b master https://github.com/hyperledger/fabric-samples.git && cd fabric-samples && git checkout v${VERSION}
      fi
    }

    # Incrementally downloads the .tar.gz file locally first, only decompressing it
    # after the download is complete. This is slower than binaryDownload() but
    # allows the download to be resumed.
    binaryIncrementalDownload() {
          local BINARY_FILE=$1
          local URL=$2
          curl -f -s -C - ${URL} -o ${BINARY_FILE} || rc=$?
          # Due to limitations in the current Nexus repo:
          # curl returns 33 when there's a resume attempt with no more bytes to download
          # curl returns 2 after finishing a resumed download
          # with -f curl returns 22 on a 404
          if [ "$rc" = 22 ]; then
    	  # looks like the requested file doesn't actually exist so stop here
    	  return 22
          fi
          if [ -z "$rc" ] || [ $rc -eq 33 ] || [ $rc -eq 2 ]; then
              # The checksum validates that RC 33 or 2 are not real failures
              echo "==> File downloaded. Verifying the md5sum..."
              localMd5sum=$(md5sum ${BINARY_FILE} | awk '{print $1}')
              remoteMd5sum=$(curl -s ${URL}.md5)
              if [ "$localMd5sum" == "$remoteMd5sum" ]; then
                  echo "==> Extracting ${BINARY_FILE}..."
                  tar xzf ./${BINARY_FILE} --overwrite
    	      echo "==> Done."
                  rm -f ${BINARY_FILE} ${BINARY_FILE}.md5
              else
                  echo "Download failed: the local md5sum is different from the remote md5sum. Please try again."
                  rm -f ${BINARY_FILE} ${BINARY_FILE}.md5
                  exit 1
              fi
          else
              echo "Failure downloading binaries (curl RC=$rc). Please try again and the download will resume from where it stopped."
              exit 1
          fi
    }

    # This will attempt to download the .tar.gz all at once, but will trigger the
    # binaryIncrementalDownload() function upon a failure, allowing for resume
    # if there are network failures.
    binaryDownload() {
          local BINARY_FILE=$1
          local URL=$2
          echo "===> Downloading: " ${URL}
          # Check if a previous failure occurred and the file was partially downloaded
          if [ -e ${BINARY_FILE} ]; then
              echo "==> Partial binary file found. Resuming download..."
              binaryIncrementalDownload ${BINARY_FILE} ${URL}
          else
              curl ${URL} | tar xz || rc=$?
              if [ ! -z "$rc" ]; then
                  echo "==> There was an error downloading the binary file. Switching to incremental download."
                  echo "==> Downloading file..."
                  binaryIncrementalDownload ${BINARY_FILE} ${URL}
    	  else
    	      echo "==> Done."
              fi
          fi
    }

    binariesInstall() {
      echo "===> Downloading version ${FABRIC_TAG} platform specific fabric binaries"
      binaryDownload ${BINARY_FILE} https://nexus.hyperledger.org/content/repositories/releases/org/hyperledger/fabric/hyperledger-fabric/${ARCH}-${VERSION}/${BINARY_FILE}
      if [ $? -eq 22 ]; then
         echo
         echo "------> ${FABRIC_TAG} platform specific fabric binary is not available to download <----"
         echo
       fi

      echo "===> Downloading version ${CA_TAG} platform specific fabric-ca-client binary"
      binaryDownload ${CA_BINARY_FILE} https://nexus.hyperledger.org/content/repositories/releases/org/hyperledger/fabric-ca/hyperledger-fabric-ca/${ARCH}-${CA_VERSION}/${CA_BINARY_FILE}
      if [ $? -eq 22 ]; then
         echo
         echo "------> ${CA_TAG} fabric-ca-client binary is not available to download  (Available from 1.1.0-rc1) <----"
         echo
       fi
    }

    dockerInstall() {
      which docker >& /dev/null
      NODOCKER=$?
      if [ "${NODOCKER}" == 0 ]; then
    	  echo "===> Pulling fabric Images"
    	  dockerFabricPull ${FABRIC_TAG}
    	  echo "===> Pulling fabric ca Image"
    	  dockerCaPull ${CA_TAG}
    	  echo "===> Pulling thirdparty docker images"
    	  dockerThirdPartyImagesPull ${THIRDPARTY_TAG}
    	  echo
    	  echo "===> List out hyperledger docker images"
    	  docker images | grep hyperledger*
      else
        echo "========================================================="
        echo "Docker not installed, bypassing download of Fabric images"
        echo "========================================================="
      fi
    }

    DOCKER=true
    SAMPLES=true
    BINARIES=true

    # Parse commandline args pull out
    # version and/or ca-version strings first
    if [ ! -z $1 ]; then
      VERSION=$1;shift
      if [ ! -z $1 ]; then
        CA_VERSION=$1;shift
        if [ ! -z $1 ]; then
          THIRDPARTY_IMAGE_VERSION=$1;shift
        fi
      fi
    fi

    # prior to 1.2.0 architecture was determined by uname -m
    if [[ $VERSION =~ ^1.[0-1].* ]]; then
      export FABRIC_TAG=${MARCH}-${VERSION}
      export CA_TAG=${MARCH}-${CA_VERSION}
      export THIRDPARTY_TAG=${MARCH}-${THIRDPARTY_IMAGE_VERSION}
    else
      # starting with 1.2.0, multi-arch images will be default
      : ${CA_TAG:="$CA_VERSION"}
      : ${FABRIC_TAG:="$VERSION"}
      : ${THIRDPARTY_TAG:="$THIRDPARTY_IMAGE_VERSION"}
    fi

    BINARY_FILE=hyperledger-fabric-${ARCH}-${VERSION}.tar.gz
    CA_BINARY_FILE=hyperledger-fabric-ca-${ARCH}-${CA_VERSION}.tar.gz

    # then parse opts
    while getopts "h?dsb" opt; do
      case "$opt" in
        h|?)
          printHelp
          exit 0
        ;;
        d)  DOCKER=false
        ;;
        s)  SAMPLES=false
        ;;
        b)  BINARIES=false
        ;;
      esac
    done

    if [ "$SAMPLES" == "true" ]; then
      echo
      echo "Installing hyperledger/fabric-samples repo"
      echo
      samplesInstall
    fi
    if [ "$BINARIES" == "true" ]; then
      echo
      echo "Installing Hyperledger Fabric binaries"
      echo
      binariesInstall
    fi
    if [ "$DOCKER" == "true" ]; then
      echo
      echo "Installing Hyperledger Fabric docker images"
      echo
      dockerInstall
    fi


    运行该脚本

    ubuntu:~$ bash ./bootstrap.sh 1.1.0


    该脚本将自动下载fabric-samples源码,下载Fabric Docker镜像。

    查看下载的镜像

    ubuntu:~$ docker images
    REPOSITORY                     TAG                 IMAGE ID            CREATED             SIZE
    hyperledger/fabric-ca                                                                                    1.2.0               66cc132bd09c        2 weeks ago         252MB
    hyperledger/fabric-ca                                                                                    latest              66cc132bd09c        2 weeks ago         252MB
    hyperledger/fabric-tools                                                                                 1.2.0               379602873003        2 weeks ago         1.51GB
    hyperledger/fabric-ccenv                                                                                 1.2.0               6acf31e2d9a4        2 weeks ago         1.43GB
    hyperledger/fabric-orderer                                                                               1.2.0               4baf7789a8ec        2 weeks ago         152MB
    hyperledger/fabric-peer                                                                                  1.2.0               82c262e65984        2 weeks ago         159MB
    hyperledger/fabric-zookeeper                                                                             0.4.10              2b51158f3898        3 weeks ago         1.44GB
    hyperledger/fabric-zookeeper                                                                             latest              2b51158f3898        3 weeks ago         1.44GB
    hyperledger/fabric-kafka                                                                                 0.4.10              936aef6db0e6        3 weeks ago         1.45GB
    hyperledger/fabric-kafka                                                                                 latest              936aef6db0e6        3 weeks ago         1.45GB
    hyperledger/fabric-couchdb                                                                               0.4.10              3092eca241fc        3 weeks ago         1.61GB
    hyperledger/fabric-couchdb                                                                               latest              3092eca241fc        3 weeks ago         1.61GB
    hyperledger/fabric-baseimage                                                                             amd64-0.4.10        62513965e238        3 weeks ago         1.39GB
    hyperledger/fabric-baseos                                                                                amd64-0.4.10        52190e831002        3 weeks ago         132MB
    hyperledger/fabric-tools                                                                                 latest              b7bfddf508bc        4 months ago        1.46GB
    hyperledger/fabric-tools                                                                                 x86_64-1.1.0        b7bfddf508bc        4 months ago        1.46GB
    hyperledger/fabric-orderer                                                                               latest              ce0c810df36a        4 months ago        180MB
    hyperledger/fabric-orderer                                                                               x86_64-1.1.0        ce0c810df36a        4 months ago        180MB
    hyperledger/fabric-peer                                                                                  latest              b023f9be0771        4 months ago        187MB
    hyperledger/fabric-peer                                                                                  x86_64-1.1.0        b023f9be0771        4 months ago        187MB
    hyperledger/fabric-ccenv                                                                                 latest              c8b4909d8d46        4 months ago        1.39GB
    hyperledger/fabric-ccenv                                                                                 x86_64-1.1.0        c8b4909d8d46        4 months ago        1.39GB
    hyperledger/fabric-baseos                                                                                x86_64-0.4.6        220e5cf3fb7f        5 months ago        151MB
    java                                                                                                     latest              d23bdf5b1b1b        18 months ago       643


    因为我执行了v1.1.0和v1.2.0两个版本的命令,所以下载的镜像会更多,读者根据自身情况进行判断,理论上,只要该命令不报错,则将会下载正确的镜像

    查看下载的Fabric脚本命令

    ubuntu:~$ ls fabric-samples/bin

    • configtxgen
    • configtxlator
    • cryptogen
    • discover
    • fabric-ca-client
    • get-docker-images.sh
    • idemixgen
    • orderer
    • peer

    添加这些脚本到环境变量

    ubuntu:~$ vi ~/.profile
    # 在最后一行添加
    export PATH=$PATH:$HOME/fabric-samples/bin


    保存文件并退出,使环境变量生效

    ubuntu:~$ source ~/.profile


    验证是否添加成功,在终端中输入

    ubuntu:~$ cryptogen --help
    usage: cryptogen [<flags>] <command> [<args> ...]
    ...


    如上显示,则证明环境变量配置成功

    总结

    至此,整个Fabric的开发环境配置完成。

    更多学习记录将会持续更新。


    参考文献:

    Go语言安装教程: https://golang.org/doc/install

    Fabric手册: http://hyperledger-fabric.readthedocs.io/en/latest/

  • 相关阅读:
    cf C. Vasya and Robot
    zoj 3805 Machine
    cf B. Vasya and Public Transport
    cf D. Queue
    cf C. Find Maximum
    cf B. Two Heaps
    cf C. Jeff and Rounding
    cf B. Jeff and Periods
    cf A. Jeff and Digits
    I Think I Need a Houseboat
  • 原文地址:https://www.cnblogs.com/NinWoo/p/9357113.html
Copyright © 2011-2022 走看看
