HTTP轮询模型

HTTP轮询模型

长短轮询

http协议是一种client-server模型的应用层协议，这种c-s的模式虽然大多数情况都能满足需求，但是某些场景也需要服务端能够将一些信息实时的推送到客户端，即实现服务器向客户端推消息的功能。

比如：

• 配置管理中心服务端需要将更新的配置推送到client端
• 消息推送服务器需要将一些消息推送到Android、iOS客户端

利用Http协议实现服务器推送有两种常见的思路：

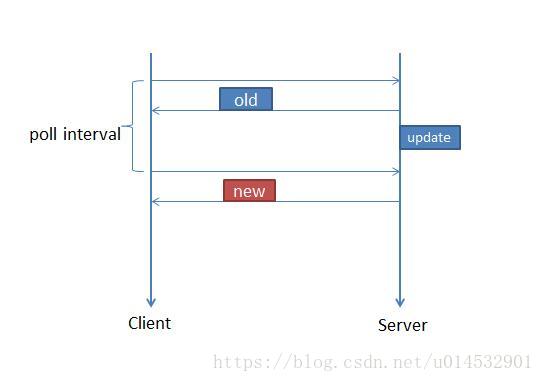

1. 短轮询拉

   客户端不停的去向服务器发送轮询请求，如果有数据更新，客户端能也能尽快（取决于轮询间隔）获取最新的数据，这种方式被称为Http短轮询。



   这种方式有如下缺点：

   • 因为是短轮询，因此一定时间t内需要进行轮询的次数就更多，而Http的连接是需要tcp三次握手等资源开销的。
   • 由图可以看出，但是服务端数据发生更新时，客户端并不是立刻收到更新的数据（除去网络传输仍然还需要时间），而只能是在下一次轮询的时候才能感知到数据的变更。

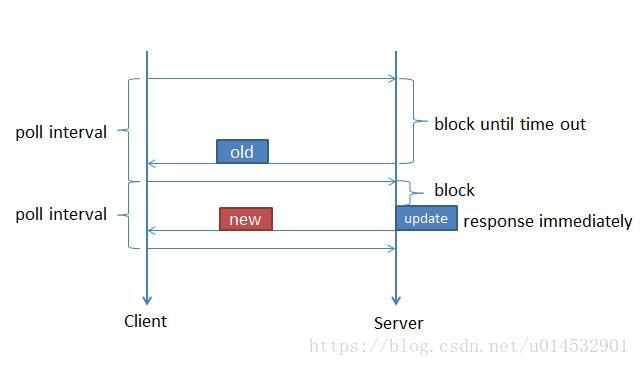

2. 长轮询推

长轮询的思路是这样的：尽量减少轮询的次数，从而减少资源开销。为了减少轮询次数，那么每次轮询的时间跨度就需要比较长，因此成为长轮询，同时也希望长轮询模型的每一次轮询效率要高于短轮询。

长轮询模型有这么几个特征：

• 每次轮询的间隔不固定
• 服务器对每次轮询做出响应的条件是：超时或者数据更新
• 长轮询模型中，客户端能实时感知到服务器端数据更新

由于很多服务器都具有异步处理连接的能力，因此图中的阻塞消耗的资源比较小。

异步Servlet

下面是利用Servlet规范中提供的异步Servlet作为服务端的Http长轮询模型，实现了客户端能实时获取服务端某个配置文件内容。

异步Servlet是Servlet3.0出来的新特性，对于需要异步处理的连接，Servlet引擎会将处理该请求的工作线程回收进工作线程池，而不是阻塞在该请求上。

package httplongconnection;

import java.io.File;
import java.io.FileFilter;
import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.io.IOException;
import java.io.InputStream;
import java.io.PrintWriter;
import javax.servlet.AsyncContext;
import javax.servlet.AsyncEvent;
import javax.servlet.AsyncListener;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.apache.commons.codec.digest.DigestUtils;
import org.apache.commons.io.monitor.FileAlterationListener;
import org.apache.commons.io.monitor.FileAlterationMonitor;
import org.apache.commons.io.monitor.FileAlterationObserver;

@WebServlet(urlPatterns = "/long", asyncSupported = true)
public class HttpLongConnectionServlet extends HttpServlet {
    /**
     *
     */
    private static final long serialVersionUID = 1L;
    static FileAlterationObserver observer;
    static {

        FileAlterationMonitor monitor = new FileAlterationMonitor(1000L);// 每隔1000毫秒扫描一次
        // 需要监听的文件目录
        observer = new FileAlterationObserver(new File("E:/J2EE_workspace/httplongconnection/src/main/resources"), new FileFilter() {

            public boolean accept(File pathname) {
                // TODO Auto-generated method stub
                return true;
            }
        });
        System.out.println("observer");
        monitor.addObserver(observer);
        try {
            monitor.start();
        } catch (Exception e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        }
    }

    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        // TODO Auto-generated method stub
        final AsyncContext ctx = req.startAsync();
        ctx.addListener(new AsyncListener() {

            public void onTimeout(AsyncEvent event) throws IOException {
                // TODO Auto-generated method stub
                ctx.complete();
                observer.removeListener((FileAlterationListener)ctx.getRequest().getAttribute("fileListener"));
            }

            public void onStartAsync(AsyncEvent event) throws IOException {
                // TODO Auto-generated method stub

            }

            public void onError(AsyncEvent event) throws IOException {
                // TODO Auto-generated method stub

            }

            public void onComplete(AsyncEvent event) throws IOException {
                // TODO Auto-generated method stub
                observer.removeListener((FileAlterationListener)ctx.getRequest().getAttribute("fuck"));
            }
        });
        ctx.setTimeout(50 * 1000);
        new Thread(new BizProcessor(ctx)).start();
    }

    class BizProcessor implements Runnable {
        private String checkSum;
        private AsyncContext asyncContext;

        private boolean checkSumEqual(InputStream is, String originalCheckSum) {
            try {
                String digest = DigestUtils.md5Hex(is);
                if (digest.equals(originalCheckSum)) {
                    return true;
                }
                this.checkSum = digest;
                System.out.println(
                        "File has changed. new md5 is " + this.checkSum + ", old checsum is " + originalCheckSum);
                return false;
            } catch (FileNotFoundException e) {
                // TODO Auto-generated catch block
                e.printStackTrace();
            } catch (IOException e) {
                // TODO Auto-generated catch block
                e.printStackTrace();
            }
            return false;
        }

        public BizProcessor(AsyncContext asyncContext) {
            super();
            this.asyncContext = asyncContext;
        }

        public void run() {
            // TODO Auto-generated method stub
            // sleep
            HttpServletRequest req = (HttpServletRequest) asyncContext.getRequest();
            String cSum = String.valueOf(req.getParameter("checkSum"));
            // 文件update
            InputStream is = null;
            try {
                is = new FileInputStream(new File("E:/J2EE_workspace/httplongconnection/src/main/resources/config.txt"));
            } catch (FileNotFoundException e1) {
                // TODO Auto-generated catch block
                e1.printStackTrace();
            }
            if (is != null && !checkSumEqual(is, cSum)) {
                try {
                    is.close();
                    is = this.getClass().getClassLoader().getResourceAsStream("config.txt");
                    PrintWriter out = asyncContext.getResponse().getWriter();
                    String content = org.apache.commons.io.IOUtils.toString(is, "UTF-8");
                    System.out.println(content);
                    out.write(checkSum + "02" + content);
                    out.flush();
                    out.close();
                    is.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
                asyncContext.complete();
            }
            System.out.println("register");
            register(asyncContext);
            // 没有发生文件更新，则等待超时发生
        }

        private void register(AsyncContext ctx) {
            // TODO Auto-generated method stub
            FileListerAdapter listner = new FileListerAdapter(ctx);
            ctx.getRequest().setAttribute("fileListener", listner);
            observer.addListener(listner);
        }
    }
}

<html>
<script src="http://code.jquery.com/jquery-latest.js"></script>
<script src="md5.js"></script>
<body>
<h2>Hello World!</h2>
<textarea id="show" rows="40" cols="80">

</textarea>
</body>
<script type="text/javascript">
  var cSum = "0";
  poll();
  function poll() {
      $.ajax({
            url: "/httplongconnection/long",
            data : {"checkSum" : cSum},
            success: function(response) {
                if (response == null || response.length == 0) {
                    poll();
                    return;
                }
                var msg = response.split("02");
                var checkSum = md5(msg[1]), content = msg[1];
                if (checkSum != cSum) {
                    cSum = checkSum;
                    $("#show").val(content);
                }
                poll();
          }});
  }
</script>
</html>

package httplongconnection;

import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.PrintWriter;
import javax.servlet.AsyncContext;

import org.apache.commons.codec.digest.DigestUtils;
import org.apache.commons.io.monitor.FileAlterationListenerAdaptor;

public class FileListerAdapter extends FileAlterationListenerAdaptor {

    AsyncContext ctx;
    public FileListerAdapter(AsyncContext ctx) {
        super();
        this.ctx = ctx;
    }

    @Override
    public void onFileChange(File file) {
        if (!file.exists() || !file.canRead()) {
            System.out.println("The file " + file + "  is not exists or is not readable!");
            return;
        }
        try {
            InputStream is = new FileInputStream(file);
            if (ctx.getResponse().isCommitted()) {
                return;
            }
            PrintWriter out = ctx.getResponse().getWriter();
            String content = org.apache.commons.io.IOUtils.toString(is, "UTF-8");
            System.out.println(content);
            String digest = DigestUtils.md5Hex(is);
            out.write(digest + "02" + content);
            System.out.println("yy");
            System.out.println(content);
            is.close();
            out.flush();
            out.close();
        } catch (IOException e) {
            e.printStackTrace();
        }
        ctx.complete();
        //TODO 读取操作
        super.onFileChange(file);
    }

    @Override
    public void onFileCreate(File file) {
        //TODO 读取操作
        super.onFileCreate(file);
    }

    @Override
    public void onFileDelete(File file) {
        super.onFileDelete(file);
    }

    @Override
    public void onDirectoryChange(File directory) {
        System.out.println("----The directory " + directory + " has changed.");
        super.onDirectoryChange(directory);
    }

    @Override
    public void onDirectoryCreate(File directory) {
        super.onDirectoryCreate(directory);
    }

    @Override
    public void onDirectoryDelete(File directory) {
        super.onDirectoryDelete(directory);
    }
}
