  • mybatis generator(MyBatis的逆向工程)

    1创建数据表

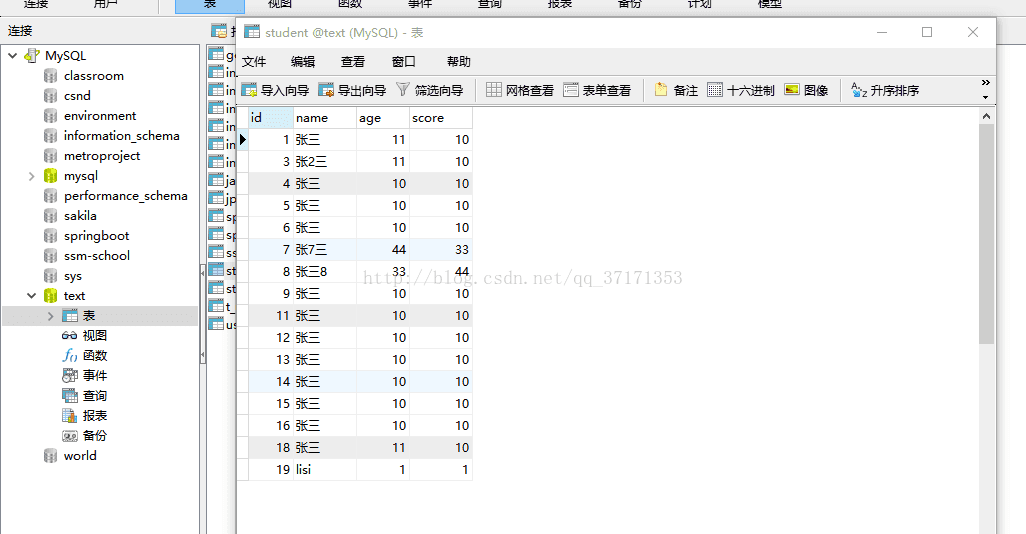

    如图所示:我的是在text数据库中创建了一个Student表,字段有id(int),   name(varchar),     age(int),    score(int)

    2创建项目

    1)加入jar特殊的jar包   mybatis-generator-core-x.x.x.jar

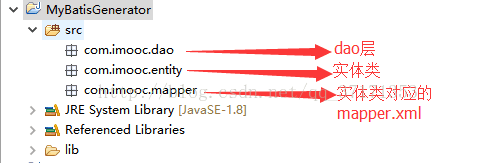

    2)创建项目

    3)编写GeneratorXML.xml

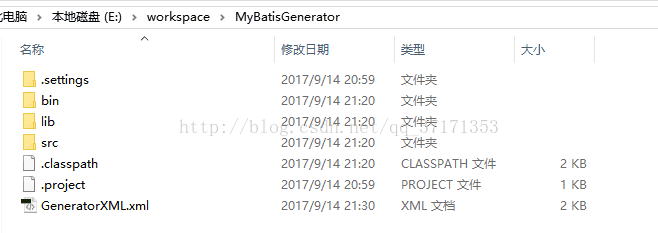

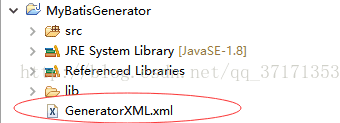

    注意GeneratorXML.xml的位置,和src同级





    <?xml version="1.0" encoding="UTF-8"?>
        <!DOCTYPE generatorConfiguration
          PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
          "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

        <generatorConfiguration>

            <context id="DB2Tables" targetRuntime="MyBatis3">

                <!-- 不生成注释 -->
                <commentGenerator>
                    <property name="suppressAllComments" value="true" />
                </commentGenerator>


                <!-- 连接的数据库的信息 -->
                <jdbcConnection driverClass="com.mysql.jdbc.Driver"
                    connectionURL="jdbc:mysql://localhost:3306/text" userId="root"
                    password="root">
                </jdbcConnection>

                <!-- 默认false,把JDBC DECIMAL 和 NUMERIC 类型解析为 Integer,为 true时把JDBC DECIMAL
                    和 NUMERIC 类型解析为java.math.BigDecimal -->
                <javaTypeResolver>
                    <property name="forceBigDecimals" value="false" />
                </javaTypeResolver>


                <!-- javaBean生成的位置 -->
                <javaModelGenerator targetPackage="com.imooc.entity"
                    targetProject=".src">
                    <property name="enableSubPackages" value="true" />
                    <property name="trimStrings" value="true" />
                </javaModelGenerator>


                <!-- sql映射文件的位置-->
                <sqlMapGenerator targetPackage="com.imooc.mapper targetProject=".src">
                    <property name="enableSubPackages" value="true" />
                </sqlMapGenerator>

                <!-- dao的位置位置 -->
                <javaClientGenerator type="XMLMAPPER"
                    targetPackage="com.imooc.dao</span>" targetProject=".src">
                    <property name="enableSubPackages" value="true" />
                </javaClientGenerator>

                <!-- tableName对应数据库中的表名,domainObjectName对应实体类 -->
                <table tableName="student" domainObjectName="Student"></table>

            </context>
        </generatorConfiguration>

    4)编写程序执行上面的XML

    package com.imooc.test;
    import java.io.File;
    import java.util.ArrayList;
    import java.util.List;
    import org.mybatis.generator.api.MyBatisGenerator;
    import org.mybatis.generator.config.Configuration;
    import org.mybatis.generator.config.xml.ConfigurationParser;
    import org.mybatis.generator.internal.DefaultShellCallback;
    public class MainGenerator {

        public static void main(String[] args) throws Exception {
               List<String> warnings = new ArrayList<String>();
               boolean overwrite = true;
                      File configFile = new File("GeneratorXML.xml");//就这一句需要注意,XML的名称别写错,别的都是固定格式
               ConfigurationParser cp = new ConfigurationParser(warnings);
               Configuration config = cp.parseConfiguration(configFile);
               DefaultShellCallback callback = new DefaultShellCallback(overwrite);
               MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
               myBatisGenerator.generate(null);
               System.out.println("123123");
        }

    }

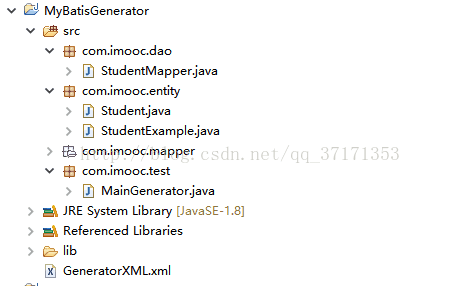

    5)查看结果

    如果是Oracle

    <?xml version="1.0" encoding="UTF-8"?>
    <!DOCTYPE generatorConfiguration
      PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
      "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

    <generatorConfiguration>



        <context id="DB2Tables" targetRuntime="MyBatis3">

            <!-- 不生成注释 -->
            <commentGenerator>
                <property name="suppressAllComments" value="true" />
            </commentGenerator>




            <!-- 连接的数据库的信息 -->
            <jdbcConnection driverClass="oracle.jdbc.driver.OracleDriver"
                connectionURL="jdbc:oracle:thin:@127.0.0.1:1521:Orcl" userId="user1"
                password="123456">
            </jdbcConnection>

            <!-- 默认false,把JDBC DECIMAL 和 NUMERIC 类型解析为 Integer,为 true时把JDBC DECIMAL
                和 NUMERIC 类型解析为java.math.BigDecimal -->
            <javaTypeResolver>
                <property name="forceBigDecimals" value="false" />
            </javaTypeResolver>


            <!-- javaBean生成的位置 -->
            <javaModelGenerator targetPackage="entity"
                targetProject=".src">
                <property name="enableSubPackages" value="true" />
                <property name="trimStrings" value="true" />
            </javaModelGenerator>


            <!-- sql映射文件的位置-->
            <sqlMapGenerator targetPackage="mapper" targetProject=".src">
                <property name="enableSubPackages" value="true" />
            </sqlMapGenerator>

            <!-- dao的位置位置 -->
            <javaClientGenerator type="XMLMAPPER"
                targetPackage="dao" targetProject=".src">
                <property name="enableSubPackages" value="true" />
            </javaClientGenerator>

            <!-- tableName对应数据库中的表名,domainObjectName对应实体类 -->
            <table tableName="TB_JOB" domainObjectName="Job"></table>


        </context>
    </generatorConfiguration>
