前言
看完神经网络及BP算法介绍后，这里做一个小实验，内容是来自斯坦福ULIDL教程，实现图像的压缩表示，模型是用神经网络模型，训练方法是BP后向传播算法。
理论
在有监督学习中，训练样本是具有标签的，一般神经网络是有监督的学习方法。我们这里要讲的是自编码神经网络，这是一种无监督的学习方法，它是让输出值等于自身来实现的。

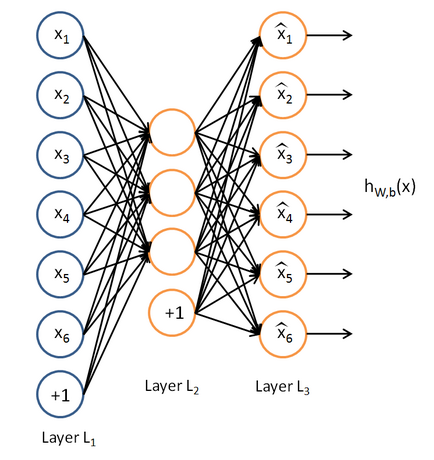

从图中可以看到，神经网络模型只有一层隐含层，输出层跟输入层的神经单元个数是一样的。如果隐含层单元个数比输入层少的话，我们用这个模型学到的是输入数据的压缩表示，相当于对输入数据进行降维（这是一种非线性的降维方法）。实际上，如果隐含层单元个数比输入层多，我们可以让隐含层的大部分单元激活值接近0，就是让它们稀疏，这样学到的也是压缩表示。我们模型要使得输出层跟输入层一样，就是隐含层要能够重建出跟输入层一样的输出层，这样我们学到的压缩表示才是有意义的。
回忆下之前介绍过的损失函数：
在这里，y是输出层，跟输入层是一样的。
自编码神经网络还增加了稀疏性惩罚一项。它是对隐含层进行了稀疏性的约束，即使得隐含层大部分值都处于非active状态。定义隐含层节点j的稀疏程度为
上式是对整个样本求隐含层节点j的平均值，如果是所有隐含层节点，那么就组成一个向量。
我们要设置期望隐含层稀疏性的程度，假设为
，因此我们希望对于所有的节点j
。
那怎么衡量实际跟期望的差别呢？
此时损失函数为
由于加了稀疏项损失函数，对第二层节点求残差时公式变为
实验
实验教程是在Exercise:Sparse Autoencoder，要实现的文件是sampleIMAGES.m, sparseAutoencoderCost.m,computeNumericalGradient.m
实验步骤：
- 生成训练集
- 稀疏自编码目标函数
- 梯度校验
- 训练稀疏自编码
- 可视化
最后一步可视化是
，把x用图像表示出来的。
代码如下：
sampleIMAGES.m
function patches = sampleIMAGES() % sampleIMAGES % Returns 10000 patches for training load IMAGES; % load images from disk patchsize = 8; % we'll use 8x8 patches numpatches = 10000; % Initialize patches with zeros. Your code will fill in this matrix--one % column per patch, 10000 columns. patches = zeros(patchsize*patchsize, numpatches); %% ---------- YOUR CODE HERE -------------------------------------- % Instructions: Fill in the variable called "patches" using data % from IMAGES. % % IMAGES is a 3D array containing 10 images % For instance, IMAGES(:,:,6) is a 512x512 array containing the 6th image, % and you can type "imagesc(IMAGES(:,:,6)), colormap gray;" to visualize % it. (The contrast on these images look a bit off because they have % been preprocessed using using "whitening." See the lecture notes for % more details.) As a second example, IMAGES(21:30,21:30,1) is an image % patch corresponding to the pixels in the block (21,21) to (30,30) of % Image 1 [m,n,num] = size(IMAGES); for i=1:numpatches j = randi(num); bx = randi(m-patchsize+1); by = randi(n-patchsize+1); block = IMAGES(bx:bx+patchsize-1,by:by+patchsize-1,j); patches(:,i) = block(:); end %% --------------------------------------------------------------- % For the autoencoder to work well we need to normalize the data % Specifically, since the output of the network is bounded between [0,1] % (due to the sigmoid activation function), we have to make sure % the range of pixel values is also bounded between [0,1] patches = normalizeData(patches); end %% --------------------------------------------------------------- function patches = normalizeData(patches) % Squash data to [0.1, 0.9] since we use sigmoid as the activation % function in the output layer % Remove DC (mean of images). patches = bsxfun(@minus, patches, mean(patches)); % Truncate to +/-3 standard deviations and scale to -1 to 1 pstd = 3 * std(patches(:)); patches = max(min(patches, pstd), -pstd) / pstd; % Rescale from [-1,1] to [0.1,0.9] patches = (patches + 1) * 0.4 + 0.1; end
SparseAutoencoderCost.m
function [cost,grad] = sparseAutoencoderCost(theta, visibleSize, hiddenSize, ...
lambda, sparsityParam, beta, data)
% visibleSize: the number of input units (probably 64)
% hiddenSize: the number of hidden units (probably 25)
% lambda: weight decay parameter
% sparsityParam: The desired average activation for the hidden units (denoted in the lecture
% notes by the greek alphabet rho, which looks like a lower-case "p").
% beta: weight of sparsity penalty term
% data: Our 64x10000 matrix containing the training data. So, data(:,i) is the i-th training example.
% The input theta is a vector (because minFunc expects the parameters to be a vector).
% We first convert theta to the (W1, W2, b1, b2) matrix/vector format, so that this
% follows the notation convention of the lecture notes.
W1 = reshape(theta(1:hiddenSize*visibleSize), hiddenSize, visibleSize);
W2 = reshape(theta(hiddenSize*visibleSize+1:2*hiddenSize*visibleSize), visibleSize, hiddenSize);
b1 = theta(2*hiddenSize*visibleSize+1:2*hiddenSize*visibleSize+hiddenSize);
b2 = theta(2*hiddenSize*visibleSize+hiddenSize+1:end);
% Cost and gradient variables (your code needs to compute these values).
% Here, we initialize them to zeros.
cost = 0;
W1grad = zeros(size(W1));
W2grad = zeros(size(W2));
b1grad = zeros(size(b1));
b2grad = zeros(size(b2));
%% ---------- YOUR CODE HERE --------------------------------------
% Instructions: Compute the cost/optimization objective J_sparse(W,b) for the Sparse Autoencoder,
% and the corresponding gradients W1grad, W2grad, b1grad, b2grad.
%
% W1grad, W2grad, b1grad and b2grad should be computed using backpropagation.
% Note that W1grad has the same dimensions as W1, b1grad has the same dimensions
% as b1, etc. Your code should set W1grad to be the partial derivative of J_sparse(W,b) with
% respect to W1. I.e., W1grad(i,j) should be the partial derivative of J_sparse(W,b)
% with respect to the input parameter W1(i,j). Thus, W1grad should be equal to the term
% [(1/m) Delta W^{(1)} + lambda W^{(1)}] in the last block of pseudo-code in Section 2.2
% of the lecture notes (and similarly for W2grad, b1grad, b2grad).
%
% Stated differently, if we were using batch gradient descent to optimize the parameters,
% the gradient descent update to W1 would be W1 := W1 - alpha * W1grad, and similarly for W2, b1, b2.
%
%矩阵向量化形式实现,速度比不用向量快得多
Jocst = 0; %平方误差
Jweight = 0; %规则项惩罚
Jsparse = 0; %稀疏性惩罚
[n, m] = size(data); %m为样本数，这里是10000，n为样本维数，这里是64
%feedforward前向算法计算隐含层和输出层的每个节点的z值（线性组合值）和a值（激活值）
%data每一列是一个样本，
z2 = W1*data + repmat(b1,1,m); %W1*data的每一列是每个样本的经过权重W1到隐含层的线性组合值,repmat把列向量b1扩充成m列b1组成的矩阵
a2 = sigmoid(z2);
z3 = W2*a2 + repmat(b2,1,m);
a3 = sigmoid(z3);
%计算预测结果与理想结果的平均误差
Jcost = (0.5/m)*sum(sum((a3-data).^2));
%计算权重惩罚项
Jweight = (1/2)*(sum(sum(W1.^2))+sum(sum(W2.^2)));
%计算稀疏性惩罚项
rho_hat = (1/m)*sum(a2,2);
Jsparse = sum(sparsityParam.*log(sparsityParam./rho_hat)+(1-sparsityParam).*log((1-sparsityParam)./(1-rho_hat)));
%计算总损失函数
cost = Jcost + lambda*Jweight + beta*Jsparse;
%反向传播求误差值
delta3 = -(data-a3).*fprime(a3); %每一列是一个样本对应的误差
sterm = beta*(-sparsityParam./rho_hat+(1-sparsityParam)./(1-rho_hat));
delta2 = (W2'*delta3 + repmat(sterm,1,m)).*fprime(a2);
%计算梯度
W2grad = delta3*a2';
W1grad = delta2*data';
W2grad = W2grad/m + lambda*W2;
W1grad = W1grad/m + lambda*W1;
b2grad = sum(delta3,2)/m; %因为对b的偏导是个向量，这里要把delta3的每一列加起来
b1grad = sum(delta2,2)/m;
%%----------------------------------
% %对每个样本进行计算, non-vectorial implementation
% [n m] = size(data);
% a2 = zeros(hiddenSize,m);
% a3 = zeros(visibleSize,m);
% Jcost = 0; %平方误差项
% rho_hat = zeros(hiddenSize,1); %隐含层每个节点的平均激活度
% Jweight = 0; %权重衰减项
% Jsparse = 0; % 稀疏项代价
%
% for i=1:m
% %feedforward向前转播
% z2(:,i) = W1*data(:,i)+b1;
% a2(:,i) = sigmoid(z2(:,i));
% z3(:,i) = W2*a2(:,i)+b2;
% a3(:,i) = sigmoid(z3(:,i));
% Jcost = Jcost+sum((a3(:,i)-data(:,i)).*(a3(:,i)-data(:,i)));
% rho_hat = rho_hat+a2(:,i); %累加样本隐含层的激活度
% end
%
% rho_hat = rho_hat/m; %计算平均激活度
% Jsparse = sum(sparsityParam*log(sparsityParam./rho_hat) + (1-sparsityParam)*log((1-sparsityParam)./(1-rho_hat))); %计算稀疏代价
% Jweight = sum(W1(:).*W1(:))+sum(W2(:).*W2(:));%计算权重衰减项
% cost = Jcost/2/m + Jweight/2*lambda + beta*Jsparse; %计算总代价
%
% for i=1:m
% %backpropogation向后传播
% delta3 = -(data(:,i)-a3(:,i)).*fprime(a3(:,i));
% delta2 = (W2'*delta3 +beta*(-sparsityParam./rho_hat+(1-sparsityParam)./(1-rho_hat))).*fprime(a2(:,i));
%
% W2grad = W2grad + delta3*a2(:,i)';
% W1grad = W1grad + delta2*data(:,i)';
% b2grad = b2grad + delta3;
% b1grad = b1grad + delta2;
% end
% %计算梯度
% W1grad = W1grad/m + lambda*W1;
% W2grad = W2grad/m + lambda*W2;
% b1grad = b1grad/m;
% b2grad = b2grad/m;
% -------------------------------------------------------------------
% After computing the cost and gradient, we will convert the gradients back
% to a vector format (suitable for minFunc). Specifically, we will unroll
% your gradient matrices into a vector.
grad = [W1grad(:) ; W2grad(:) ; b1grad(:) ; b2grad(:)];
end
%% Implementation of derivation of f(z)
% f(z) = sigmoid(z) = 1./(1+exp(-z))
% a = 1./(1+exp(-z))
% delta(f) = a.*(1-a)
function dz = fprime(a)
dz = a.*(1-a);
end
%%
%-------------------------------------------------------------------
% Here's an implementation of the sigmoid function, which you may find useful
% in your computation of the costs and the gradients. This inputs a (row or
% column) vector (say (z1, z2, z3)) and returns (f(z1), f(z2), f(z3)).
function sigm = sigmoid(x)
sigm = 1 ./ (1 + exp(-x));
end
computeNumericalGradient.m
function numgrad = computeNumericalGradient(J, theta)
% numgrad = computeNumericalGradient(J, theta)
% theta: a vector of parameters
% J: a function that outputs a real-number. Calling y = J(theta) will return the
% function value at theta.
% Initialize numgrad with zeros
numgrad = zeros(size(theta));
%% ---------- YOUR CODE HERE --------------------------------------
% Instructions:
% Implement numerical gradient checking, and return the result in numgrad.
% (See Section 2.3 of the lecture notes.)
% You should write code so that numgrad(i) is (the numerical approximation to) the
% partial derivative of J with respect to the i-th input argument, evaluated at theta.
% I.e., numgrad(i) should be the (approximately) the partial derivative of J with
% respect to theta(i).
%
% Hint: You will probably want to compute the elements of numgrad one at a time.
EPSILON = 1e-4;
for i=1:length(numgrad)
theta1 = theta;
theta1(i) = theta1(i)+EPSILON;
theta2 = theta;
theta2(i) = theta2(i)-EPSILON;
numgrad(i) = (J(theta1)-J(theta2))/(2*EPSILON);
end
%% ---------------------------------------------------------------
end

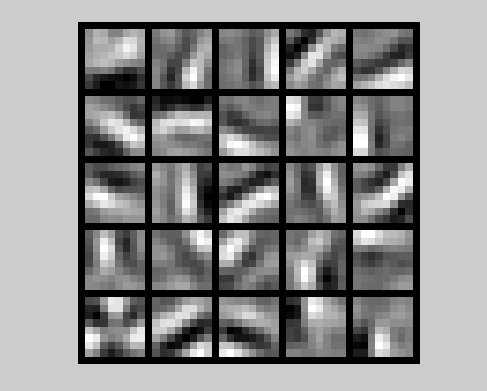

如果用向量化计算，几十秒钟就运算出来了，最后结果如下：
