Intouch/ifix语音报警系统制作(2)

在我的先前一篇关于语音报警系统制作的文章中，阐述了如何通过标签组来获得@name@的详细内容，以通过这种方式来进行详细的设备故障播报。经过一段时间的试运行，发现使用标签组的方式会产生较大的耦合，（即当标签组内容或者脚本内容发生错误时，脚本会弹出错误，妨碍了其他脚本的执行）

于是，在现场将所有的绑定标签组的报警脚本修改为直接传参到全局变量，实现解耦。

1.后台调度修改：

Private Sub FixEvent2_WhileTrue()
’将全局变量PicNumBer赋值为所需要报警的设备名称
Dim workspace As Object
Set workspace = GetObject("", "Workspace.Application")
Dim tagvar As Object
Set tagvar = workspace.Documents("User").Page.FindObject("PicNumBer")
tagvar.Description = "二期粗格栅2号污水泵"

Dim TOP As Integer
Dim LEFT As Integer
TOP = Int((50 * Rnd) + 1)
LEFT = Int((50 * Rnd) + 1)
Dim conODBC As ADODB.Connection
Dim StrD As String
Dim userid As String
Dim username As String
Dim groupname As String
System.FixGetUserInfo userid, username, groupname
StrD = Format(Now, "yyyy-mm-dd hh:mm:ss")
Set conODBC = New ADODB.Connection
conODBC.ConnectionString = "DSN=QPWS;UID=sa;PWD=;"
conODBC.Open "QPWS", "sa", ""
conODBC.Execute "insert into kaitingshijian (DateTimee,mingcheng,neirong,operator) values ('" + StrD + "','二期粗格栅污水泵2', '故障', '" + username + "')"
conODBC.Close
openpicture "故障报警.grf", "", TOP, LEFT, 0, , NONE, "", True

End Sub

2.1弹窗界面初始化：

Private Sub CFixPicture_Initialize()
Dim a As String
User.jishu.CurrentValue = User.jishu.CurrentValue + 1
playSound ("D:alarm.wav")
'将设备名称赋值给text标签的caption属性

Text2.Caption = User.PicNumBer.Description
'故障报警.LoadTagGroupFile User.PicNumBer.Description
'故障报警.tagGroupSubstitution "@name@", a
'JTTS_ActiveX1.Play (a)
JTTS_ActiveX1.Play (Text2.Caption + Text1.Caption + Text2.Caption + Text1.Caption + Text2.Caption + Text1.Caption)
End Sub

2.2界面关闭：

Private Sub CFixPicture_Close()
If User.tagname.CurrentValue = False Then
User.tagname.CurrentValue = True
Else
Dim a As String
a = Text2.Caption
Dim conODBC As ADODB.Connection
Dim StrD As String
Dim userid As String
Dim username As String
Dim groupname As String
System.FixGetUserInfo userid, username, groupname
StrD = Format(Now, "yyyy-mm-dd hh:mm:ss")
Set conODBC = New ADODB.Connection
conODBC.ConnectionString = "DSN=QPWS;UID=sa;PWD=;"
conODBC.Open "QPWS", "sa", ""
conODBC.Execute "insert into querenguzhang (DateTimee,mingcheng,neirong,operator,queren) values ('" + StrD + "','" + a + "', '故障', '" + username + "','未确认')"
User.jishu1.CurrentValue = User.jishu1.CurrentValue + 1
conODBC.Close
End If
End Sub

2.3确认按钮脚本编写：

Private Sub CommandButton1_Click()
Dim a As String
a = Text2.Caption
Dim conODBC As ADODB.Connection
Dim StrD As String
Dim userid As String
Dim username As String
Dim groupname As String
System.FixGetUserInfo userid, username, groupname
StrD = Format(Now, "yyyy-mm-dd hh:mm:ss")
Set conODBC = New ADODB.Connection
conODBC.ConnectionString = "DSN=QPWS;UID=sa;PWD=;"
conODBC.Open "QPWS", "sa", ""
conODBC.Execute "insert into querenguzhang (DateTimee,mingcheng,neirong,operator,queren) values ('" + StrD + "','" + a + "', '故障', '" + username + "','已确认')"
conODBC.Close
User.tagname.CurrentValue = False

'If (User.jishu.CurrentValue > 0) Then
'User.jishu.CurrentValue = User.jishu.CurrentValue - 1
'Else
'User.jishu.CurrentValue = 0
'End If

closepicture
End Sub

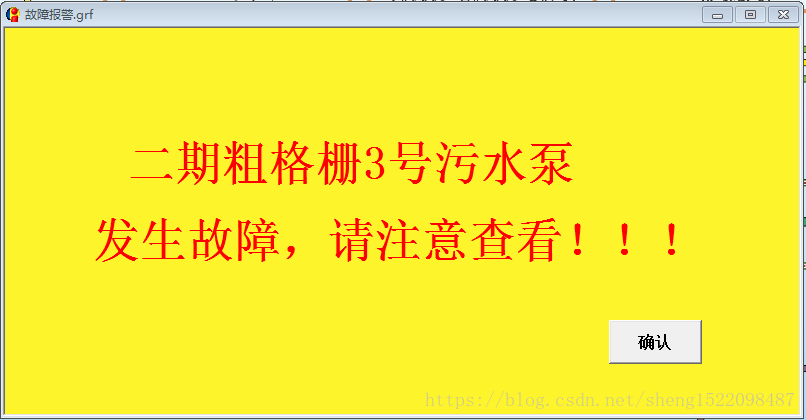

显示效果如图：
