recovery 界面汉化过程详解

一. 主要是针对recovery汉化，主要汉化对象是界面显示为中文。

二. 基于中文的汉化，有两种方式，一种是基于GB2312的编码格式汉化，另外一种是基于unicode编码格式汉化。下面介绍unicode中文汉化。

三. 汉化主要需要修改四个文件，汉化步骤：

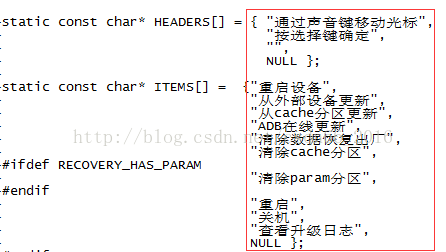

    3.1 default_device.cpp修改，主界面汉化

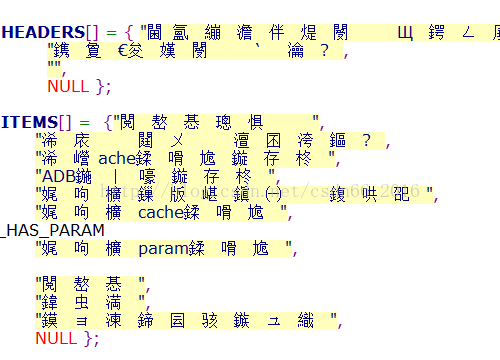

         增加中文的界面，但是由于是unicode编码，所以在source insight里面显示乱码：

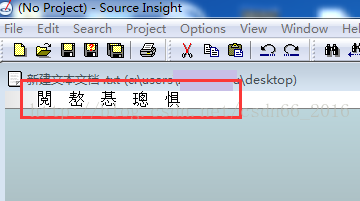

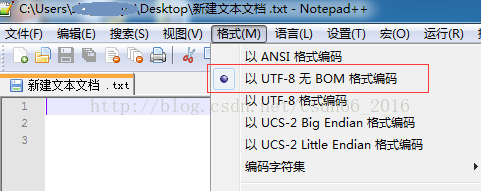

         这些看似乱码，我们可以这样获取，桌面新建txt文档，使用notepad++工具打开， 选择格式，以UTF-8 无BOM格式编码，里面写入需要显示的汉字，然后保存，然后把新建的txt使用source insight打开即可。

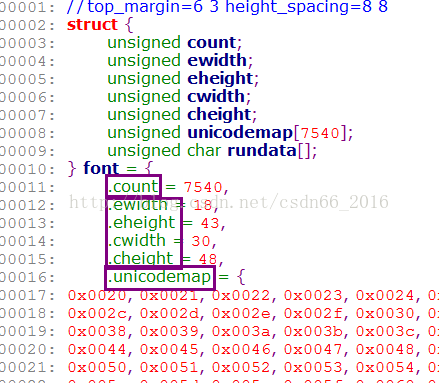

    3.2 unicode的中文字库获取，网上可以下载, eg：fontcn30_18x48.h



    3.3 针对unicode的解析源文件graphics_cn.c



/*
 * Copyright (C) 2007 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

#include <stdbool.h>
#include <stdlib.h>
#include <unistd.h>

#include <fcntl.h>
#include <stdio.h>

#include <sys/ioctl.h>
#include <sys/mman.h>
#include <sys/types.h>

#include <linux/fb.h>
#include <linux/kd.h>

#include <time.h>

#include "fontcn30_18x48.h"
//#include "font_10x18.h"
#include "minui.h"
#include "graphics.h"

typedef struct {
    GRSurface* texture;
    unsigned offset[97];
    void** fontdata;
    unsigned count;
    unsigned *unicodemap;
    unsigned char *cwidth;
    unsigned char *cheight;
    unsigned ascent;
} GRFont;

static GRFont* gr_font = NULL;
static minui_backend* gr_backend = NULL;

static int overscan_percent = OVERSCAN_PERCENT;
static int overscan_offset_x = 0;
static int overscan_offset_y = 0;

static int gr_vt_fd = -1;
const unsigned cw_en = 10;

static unsigned char gr_current_r = 255;
static unsigned char gr_current_g = 255;
static unsigned char gr_current_b = 255;
static unsigned char gr_current_a = 255;

static GRSurface* gr_draw = NULL;

static bool outside(int x, int y)
{
    return x < 0 || x >= gr_draw->width || y < 0 || y >= gr_draw->height;
}

int getUNICharID(unsigned short unicode, void* pFont)
{
    int i;
    GRFont *gfont = (GRFont*) pFont;
    if (!gfont)  gfont = gr_font;
    for (i = 0; i < gfont->count; i++) {
        if (unicode == gfont->unicodemap[i]) return i;
    }
    return -1;
}


int gr_measure(const char *s)
{
    return 0;
}

void gr_font_size(int *x, int *y)
{
    *x = gr_font->cwidth[100];
    *y = gr_font->cheight[100];
}



static void text_blend(unsigned char* src_p, int src_row_bytes,
                       unsigned char* dst_p, int dst_row_bytes,
                       int width, int height)
{
    int i, j;
    for (j = 0; j < height; ++j) {
        unsigned char* sx = src_p;
        unsigned char* px = dst_p;
        for (i = 0; i < width; ++i) {
            unsigned char a = *sx++;
            if (gr_current_a < 255) a = ((int)a * gr_current_a) / 255;
            if (a == 255) {
                *px++ = gr_current_r;
                *px++ = gr_current_g;
                *px++ = gr_current_b;
                *px++ = 255;
            } else if (a > 0) {
                *px = (*px * (255-a) + gr_current_r * a) / 255;
                ++px;
                *px = (*px * (255-a) + gr_current_g * a) / 255;
                ++px;
                *px = (*px * (255-a) + gr_current_b * a) / 255;
                ++px;
                *px++ = 255;
            } else {
                px += 3;
                *px++ = 255;
            }
        }
        src_p += src_row_bytes;
        dst_p += dst_row_bytes;
    }
}


void gr_text(int x, int y, const char *s, int bold)
{
    GRFont *font = gr_font;
    unsigned off, n , width, height;
    unsigned off2;
    unsigned off3;
    wchar_t ch;
    int id;
    unsigned short unicode;

    if (!font->texture) return;
    if (gr_current_a == 0) return;

    x += overscan_offset_x;
    y += overscan_offset_y;

   //printf("--------%X %X %X  %X
", s[0], s[1], s[2], s[3]);
    while((off = *s++)) {
        if (off < 0x80)
        {
            //ASCII 不处理
        } else {
            if ((off & 0xF0) == 0xE0)
            {
                off2 = *s++;
                off3 = *s++;
                unicode = (off & 0x1F) << 12;
                unicode |= (off2 & 0x3F) << 6;
                unicode |= (off3 & 0x3F);
                id = getUNICharID(unicode, font);

                //printf("%X %X %X  %X  %d
", off, off2, off3, unicode, id);
                if (id >= 0) {
                    width = font->cwidth[id];
                    height = font->cheight[id];

                    unsigned char* src_p = font->fontdata[id];
                    unsigned char* dst_p = gr_draw->data + y*gr_draw->row_bytes + x*gr_draw->pixel_bytes;
                    text_blend(src_p, font->texture->row_bytes,dst_p, gr_draw->row_bytes,width, height);

                    x += width;
                } else {
                    x += width;
        }
            } else {
                x += cw_en;
            }
        }
    }
}

void gr_texticon(int x, int y, GRSurface* icon) {
    if (icon == NULL) return;

    if (icon->pixel_bytes != 1) {
        printf("gr_texticon: source has wrong format
");
        return;
    }

    x += overscan_offset_x;
    y += overscan_offset_y;

    if (outside(x, y) || outside(x+icon->width-1, y+icon->height-1)) return;

    unsigned char* src_p = icon->data;
    unsigned char* dst_p = gr_draw->data + y*gr_draw->row_bytes + x*gr_draw->pixel_bytes;

    text_blend(src_p, icon->row_bytes,
               dst_p, gr_draw->row_bytes,
               icon->width, icon->height);
}

void gr_color(unsigned char r, unsigned char g, unsigned char b, unsigned char a)
{
    gr_current_r = r;
    gr_current_g = g;
    gr_current_b = b;
    gr_current_a = a;
}

void gr_clear()
{
    if (gr_current_r == gr_current_g &&
        gr_current_r == gr_current_b) {
        memset(gr_draw->data, gr_current_r, gr_draw->height * gr_draw->row_bytes);
    } else {
        int x, y;
        unsigned char* px = gr_draw->data;
        for (y = 0; y < gr_draw->height; ++y) {
            for (x = 0; x < gr_draw->width; ++x) {
                *px++ = gr_current_r;
                *px++ = gr_current_g;
                *px++ = gr_current_b;
                px++;
            }
            px += gr_draw->row_bytes - (gr_draw->width * gr_draw->pixel_bytes);
        }
    }
}

void gr_fill(int x1, int y1, int x2, int y2)
{
    x1 += overscan_offset_x;
    y1 += overscan_offset_y;

    x2 += overscan_offset_x;
    y2 += overscan_offset_y;

    if (outside(x1, y1) || outside(x2-1, y2-1)) return;

    unsigned char* p = gr_draw->data + y1 * gr_draw->row_bytes + x1 * gr_draw->pixel_bytes;
    if (gr_current_a == 255) {
        int x, y;
        for (y = y1; y < y2; ++y) {
            unsigned char* px = p;
            for (x = x1; x < x2; ++x) {
                *px++ = gr_current_r;
                *px++ = gr_current_g;
                *px++ = gr_current_b;
                *px++ = 255;
            }
            p += gr_draw->row_bytes;
        }
    } else if (gr_current_a > 0) {
        int x, y;
        for (y = y1; y < y2; ++y) {
            unsigned char* px = p;
            for (x = x1; x < x2; ++x) {
                *px = (*px * (255-gr_current_a) + gr_current_r * gr_current_a) / 255;
                ++px;
                *px = (*px * (255-gr_current_a) + gr_current_g * gr_current_a) / 255;
                ++px;
                *px = (*px * (255-gr_current_a) + gr_current_b * gr_current_a) / 255;
                ++px;
                *px++ = 255;
            }
            p += gr_draw->row_bytes;
        }
    }
}

void gr_blit(GRSurface* source, int sx, int sy, int w, int h, int dx, int dy) {
    if (source == NULL) return;

    if (gr_draw->pixel_bytes != source->pixel_bytes) {
        printf("gr_blit: source has wrong format
");
        return;
    }

    dx += overscan_offset_x;
    dy += overscan_offset_y;

    if (outside(dx, dy) || outside(dx+w-1, dy+h-1)) return;

    unsigned char* src_p = source->data + sy*source->row_bytes + sx*source->pixel_bytes;
    unsigned char* dst_p = gr_draw->data + dy*gr_draw->row_bytes + dx*gr_draw->pixel_bytes;

    int i;
    int j;
    for (i = 0; i < h; ++i) {
        if (source->pixel_bytes == 4 && source->alpha ==1) {
            unsigned char *p0 = src_p;
            unsigned char *p1 = dst_p;
            unsigned char alpha = 255;
            for (j = 0; j < w; j++) {
                alpha = *(p0+3);
                *p1 = (*p1 * (255-alpha) + *p0++ * alpha) / 255;
                ++p1;
                *p1 = (*p1 * (255-alpha) + *p0++ * alpha) / 255;
                ++p1;
                *p1 = (*p1 * (255-alpha) + *p0++ * alpha) / 255;
                ++p1;
                *p1++ = 255;
                ++p0;
            }
        } else {
            memcpy(dst_p, src_p, w * source->pixel_bytes);
        }
        src_p += source->row_bytes;
        dst_p += gr_draw->row_bytes;
    }
}

unsigned int gr_get_width(GRSurface* surface) {
    if (surface == NULL) {
        return 0;
    }
    return surface->width;
}

unsigned int gr_get_height(GRSurface* surface) {
    if (surface == NULL) {
        return 0;
    }
    return surface->height;
}

static void gr_init_font(void)
{
    unsigned i, n, d;
    void** font_data;
    int bmp, pos;
    unsigned char *in, data;
    unsigned char *width, *height;
    gr_font = calloc(sizeof(*gr_font), 1);

    font_data = (void**)malloc(font.count * sizeof(void*));

    width = malloc(font.count);
    height = malloc(font.count);
    for(n = 0; n < font.count; n++) {
		if (n<95) {
			font_data[n] = malloc(font.ewidth*font.eheight);
			memset(font_data[n], 0, font.ewidth*font.eheight);
			width[n] = font.ewidth;
			height[n] = font.eheight;
		}
		else {
			font_data[n] = malloc(font.cwidth*font.cheight);
			memset(font_data[n], 0, font.cwidth * font.cheight);
			width[n] = font.cwidth;
			height[n] = font.cheight;
		}
	}

    d = 0;
    in = font.rundata;
    while((data = *in++)) {
        n = data & 0x7f;
        for(i = 0; i < n; i++, d++) {
			if (d<95*font.ewidth*font.eheight) {
				bmp = d/(font.ewidth*font.eheight);
				pos = d%(font.ewidth*font.eheight);
			}
			else {
				bmp = (d-95*font.ewidth*font.eheight)/(font.cwidth*font.cheight)+95;
				pos = (d-95*font.ewidth*font.eheight)%(font.cwidth*font.cheight);
			}
            ((unsigned char*)(font_data[bmp]))[pos] = (data & 0x80) ? 0xff : 0;
        }

    }

    gr_font->texture = malloc(sizeof(GRSurface));
    gr_font->texture->width = font.ewidth;
    gr_font->texture->height = font.eheight;
    gr_font->texture->row_bytes = font.cwidth;
    gr_font->texture->pixel_bytes = 1;
    gr_font->count = font.count;
    gr_font->unicodemap = font.unicodemap;
    gr_font->cwidth = width;
    gr_font->cheight = height;
    gr_font->fontdata = font_data;
    gr_font->ascent = font.cheight;

}

#if 0
// Exercises many of the gr_*() functions; useful for testing.
static void gr_test() {
    GRSurface** images;
    int frames;
    int result = res_create_multi_surface("icon_installing", &frames, &images);
    if (result < 0) {
        printf("create surface %d
", result);
        gr_exit();
        return;
    }

    time_t start = time(NULL);
    int x;
    for (x = 0; x <= 1200; ++x) {
        if (x < 400) {
            gr_color(0, 0, 0, 255);
        } else {
            gr_color(0, (x-400)%128, 0, 255);
        }
        gr_clear();

        gr_color(255, 0, 0, 255);
        gr_surface frame = images[x%frames];
        gr_blit(frame, 0, 0, frame->width, frame->height, x, 0);

        gr_color(255, 0, 0, 128);
        gr_fill(400, 150, 600, 350);

        gr_color(255, 255, 255, 255);
        gr_text(500, 225, "hello, world!", 0);
        gr_color(255, 255, 0, 128);
        gr_text(300+x, 275, "pack my box with five dozen liquor jugs", 1);

        gr_color(0, 0, 255, 128);
        gr_fill(gr_draw->width - 200 - x, 300, gr_draw->width - x, 500);

        gr_draw = gr_backend->flip(gr_backend);
    }
    printf("getting end time
");
    time_t end = time(NULL);
    printf("got end time
");
    printf("start %ld end %ld
", (long)start, (long)end);
    if (end > start) {
        printf("%.2f fps
", ((double)x) / (end-start));
    }
}
#endif

void gr_flip() {
    gr_draw = gr_backend->flip(gr_backend);
}

int gr_init(void)
{
    gr_init_font();

    gr_vt_fd = open("/dev/tty0", O_RDWR | O_SYNC);
    if (gr_vt_fd < 0) {
        // This is non-fatal; post-Cupcake kernels don't have tty0.
        perror("can't open /dev/tty0");
    } else if (ioctl(gr_vt_fd, KDSETMODE, (void*) KD_GRAPHICS)) {
        // However, if we do open tty0, we expect the ioctl to work.
        perror("failed KDSETMODE to KD_GRAPHICS on tty0");
        gr_exit();
        return -1;
    }

    gr_backend = open_adf();
    if (gr_backend) {
        gr_draw = gr_backend->init(gr_backend);
        if (!gr_draw) {
            gr_backend->exit(gr_backend);
        }
    }

    if (!gr_draw) {
        gr_backend = open_fbdev();
        gr_draw = gr_backend->init(gr_backend);
        if (gr_draw == NULL) {
            return -1;
        }
    }

    overscan_offset_x = gr_draw->width * overscan_percent / 100;
    overscan_offset_y = gr_draw->height * overscan_percent / 100;

    gr_flip();
    gr_flip();

    return 0;
}

void gr_exit(void)
{
    gr_backend->exit(gr_backend);

    ioctl(gr_vt_fd, KDSETMODE, (void*) KD_TEXT);
    close(gr_vt_fd);
    gr_vt_fd = -1;
}

int gr_fb_width(void)
{
    return gr_draw->width - 2*overscan_offset_x;
}

int gr_fb_height(void)
{
    return gr_draw->height - 2*overscan_offset_y;
}

void gr_fb_blank(bool blank)
{
    gr_backend->blank(gr_backend, blank);
}

     3.4 minui/Android.mk中选择graphics_cn.c编译，使用宏控制：

      ifeq ($(TARGET_RECOVERY_SUPPORT_CHINESE_FONT), true)         LOCAL_SRC_FILES += graphics_cn.c       else         LOCAL_SRC_FILES += graphics.c       endif

四. 至此汉化完成，我们定义TARGET_RECOVERY_SUPPORT_CHINESE_FONT即可，编译出来的界面即为中文界面，若遇到其他问题，相应的解决即可。
