dpdk ring 多/单生产者、多/单消费者

#define RING_F_SP_ENQ 0x0001 /**< The default enqueue is "single-producer". */
#define RING_F_SC_DEQ 0x0002 /**< The default dequeue is "single-consumer". */

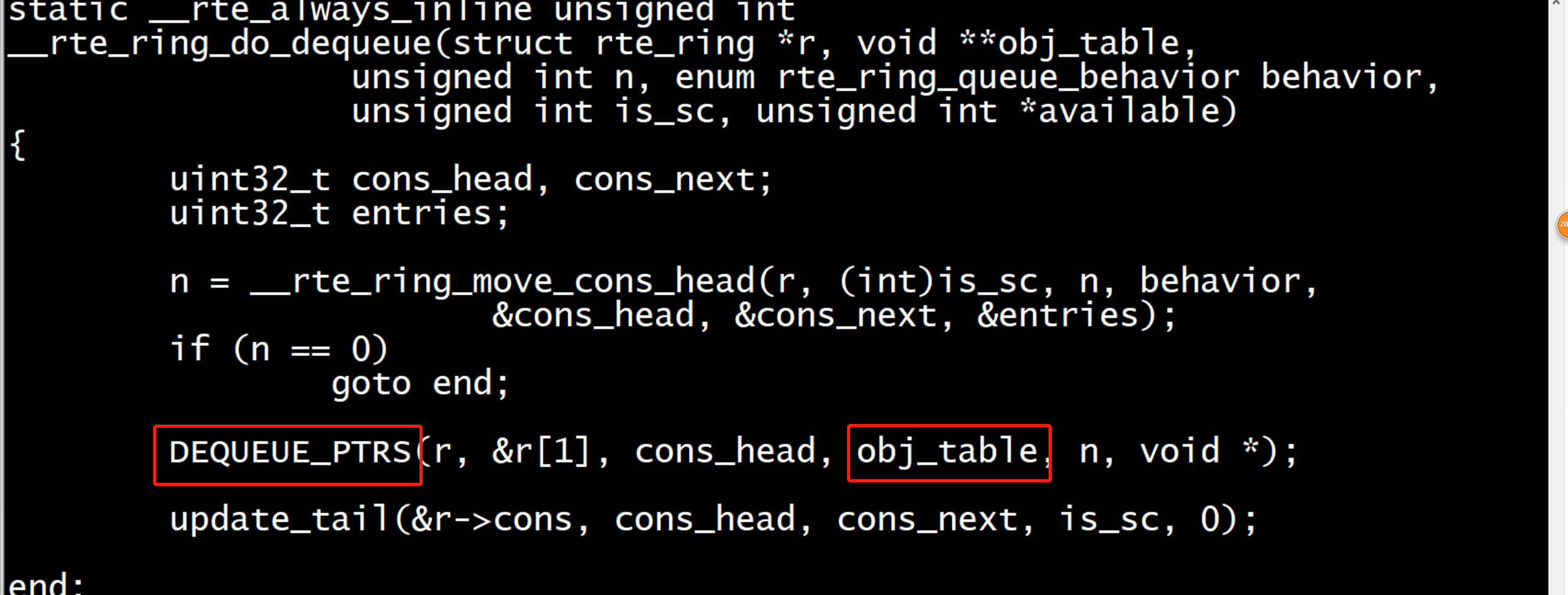

#define DEQUEUE_PTRS(r, ring_start, cons_head, obj_table, n, obj_type) do {
        unsigned int i;
        uint32_t idx = cons_head & (r)->mask;
        const uint32_t size = (r)->size;
        obj_type *ring = (obj_type *)ring_start;
        if (likely(idx + n < size)) {
                for (i = 0; i < (n & (~(unsigned)0x3)); i+=4, idx+=4) {
                        obj_table[i] = ring[idx];
                        obj_table[i+1] = ring[idx+1];
                        obj_table[i+2] = ring[idx+2];
                        obj_table[i+3] = ring[idx+3];
                }
                switch (n & 0x3) {
                case 3:
                        obj_table[i++] = ring[idx++]; /* fallthrough */
                case 2:
                        obj_table[i++] = ring[idx++]; /* fallthrough */
                case 1:
                        obj_table[i++] = ring[idx++];
                }
        } else {
                for (i = 0; idx < size; i++, idx++)
                        obj_table[i] = ring[idx];
                for (idx = 0; i < n; i++, idx++)
                        obj_table[i] = ring[idx];
        }
} while (0)

  rte_ring_create

      rte_ring_init(r, name, requested_count, flags);



            r->prod.single = (flags & RING_F_SP_ENQ) ? __IS_SP : __IS_MP;  //默认是mp
            r->cons.single = (flags & RING_F_SC_DEQ) ? __IS_SC : __IS_MC;//默认是mc

static __rte_always_inline unsigned
rte_ring_sp_enqueue_burst(struct rte_ring *r, void * const *obj_table,
                         unsigned int n, unsigned int *free_space)
{
        return __rte_ring_do_enqueue(r, obj_table, n,
                        RTE_RING_QUEUE_VARIABLE, __IS_SP, free_space);
}

static __rte_always_inline unsigned
rte_ring_mp_enqueue_burst(struct rte_ring *r, void * const *obj_table,
                         unsigned int n, unsigned int *free_space)
{
        return __rte_ring_do_enqueue(r, obj_table, n,
                        RTE_RING_QUEUE_VARIABLE, __IS_MP, free_space);
}

rte_ring_init
    r->flags = flags;
    r->prod.single = (flags & RING_F_SP_ENQ) ? __IS_SP : __IS_MP;
    r->cons.single = (flags & RING_F_SC_DEQ) ? __IS_SC : __IS_MC;
rte_ring_enqueue_bulk(struct rte_ring *r, void * const *obj_table,
                      unsigned int n, unsigned int *free_space)
{
        return __rte_ring_do_enqueue(r, obj_table, n, RTE_RING_QUEUE_FIXED,
                        r->prod.single, free_space);
}
rte_ring_dequeue_burst(struct rte_ring *r, void **obj_table,
                unsigned int n, unsigned int *available)
{
        return __rte_ring_do_dequeue(r, obj_table, n,
                                RTE_RING_QUEUE_VARIABLE,
                                r->cons.single, available);
}

flags（RING_F_SP_EN ）实际上影响的并不是队列本身的性质而是调用队列的函数__rte_ring_do_enqueue参数）

static __rte_always_inline unsigned int
__rte_ring_move_prod_head(struct rte_ring *r, unsigned int is_sp,
                unsigned int n, enum rte_ring_queue_behavior behavior,
                uint32_t *old_head, uint32_t *new_head,
                uint32_t *free_entries)
{
        const uint32_t capacity = r->capacity;
        unsigned int max = n;
        int success;

        do {
                /* Reset n to the initial burst count */
                n = max;

                *old_head = r->prod.head;

                /* add rmb barrier to avoid load/load reorder in weak
                 * memory model. It is noop on x86
                 */
                rte_smp_rmb();

                /*
                 *  The subtraction is done between two unsigned 32bits value
                 * (the result is always modulo 32 bits even if we have
                 * *old_head > cons_tail). So 'free_entries' is always between 0
                 * and capacity (which is < size).
                 */
                *free_entries = (capacity + r->cons.tail - *old_head);

                /* check that we have enough room in ring */

                 * and capacity (which is < size).
                 */
                *free_entries = (capacity + r->cons.tail - *old_head);

                /* check that we have enough room in ring */
                if (unlikely(n > *free_entries))
                        n = (behavior == RTE_RING_QUEUE_FIXED) ?
                                        0 : *free_entries;

                if (n == 0)
                        return 0;

                *new_head = *old_head + n;
                if (is_sp)
                        r->prod.head = *new_head, success = 1;
                else
                        success = rte_atomic32_cmpset(&r->prod.head,
                                        *old_head, *new_head);
        } while (unlikely(success == 0));
        return n;
}

static __rte_always_inline unsigned int
__rte_ring_move_cons_head(struct rte_ring *r, unsigned int is_sc,
                unsigned int n, enum rte_ring_queue_behavior behavior,
                uint32_t *old_head, uint32_t *new_head,
                uint32_t *entries)
{
        unsigned int max = n;
        int success;

        /* move cons.head atomically */
        do {
                /* Restore n as it may change every loop */
                n = max;

                *old_head = r->cons.head;

                /* add rmb barrier to avoid load/load reorder in weak
                 * memory model. It is noop on x86
                 */
                rte_smp_rmb();

                /* The subtraction is done between two unsigned 32bits value
                 * (the result is always modulo 32 bits even if we have
                 * cons_head > prod_tail). So 'entries' is always between 0
                 * and size(ring)-1.
                 */
                *entries = (r->prod.tail - *old_head);

                /* Set the actual entries for dequeue */
                if (n > *entries)
                        n = (behavior == RTE_RING_QUEUE_FIXED) ? 0 : *entries;

                if (unlikely(n == 0))
                        return 0;

                *new_head = *old_head + n;
                if (is_sc) {
                        r->cons.head = *new_head;
                        rte_smp_rmb();
                        success = 1;
                } else {
                        success = rte_atomic32_cmpset(&r->cons.head, *old_head,
                                        *new_head);
                }
        } while (unlikely(success == 0));
        return n;
}
