container start or run + prepareRootfs + linuxStandardInit.Init

 https://blog.csdn.net/zhonglinzhang/article/details/101212033

https://blog.csdn.net/zhonglinzhang/article/details/101212033

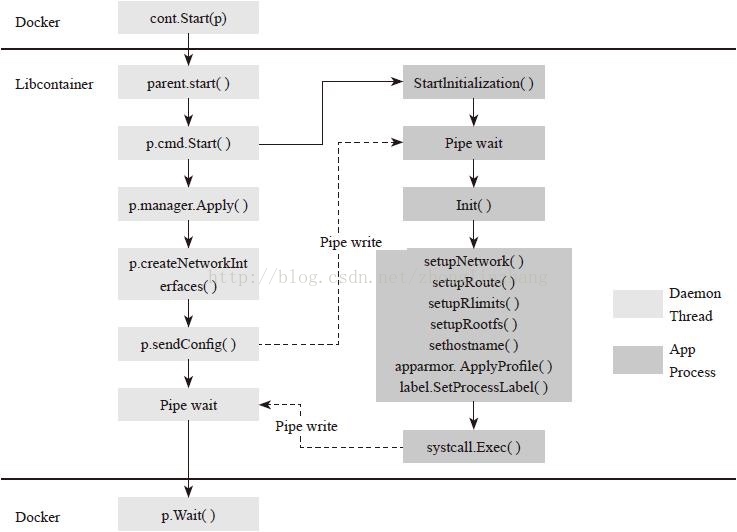

1. 在Libcontainer中，p.cmd.Start创建子进程，就进入了pipe wait等待父写入pipe，p.cmd.Start创建了新的Namespace，这时子进程就已经在新的Namespace里了。
2. daemon线程在执行p.manager.Apply，创建新的Cgroup，并把子进程放到新的Cgroup中。
3. daemon线程做一些网络配置，会把容器的配置信息通过管道发给子进程。同时让子进程继续往下执行。
4. daemon线程则进入pipe wait阶段，容器剩下的初始化由子进程完成了。
5. rootfs的切换在setupRootfs函数中。（首先子进程会根据config，把host上的相关目录mount到容器的rootfs中，或挂载到一些虚拟文件系统上，这些挂载信息可能是-v指定的volume、容器的Cgroup信息、proc文件系统等）。
6. 完成文件系统操作，就执行syscall.PivotRoot把容器的根文件系统切换rootfs
7. 再做一些hostname及安全配置，就可以调用syscall.Exec执行容器中的init进程了
8. 容器完成创建和运行操作，同时通知了父进程，此时，daemon线程会回到Docker的函数中，执行等待容器进程结束的操作，整个过程完成

Process 对象

Process 主要分为两类，一类在源码中就叫Process，用于容器内进程的配置和 IO 的管理；另一类在源码中叫ParentProcess，负责处理容器启动工作，与 Container 对象直接进行接触，启动完成后作为Process的一部分，执行等待、发信号、获得pid等管理工作。

ParentProcess 对象，主要包含以下六个函数，而根据”需要新建容器”和“在已经存在的容器中执行”的不同方式，具体的实现也有所不同。

• 已有容器中执行命令

  1. pid()： 启动容器进程后通过管道从容器进程中获得，因为容器已经存在，与Ｄocker Ｄeamon 在不同的 pid namespace 中，从进程所在的 namespace 获得的进程号才有意义。
  2. start()： 初始化容器中的执行进程。在已有容器中执行命令一般由docker exec调用，在 execdriver 包中，执行exec时会引入nsenter包，从而调用其中的 C 语言代码，执行nsexec()函数，该函数会读取配置文件，使用setns()加入到相应的 namespace，然后通过clone()在该 namespace 中生成一个子进程，并把子进程通过管道传递出去，使用setns()以后并没有进入 pid namespace，所以还需要通过加上clone()系统调用。
     • 开始执行进程，首先会运行C代码，通过管道获得进程 pid，最后等待C代码执行完毕。
     • 通过获得的 pid 把 cmd 中的 Process 替换成新生成的子进程。
     • 把子进程加入 cgroup 中。
     • 通过管道传配置文件给子进程。
     • 等待初始化完成或出错返回，结束。

• 新建容器执行命令

  1. pid()：启动容器进程后通过exec.Cmd自带的pid()函数即可获得。
  2. start()：初始化及执行容器命令。
     • 开始运行进程。
     • 把进程 pid 加入到 cgroup 中管理。
     • 初始化容器网络。（本部分内容丰富，将从本系列的后续文章中深入讲解）
     • 通过管道发送配置文件给子进程。
     • 等待初始化完成或出错返回，结束。

• 实现方式类似的一些函数

  • terminate() ：发送SIGKILL信号结束进程。
  • startTime() ：获取进程的启动时间。
  • signal()：发送信号给进程。
  • wait()：等待程序执行结束，返回结束的程序状态。

Process 对象，主要描述了容器内进程的配置以及 IO。包括参数Args，环境变量Env，用户User（由于 uid、gid 映射），工作目录Cwd，标准输入输出及错误输入，控制终端路径consolePath，容器权限Capabilities以及上述提到的 ParentProcess 对象ops（拥有上面的一些操作函数，可以直接管理进程）。

// New returns a linux based container factory based in the root directory and
// configures the factory with the provided option funcs.
func New(root string, options ...func(*LinuxFactory) error) (Factory, error) {
        if root != "" {
                if err := os.MkdirAll(root, 0700); err != nil {
                        return nil, newGenericError(err, SystemError)
                }
        }
        l := &LinuxFactory{
                Root:      root,
                InitPath:  "/proc/self/exe",
                InitArgs:  []string{os.Args[0], "init"},
                Validator: validate.New(),
                CriuPath:  "criu",
        }
        Cgroupfs(l)
        for _, opt := range options {
                if opt == nil {
                        continue
                }
                if err := opt(l); err != nil {
                        return nil, err
                }
        }
        return l, nil
}

func (l *LinuxFactory) Create(id string, config *configs.Config) (Container, error) {
        if l.Root == "" {
                return nil, newGenericError(fmt.Errorf("invalid root"), ConfigInvalid)
        }
        if err := l.validateID(id); err != nil {
                return nil, err
        }
        if err := l.Validator.Validate(config); err != nil {
                return nil, newGenericError(err, ConfigInvalid)
        }
        containerRoot, err := securejoin.SecureJoin(l.Root, id)
        if err != nil {
                return nil, err
        }
        if _, err := os.Stat(containerRoot); err == nil {
                return nil, newGenericError(fmt.Errorf("container with id exists: %v", id), IdInUse)
        } else if !os.IsNotExist(err) {
                return nil, newGenericError(err, SystemError)
        }
        if err := os.MkdirAll(containerRoot, 0711); err != nil {
                return nil, newGenericError(err, SystemError)
        }
        if err := os.Chown(containerRoot, unix.Geteuid(), unix.Getegid()); err != nil {
                return nil, newGenericError(err, SystemError)
        }
        c := &linuxContainer{
                id:            id,
                root:          containerRoot,
                config:        config,
                initPath:      l.InitPath,
                initArgs:      l.InitArgs,
                criuPath:      l.CriuPath,
                newuidmapPath: l.NewuidmapPath,
                newgidmapPath: l.NewgidmapPath,
                cgroupManager: l.NewCgroupsManager(config.Cgroups, nil),
        }
        if intelrdt.IsCatEnabled() || intelrdt.IsMbaEnabled() {
                c.intelRdtManager = l.NewIntelRdtManager(config, id, "")
        }
        c.state = &stoppedState{c: c}
        return c, nil
}

libcontainer.New(containerPath, libcontainer.Cgroupfs)  + factory.Create



func (a *agentGRPC) finishCreateContainer(ctr *container, req *pb.CreateContainerRequest, config *configs.Config) (resp *gpb.Empty, err error) {
        containerPath := filepath.Join(libcontainerPath, a.sandbox.id)
        factory, err := libcontainer.New(containerPath, libcontainer.Cgroupfs)  ----------
        if err != nil {
                return emptyResp, err
        }

        ctr.container, err = factory.Create(req.ContainerId, config)

func (l *LinuxFactory) Create(id string, config *configs.Config) (Container, error) {
        if l.Root == "" {
                return nil, newGenericError(fmt.Errorf("invalid root"), ConfigInvalid)
        }
        if err := l.validateID(id); err != nil {
                return nil, err
        }
        if err := l.Validator.Validate(config); err != nil {
                return nil, newGenericError(err, ConfigInvalid)
        }
        containerRoot, err := securejoin.SecureJoin(l.Root, id)
        if err != nil {
                return nil, err
        }
        if _, err := os.Stat(containerRoot); err == nil {
                return nil, newGenericError(fmt.Errorf("container with id exists: %v", id), IdInUse)
        } else if !os.IsNotExist(err) {
                return nil, newGenericError(err, SystemError)
        }
        if err := os.MkdirAll(containerRoot, 0711); err != nil {
                return nil, newGenericError(err, SystemError)
        }
        if err := os.Chown(containerRoot, unix.Geteuid(), unix.Getegid()); err != nil {
                return nil, newGenericError(err, SystemError)
        }
        c := &linuxContainer{
                id:            id,
                root:          containerRoot,
                config:        config,
                initPath:      l.InitPath,
                initArgs:      l.InitArgs,
                criuPath:      l.CriuPath,
                newuidmapPath: l.NewuidmapPath,
                newgidmapPath: l.NewgidmapPath,
                cgroupManager: l.NewCgroupsManager(config.Cgroups, nil),
        }
        if intelrdt.IsCatEnabled() || intelrdt.IsMbaEnabled() {
                c.intelRdtManager = l.NewIntelRdtManager(config, id, "")
        }
        c.state = &stoppedState{c: c}
        return c, nil
}

func (a *agentGRPC) ExecProcess(ctx context.Context, req *pb.ExecProcessRequest) (*gpb.Empty, error) {
        ctr, err := a.getContainer(req.ContainerId)
        if err != nil {
                return emptyResp, err
        }

        status, err := ctr.container.Status()
        if err != nil {
                return nil, err
        }

        if status == libcontainer.Stopped {
                return nil, grpcStatus.Errorf(codes.FailedPrecondition, "Cannot exec in stopped container %s", req.ContainerId)
        }

        proc, err := buildProcess(req.Process, req.ExecId, false)
        if err != nil {
                return emptyResp, err
        }

        if err := a.execProcess(ctr, proc, false); err != nil {
                return emptyResp, err
        }

        return emptyResp, a.postExecProcess(ctr, proc)
}

// Shared function between CreateContainer and ExecProcess, because those expect
// a process to be run.
func (a *agentGRPC) execProcess(ctr *container, proc *process, createContainer bool) (err error) {
        if ctr == nil {
                return grpcStatus.Error(codes.InvalidArgument, "Container cannot be nil")
        }

        if proc == nil {
                return grpcStatus.Error(codes.InvalidArgument, "Process cannot be nil")
        }

        // This lock is very important to avoid any race with reaper.reap().
        // Indeed, if we don't lock this here, we could potentially get the
        // SIGCHLD signal before the channel has been created, meaning we will
        // miss the opportunity to get the exit code, leading WaitProcess() to
        // wait forever on the new channel.
        // This lock has to be taken before we run the new process.
        a.sandbox.subreaper.lock()
        defer a.sandbox.subreaper.unlock()

        if createContainer {
                err = ctr.container.Start(&proc.process)
        } else {
                err = ctr.container.Run(&(proc.process))
        }
        if err != nil {
                return grpcStatus.Errorf(codes.Internal, "Could not run process: %v", err)
        }

        // Get process PID
        pid, err := proc.process.Pid()
        if err != nil {
                return err
        }

        proc.exitCodeCh = make(chan int, 1)

        // Create process channel to allow WaitProcess to wait on it.
        // This channel is buffered so that reaper.reap() will not
        // block until WaitProcess listen onto this channel.
        a.sandbox.subreaper.setExitCodeCh(pid, proc.exitCodeCh)

        return nil
}

func _AgentService_ExecProcess_Handler(srv interface{}, ctx context.Context, dec func(interface{}) error, interceptor grpc1.UnaryServerInterceptor) (interface{}, error) {
        in := new(ExecProcessRequest)
        if err := dec(in); err != nil {
                return nil, err
        }
        if interceptor == nil {
                return srv.(AgentServiceServer).ExecProcess(ctx, in)
        }
        info := &grpc1.UnaryServerInfo{
                Server:     srv,
                FullMethod: "/grpc.AgentService/ExecProcess",
        }
        handler := func(ctx context.Context, req interface{}) (interface{}, error) {
                return srv.(AgentServiceServer).ExecProcess(ctx, req.(*ExecProcessRequest))
        }
        return interceptor(ctx, in, info, handler)
}



不去调用 (l *LinuxFactory) Create

libcontainer.New("")



agent.go

func init() {
        if len(os.Args) > 1 && os.Args[1] == "init" {
                runtime.GOMAXPROCS(1)
                runtime.LockOSThread()
                factory, _ := libcontainer.New("")
                if err := factory.StartInitialization(); err != nil {
                        agentLog.WithError(err).Error("init failed")
                }
                panic("--this line should have never been executed, congratulations--")
        }
}

func (a *agentGRPC) execProcess(ctr *container, proc *process, createContainer bool) (err error) {
        if ctr == nil {
                return grpcStatus.Error(codes.InvalidArgument, "Container cannot be nil")
        }

        if proc == nil {
                return grpcStatus.Error(codes.InvalidArgument, "Process cannot be nil")
        }

        // This lock is very important to avoid any race with reaper.reap().
        // Indeed, if we don't lock this here, we could potentially get the
        // SIGCHLD signal before the channel has been created, meaning we will
        // miss the opportunity to get the exit code, leading WaitProcess() to
        // wait forever on the new channel.
        // This lock has to be taken before we run the new process.
        a.sandbox.subreaper.lock()
        defer a.sandbox.subreaper.unlock()

        if createContainer {
                err = ctr.container.Start(&proc.process)
        } else {
                err = ctr.container.Run(&(proc.process))
        }
        if err != nil {
                return grpcStatus.Errorf(codes.Internal, "Could not run process: %v", err)
        }

        // Get process PID
        pid, err := proc.process.Pid()
        if err != nil {
                return err
        }

        proc.exitCodeCh = make(chan int, 1)

        // Create process channel to allow WaitProcess to wait on it.
        // This channel is buffered so that reaper.reap() will not
        // block until WaitProcess listen onto this channel.
        a.sandbox.subreaper.setExitCodeCh(pid, proc.exitCodeCh)

        return nil
}

vendor/github.com/opencontainers/runc/libcontainer/container_linux.go

func (c *linuxContainer) Start(process *Process) error {
    c.m.Lock()
    defer c.m.Unlock()
    if process.Init {
        if err := c.createExecFifo(); err != nil {
            return err
        }
    }
    if err := c.start(process); err != nil {
        if process.Init {
            c.deleteExecFifo()
        }
        return err
    }
    return nil
}

func (c *linuxContainer) Run(process *Process) error {
    if err := c.Start(process); err != nil {
        return err
    }
    if process.Init {
        return c.exec()
    }
    return nil
}

// mount initializes the console inside the rootfs mounting with the specified mount label
// and applying the correct ownership of the console.
func mountConsole(slavePath string) error {
        oldMask := unix.Umask(0000)
        defer unix.Umask(oldMask)
        f, err := os.Create("/dev/console")
        if err != nil && !os.IsExist(err) {
                return err
        }
        if f != nil {
                f.Close()
        }
        return unix.Mount(slavePath, "/dev/console", "bind", unix.MS_BIND, "")
}

func mountToRootfs(m *configs.Mount, rootfs, mountLabel string, enableCgroupns bool) error {
    var (
        dest = m.Destination
    )
    if !strings.HasPrefix(dest, rootfs) {
        dest = filepath.Join(rootfs, dest)
    }

    switch m.Device {
    case "proc", "sysfs":
        // If the destination already exists and is not a directory, we bail
        // out This is to avoid mounting through a symlink or similar -- which
        // has been a "fun" attack scenario in the past.
        // TODO: This won't be necessary once we switch to libpathrs and we can
        //       stop all of these symlink-exchange attacks.
        if fi, err := os.Lstat(dest); err != nil {
            if !os.IsNotExist(err) {
                return err
            }
        } else if fi.Mode()&os.ModeDir == 0 {
            return fmt.Errorf("filesystem %q must be mounted on ordinary directory", m.Device)
        }
        if err := os.MkdirAll(dest, 0755); err != nil {
            return err
        }
        // Selinux kernels do not support labeling of /proc or /sys
        return mountPropagate(m, rootfs, "")
    case "mqueue":
        if err := os.MkdirAll(dest, 0755); err != nil {
            return err
        }
        if err := mountPropagate(m, rootfs, mountLabel); err != nil {
            // older kernels do not support labeling of /dev/mqueue
            if err := mountPropagate(m, rootfs, ""); err != nil {
                return err
            }
            return label.SetFileLabel(dest, mountLabel)
        }
        return nil
    case "tmpfs":
        copyUp := m.Extensions&configs.EXT_COPYUP == configs.EXT_COPYUP
        tmpDir := ""
        stat, err := os.Stat(dest)
        if err != nil {
            if err := os.MkdirAll(dest, 0755); err != nil {
                return err
            }
        }
        if copyUp {
            tmpdir, err := prepareTmp("/tmp")
            if err != nil {
                return newSystemErrorWithCause(err, "tmpcopyup: failed to setup tmpdir")
            }
            defer cleanupTmp(tmpdir)
            tmpDir, err = ioutil.TempDir(tmpdir, "runctmpdir")
            if err != nil {
                return newSystemErrorWithCause(err, "tmpcopyup: failed to create tmpdir")
            }
            defer os.RemoveAll(tmpDir)
            m.Destination = tmpDir
        }
        if err := mountPropagate(m, rootfs, mountLabel); err != nil {
            return err
        }
        if copyUp {
            if err := fileutils.CopyDirectory(dest, tmpDir); err != nil {
                errMsg := fmt.Errorf("tmpcopyup: failed to copy %s to %s: %v", dest, tmpDir, err)
                if err1 := unix.Unmount(tmpDir, unix.MNT_DETACH); err1 != nil {
                    return newSystemErrorWithCausef(err1, "tmpcopyup: %v: failed to unmount", errMsg)
                }
                return errMsg
            }
            if err := unix.Mount(tmpDir, dest, "", unix.MS_MOVE, ""); err != nil {
                errMsg := fmt.Errorf("tmpcopyup: failed to move mount %s to %s: %v", tmpDir, dest, err)
                if err1 := unix.Unmount(tmpDir, unix.MNT_DETACH); err1 != nil {
                    return newSystemErrorWithCausef(err1, "tmpcopyup: %v: failed to unmount", errMsg)
                }
                return errMsg
            }
        }
        if stat != nil {
            if err = os.Chmod(dest, stat.Mode()); err != nil {
                return err
            }
        }
        return nil
    case "bind":
        if err := prepareBindMount(m, rootfs); err != nil {
            return err
        }
        if err := mountPropagate(m, rootfs, mountLabel); err != nil {
            return err
        }
        // bind mount won't change mount options, we need remount to make mount options effective.
        // first check that we have non-default options required before attempting a remount
        if m.Flags&^(unix.MS_REC|unix.MS_REMOUNT|unix.MS_BIND) != 0 {
            // only remount if unique mount options are set
            if err := remount(m, rootfs); err != nil {
                return err
            }
        }

        if m.Relabel != "" {
            if err := label.Validate(m.Relabel); err != nil {
                return err
            }
            shared := label.IsShared(m.Relabel)
            if err := label.Relabel(m.Source, mountLabel, shared); err != nil {
                return err
            }
        }
    case "cgroup":
        if cgroups.IsCgroup2UnifiedMode() {
            if err := mountCgroupV2(m, rootfs, mountLabel, enableCgroupns); err != nil {
                return err
            }
        } else {

            if err := mountCgroupV1(m, rootfs, mountLabel, enableCgroupns); err != nil {
                return err
            }
        }
        if m.Flags&unix.MS_RDONLY != 0 {
            // remount cgroup root as readonly
            mcgrouproot := &configs.Mount{
                Source:      m.Destination,
                Device:      "bind",
                Destination: m.Destination,
                Flags:       defaultMountFlags | unix.MS_RDONLY | unix.MS_BIND,
            }
            if err := remount(mcgrouproot, rootfs); err != nil {
                return err
            }
        }
    default:
        // ensure that the destination of the mount is resolved of symlinks at mount time because
        // any previous mounts can invalidate the next mount's destination.
        // this can happen when a user specifies mounts within other mounts to cause breakouts or other
        // evil stuff to try to escape the container's rootfs.
        var err error
        if dest, err = securejoin.SecureJoin(rootfs, m.Destination); err != nil {
            return err
        }
        if err := checkProcMount(rootfs, dest, m.Source); err != nil {
            return err
        }
        // update the mount with the correct dest after symlinks are resolved.
        m.Destination = dest
        if err := os.MkdirAll(dest, 0755); err != nil {
            return err
        }
        return mountPropagate(m, rootfs, mountLabel)
    }
    return nil
}

// StartInitialization loads a container by opening the pipe fd from the parent to read the configuration and state
// This is a low level implementation detail of the reexec and should not be consumed externally
func (l *LinuxFactory) StartInitialization() (err error) {
        var (
                pipefd, fifofd int
                consoleSocket  *os.File
                envInitPipe    = os.Getenv("_LIBCONTAINER_INITPIPE")
                envFifoFd      = os.Getenv("_LIBCONTAINER_FIFOFD")
                envConsole     = os.Getenv("_LIBCONTAINER_CONSOLE")
        )

        // Get the INITPIPE.
        pipefd, err = strconv.Atoi(envInitPipe)
        if err != nil {
                return fmt.Errorf("unable to convert _LIBCONTAINER_INITPIPE=%s to int: %s", envInitPipe, err)
        }

        var (
                pipe = os.NewFile(uintptr(pipefd), "pipe")
                it   = initType(os.Getenv("_LIBCONTAINER_INITTYPE"))
        )
        defer pipe.Close()

        // Only init processes have FIFOFD.
        fifofd = -1
        if it == initStandard {
                if fifofd, err = strconv.Atoi(envFifoFd); err != nil {
                        return fmt.Errorf("unable to convert _LIBCONTAINER_FIFOFD=%s to int: %s", envFifoFd, err)
                }
        }

        if envConsole != "" {
                console, err := strconv.Atoi(envConsole)
                if err != nil {
                        return fmt.Errorf("unable to convert _LIBCONTAINER_CONSOLE=%s to int: %s", envConsole, err)
                }
                consoleSocket = os.NewFile(uintptr(console), "console-socket")
                defer consoleSocket.Close()
        }

        // clear the current process's environment to clean any libcontainer
        // specific env vars.
        os.Clearenv()

        defer func() {
                // We have an error during the initialization of the container's init,
                // send it back to the parent process in the form of an initError.
                if werr := utils.WriteJSON(pipe, syncT{procError}); werr != nil {
                        fmt.Fprintln(os.Stderr, err)
                        return
                }
                if werr := utils.WriteJSON(pipe, newSystemError(err)); werr != nil {
                        fmt.Fprintln(os.Stderr, err)
                        return
                }
        }()
        defer func() {
                if e := recover(); e != nil {
                        err = fmt.Errorf("panic from initialization: %v, %v", e, string(debug.Stack()))
                }
        }()

        i, err := newContainerInit(it, pipe, consoleSocket, fifofd)
        if err != nil {
                return err
        }

        // If Init succeeds, syscall.Exec will not return, hence none of the defers will be called.
        return i.Init()
}

func (l *linuxStandardInit) Init() error {
        runtime.LockOSThread()
        defer runtime.UnlockOSThread()
        if !l.config.Config.NoNewKeyring {
                if err := label.SetKeyLabel(l.config.ProcessLabel); err != nil {
                        return err
                }
                defer label.SetKeyLabel("")
                ringname, keepperms, newperms := l.getSessionRingParams()

                // Do not inherit the parent's session keyring.
                if sessKeyId, err := keys.JoinSessionKeyring(ringname); err != nil {
                        // If keyrings aren't supported then it is likely we are on an
                        // older kernel (or inside an LXC container). While we could bail,
                        // the security feature we are using here is best-effort (it only
                        // really provides marginal protection since VFS credentials are
                        // the only significant protection of keyrings).
                        //
                        // TODO(cyphar): Log this so people know what's going on, once we
                        //               have proper logging in 'runc init'.
                        if errors.Cause(err) != unix.ENOSYS {
                                return errors.Wrap(err, "join session keyring")
                        }
                } else {
                        // Make session keyring searcheable. If we've gotten this far we
                        // bail on any error -- we don't want to have a keyring with bad
                        // permissions.
                        if err := keys.ModKeyringPerm(sessKeyId, keepperms, newperms); err != nil {
                                return errors.Wrap(err, "mod keyring permissions")
                        }
                }
        }

        if err := setupNetwork(l.config); err != nil {
                return err
        }
        if err := setupRoute(l.config.Config); err != nil {
                return err
        }

        label.Init()
        if err := prepareRootfs(l.pipe, l.config); err != nil {
                return err
        }
