  • 深入理解Oracle索引(17):Cost 值相同 CBO 对索引的选择

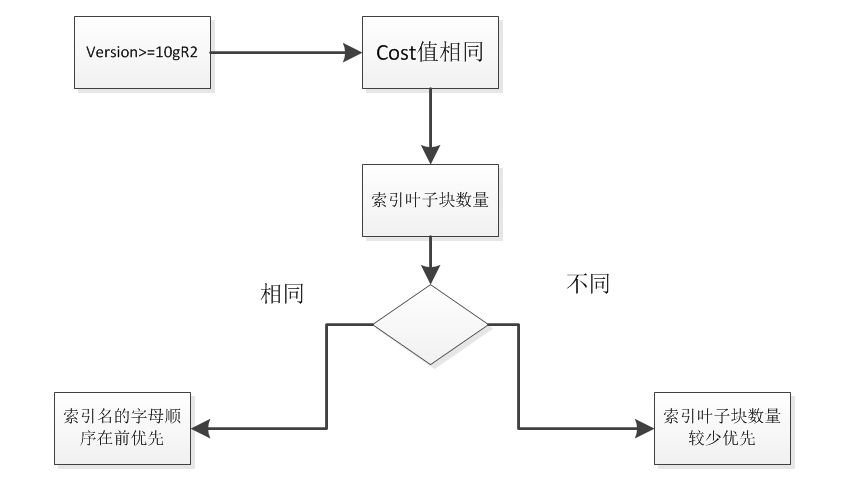

         规则如下:



         测试如下:

    hr@ORCL> drop table t purge;

    Table dropped.

    hr@ORCL> create table t as select * from dba_objects;

    Table created.

    hr@ORCL> alter table t add (object_id_1 number);

    Table altered.

    hr@ORCL> update t set object_id_1=object_id;

    50363 rows updated.

    hr@ORCL> commit;

    Commit complete.

    hr@ORCL> create index idx_t_a on t(object_id);

    Index created.

    hr@ORCL> create index idx_t_b on t(object_id_1);

    Index created.

    /* 统计信息相同、意味着同类型执行计划的Cost值会相同*/
    hr@ORCL> exec dbms_stats.gather_table_stats(ownname=>'HR',tabname=>'T',estimate_percent=>100,cascade=>TRUE,no_invalidate=>false);

    PL/SQL procedure successfully completed.

    /* 叶子块数量相同、CBO按字母顺序在前走索引*/
    hr@ORCL> select index_name,leaf_blocks from user_indexes where table_name='T' and index_name in ('IDX_T_A','IDX_T_B');

    INDEX_NAME                     LEAF_BLOCKS
    ------------------------------ -----------
    IDX_T_A                                111
    IDX_T_B                                111

    hr@ORCL> set autot trace exp
    hr@ORCL> select * from t where object_id=1000 and object_id_1=1000;

    Execution Plan
    ----------------------------------------------------------
    Plan hash value: 1194865126

    ---------------------------------------------------------------------------------------
    | Id  | Operation                   | Name    | Rows  | Bytes | Cost (%CPU)| Time     |
    ---------------------------------------------------------------------------------------
    |   0 | SELECT STATEMENT            |         |     1 |    98 |     2   (0)| 00:00:01 |
    |*  1 |  TABLE ACCESS BY INDEX ROWID| T       |     1 |    98 |     2   (0)| 00:00:01 |
    |*  2 |   INDEX RANGE SCAN          | IDX_T_A |     1 |       |     1   (0)| 00:00:01 |
    ---------------------------------------------------------------------------------------

    Predicate Information (identified by operation id):
    ---------------------------------------------------

       1 - filter("OBJECT_ID_1"=1000)
       2 - access("OBJECT_ID"=1000)

    /* 把idx_t_b叶子块数量从111改为110*/
    hr@ORCL> set autot off
    hr@ORCL> exec dbms_stats.set_index_stats(ownname=>'HR',indname=>'IDX_T_B',numlblks=>110);

    PL/SQL procedure successfully completed.

    hr@ORCL> select index_name,leaf_blocks from user_indexes where table_name='T' and index_name in ('IDX_T_A','IDX_T_B');

    INDEX_NAME                     LEAF_BLOCKS
    ------------------------------ -----------
    IDX_T_A                                111
    IDX_T_B                                110

    /* Cost 值相同、CBO  选择叶子块数量较少的索引*/
    hr@ORCL> set autot trace exp
    hr@ORCL> select * from t where object_id=1000 and object_id_1=1000;

    Execution Plan
    ----------------------------------------------------------
    Plan hash value: 3073359464

    ---------------------------------------------------------------------------------------
    | Id  | Operation                   | Name    | Rows  | Bytes | Cost (%CPU)| Time     |
    ---------------------------------------------------------------------------------------
    |   0 | SELECT STATEMENT            |         |     1 |    98 |     2   (0)| 00:00:01 |
    |*  1 |  TABLE ACCESS BY INDEX ROWID| T       |     1 |    98 |     2   (0)| 00:00:01 |
    |*  2 |   INDEX RANGE SCAN          | IDX_T_B |     1 |       |     1   (0)| 00:00:01 |
    ---------------------------------------------------------------------------------------

    Predicate Information (identified by operation id):
    ---------------------------------------------------

       1 - filter("OBJECT_ID"=1000)
       2 - access("OBJECT_ID_1"=1000)



                        By David Lin
                        20113-06-05
                        Good Luck
