OpenCV 透视变换【图像归一化矫正】



OpenCV 透视变换【扑克牌矫正】



参考文献：

http://www.cnblogs.com/self-control/archive/2013/01/18/2867022.html

http://opencv-code.com/tutorials/automatic-perspective-correction-for-quadrilateral-objects/



透视变换：

http://blog.csdn.net/xiaowei_cqu/article/details/26478135





具体流程为：

a)载入图像→灰度化→边缘处理得到边缘图像（edge map）

cv::Mat im = cv::imread(filename);

cv::Mat gray;

cvtColor(im,gray,CV_BGR2GRAY);

Canny(gray,gray,100,150,3);



b)霍夫变换进行直线检测，此处使用的是probabilistic Hough transform（cv::HoughLinesP）而不是standard Hough transform（cv::HoughLines）

std::vector<Vec4i> lines;

cv::HoughLinesP(gray,lines,1,CV_PI/180,70,30,10);

for(int i = 0; i < lines.size(); i++)

    line(im,cv::Point(lines[i][0],lines[i][1]),cv::Point(lines[i][2],lines[i][3]),Scalar(255,0,0),2,8,0);



c)通过上面的图我们可以看出，通过霍夫变换检测到的直线并没有将整个边缘包含，但是我们要求的是四个顶点所以并不一定要直线真正的相交，下面就要求四个顶点的坐标，公式为：



?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

cv::Point2f computeIntersect(cv::Vec4i a, cv::Vec4i b) {     intx1 = a[0], y1 = a[1], x2 = a[2], y2 = a[3];     intx3 = b[0], y3 = b[1], x4 = b[2], y4 = b[3];       if(floatd = ((float)(x1-x2) * (y3-y4)) - ((y1-y2) * (x3-x4)))     {         cv::Point2f pt;         pt.x = ((x1*y2 - y1*x2) * (x3-x4) - (x1-x2) * (x3*y4 - y3*x4)) / d;         pt.y = ((x1*y2 - y1*x2) * (y3-y4) - (y1-y2) * (x3*y4 - y3*x4)) / d;         returnpt;     }     else         returncv::Point2f(-1, -1); }

　　

?

1 2 3 4 5 6 7 8 9 10

std::vector<cv::Point2f> corners; for (int i = 0; i < lines.size(); i++) {     for(intj = i+1; j < lines.size(); j++)     {         cv::Point2f pt = computeIntersect(lines[i], lines[j]);         if(pt.x >= 0 && pt.y >= 0)             corners.push_back(pt);     } }



d）检查是不是四边形

?

1 2 3 4 5 6 7 8 9

std::vector<cv::Point2f> approx; cv::approxPolyDP(cv::Mat(corners), approx,                  cv::arcLength(cv::Mat(corners),true) * 0.02,true);   if (approx.size() != 4) {     std::cout <<"The object is not quadrilateral!"<< std::endl;     return-1; }

　　



e)确定四个顶点的具体位置（top-left, bottom-left, top-right, and bottom-right corner）→通过四个顶点求出映射矩阵来.

?

void sortCorners(std::vector<cv::Point2f>& corners, cv::Point2f center)

{

    std::vector<cv::Point2f> top, bot;



    for(inti = 0; i < corners.size(); i++)

    {

        if(corners[i].y < center.y)

            top.push_back(corners[i]);

        else

            bot.push_back(corners[i]);

    }



    cv::Point2f tl = top[0].x > top[1].x ? top[1] : top[0];

    cv::Point2f tr = top[0].x > top[1].x ? top[0] : top[1];

    cv::Point2f bl = bot[0].x > bot[1].x ? bot[1] : bot[0];

    cv::Point2f br = bot[0].x > bot[1].x ? bot[0] : bot[1];



    corners.clear();

    corners.push_back(tl);

    corners.push_back(tr);

    corners.push_back(br);

    corners.push_back(bl);

}

　下面是获得中心点坐标然后利用上面的函数确定四个顶点的坐标

?

for (int i = 0; i < corners.size(); i++)

    center += corners[i];



center *= (1. / corners.size());

sortCorners(corners, center);

　定义目的图像并初始化为0

?

cv::Mat quad = cv::Mat::zeros(300, 220, CV_8UC3);

　获取目的图像的四个顶点

?

std::vector<cv::Point2f> dst_pt;

dst.push_back(cv::Point2f(0,0));

dst.push_back(cv::Point2f(quad.cols,0));

dst.push_back(cv::Point2f(quad.cols,quad.rows));

dst.push_back(cv::Point2f(0,quad.rows));

　计算映射矩阵

?

cv::Mat transmtx = cv::getPerspectiveTransform(corners, quad_pts);

进行透视变换并显示结果

?

cv::warpPerspective(im, quad, transmtx, quad.size());

cv::imshow("quadrilateral", quad);

　　

　

























// affine transformation.cpp : 定义控制台应用程序的入口点。
//

#include "stdafx.h"

/**
 * Automatic perspective correction for quadrilateral objects. See the tutorial at
 * http://opencv-code.com/tutorials/automatic-perspective-correction-for-quadrilateral-objects/
 */
#include <opencv2/imgproc/imgproc.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <iostream>

#pragma comment(lib,"opencv_core2410d.lib")
#pragma comment(lib,"opencv_highgui2410d.lib")
#pragma comment(lib,"opencv_imgproc2410d.lib")



cv::Point2f center(0,0);

cv::Point2f computeIntersect(cv::Vec4i a, cv::Vec4i b)
{
    int x1 = a[0], y1 = a[1], x2 = a[2], y2 = a[3], x3 = b[0], y3 = b[1], x4 = b[2], y4 = b[3];
    float denom;

    if (float d = ((float)(x1 - x2) * (y3 - y4)) - ((y1 - y2) * (x3 - x4)))
    {
        cv::Point2f pt;
        pt.x = ((x1 * y2 - y1 * x2) * (x3 - x4) - (x1 - x2) * (x3 * y4 - y3 * x4)) / d;
        pt.y = ((x1 * y2 - y1 * x2) * (y3 - y4) - (y1 - y2) * (x3 * y4 - y3 * x4)) / d;
        return pt;
    }
    else
        return cv::Point2f(-1, -1);
}

void sortCorners(std::vector<cv::Point2f>& corners,
                 cv::Point2f center)
{
    std::vector<cv::Point2f> top, bot;

    for (int i = 0; i < corners.size(); i++)
    {
        if (corners[i].y < center.y)
            top.push_back(corners[i]);
        else
            bot.push_back(corners[i]);
    }
    corners.clear();

    if (top.size() == 2 && bot.size() == 2){
        cv::Point2f tl = top[0].x > top[1].x ? top[1] : top[0];
        cv::Point2f tr = top[0].x > top[1].x ? top[0] : top[1];
        cv::Point2f bl = bot[0].x > bot[1].x ? bot[1] : bot[0];
        cv::Point2f br = bot[0].x > bot[1].x ? bot[0] : bot[1];


        corners.push_back(tl);
        corners.push_back(tr);
        corners.push_back(br);
        corners.push_back(bl);
    }
}

int main()
{
    cv::Mat src = cv::imread("image.jpg");
    if (src.empty())
        return -1;

    cv::Mat bw;
    cv::cvtColor(src, bw, CV_BGR2GRAY);
    cv::blur(bw, bw, cv::Size(3, 3));
    cv::Canny(bw, bw, 100, 100, 3);

    std::vector<cv::Vec4i> lines;
    cv::HoughLinesP(bw, lines, 1, CV_PI/180, 70, 30, 10);

    // Expand the lines
    for (int i = 0; i < lines.size(); i++)
    {
        cv::Vec4i v = lines[i];
        lines[i][0] = 0;
        lines[i][1] = ((float)v[1] - v[3]) / (v[0] - v[2]) * -v[0] + v[1];
        lines[i][2] = src.cols;
        lines[i][3] = ((float)v[1] - v[3]) / (v[0] - v[2]) * (src.cols - v[2]) + v[3];
    }

    std::vector<cv::Point2f> corners;
    for (int i = 0; i < lines.size(); i++)
    {
        for (int j = i+1; j < lines.size(); j++)
        {
            cv::Point2f pt = computeIntersect(lines[i], lines[j]);
            if (pt.x >= 0 && pt.y >= 0)
                corners.push_back(pt);
        }
    }

    std::vector<cv::Point2f> approx;
    cv::approxPolyDP(cv::Mat(corners), approx, cv::arcLength(cv::Mat(corners), true) * 0.02, true);

    if (approx.size() != 4)
    {
        std::cout << "The object is not quadrilateral!" << std::endl;
        return -1;
    }

    // Get mass center
    for (int i = 0; i < corners.size(); i++)
        center += corners[i];
    center *= (1. / corners.size());

    sortCorners(corners, center);
    if (corners.size() == 0){
        std::cout << "The corners were not sorted correctly!" << std::endl;
        return -1;
    }
    cv::Mat dst = src.clone();

    // Draw lines
    for (int i = 0; i < lines.size(); i++)
    {
        cv::Vec4i v = lines[i];
        cv::line(dst, cv::Point(v[0], v[1]), cv::Point(v[2], v[3]), CV_RGB(0,255,0));
    }

    // Draw corner points
    cv::circle(dst, corners[0], 3, CV_RGB(255,0,0), 2);
    cv::circle(dst, corners[1], 3, CV_RGB(0,255,0), 2);
    cv::circle(dst, corners[2], 3, CV_RGB(0,0,255), 2);
    cv::circle(dst, corners[3], 3, CV_RGB(255,255,255), 2);

    // Draw mass center
    cv::circle(dst, center, 3, CV_RGB(255,255,0), 2);

    cv::Mat quad = cv::Mat::zeros(300, 220, CV_8UC3);

    std::vector<cv::Point2f> quad_pts;
    quad_pts.push_back(cv::Point2f(0, 0));
    quad_pts.push_back(cv::Point2f(quad.cols, 0));
    quad_pts.push_back(cv::Point2f(quad.cols, quad.rows));
    quad_pts.push_back(cv::Point2f(0, quad.rows));

    cv::Mat transmtx = cv::getPerspectiveTransform(corners, quad_pts);
    cv::warpPerspective(src, quad, transmtx, quad.size());

    cv::imshow("image", dst);
    cv::imshow("quadrilateral", quad);
    cv::waitKey();
    return 0;
}

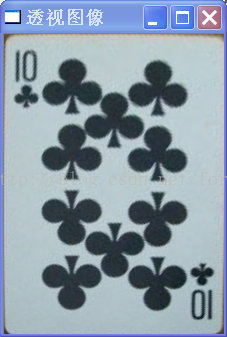

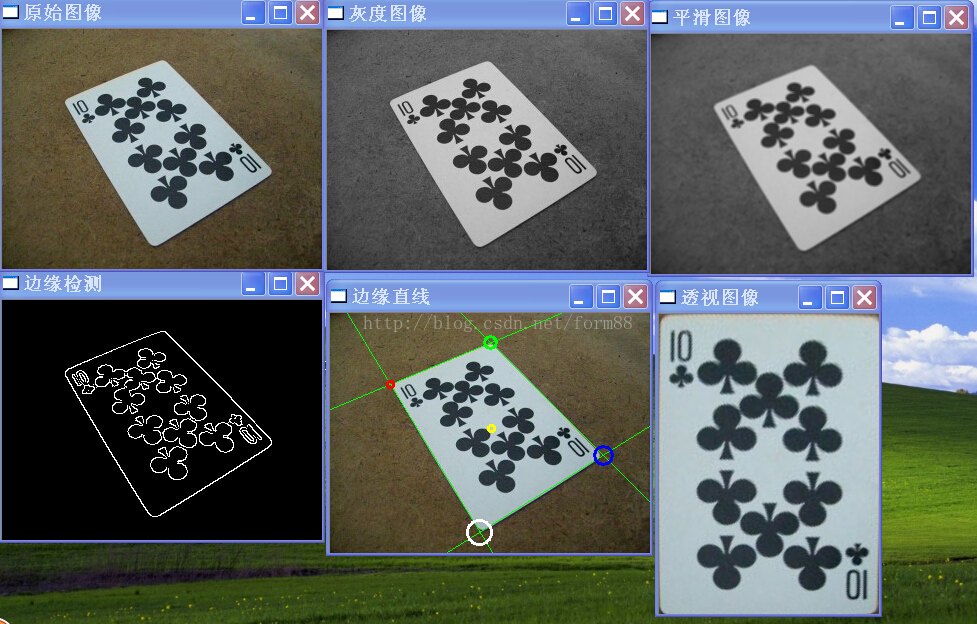

实现结果：
