Hadoop完全分布式

• 修改主机名

[root@localhost:/soft/hadoop2.7/etc/hadoop]nano /etc/hostname
[root@localhost:/soft/hadoop2.7/etc/hadoop]
[root@localhost:/soft/hadoop2.7/etc/hadoop]hostname
s130

• 修改主机IP映射

[root@localhost:/soft/hadoop2.7/etc/hadoop]nano /etc/hosts
[root@localhost:/soft/hadoop2.7/etc/hadoop]cat /etc/hosts
127.0.0.1 localhost
192.168.109.130 s130
192.168.109.131 s131
192.168.109.132 s132
192.168.109.133 s133

• 测试修改成功

[root@localhost:/soft/hadoop2.7/etc/hadoop]ping s130
PING s130 (192.168.109.130) 56(84) bytes of data.
64 bytes from s130 (192.168.109.130): icmp_seq=1 ttl=64 time=0.013 ms
64 bytes from s130 (192.168.109.130): icmp_seq=2 ttl=64 time=0.036 ms
64 bytes from s130 (192.168.109.130): icmp_seq=3 ttl=64 time=0.020 ms
^C
--- s130 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 1999ms
rtt min/avg/max/mdev = 0.013/0.023/0.036/0.009 ms

• power off 关机。进行克隆

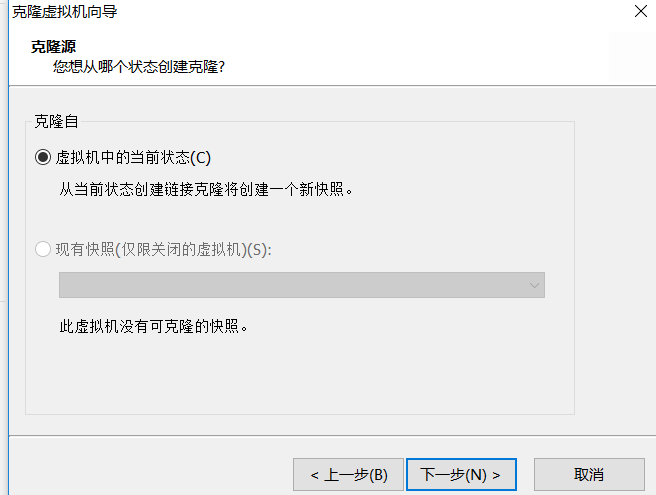

• 右键选择虚拟机--》选择管理---》克隆

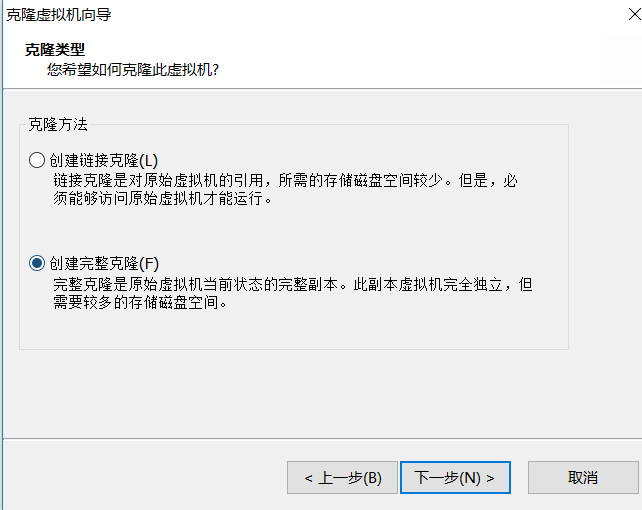

• 第二步创建完整克隆

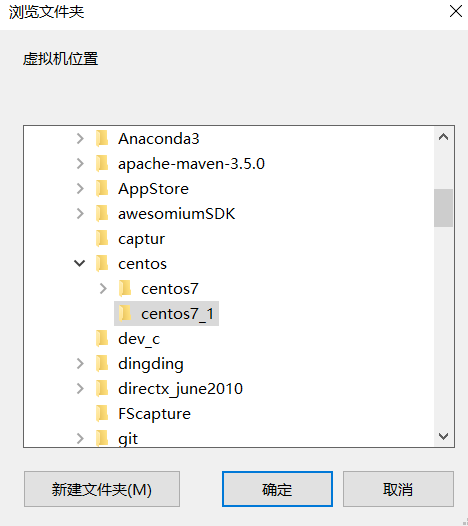

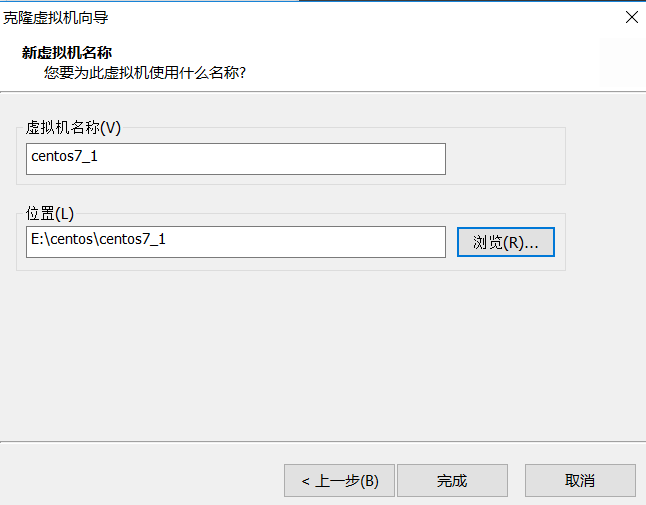

• 第三步 修改克隆的虚拟机名称 ，克隆的位置和原虚拟机在同一个目录下

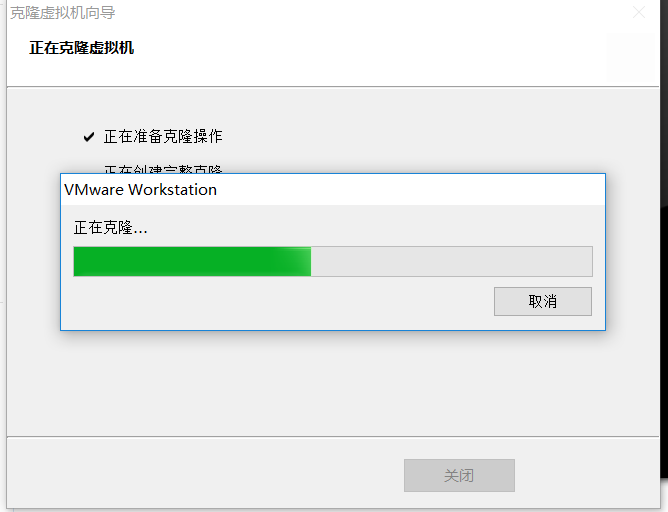

• 第四步开始克隆

按照这个方法克隆3台虚拟机,并修改对应的IP地址

• 修改每个克隆机器的hostname和IP地址

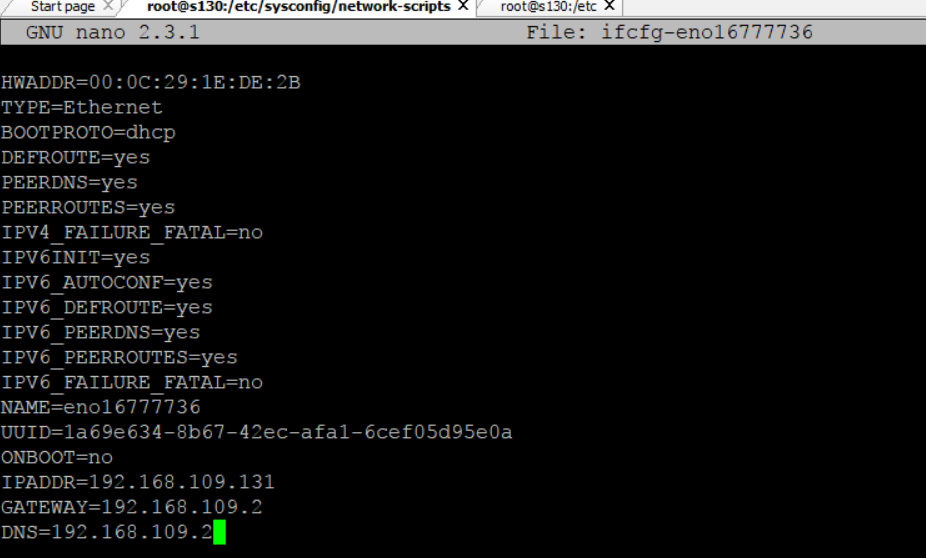

启动s131虚拟机，进入目录，在网卡中添加IP地址，网关，DNS

• 修改主机名

[root@s130:/usr/bin]nano /etc/hostname

• 重启网络

[root@s130:/usr/bin]service network restart

• 检测是否修改成功

[root@s130:/usr/bin]ping s131

PING s131 (192.168.109.131) 56(84) bytes of data.
64 bytes from s131 (192.168.109.131): icmp_seq=1 ttl=64 time=0.014 ms
64 bytes from s131 (192.168.109.131): icmp_seq=2 ttl=64 time=0.060 ms
^C

[root@s130:/usr/bin]ifconfig
eno16777736: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.109.131  netmask 255.255.255.0  broadcast 192.168.109.255
        inet6 fe80::20c:29ff:fe9d:bddf  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:9d:bd:df  txqueuelen 1000  (Ethernet)
        RX packets 1340  bytes 125703 (122.7 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 906  bytes 232938 (227.4 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

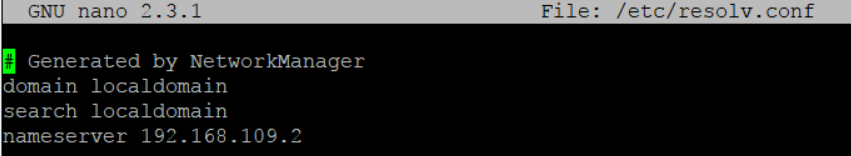

• 设置域名服务解析DNS resolv.conf

• 检测s130和s131是否互通

[root@s130:/usr/bin]ping s130
PING s130 (192.168.109.130) 56(84) bytes of data.
64 bytes from s130 (192.168.109.130): icmp_seq=1 ttl=64 time=0.223 ms
64 bytes from s130 (192.168.109.130): icmp_seq=2 ttl=64 time=0.141 ms
64 bytes from s130 (192.168.109.130): icmp_seq=3 ttl=64 time=0.459 ms
^C

按照此方法配置另外两个

• 准备完全分布式主机的密钥对
• 删除所有主机的.ssh

[root@s131:/root/.ssh]ssh s132 rm -rf /root/.ssh/*

[root@s131:/root/.ssh]ssh s133 rm -rf /root/.ssh/*

[root@s131:/root/.ssh]ssh s132

[root@s132:/root]cd .ssh
[root@s132:/root/.ssh]ls

[root@s130:/root]cd .ssh
[root@s130:/root/.ssh]ls
known_hosts
[root@s130:/root/.ssh]rm -rf *
[root@s130:/root/.ssh]ls
[root@s130:/root/.ssh]

• 将s130作为master，在主机s130上生成密钥对

[root@s130:/root/.ssh]ssh-keygen -t rsa -P '' -f ~/.ssh/id_rsa
Generating public/private rsa key pair.
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
db:ac:a6:63:71:eb:7c:ba:00:a1:71:61:7c:71:2c:f2 root@s130
The key's randomart image is:
+--[ RSA 2048]----+
|   .o .o.        |
|   .o.o..        |
|  . o+ .         |
|   + .E          |
|  . .   S        |
|     .. .+       |
|      .o..o      |
|      ooo..      |
|     ..=*+       |
+-----------------+
[root@s130:/root/.ssh]ls
id_rsa  id_rsa.pub

• 将master的公钥通过远程拷贝到s131-s133主机上

[root@s130:/root/.ssh]scp id_rsa.pub root@s130:/root/.ssh/authorized_keys

[root@s130:/root/.ssh]scp id_rsa.pub root@s131:/root/.ssh/authorized_keys
root@s131's password:
id_rsa.pub                                       100%  391     0.4KB/s   00:00
[root@s130:/root/.ssh]scp id_rsa.pub root@s132:/root/.ssh/authorized_keys
The authenticity of host 's132 (192.168.109.132)' can't be established.
ECDSA key fingerprint is a7:5b:2c:55:73:e9:9a:2e:8d:48:a5:8b:98:dd:f8:05.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 's132,192.168.109.132' (ECDSA) to the list of known hosts.
root@s132's password:
id_rsa.pub                                       100%  391     0.4KB/s   00:00
[root@s130:/root/.ssh]scp id_rsa.pub root@s133:/root/.ssh/authorized_keys
The authenticity of host 's133 (192.168.109.133)' can't be established.
ECDSA key fingerprint is a7:5b:2c:55:73:e9:9a:2e:8d:48:a5:8b:98:dd:f8:05.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 's133,192.168.109.133' (ECDSA) to the list of known hosts.
root@s133's password:
id_rsa.pub                                       100%  391     0.4KB/s   00:00
[root@s130:/root/.ssh]

• 测试无密登录

[root@s130:/root/.ssh]ssh s131
Last login: Fri Dec 22 01:38:12 2017 from s133
[root@s131:/root]exit
logout
Connection to s131 closed.
[root@s130:/root/.ssh]ssh s132
Last login: Fri Dec 22 01:35:47 2017 from s131
[root@s132:/root]exit
logout
Connection to s132 closed.
[root@s130:/root/.ssh]ssh s133
Last login: Fri Dec 22 01:36:01 2017 from s132
[root@s133:/root]exit
logout
Connection to s133 closed.
[root@s130:/root/.ssh]

• 测试成功，此时就可以在master主机s130上对s131-s133主机进行操作了

[root@s130:/root/.ssh]ssh s132 ls -al /root/.ssh
total 12
drwx------. 2 root root   46 Dec 22 01:55 .
dr-xr-x---. 8 root root 4096 Dec 21 09:14 ..
-rw-r--r--. 1 root root  391 Dec 22 01:55 authorized_keys
-rw-r--r--. 1 root root  182 Dec 22 01:35 known_hosts
[root@s130:/root/.ssh]ssh s131 hostname
s131
[root@s130:/root/.ssh]ssh s133 ps -Af

• 进入完全分布式配置

进入full模式

[root@s130:/soft/hadoop2.7/etc]ll
total 12
drwxr-xr-x. 2 hadoop hadoop 4096 Dec 21 04:28 full
lrwxrwxrwx. 1 hadoop hadoop    6 Dec 21 04:30 hadoop -> pseudo
drwxr-xr-x. 2 hadoop hadoop 4096 Dec 21 04:10 local
drwxr-xr-x. 2 hadoop hadoop 4096 Dec 21 04:28 pseudo
[root@s130:/soft/hadoop2.7/etc]cd full
[root@s130:/soft/hadoop2.7/etc/full]l

配置core-site.xml

<property>
  <name>fs.defaultFS</name>
  <value>hdfs://s130/</value>
</property>
<property>
  <name>hadoop.tmp.dir</name>
  <value>/soft/hadoop2.7/tmp</value>
</property>

配置Hadoop-env.sh  JAVA_HOME环境变量

export JAVA_HOME=/soft/jdk1.8

[root@s130:/soft/hadoop2.7/etc/hadoop]scp hadoop-env.sh root@s131:/soft/hadoop2.7/etc/full
hadoop-env.sh                                                                              100% 4224     4.1KB/s   00:00
[root@s130:/soft/hadoop2.7/etc/hadoop]scp hadoop-env.sh root@s132:/soft/hadoop2.7/etc/full
hadoop-env.sh                                                                              100% 4224     4.1KB/s   00:00
[root@s130:/soft/hadoop2.7/etc/hadoop]scp hadoop-env.sh root@s133:/soft/hadoop2.7/etc/full
hadoop-env.sh

配置hdfs-site.xml

<configuration>
<property>
  <name>dfs.replication</name>
  <value>3</value>
</property>
</configuration>

配置yarn-site.xml

<property>
  <name>yarn.resourcemanager.hostname</name>
  <value>s130</value>
  </property>
<property>
  <name>yarn.nodemanager.aux-services</name>
  <value>mapreduce_shuffle</value>
</property>

配置slaves数据节点

[root@s130:/soft/hadoop2.7/etc/hadoop]nano slaves
[root@s130:/soft/hadoop2.7/etc/hadoop]cat slaves
s131
s132
s133

[root@s130:/soft/hadoop2.7/etc/hadoop]scp slaves root@s131:/soft/hadoop2.7/etc/full
slaves                                                                                       100%   15     0.0KB/s   00:00
[root@s130:/soft/hadoop2.7/etc/hadoop]scp slaves root@s132:/soft/hadoop2.7/etc/full
slaves                                                                                       100%   15     0.0KB/s   00:00
[root@s130:/soft/hadoop2.7/etc/hadoop]scp slaves root@s133:/soft/hadoop2.7/etc/full
slaves                                                                                       100%   15     0.0KB/s   00:00
[root@s130:/soft/hadoop2.7/etc/hadoop]

• 修改完毕之后，将整个full文件夹递归远程复制给s131-s133主机的相应目录下

[root@s130:/soft/hadoop2.7/etc]scp -r full root@s131:/soft/hadoop2.7/etc/

[root@s130:/soft/hadoop2.7/etc]scp -r full root@s132:/soft/hadoop2.7/etc/

[root@s130:/soft/hadoop2.7/etc]scp -r full root@s133:/soft/hadoop2.7/etc/

• 删除之前的符号链接，创建新的Hadoop链接到full模式

[root@s130:/soft/hadoop2.7/etc]rm hadoop

[root@s130:/soft/hadoop2.7/etc]ln -s full hadoop
[root@s130:/soft/hadoop2.7/etc]ll
total 12
drwxr-xr-x. 2 hadoop hadoop 4096 Dec 22 02:21 full
lrwxrwxrwx. 1 root   root      4 Dec 22 02:21 hadoop -> full
drwxr-xr-x. 2 hadoop hadoop 4096 Dec 21 04:10 local
drwxr-xr-x. 2 hadoop hadoop 4096 Dec 21 04:28 pseudo

• 修改s131-s133主机的符号链接

[root@s130:/soft/hadoop2.7/etc]ssh s131 rm /soft/hadoop2.7/etc/hadoop
[root@s130:/soft/hadoop2.7/etc]ssh s132 rm /soft/hadoop2.7/etc/hadoop
[root@s130:/soft/hadoop2.7/etc]ssh s133 rm /soft/hadoop2.7/etc/hadoop
[root@s130:/soft/hadoop2.7/etc]ssh s131 ln -s /soft/hadoop2.7/etc/full /soft/hadoop2.7/etc/hadoop                              [root@s130:/soft/hadoop2.7/etc]ssh s132 ln -s /soft/hadoop2.7/etc/full /soft/hadoop2.7/etc/hadoop
[root@s130:/soft/hadoop2.7/etc]ssh s133 ln -s /soft/hadoop2.7/etc/full /soft/hadoop2.7/etc/hadoop

• 删除临时目录文件

由于这里我之前修改过Hadoop的临时目录文件，所以这里就不再删除了

• 删除Hadoop运行日志

[root@s130:/soft/hadoop2.7/logs]rm -rf *
[root@s130:/soft/hadoop2.7/logs]ls
[root@s130:/soft/hadoop2.7/logs]ssh s131 rm -rf /soft/hadoop2.7/logs
[root@s130:/soft/hadoop2.7/logs]ssh s132 rm -rf /soft/hadoop2.7/logs
[root@s130:/soft/hadoop2.7/logs]ssh s133 rm -rf /soft/hadoop2.7/logs

• 格式化namenode

[root@s130:/soft/hadoop2.7/etc/hadoop]hadoop namenode -format

• 启动Hadoop

[root@s130:/soft/hadoop2.7/etc/hadoop]jps
3841 SecondaryNameNode
4273 Jps
4012 ResourceManager
3599 NameNode

查看datanode

[root@s131:/root]jps
3723 NodeManager
4139 Jps
3565 DataNode
[root@s131:/root]ssh s132
The authenticity of host 's132 (192.168.109.132)' can't be established.
ECDSA key fingerprint is a7:5b:2c:55:73:e9:9a:2e:8d:48:a5:8b:98:dd:f8:05.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 's132,192.168.109.132' (ECDSA) to the list of known hosts.
root@s132's password:
Last login: Fri Dec 22 03:38:14 2017 from 192.168.109.1
[root@s132:/root]jps
3444 DataNode
3609 NodeManager
3945 Jps
[root@s132:/root]ssh s133
root@s133's password:
Last login: Fri Dec 22 03:38:12 2017 from 192.168.109.1
[root@s133:/root]jps
3621 NodeManager
3463 DataNode
3979 Jps

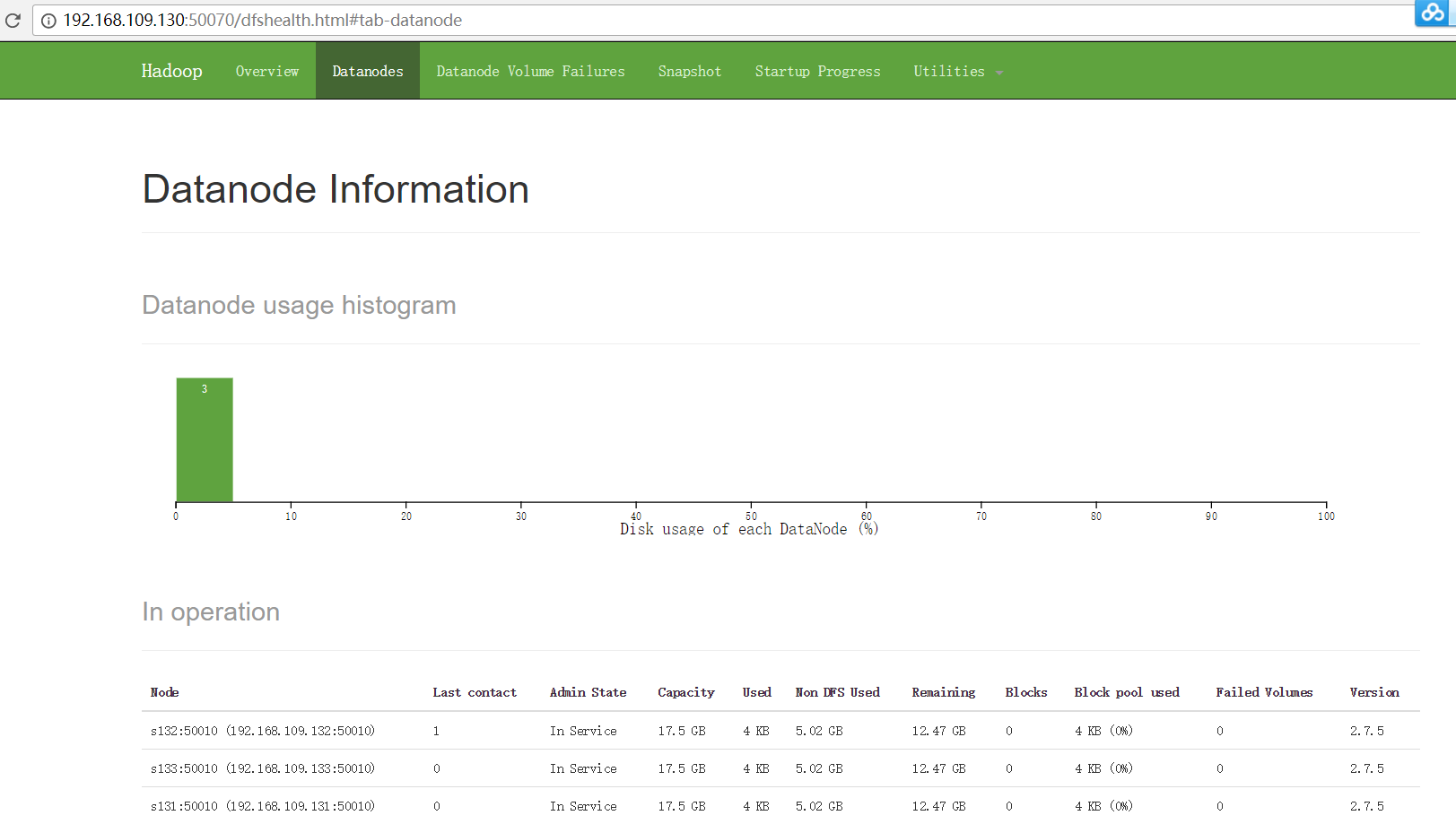

进入到网页可以看到三个数据节点都是启动好了
