SSM框架理解搭建（虽然是网上拼的，但是实际按照搭建是可以的）——

Spring
Spring就像是整个项目中装配bean的大工厂，在配置文件中可以指定使用特定的参数去调用实体类的构造方法来实例化对象。
Spring的核心思想是IoC（控制反转），即不再需要程序员去显式地`new`一个对象，而是让Spring框架帮你来完成这一切。

SpringMVC
SpringMVC在项目中拦截用户请求，它的核心Servlet即DispatcherServlet承担中介或是前台这样的职责，将用户请求通过HandlerMapping去匹配Controller，Controller就是具体对应请求所执行的操作。SpringMVC相当于SSH框架中struts。

mybatis
mybatis是对jdbc的封装，它让数据库底层操作变的透明。mybatis的操作都是围绕一个sqlSessionFactory实例展开的。mybatis通过配置文件关联到各实体类的Mapper文件，Mapper文件中配置了每个类对数据库所需进行的sql语句映射。在每次与数据库交互时，通过sqlSessionFactory拿到一个sqlSession，再执行sql命令。

SSM框架整合

在此记录一下。

需要准备的环境：

　　idea 2017.1               jdk1.8               Maven 3.3.9

　　请提前将idea与Maven、jdk配置好，本次项目用的都是比较新的.注：配置完ide红线报错没关系！可以run！

步骤：

一、首先使用idea新建一个Maven webapp项目

　　​

　　​

　　​

　　​

　　点击Finish，第一次搭建可能会很慢，甚至可能需要VPN才能搭建成功

二、搭建目录结构

　　

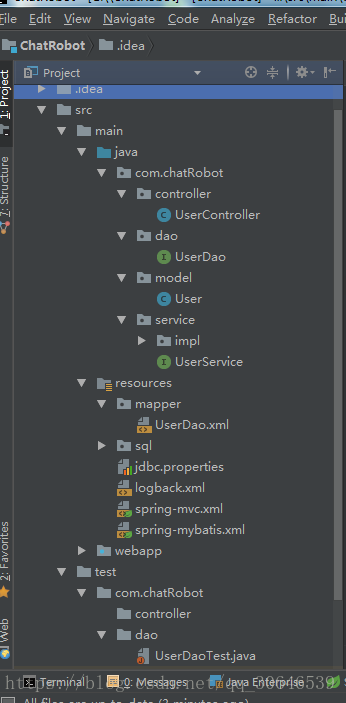

　　我这里列出的是搭建完了之后所有的目录和文件，诸位先把目录文件建起来，然后我在给出文件内容

　　​

　　这里的目录建好之后还需要设置一下，让idea识别目录作用，选择File-Project Structure

　　​

　　设置完成后ok

三、配置文件内容

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">

    <modelVersion>4.0.0</modelVersion>
    <groupId>com.chatRobot</groupId>
    <artifactId>ChatRobot</artifactId>
    <packaging>war</packaging>
    <version>1.0-SNAPSHOT</version>
    <name>ChatRobot Maven Webapp</name>
    <url>http://maven.apache.org</url>

    <properties>
        <!-- 设置项目编码编码 -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <!-- spring版本号 -->
        <spring.version>4.3.5.RELEASE</spring.version>
        <!-- mybatis版本号 -->
        <mybatis.version>3.4.1</mybatis.version>
    </properties>

    <dependencies>

        <!-- java ee -->
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-api</artifactId>
            <version>7.0</version>
        </dependency>

        <!-- 单元测试 -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>

        <!-- 实现slf4j接口并整合 -->
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>1.2.2</version>
        </dependency>

        <!-- JSON -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.8.7</version>
        </dependency>


        <!-- 数据库 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.41</version>
            <scope>runtime</scope>
        </dependency>

        <!-- 数据库连接池 -->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>

        <!-- MyBatis -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>

        <!-- mybatis/spring整合包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.3.1</version>
        </dependency>

        <!-- Spring -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>

    </dependencies>

    <build>
        <finalName>ChatRobot</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <!-- 设置JDK版本 -->
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

注意右下角更新pom

logback.xml

<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="true">
    <appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
        <encoder>
            <pattern>%d{HH:mm:ss.SSS} [%thread] %-5level %logger{36} - %msg%n</pattern>
        </encoder>
    </appender>
    <root level="debug">
        <appender-ref ref="STDOUT"/>
    </root>
</configuration>

这里可以控制输出格式和内容，有兴趣的可以自己设置

jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
#数据库地址
jdbc.url=jdbc:mysql://127.0.0.1:3306/test?useUnicode=true&characterEncoding=utf8
#用户名
jdbc.username=root
#密码
jdbc.password=root
#最大连接数
c3p0.maxPoolSize=30
#最小连接数
c3p0.minPoolSize=10
#关闭连接后不自动commit
c3p0.autoCommitOnClose=false
#获取连接超时时间
c3p0.checkoutTimeout=10000
#当获取连接失败重试次数
c3p0.acquireRetryAttempts=2

spring-mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/tx
       http://www.springframework.org/schema/tx/spring-tx.xsd">

    <!-- 扫描service包下所有使用注解的类型 -->
    <context:component-scan base-package="com.chatRobot.service"/>

    <!-- 配置数据库相关参数properties的属性：${url} -->
    <context:property-placeholder location="classpath:jdbc.properties"/>

    <!-- 数据库连接池 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="maxPoolSize" value="${c3p0.maxPoolSize}"/>
        <property name="minPoolSize" value="${c3p0.minPoolSize}"/>
        <property name="autoCommitOnClose" value="${c3p0.autoCommitOnClose}"/>
        <property name="checkoutTimeout" value="${c3p0.checkoutTimeout}"/>
        <property name="acquireRetryAttempts" value="${c3p0.acquireRetryAttempts}"/>
    </bean>

    <!-- 配置SqlSessionFactory对象 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 扫描model包 使用别名 -->
        <property name="typeAliasesPackage" value="com.chatRobot.model"/>
        <!-- 扫描sql配置文件:mapper需要的xml文件 -->
        <property name="mapperLocations" value="classpath:mapper/*.xml"/>
    </bean>

    <!-- 配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!-- 注入sqlSessionFactory -->
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
        <!-- 给出需要扫描Dao接口包 -->
        <property name="basePackage" value="com.chatRobot.dao"/>
    </bean>

    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!-- 配置基于注解的声明式事务 -->
    <tx:annotation-driven transaction-manager="transactionManager"/>

</beans>

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc-3.0.xsd">

    <!-- 扫描web相关的bean -->
    <context:component-scan base-package="com.chatRobot.controller"/>

    <!-- 开启SpringMVC注解模式 -->
    <mvc:annotation-driven/>

    <!-- 静态资源默认servlet配置 -->
    <mvc:default-servlet-handler/>

    <!-- 配置jsp 显示ViewResolver -->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="viewClass" value="org.springframework.web.servlet.view.JstlView"/>
        <property name="prefix" value="/WEB-INF/views/"/>
        <property name="suffix" value=".jsp"/>
    </bean>

</beans>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1">

    <display-name>ChatRobot</display-name>
    <description>ChatRobot_Alpha_0.0.1</description>

    <!-- 编码过滤器 -->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- 配置DispatcherServlet -->
    <servlet>
        <servlet-name>SpringMVC</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!-- 配置springMVC需要加载的配置文件-->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-*.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
        <async-supported>true</async-supported>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringMVC</servlet-name>
        <!-- 匹配所有请求，此处也可以配置成 *.do 形式 -->
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <welcome-file-list>
        <welcome-file>index.html</welcome-file>
    </welcome-file-list>

</web-app>

到这里基本上环境就搭建完成了，下面开始测试

四、测试

先导入一份数据库测试文件  用户为test

CREATE TABLE `user` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '用户ID',
  `email` varchar(255) NOT NULL COMMENT '用户邮箱',
  `password` varchar(255) NOT NULL COMMENT '用户密码',
  `username` varchar(255) NOT NULL COMMENT '用户昵称',
  `role` varchar(255) NOT NULL COMMENT '用户身份',
  `status` int(1) NOT NULL COMMENT '用户状态',
  `regTime` datetime NOT NULL COMMENT '注册时间',
  `regIp` varchar(255) NOT NULL COMMENT '注册IP',
  PRIMARY KEY (`id`),
  UNIQUE KEY `email` (`email`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8;
INSERT INTO `user` VALUES ('1', 'xxx', 'xxxxx', 'xxxxx', 'root', '0', '2017-03-28 09:40:31', '127.0.0.1');
SET FOREIGN_KEY_CHECKS=1;

接下来配置类

UserController

package com.chatRobot.controller;

import javax.servlet.http.HttpServletRequest;

import com.chatRobot.model.User;
import com.chatRobot.service.UserService;
import com.fasterxml.jackson.databind.ObjectMapper;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

@Controller
@RequestMapping("/user")
public class UserController {

    @Resource
    private UserService userService;

    @RequestMapping("/showUser.do")
    public void selectUser(HttpServletRequest request, HttpServletResponse response) throws IOException {
        request.setCharacterEncoding("UTF-8");
        response.setCharacterEncoding("UTF-8");
        long userId = Long.parseLong(request.getParameter("id"));
        User user = this.userService.selectUser(userId);
        ObjectMapper mapper = new ObjectMapper();
        response.getWriter().write(mapper.writeValueAsString(user));
        response.getWriter().close();
    }

}

UserDao

package com.chatRobot.dao;

import com.chatRobot.model.User;

public interface UserDao {

    User selectUser(long id);

}

User

package com.chatRobot.model;

import java.util.Date;

public class User {

    private long id;
    private String email;
    private String password;
    private String username;
    private String role;
    private int status;
    private Date regTime;
    private String regIp;

    public long getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getRole() {
        return role;
    }

    public void setRole(String role) {
        this.role = role;
    }

    public int getStatus() {
        return status;
    }

    public void setStatus(int status) {
        this.status = status;
    }

    public Date getRegTime() {
        return regTime;
    }

    public void setRegTime(Date regTime) {
        this.regTime = regTime;
    }

    public String getRegIp() {
        return regIp;
    }

    public void setRegIp(String regIp) {
        this.regIp = regIp;
    }

}

UserService

package com.chatRobot.service;

import com.chatRobot.model.User;

public interface UserService {

    public User selectUser(long userId);

}

UserServiceImpl

package com.chatRobot.service.impl;

import com.chatRobot.dao.UserDao;
import com.chatRobot.model.User;
import com.chatRobot.service.UserService;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

@Service("userService")
public class UserServiceImpl implements UserService {

    @Resource
    private UserDao userDao;

    public User selectUser(long userId) {
        return this.userDao.selectUser(userId);
    }

}

UserDao.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<!-- 设置为UserDao接口方法提供sql语句配置 -->
<mapper namespace="com.chatRobot.dao.UserDao">

    <select id="selectUser" resultType="User" parameterType="long">
        SELECT * FROM user WHERE id = #{id}
    </select>

</mapper>

然后新建个测试类，来测试mybatis

UserDaoTest

package com.chatRobot.dao;

import com.chatRobot.model.User;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

// 加载spring配置文件
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration({"classpath:spring-mybatis.xml"})
public class UserDaoTest {

    @Autowired
    private UserDao dao;

    @Test
    public void testSelectUser() throws Exception {
        long id = 1;
        User user = dao.selectUser(id);
        System.out.println(user.getUsername());
    }

}

新建完成后配置项目运行环境，点击Run-Edit Configurations...

点击加号新建运行环境，选择Tomcat Server-Local

​

选中新建好的服务器，右边选择Deployment,点击加号-Atifact...

​

选择第二项

​

然后在右边Application context配置你的项目名

​

最后运行项目，在打开的页面中点击按钮测试，成功的话会在页面上显示id为1的用户信息

​

没成功的小伙伴，就要调试bug了，有的地方命名是不是有问题，实在不行 我已经把调试成功的项目上传了。

下载地址：https://download.csdn.net/download/qq_30646539/10659889
