Android定制组件之TitleBar之涂鸦

传送门 ☞ 轮子的专栏 ☞ 转载请注明 ☞ http://blog.csdn.net/leverage_1229

        今天我们学习如何实现一个自定义的窗口标题，下面给出该场景的案例：

1案例技术要点（待整理）

2案例代码陈列

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="cn.lynn.title"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk android:minSdkVersion="8" />

    <application
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name" >
        <activity android:name=".CustomTitleMainActivity" android:theme="@style/myTheme">
            <intent-filter >
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

strings.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <string name="app_name">Android自定义窗口标题</string>
    <drawable name="nonecolor">#00000000</drawable>
</resources>

main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical" >

    <TextView
        android:layout_width="match_parent"
        android:layout_height="wrap_content" />

</LinearLayout>

自定义样式文件：styles.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <style name="myTheme" parent="android:Theme">
         <item name="android:windowContentOverlay">@drawable/nonecolor</item>
         <item name="android:windowTitleSize">44dp</item>
         <item name="android:windowTitleBackgroundStyle">@style/myBackground</item>
    </style>


    <style name="myBackground">
        <item name="android:background">@drawable/rectangle</item>
    </style>
</resources>

自定义窗口标题布局文件：title.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:gravity="center">

    <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:textColor="#FF0000"
        android:text="lynnli1229自定义的窗口标题" />

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="添加"
        android:onClick="add" />

</LinearLayout>

窗口标题背景文件：rectangle.xml

<?xml version="1.0" encoding="utf-8"?>
<shape
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle">
    <gradient
        android:angle="270"
        android:endColor="#1DC9CD"
        android:startColor="#A2E0FB"/>
    <padding
        android:left="2dp"
        android:top="2dp"
        android:right="2dp"
        android:bottom="2dp" />
</shape>

CustomTitleMainActivity.java

package cn.lynn.title;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.view.Window;
import android.widget.Toast;

public class CustomTitleMainActivity extends Activity {
    /** Called when the activity is first created. */
    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        // 设置窗口标题为自定义
        requestWindowFeature(Window.FEATURE_CUSTOM_TITLE);
        setContentView(R.layout.main);
        // 装载自定义窗口标题布局
        getWindow().setFeatureInt(Window.FEATURE_CUSTOM_TITLE, R.layout.title);
    }

    public void add(View v) {
        Toast.makeText(this, "按钮被点击", Toast.LENGTH_LONG).show();
    }
}

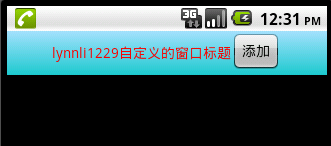

3案例效果展示
