[置顶] Android常用UI控件之PopupWindow

        今天我们学习如何实现PopupWindow泡泡窗口，效果类似于弹出菜单，但是实现方式截然不同，下面给出该场景的案例：

一、案例代码

1.AndroidManifest.xml

<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.android.popupwindow"
    android:versionCode="1"
    android:versionName="1.0" >

    <uses-sdk
        android:minSdkVersion="8"
        android:targetSdkVersion="15" />

    <application
        android:icon="@drawable/ic_launcher"
        android:label="@string/app_name" >
        <activity
            android:name=".PopupWindowActivity"
            android:label="@string/app_name" >
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
    </application>

</manifest>

2.string.xml

<resources>
    <string name="app_name">泡泡窗口</string>
    <string name="button">打开PopupWindow</string>
</resources>

3.主界面布局文件：main.xml

<?xml version="1.0" encoding="utf-8" ?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:id="@+id/main" >

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:onClick="openPopupWindow"
        android:text="@string/button" />

</LinearLayout>

4.PopupWindow布局文件：popupwindow.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:background="@drawable/background" >
    <!-- <TextView
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:text="我是PopupWindow"/> -->

        <GridView
            android:id="@+id/gridView"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:numColumns="4"
            android:verticalSpacing="10dp"
            android:horizontalSpacing="10dp"/>

</LinearLayout>

5.GridViewItem布局文件：grid_item.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:gravity="center" >
    <ImageView
        android:id="@+id/imageView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"/>
    <TextView
        android:id="@+id/textView"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:gravity="center"
        android:textSize="16sp"
        android:textColor="#000099"/>

</LinearLayout>

6.PopupWindow弹进动画文件：enter.xml

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android"
    android:shareInterpolator="false" >
    <translate
        android:fromYDelta="100%p"
        android:toYDelta="0"
        android:duration="500" />

    <alpha
        android:fromAlpha="0.5"
        android:toAlpha="1.0"
        android:duration="300" />
</set>

7.PopupWindow弹出动画文件：exit.xml

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android"
    android:shareInterpolator="false" >
    <translate
        android:fromYDelta="0"
        android:toYDelta="100%p"
        android:duration="500" />

    <alpha
        android:fromAlpha="1.0"
        android:toAlpha="0.5"
        android:duration="300" />
</set>

8.PopupWindowActivity.java

package com.android.popupwindow;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;

import android.app.Activity;
import android.graphics.drawable.BitmapDrawable;
import android.os.Bundle;
import android.view.Gravity;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.GridView;
import android.widget.ListAdapter;
import android.widget.PopupWindow;
import android.widget.SimpleAdapter;

public class PopupWindowActivity extends Activity {
    private PopupWindow popupWindow;
    private View parent;

    // 设置GridView Item图片资源
    private int[] images = {
            R.drawable.i1,
            R.drawable.i2,
            R.drawable.i3,
            R.drawable.i4,
            R.drawable.i5,
            R.drawable.i6,
            R.drawable.i7,
            R.drawable.i8};

    // 设置GridView Item名称资源
    private String[] names = {
            "搜索",
            "文件",
            "下载",
            "全屏",
            "网址",
            "书签",
            "加入",
            "分享"
    };

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.main);

        // 构建PopupWindow内容视图
        View contentView = getLayoutInflater().inflate(R.layout.popupwindow, null);
        GridView gridView = (GridView) contentView.findViewById(R.id.gridView);
        gridView.setAdapter(getAdapter());
        gridView.setOnItemClickListener(new OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> parent, View view, int position,
                    long id) {
                if(popupWindow.isShowing()) {
                    popupWindow.dismiss();
                }
            }
        });

        // 初始化PopupWindow控件
        popupWindow = new PopupWindow(contentView, ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.WRAP_CONTENT);
        // 允许PopupWindow获取焦点
        popupWindow.setFocusable(true);
        // 设置PopupWindow背景图
        popupWindow.setBackgroundDrawable(new BitmapDrawable());
        // 设置PopupWindow弹进弹出动画效果
        popupWindow.setAnimationStyle(R.style.animation);
        // 找到主界面布局文件
        parent = findViewById(R.id.main);
    }

    /**
     * 构建用于填充GridView数据条目的适配器
     * @return ListAdapter
     */
    private ListAdapter getAdapter() {
        List<HashMap<String, Object>> data = new ArrayList<HashMap<String, Object>>();
        for(int i=0; i < images.length; i++) {
            HashMap<String, Object> item = new HashMap<String, Object>();
            item.put("image", images[i]);
            item.put("name", names[i]);
            data.add(item);
        }
        SimpleAdapter adapter = new SimpleAdapter(this, data, R.layout.grid_item,
                new String[]{"image", "name"}, new int[]{R.id.imageView, R.id.textView});
        return adapter;
    }

    /**
     * 设置在页面底端显示PopupWindow
     * @param v
     */
    public void openPopupWindow(View v) {
        popupWindow.showAtLocation(parent, Gravity.BOTTOM, 0, 0);
    }
}

        注意：要将、、、、、、、存放到drawable-hdpi文件夹下。

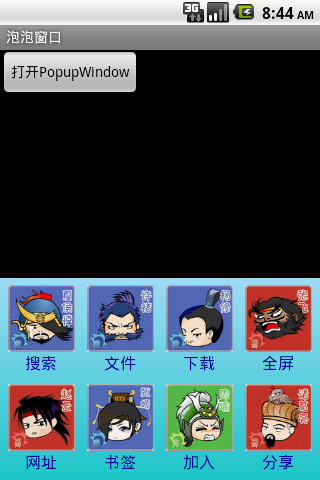

二、案例效果

三、代码下载：http://download.csdn.net/detail/leverage_1229/5470815
