  • 简单的ssm的项目

    总是想自己搭建一个简单的ssm框架的项目,有很多朋友可能会问为什么不使用springboot呢?当然,使用springboot会更加简单方便,而且搭建也很简单,配置也很简单,那我为什么不使用呢?好吧,我也不知道为什么…

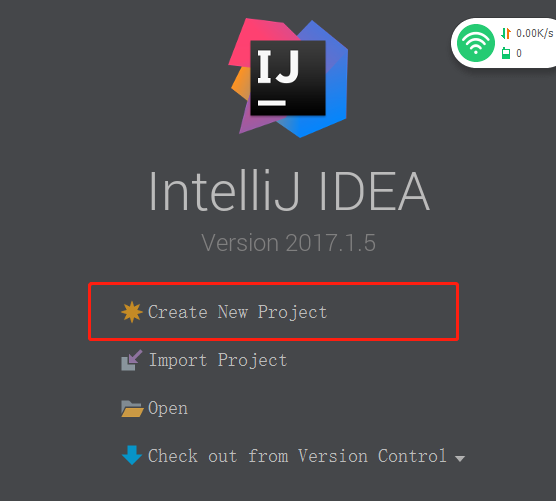

    开始搭建项目,首先创建一个maven项目:
    在这里插入图片描述

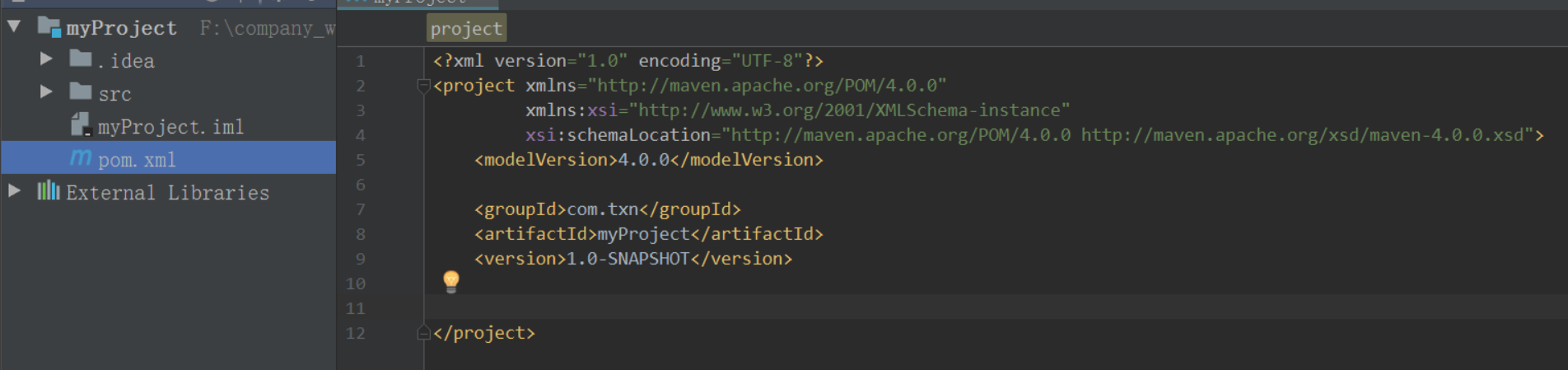

    创建完成如图:
    在这里插入图片描述

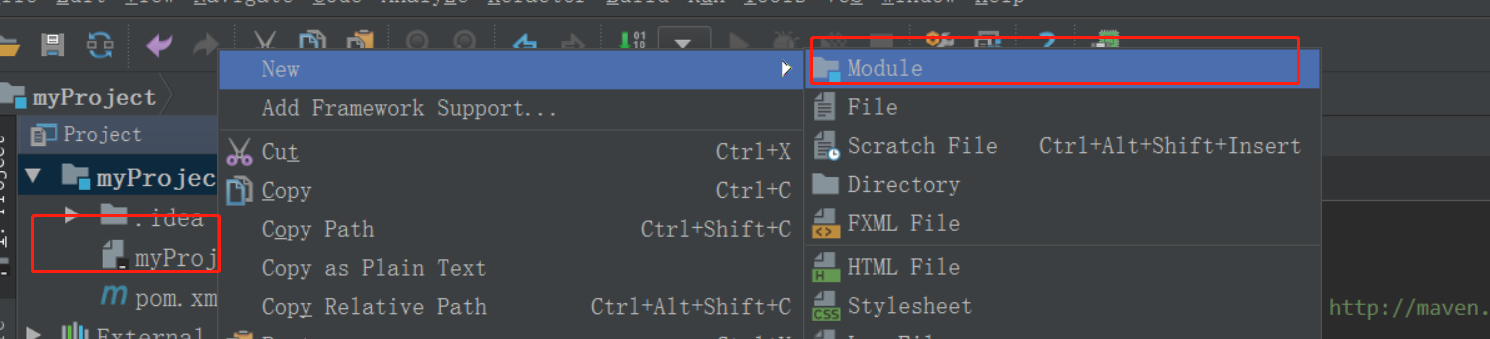

    然后我们把这个myProject作为一个父工程,一般可以叫做myProject-Parent,后面再改好了,然后我们新建模块,首先要在心理大概想出有几个模块,前台就叫做web,后台admin,service,dao还有common,还有domain,好吧,先就建这些.可以把父工程下的src目录删除如图:
    在这里插入图片描述

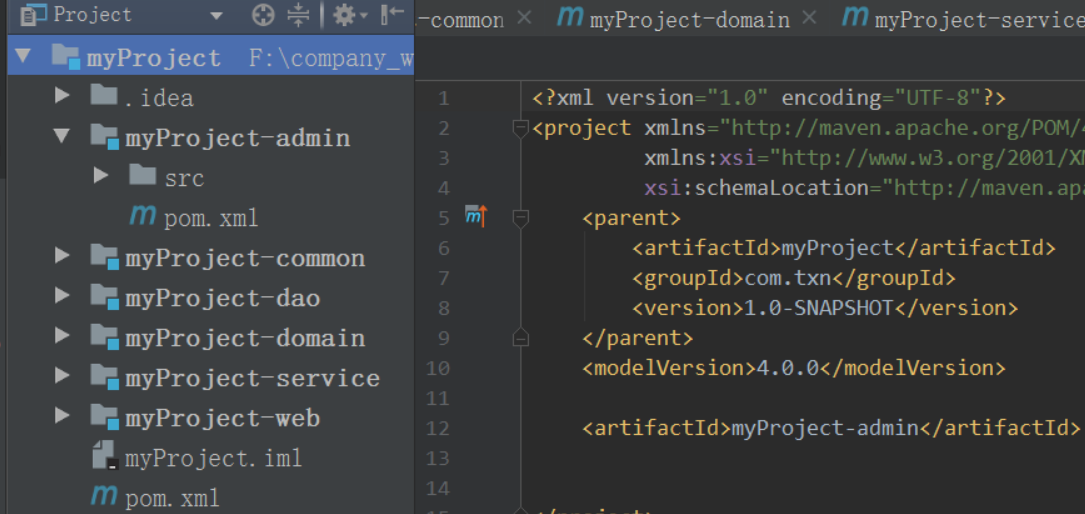

    新建所有的模块:
    在这里插入图片描述
    我们先整理一下各个模块之间的关系:
    首先ssm项目,我们把web项目和admin项目打包成war包进行的部署,那么admin跟web是一样的我就只讲web好了,然后web里面肯定要依赖service,service里面依赖dao,然后common跟domain呢?那就简单点,common里面依赖domain,然后dao里面依赖common,那么就都可以使用了.如图:
    在这里插入图片描述
    然后写主pom里面的所需jar:

       <properties>
        <!--spring版本-->
        <spring.version>4.0.2.RELEASE</spring.version>
        <!--mybatis版本号-->
        <mybatis.version>3.2.6</mybatis.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>

        <swagger-version>2.6.1</swagger-version>
        <springmvc.swagger-version>1.0.2</springmvc.swagger-version>

        <org.slf4j-version>1.7.25</org.slf4j-version>
        <ch.qos.logback-version>1.2.3</ch.qos.logback-version>

    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>

        <!-- spring核心包-start -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-oxm</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aop</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- 导入java ee jar 包 -->
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-api</artifactId>
            <version>7.0</version>
        </dependency>

        <!-- JSTL标签类 -->
        <dependency>
            <groupId>jstl</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.1.41</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/com.fasterxml.jackson.core/jackson-databind -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.9.5</version>
        </dependency>


        <!-- 映入JSON -->
        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-mapper-asl</artifactId>
            <version>1.9.13</version>
        </dependency>
        <!-- 上传组件包 -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.4</version>
        </dependency>
        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
            <version>1.9</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>${org.slf4j-version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>jcl-over-slf4j</artifactId>
            <version>${org.slf4j-version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>log4j-over-slf4j</artifactId>
            <version>${org.slf4j-version}</version>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
            <version>${ch.qos.logback-version}</version>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
            <version>${ch.qos.logback-version}</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.6</version>
            <scope>provided</scope>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.7</source>
                    <target>1.7</target>
                    <encoding>utf-8</encoding>
                </configuration>
            </plugin>
        </plugins>
    </build>

    然后写web工程里面的jar

     <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>${swagger-version}</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>${swagger-version}</version>
        </dependency>
        <dependency>
            <groupId>com.mangofactory</groupId>
            <artifactId>swagger-springmvc</artifactId>
            <version>${springmvc.swagger-version}</version>
        </dependency>

        <dependency>
            <groupId>com.txn</groupId>
            <artifactId>myProject-service</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

    </dependencies>

    <build>
        <finalName>myProject-web</finalName>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
            </resource>
            <resource>
                <directory>../pen-config/src/main/resources</directory>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>

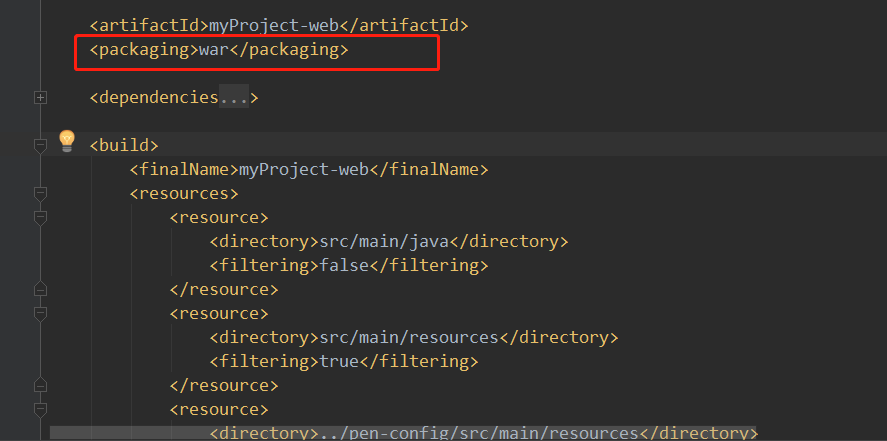

    在这里插入图片描述
    注意打包war.

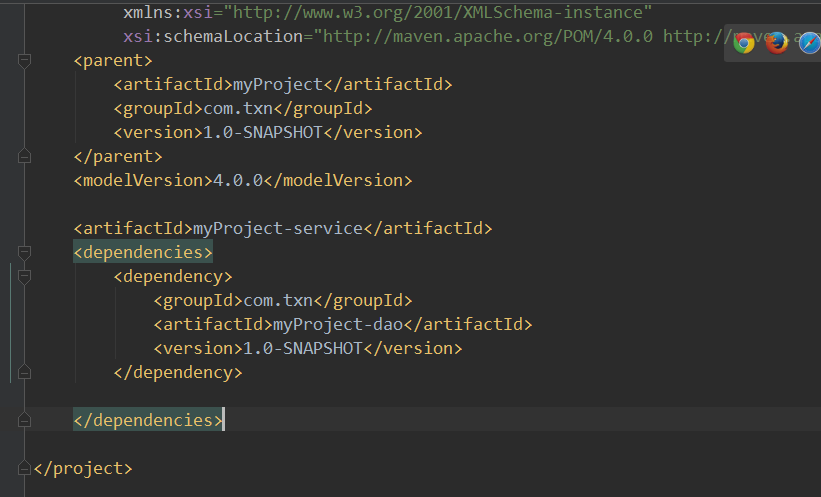

    service里面比较简单,依赖dao就好了:
    在这里插入图片描述
    然后dao里面需要连接数据库,连接池,我这里使用的简单的apache的org.apache.commons.dbcp.BasicDataSource连接池,大家可以引入durid,或者c3p0等其他连接池:

     <dependencies>
        <!-- mybatis核心包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>${mybatis.version}</version>
        </dependency>
        <!-- mybatis/spring包 -->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>1.2.2</version>
        </dependency>


        <!-- 导入Mysql数据库链接jar包 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.36</version>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- 导入dbcp的jar包，用来在applicationContext.xml中配置数据库 -->
        <dependency>
            <groupId>commons-dbcp</groupId>
            <artifactId>commons-dbcp</artifactId>
            <version>1.2.2</version>
        </dependency>

        <dependency>
            <groupId>com.txn</groupId>
            <artifactId>myProject-common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

    </dependencies>

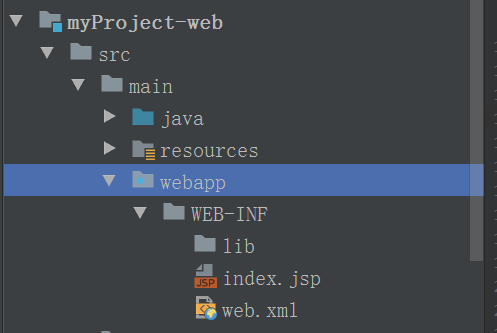

    然后编译,发现报错很明显,web项目需要web.xml文件:
    在这里插入图片描述
    然后web.xml里面配置springmvc监听,spring容器ContextLoaderListener,过滤器等等,

    <?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
		 xmlns="http://java.sun.com/xml/ns/javaee"
		 xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
		 version="3.0">
	<display-name>Archetype Created Web Application</display-name>
	<!-- 编码过滤器 -->
	<filter>
		<filter-name>encodingFilter</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<async-supported>true</async-supported>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>encodingFilter</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>
	<!-- Spring监听器 -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:/config/beans.xml</param-value>
	</context-param>


	<!-- 防止Spring内存溢出监听器 -->
	<listener>
		<listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
	</listener>

	<!-- Spring MVC servlet -->
	<servlet>
		<servlet-name>SpringMVC</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:spring-mvc.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
		<async-supported>true</async-supported>
	</servlet>
	<servlet-mapping>
		<servlet-name>SpringMVC</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>
	<welcome-file-list>
		<welcome-file>/index.jsp</welcome-file>
	</welcome-file-list>

</web-app>

    然后springmvc的配置文件:

    <?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
                        http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context-3.1.xsd
                        http://www.springframework.org/schema/mvc
                        http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">

    <!-- 自动扫描该包，使SpringMVC认为包下用了@controller注解的类是控制器 -->
    <context:component-scan base-package="com.txn.controller"/>

    <!-- 扩充了注解驱动，可以将请求参数绑定到控制器参数 -->
    <mvc:annotation-driven/>
    <!-- 静态资源处理  css js imgs 报红不影响 -->
    <mvc:resources location="/resources/static/**" mapping="/resources"/>
    <mvc:resources mapping="swagger-ui.html" location="classpath:/META-INF/resources/" />
    <mvc:resources mapping="/webjars/**" location="classpath:/META-INF/resources/webjars/" />

   <!-- <mvc:interceptors>
        <mvc:interceptor>
            <mvc:mapping path="/**" />
            &lt;!&ndash; 需排除拦截的地址 &ndash;&gt;
            <mvc:exclude-mapping path="/swagger-ui.html"/>
            <mvc:exclude-mapping path="/webjars/**"/>
            <mvc:exclude-mapping path="/v2/**"/>
            <mvc:exclude-mapping path="/swagger-resources/**"/>
            <bean class="cn.gov.zjport.pen.restapi.intercepter.AuthIntercepter" />
        </mvc:interceptor>
    </mvc:interceptors>-->

    <!--避免IE执行AJAX时，返回JSON出现下载文件 -->
    <bean id="mappingJacksonHttpMessageConverter"
          class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
        <property name="supportedMediaTypes">
            <list>
                <value>text/html;charset=UTF-8</value>
            </list>
        </property>
    </bean>
    <!-- 启动SpringMVC的注解功能，完成请求和注解POJO的映射 -->
    <bean
            class="org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter">
        <property name="messageConverters">
            <list>
                <ref bean="mappingJacksonHttpMessageConverter"/> <!-- JSON转换器 -->
            </list>
        </property>
    </bean>

    <!-- 配置文件上传，如果没有使用文件上传可以不用配置，当然如果不配，那么配置文件中也不必引入上传组件包 -->
    <bean id="multipartResolver"
          class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
        <!-- 默认编码 -->
        <property name="defaultEncoding" value="utf-8" />
        <!-- 文件大小最大值 -->
        <property name="maxUploadSize" value="10485760000" />
        <!-- 内存中的最大值 -->
        <property name="maxInMemorySize" value="40960" />
        <!-- 启用是为了推迟文件解析，以便捕获文件大小异常 -->
        <property name="resolveLazily" value="true"/>
    </bean>

    <!-- 配置ViewResolver 。可用多个ViewResolver 。使用order属性排序。   InternalResourceViewResolver 放在最后-->
    <bean class="org.springframework.web.servlet.view.ContentNegotiatingViewResolver">
        <property name="order" value="1"></property>
        <property name="mediaTypes">
            <map>
                <!-- 告诉视图解析器，返回的类型为json格式 -->
                <entry key="json" value="application/json" />
                <entry key="xml" value="application/xml" />
                <entry key="htm" value="text/htm" />
            </map>
        </property>
        <property name="defaultViews">
            <list>
                <!-- ModelAndView里的数据变成JSON -->
                <bean class="org.springframework.web.servlet.view.json.MappingJackson2JsonView" />
            </list>
        </property>
        <property name="ignoreAcceptHeader" value="true"></property>
    </bean>

    <!-- 定义跳转的文件的前后缀 ，视图模式配置-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <!-- 这里的配置我的理解是自动给后面action的方法return的字符串加上前缀和后缀，变成一个 可用的url地址 -->
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp" />
    </bean>


</beans>

    然后mybati的配置文件:都比较简单,然后写一个简单的测试,一个简单的ssm分模块的项目就建好了,我上传到github上面了,数据库自己随便写个就好了,这些很简单,细节可以参考源码:https://github.com/stackXu/myProject
    如果大家对以上有问题,可以留言,我会第一时间帮助大家解决的,一起进步哦!!!

    世界上所有的不公平都是由于当事人能力不足造成的.
  • 相关阅读:
    DRF中的序列化器
    Django REST framework的分页
    DRF的解析器和渲染器
    DRF 权限 频率
    Django ContentType组件
    CORS跨域请求
    RESTful API介绍
    module.exports 和 exports（转）
    vue全选反选demo
    wangEditor大图片上传问题
  • 原文地址：https://www.cnblogs.com/javayida/p/13347002.html
Copyright © 2011-2022 走看看
