1 <template> 2 <div :id="chartId" :style="{ height: box.height, box.width }" /> 3 </template> 4 5 <script> 6 import * as echarts from "echarts"; 7 import { debounce } from "../../utils/utils"; 8 9 export default { 10 name: "stackedAreaChart", 11 props: { 12 chartId: { 13 type: String, 14 default: "defaultChart", 15 }, 16 chartData: { 17 type: Object, 18 default: () => {}, 19 }, 20 box: { 21 type: Object, 22 default: () => { 23 return { "45%", height: "100%" }; 24 }, 25 }, 26 }, 27 data() { 28 return { 29 chart: null, 30 }; 31 }, 32 mounted() { 33 window.onresize = () => { 34 debounce(() => this.chart.resize(), 1000); 35 }; 36 this.$nextTick(() => { 37 this.drawChart(); 38 }); 39 }, 40 computed: { 41 chartTitle: { 42 get() { 43 return this.chartData?.title; 44 }, 45 }, 46 categoryData: { 47 get() { 48 return this.chartData?.categoryData; 49 }, 50 }, 51 legendData: { 52 get() { 53 return ( 54 this.chartData?.items.map((item) => { 55 return { name: item.name, icon: "roundRect" }; 56 }) ?? [] 57 ); 58 }, 59 }, 60 seriesData: { 61 get() { 62 return this.chartData?.items.map((item, index) => { 63 return { 64 name: item.name, 65 type: "line", 66 stack: "Total", 67 areaStyle: {}, 68 emphasis: { 69 focus: "series", 70 }, 71 data: item.value, 72 }; 73 }); 74 }, 75 }, 76 }, 77 methods: { 78 drawChart() { 79 if (!this.chart) { 80 this.chart = echarts.init(document.getElementById(this.chartId)); 81 } 82 83 let option = { 84 title: { 85 text: this.chartTitle, 86 x: "center", 87 y: "bottom", 88 }, 89 legend: { 90 data: this.legendData, 91 }, 92 grid: { 93 left: "3%", 94 right: "4%", 95 bottom: "10%", 96 containLabel: true, 97 }, 98 tooltip: { 99 trigger: "axis", 100 axisPointer: { 101 type: "cross", 102 label: { 103 backgroundColor: "#6a7985", 104 }, 105 }, 106 }, 107 xAxis: [ 108 { 109 type: "category", 110 boundaryGap: false, 111 data: ["Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"], 112 }, 113 ], 114 yAxis: [ 115 { 116 type: "value", 117 }, 118 ], 119 series: this.seriesData, 120 }; 121 122 this.chart.on("click", (params) => { 123 console.log(params); 124 }); 125 this.chart.setOption(option); 126 }, 127 }, 128 }; 129 </script>
↑ StackedAreaChart.vue

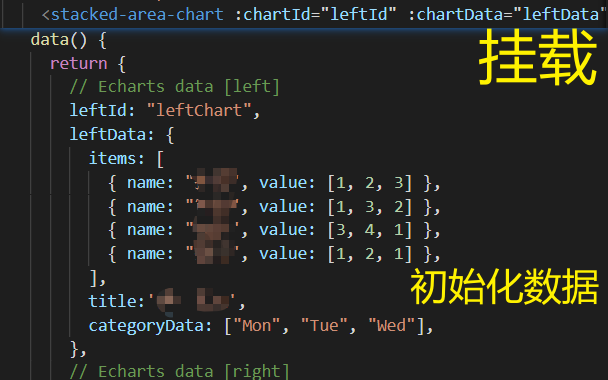

↓ 使用这个组件
PS 里面用到的debounce是这篇随笔介绍的内容~
