  • 微信小程序----map组件实现(路线规划)

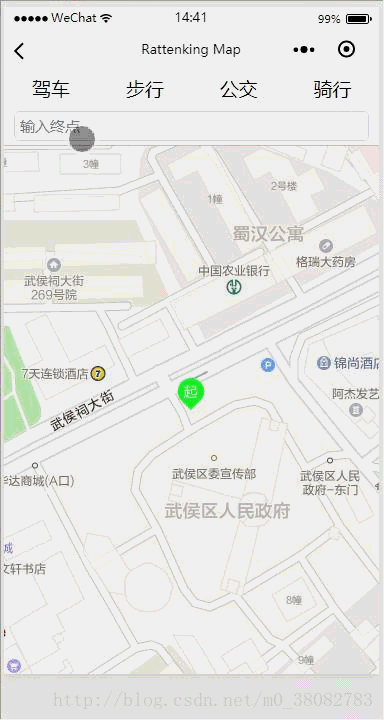

    效果图

    这里写图片描述

    实现原理

    1. 通过map组件标记起始点和绘制路线图;
    2. 通过高德地图API获取不同类型的路线坐标点,以及耗费时间和路程。

    WXML

    <view class="flex-style">
      <view class="flex-item {{status == 'car' ? 'active' : ''}}" data-status="car" bindtouchstart="goTo">驾车</view>
      <view class="flex-item {{status == 'walk' ? 'active' : ''}}" data-status="walk" bindtouchstart="goTo">步行</view>
      <view class="flex-item {{status == 'bus' ? 'active' : ''}}" data-status="bus" bindtouchstart="goTo">公交</view>
      <view class="flex-item {{status == 'ride' ? 'active' : ''}}" data-status="ride" bindtouchstart="goTo">骑行</view>
    </view>
    <view class="map-inputtips-input">
      <input bindinput="bindInput" placeholder="输入终点" focus="true" />
    </view>
    <view class="map-search-list {{isShow ? '' : 'map-hide'}}">
      <view bindtouchstart="bindSearch" wx:key="searchId" data-keywords="{{item.name}}" data-location="{{item.location}}" class="map-box" wx:for="{{tips}}">
        {{item.name}}
      </view>
    </view>

    <view class="map_box {{detailStatus ? 'active' : ''}}">
      <map id="navi_map" longitude="{{longitude}}" latitude="{{latitude}}" scale="14" include-points='{{points}}' markers="{{markers}}" polyline="{{polyline}}"></map>
    </view>

    <view class="text_box {{detailStatus ? '' : 'map-hide'}}">
      <view class="text">路程:{{distance}}</view>
      <view class="text">耗时:{{cost}}分钟</view>
      <view class="detail_button" bindtouchstart="goDetail">详情</view>
    </view>

    WXSS

    .flex-style{
      display: -webkit-box;
      display: -webkit-flex;
      display: flex;
    }
    .flex-item{
      height: 35px;
      line-height: 35px;
      text-align: center;
      -webkit-box-flex: 1;
      -webkit-flex: 1;
      flex: 1
    }
    .flex-item.active{
      color:#0091ff;
    }
    .map_box{
      position:absolute;
      top: calc(35px + 80rpx);
      bottom: 0px;
      left: 0px;
      right: 0px;
    }
    .map_box.active{bottom: 90px;}
    #navi_map{
      width: 100%;
      height: 100%;
    }
    .text_box{
      position:absolute;
      height: 90px;
      bottom: 0px;
      left: 0px;
      right: 0px;
    }
    .text_box .text{
      margin: 15px;
      color: lightseagreen;
    }
    .detail_button{
      position:absolute;
      bottom: 30px;
      right: 10px;
      padding: 3px 5px;
      color: #fff;
      background: #0091ff;
      width:50px;
      text-align:center;
      border-radius:5px;
    }
    .map-inputtips-input{
      height: 80rpx;
      line-height: 80rpx;
      width: 100%;
      box-sizing: border-box;
      font-size: 30rpx;
      padding: 0 10px;
      background-color: #fff;
      position: fixed;
      top: 35px;
      left: 0;
      z-index: 1000;
      border-bottom:1px solid #c3c3c3;
    }
    .map-inputtips-input input{
      border: 1px solid #ddd;
      border-radius: 5px;
      height: 60rpx;
      line-height: 60rpx;
      width: 100%;
      box-sizing: border-box;
      padding: 0 5px;
      margin-top: 10rpx;
    }
    .map-box{
      margin: 0 10px;
      border-bottom:1px solid #c3c3c3;
      height: 80rpx;
      line-height: 80rpx;
    }
    .map-box:last-child{border: none;}
    .map-search-list{
      position: fixed;
      top: calc(80rpx + 35px);
      left: 0;
      width: 100%;
      z-index: 1000;
      background-color: #fff;
    }

    JS

    const app = getApp();
    const amap = app.data.amap;
    const key = app.data.key;

    Page({
      data: {
        longitude: '',
        latitude: '',
        isShow: false,
        detailStatus: false,
        status: '',
        markers: [],
        points: [],
        distance: '',
        cost: '',
        city: '',
        tips: {},
        polyline: []
      },
      onLoad() {
        var _this = this;
        wx.getLocation({
          success: function (res) {
            if (res && res.longitude) {
              _this.setData({
                longitude: res.longitude,
                latitude: res.latitude,
                points: [{
                  longitude: res.longitude,
                  latitude: res.latitude
                }],
                markers: [{
                  id: 0,
                  longitude: res.longitude,
                  latitude: res.latitude,
                  iconPath: '../../src/images/navi_s.png',
                   32,
                  height: 32
                }]
              })
            }
          }
        })
      },
      bindInput: function (e) {
        var _this = this;
        var keywords = e.detail.value;
        var myAmap = new amap.AMapWX({ key: key });
        myAmap.getInputtips({
          keywords: keywords,
          location: '',
          success: function (res) {
            if (res && res.tips) {
              var address = res.tips[0].district;
              _this.setData({
                isShow: true,
                city: address.substring(address.indexOf('省') + 1, address.indexOf('市')),
                tips: res.tips
              });
            }
          }
        })
      },
      bindSearch: function (e) {
        var keywords = e.target.dataset.keywords;

        var location = e.target.dataset.location;
        location = location.split(',');
        if (this.data.markers.length > 1 && this.data.points.length > 1){
          this.data.markers.pop();
          this.data.points.pop();
          this.setData({ polyline:[]});
        }
        var markers = this.data.markers;
        var points = this.data.points;
        markers.push({
          id: 0,
          longitude: location[0],
          latitude: location[1],
          iconPath: '../../src/images/navi_e.png',
           32,
          height: 32
        });
        points.push({
          longitude: location[0],
          latitude: location[1]
        })
        this.setData({
          isShow: false,
          markers: markers,
          points: points
        })
      },
      goTo(e) {
        if (this.data.points.length < 2) {
          wx.showToast({ title: '请输入终点' })
          return;
        }
        var status = e.target.dataset.status;
        var myAmap = new amap.AMapWX({ key: key });

        switch (status) {
          case 'car':
            myAmap.getDrivingRoute(this.getDataObj('#4B0082'));
            break;
          case 'walk':
            myAmap.getWalkingRoute(this.getDataObj());
            break;
          case 'bus':
            myAmap.getTransitRoute(this.getBusData('#008B8B'));
            break;
          case 'ride':
            myAmap.getRidingRoute(this.getDataObj('#00FFFF'));
            break;
          default:
            return;
        }
        this.setData({
          detailStatus: true,
          status: status
        })
      },
      getDataObj(color) {
        var _this = this;
        var color = color || "#0091ff";

        return {
          origin: _this.data.points[0].longitude + ',' + _this.data.points[0].latitude,
          destination: _this.data.points[1].longitude + ',' + _this.data.points[1].latitude,
          success(data) {
            var points = [];
            if (!data.paths || !data.paths[0] || !data.paths[0].steps) {
              wx.showToast({ title: '失败!' });
              return;
            }
            if (data.paths && data.paths[0] && data.paths[0].steps) {
              var steps = data.paths[0].steps;
              for (var i = 0; i < steps.length; i++) {
                var poLen = steps[i].polyline.split(';');
                for (var j = 0; j < poLen.length; j++) {
                  points.push({
                    longitude: parseFloat(poLen[j].split(',')[0]),
                    latitude: parseFloat(poLen[j].split(',')[1])
                  })
                }
              }
            }
            _this.setData({
              distance: data.paths[0].distance,
              cost: parseInt(data.paths[0].duration / 60),
              polyline: [{
                points: points,
                color: color,
                 6
              }]
            });
          },
          fail(info) {
            wx.showToast({ title: '失败!' })
          }
        }
      },
      getBusData(color) {
        var _this = this;
        var color = color || "#0091ff";

        return {
          origin: _this.data.points[0].longitude + ',' + _this.data.points[0].latitude,
          destination: _this.data.points[1].longitude + ',' + _this.data.points[1].latitude,
          city: _this.data.city,
          success(data) {
            var points = [], cost = 0;
            if (data && data.transits) {
              var transits = data.transits;
              for (var i = 0; i < transits.length; i++) {
                cost += parseInt(transits[i].duration);
                var segments = transits[i].segments;
                for (var j = 0; j < segments.length; j++) {
                  if (segments[j].bus.buslines[0] && segments[j].bus.buslines[0].polyline) {
                    var steps = segments[j].bus.buslines[0].polyline.split(';');
                    for (var k = 0; k < steps.length; k++) {
                      var point = steps[k].split(',');
                      points.push({
                        longitude: point[0],
                        latitude: point[1]
                      })
                      if (parseInt(point[0] * 100000) === parseInt(_this.data.points[1].longitude * 100000) && parseInt(point[1] * 100000) === parseInt(_this.data.points[1].latitude * 100000)){
                        _this.setData({
                          distance: data.distance,
                          cost: parseInt(cost / 60),
                          polyline: [{
                            points: points,
                            color: color,
                             6
                          }]
                        });
                        return ;
                      }
                    }
                  }
                }
              }
            }
          },
          fail(info) {
            wx.showToast({ title: '失败!' })
          }
        }
      }
    })

    实现步骤

    1. 利用 input 输入终点地址关键字;
    2. 通过关键字利用高德地图API(getInputtips)获取地址坐标列表;
    3. 列表添加选中事件,获取具体的 location ,进行地图标记;
    4. 选择路线类型(驾车,骑行等),通过高德地图对应的API获取规划坐标;
    5. 绘制路线。
    6. 注意:在返回的路线坐标数据格式,公交和其他三种方式的数据格式不同,需要单独进行处理(单独处理公交数据的方法: getBusData)
