Redis cluster群集安装（单机多实例）

redis cluster安装至少要6个节点，本例安装采用单机6个实例的方式安装



安装环境：CentOS 7.6.1810

Redis版本：redis-4.0.2

Ruby版本：ruby-2.4.10



说明：由于redis cluster需要ruby 2.2以上版本，而系统自带为2.0，因此本例安装前需要卸载系统自带ruby，编译安装



Step1:安装gcc等编译工具



[root@Redis-Cluster ~]# yum -y install gcc



Step2:上传安装软件到安装服务器



[root@Redis-Cluster ~]# ls -l

total 15480

-rw-r--r-- 1 root root  1713990 Dec  6 09:45 redis-4.0.2.tar.gz

-rw-r--r-- 1 root root 14133414 Dec  6 05:01 ruby-2.4.10.tar.gz



Step3:安装ruby



[root@Redis-Cluster ~]# tar zxvf ruby-2.4.10.tar.gz

[root@Redis-Cluster ~]# cd ruby-2.4.10

[root@Redis-Cluster ruby-2.4.10]# ./configure --prefix=/usr/local/ruby

[root@Redis-Cluster ruby-2.4.10]# make

[root@Redis-Cluster ruby-2.4.10]# make install

[root@Redis-Cluster bin]# ln -s /usr/local/ruby/bin/ruby /usr/local/bin/ruby

[root@Redis-Cluster bin]# ln -s /usr/local/ruby/bin/gem /usr/local/bin/gem



Step4:安装redis



[root@Redis-Cluster ~]# tar zxvf redis-4.0.2.tar.gz

[root@Redis-Cluster ~]# cd redis-4.0.2

[root@Redis-Cluster redis-4.0.2]# make

[root@Redis-Cluster redis-4.0.2]# make install PREFIX=/usr/local/redis

[root@Redis-Cluster ~]# mkdir -pv /usr/local/redis/cluster

[root@Redis-Cluster ~]# mkdir -pv /usr/local/redis/cluster/{7001,7002,7003,7004,7005,7006}

mkdir: created directory ‘/usr/local/redis/cluster/7001’

mkdir: created directory ‘/usr/local/redis/cluster/7002’

mkdir: created directory ‘/usr/local/redis/cluster/7003’

mkdir: created directory ‘/usr/local/redis/cluster/7004’

mkdir: created directory ‘/usr/local/redis/cluster/7005’

mkdir: created directory ‘/usr/local/redis/cluster/7006’

[root@Redis-Cluster ~]# cp /root/redis-4.0.2/redis.conf /usr/local/redis/bin/

[root@Redis-Cluster ~]# cp /root/redis-4.0.2/redis.conf /usr/local/redis/bin/

[root@Redis-Cluster ~]# cp /root/redis-4.0.2/redis.conf /usr/local/redis/cluster/7001/redis-7001.conf

[root@Redis-Cluster ~]# cp /root/redis-4.0.2/redis.conf /usr/local/redis/cluster/7002/redis-7002.conf

[root@Redis-Cluster ~]# cp /root/redis-4.0.2/redis.conf /usr/local/redis/cluster/7003/redis-7003.conf

[root@Redis-Cluster ~]# cp /root/redis-4.0.2/redis.conf /usr/local/redis/cluster/7004/redis-7004.conf

[root@Redis-Cluster ~]# cp /root/redis-4.0.2/redis.conf /usr/local/redis/cluster/7005/redis-7005.conf

[root@Redis-Cluster ~]# cp /root/redis-4.0.2/redis.conf /usr/local/redis/cluster/7006/redis-7006.conf



[root@Redis-Cluster ~]# vim /usr/local/redis/cluster/7001/redis-7001.conf



bind 127.0.0.1     ->修改为 bind 0.0.0.0

port 6379            ->修改为 port 7001

daemonize no     ->修改为daemonize yes

pidfile /var/run/redis_6379.pid ->修改为 pidfile /var/run/redis_7001.pid

#cluster-enabled yes      ->取消#注释

#cluster-config-file nodes_7001.conf        ->取消注释，指定集群配置文件

#cluster-node-timeout 15000           ->取消注释

appendonly no                                  ->修改为appendonly yes



其他的配置文件也修改



[root@Redis-Cluster ~]# vim /usr/local/redis/cluster/7002/redis-7002.conf

[root@Redis-Cluster ~]# vim /usr/local/redis/cluster/7003/redis-7003.conf

[root@Redis-Cluster ~]# vim /usr/local/redis/cluster/7004/redis-7004.conf

[root@Redis-Cluster ~]# vim /usr/local/redis/cluster/7005/redis-7005.conf

[root@Redis-Cluster ~]# vim /usr/local/redis/cluster/7006/redis-7006.conf



Step5:安装redis-trib所需的ruby脚本



[root@Redis-Cluster ~]# cp /root/redis-4.0.2/src/redis-trib.rb /usr/local/redis/cluster/

[root@Redis-Cluster ~]# cd /usr/local/redis/cluster/

[root@Redis-Cluster ~]# gem install redis



Step6:启动redis



[root@Redis-Cluster ~]# cd /usr/local/redis/bin/

[root@Redis-Cluster bin]# ./redis-server /usr/local/redis/cluster/7001/redis-7001.conf

[root@Redis-Cluster bin]# ./redis-server /usr/local/redis/cluster/7002/redis-7002.conf

[root@Redis-Cluster bin]# ./redis-server /usr/local/redis/cluster/7003/redis-7003.conf

[root@Redis-Cluster bin]# ./redis-server /usr/local/redis/cluster/7004/redis-7004.conf

[root@Redis-Cluster bin]# ./redis-server /usr/local/redis/cluster/7005/redis-7005.conf

[root@Redis-Cluster bin]# ./redis-server /usr/local/redis/cluster/7006/redis-7006.conf



[root@Redis-Cluster bin]# netstat -ntlup

Active Internet connections (only servers)

Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name

tcp        0      0 0.0.0.0:17001           0.0.0.0:*               LISTEN      40529/./redis-serve

tcp        0      0 0.0.0.0:17002           0.0.0.0:*               LISTEN      40548/./redis-serve

tcp        0      0 0.0.0.0:17003           0.0.0.0:*               LISTEN      40553/./redis-serve

tcp        0      0 0.0.0.0:17004           0.0.0.0:*               LISTEN      40563/./redis-serve

tcp        0      0 0.0.0.0:17005           0.0.0.0:*               LISTEN      40568/./redis-serve

tcp        0      0 0.0.0.0:17006           0.0.0.0:*               LISTEN      40573/./redis-serve

tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      9304/sshd

tcp        0      0 0.0.0.0:7001            0.0.0.0:*               LISTEN      40529/./redis-serve

tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      9434/master

tcp        0      0 0.0.0.0:7002            0.0.0.0:*               LISTEN      40548/./redis-serve

tcp        0      0 0.0.0.0:7003            0.0.0.0:*               LISTEN      40553/./redis-serve

tcp        0      0 0.0.0.0:7004            0.0.0.0:*               LISTEN      40563/./redis-serve

tcp        0      0 0.0.0.0:7005            0.0.0.0:*               LISTEN      40568/./redis-serve

tcp        0      0 0.0.0.0:7006            0.0.0.0:*               LISTEN      40573/./redis-serve

tcp6       0      0 :::22                   :::*                    LISTEN      9304/sshd

tcp6       0      0 ::1:25                  :::*                    LISTEN      9434/master





Step7:创建redis集群



[root@Redis-Cluster bin]# cp /root/redis-4.0.2/src/redis-trib.rb /usr/local/redis/bin/

[root@Redis-Cluster bin]# ./redis-trib.rb create --replicas 1 127.0.0.1:7001 127.0.0.1:7002 127.0.0.1:7003 127.0.0.1:7004 127.0.0.1:7005 127.0.0.1:7006

>>> Creating cluster

>>> Performing hash slots allocation on 6 nodes...

Using 3 masters:

127.0.0.1:7001

127.0.0.1:7002

127.0.0.1:7003

Adding replica 127.0.0.1:7004 to 127.0.0.1:7001

Adding replica 127.0.0.1:7005 to 127.0.0.1:7002

Adding replica 127.0.0.1:7006 to 127.0.0.1:7003

M: e90a1f6133b63ff2089e23f3ee732e9b20cf37f7 127.0.0.1:7001

   slots:0-5460 (5461 slots) master

M: 6bf5942ed2b76e6303f94229f23438b182a4dfda 127.0.0.1:7002

   slots:5461-10922 (5462 slots) master

M: c4a5e3ab437726490a1e2a0ce0bdc84ef71f3182 127.0.0.1:7003

   slots:10923-16383 (5461 slots) master

S: c9f9165639f4b48cb5738882864f9a5b2a27d272 127.0.0.1:7004

   replicates e90a1f6133b63ff2089e23f3ee732e9b20cf37f7

S: bf102f5f0ab3742f2b2fe1fa2360bcc5e844e934 127.0.0.1:7005

   replicates 6bf5942ed2b76e6303f94229f23438b182a4dfda

S: 655e94f61ede5d522eac3d499469b865fba6704b 127.0.0.1:7006

   replicates c4a5e3ab437726490a1e2a0ce0bdc84ef71f3182

Can I set the above configuration? (type 'yes' to accept): yes

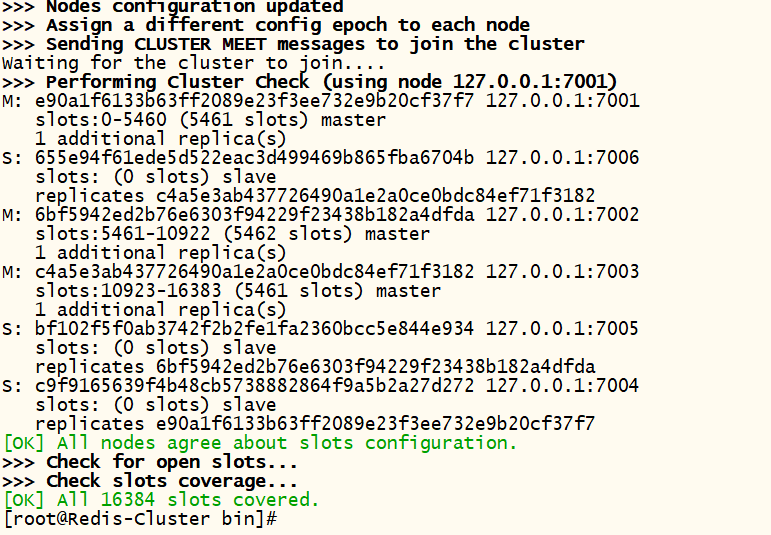

>>> Nodes configuration updated

>>> Assign a different config epoch to each node

>>> Sending CLUSTER MEET messages to join the cluster

Waiting for the cluster to join....

>>> Performing Cluster Check (using node 127.0.0.1:7001)

M: e90a1f6133b63ff2089e23f3ee732e9b20cf37f7 127.0.0.1:7001

   slots:0-5460 (5461 slots) master

   1 additional replica(s)

S: 655e94f61ede5d522eac3d499469b865fba6704b 127.0.0.1:7006

   slots: (0 slots) slave

   replicates c4a5e3ab437726490a1e2a0ce0bdc84ef71f3182

M: 6bf5942ed2b76e6303f94229f23438b182a4dfda 127.0.0.1:7002

   slots:5461-10922 (5462 slots) master

   1 additional replica(s)

M: c4a5e3ab437726490a1e2a0ce0bdc84ef71f3182 127.0.0.1:7003

   slots:10923-16383 (5461 slots) master

   1 additional replica(s)

S: bf102f5f0ab3742f2b2fe1fa2360bcc5e844e934 127.0.0.1:7005

   slots: (0 slots) slave

   replicates 6bf5942ed2b76e6303f94229f23438b182a4dfda

S: c9f9165639f4b48cb5738882864f9a5b2a27d272 127.0.0.1:7004

   slots: (0 slots) slave

   replicates e90a1f6133b63ff2089e23f3ee732e9b20cf37f7

[OK] All nodes agree about slots configuration.

>>> Check for open slots...

>>> Check slots coverage...

[OK] All 16384 slots covered.



[root@Redis-Cluster bin]# ./redis-cli -c -p 7002

127.0.0.1:7002> keys *

(empty list or set)

127.0.0.1:7002> info

# Server

redis_version:4.0.2

redis_git_sha1:00000000

redis_git_dirty:0

redis_build_id:77c538eb7a885142

redis_mode:cluster

os:Linux 3.10.0-957.el7.x86_64 x86_64

arch_bits:64

multiplexing_api:epoll

atomicvar_api:atomic-builtin

gcc_version:4.8.5

process_id:40548

run_id:1ac0271ebbd7b942ff347fa53d4a26a8bb9f1e45

tcp_port:7002

uptime_in_seconds:537

uptime_in_days:0

hz:10

lru_clock:13432535

executable:/usr/local/redis/bin/./redis-server

config_file:/usr/local/redis/cluster/7002/redis-7002.conf



# Clients

connected_clients:1

client_longest_output_list:0

client_biggest_input_buf:0

blocked_clients:0



# Memory

used_memory:2625512

used_memory_human:2.50M

used_memory_rss:12177408

used_memory_rss_human:11.61M

used_memory_peak:2625512

used_memory_peak_human:2.50M

used_memory_peak_perc:100.05%

used_memory_overhead:2539496

used_memory_startup:1424432

used_memory_dataset:86016

used_memory_dataset_perc:7.16%

total_system_memory:16806588416

total_system_memory_human:15.65G

used_memory_lua:37888

used_memory_lua_human:37.00K

maxmemory:0

maxmemory_human:0B

maxmemory_policy:noeviction

mem_fragmentation_ratio:4.64

mem_allocator:jemalloc-4.0.3

active_defrag_running:0

lazyfree_pending_objects:0



# Persistence

loading:0

rdb_changes_since_last_save:0

rdb_bgsave_in_progress:0

rdb_last_save_time:1607267932

rdb_last_bgsave_status:ok

rdb_last_bgsave_time_sec:0

rdb_current_bgsave_time_sec:-1

rdb_last_cow_size:6467584

aof_enabled:1

aof_rewrite_in_progress:0

aof_rewrite_scheduled:0

aof_last_rewrite_time_sec:-1

aof_current_rewrite_time_sec:-1

aof_last_bgrewrite_status:ok

aof_last_write_status:ok

aof_last_cow_size:0

aof_current_size:0

aof_base_size:0

aof_pending_rewrite:0

aof_buffer_length:0

aof_rewrite_buffer_length:0

aof_pending_bio_fsync:0

aof_delayed_fsync:0



# Stats

total_connections_received:4

total_commands_processed:144

instantaneous_ops_per_sec:1

total_net_input_bytes:60448

total_net_output_bytes:21705

instantaneous_input_kbps:0.04

instantaneous_output_kbps:0.00

rejected_connections:0

sync_full:1

sync_partial_ok:0

sync_partial_err:1

expired_keys:0

evicted_keys:0

keyspace_hits:0

keyspace_misses:0

pubsub_channels:0

pubsub_patterns:0

latest_fork_usec:14165

migrate_cached_sockets:0

slave_expires_tracked_keys:0

active_defrag_hits:0

active_defrag_misses:0

active_defrag_key_hits:0

active_defrag_key_misses:0



# Replication

role:master

connected_slaves:1

slave0:ip=127.0.0.1,port=7005,state=online,offset=168,lag=0

master_replid:a08d51af5094ee677ac18d73711a898a7aca86f7

master_replid2:0000000000000000000000000000000000000000

master_repl_offset:168

second_repl_offset:-1

repl_backlog_active:1

repl_backlog_size:1048576

repl_backlog_first_byte_offset:1

repl_backlog_histlen:168



# CPU

used_cpu_sys:0.72

used_cpu_user:0.02

used_cpu_sys_children:0.03

used_cpu_user_children:0.00



# Cluster

cluster_enabled:1



# Keyspace

127.0.0.1:7002>



Step8:插入测试数据



[root@Redis-Cluster bin]# ./redis-cli -c -p 7002



 Step9:查看值

127.0.0.1:7005> keys *

 Step10:检查节点

[root@Redis-Cluster bin]# ./redis-trib.rb check 127.0.0.1:7004
