  • 如何使用R语言在SAP Analytics Cloud里绘制各种统计图表

    插入一个R visualization:

    一定要确保图形出现这个model的小图标,代表这个R visualization的模型数据成功绑定之后才能进行下一步操作:

    模型绑定成功后,在R script编辑器Environment标签页的Data下拉菜单里能看到模型数据。

    使用这个SAP Analytics Cloud官方教程里提供的excel文件作为数据源:

    https://www.sapanalytics.cloud/tutorial-r-visualization/

    该excel内容如下:

    excel系统导入SAP Analytics Cloud后,需要使用simple transformation,将;分号分隔的值拆分成三列:


    逐一拆分:

    拆分完毕之后,生成Model. 将这个url里包含的R脚本复制粘贴到R编辑器里:
    https://www.sapanalytics.cloud/wp-content/uploads/2019/09/R-Script-Plot.txt

    # Discription:
    # Creating a histogram of the log returns, adding the kernel density of the log returns
    # and the normal density as reference distribution
    #
    # Requirements:
    # ggplot requires a data frame
    #
    # Output:
    # Histogram Plot
    #

    library(ggplot2)

    Simulated_data <- data.frame(Simulated_data)

    histgg <- ggplot(data = Simulated_data, aes(logreturns))

    histgg + geom_histogram(aes(y = ..density..),fill = "lightblue",color = "black", alpha = 0.8, position = "identity") +
      geom_density(aes(color = "Kernel Density"), size = 1) +
      stat_function(aes(color = "Normal Distribution"), fun = dnorm, args = list(mean = mean(Simulated_data$logreturns), sd = sd(Simulated_data$logreturns)), size = 1) +
      ggtitle("Histogram") +
      theme(panel.grid = element_line(linetype = "dashed", color = "lightgrey"), panel.background = element_rect(fill = "white"),
            panel.border = element_rect(colour = "black", fill=NA),
            plot.title = element_text(hjust = 0.5)) +
      scale_colour_manual("Density", values = c("red", "darkgreen")) +
      xlab(" ")+
      ylab("Frequency")

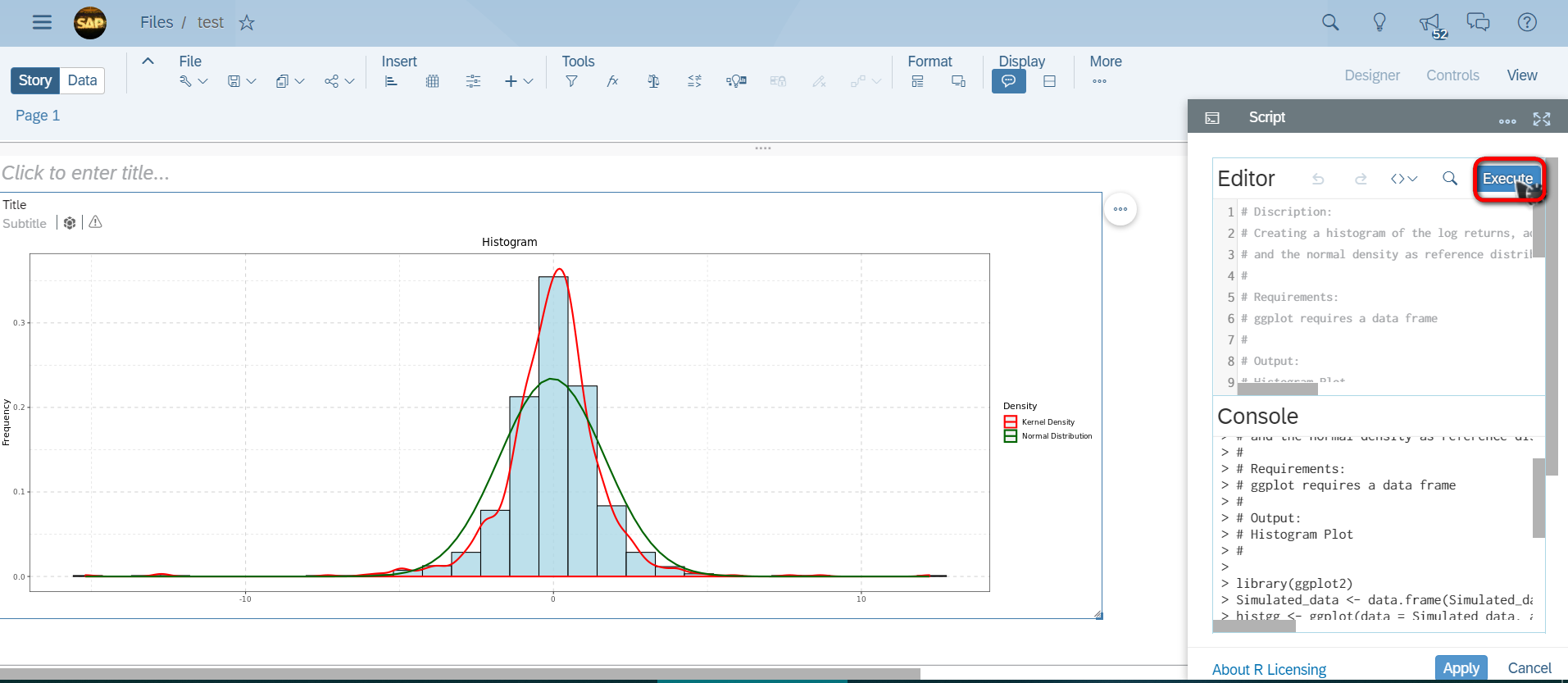

    点击Execute按钮,就可以看到R脚本绘制出来的图形了:

    要获取更多Jerry的原创文章,请关注公众号"汪子熙":
