  • SAP数据库表DDLOG的设计原理

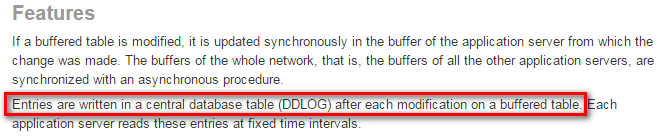

    Today when I am reading this SAP help, I find out this sentence:

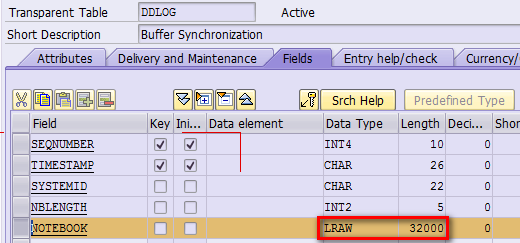

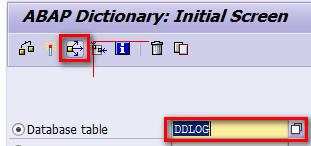

    Then I have opened the definition of table DDLOG in the system and found I cannot directly view the content of field NOTEBOOK due to its data type LRAW.

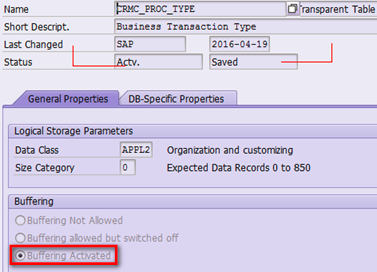

    So I have chosen one table with buffer activated, and made some changes on it.

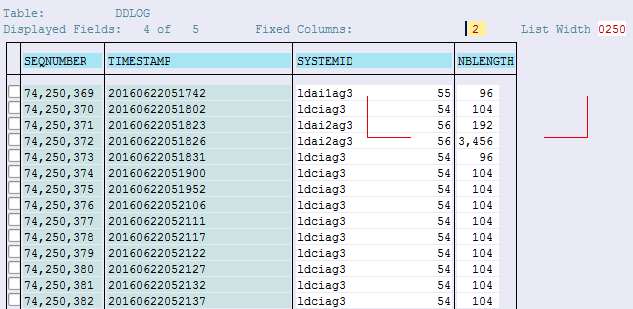

    Since I can only query this table via timestamp, I cannot figure out which entry is for my change on CRMC_PROC_TYPE.

    Although I can fetch the content of NOTEBOOK in ABAP code via SELECT *, I do not how to parse this raw data to extract useful information.

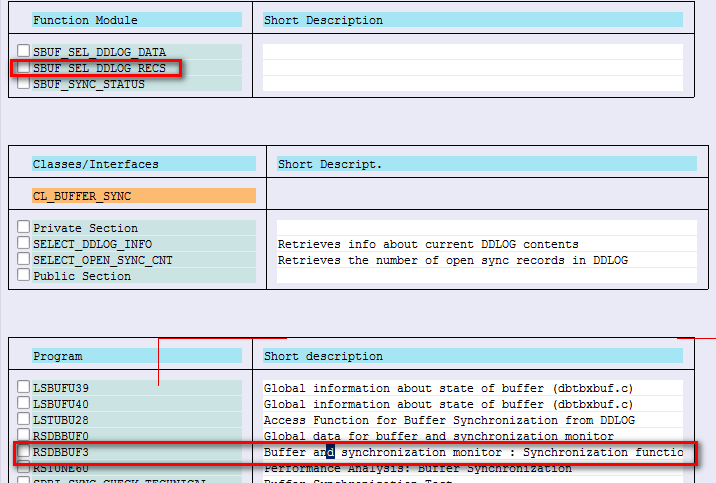

    So I perform where used list on this table:

    Then I have found two useful stuff:

    (1) table buffer synchronization monitor
    use report RSDBBUF3:

    (2) FM SBUF_SEL_DDLOG_RECS to parse content of field DDLOG-NOTEBOOK
    I wrote a simple report to use this FM:

    DATA: lt_sync_tab    TYPE sync_tab_t,
          lv_tstamp_from TYPE ddlog-timestamp,
          lv_tstamp_to   TYPE ddlog-timestamp.
    lv_tstamp_from   = '20160621061955'.
    lv_tstamp_to    = '20160623000000'.
    CALL FUNCTION 'SBUF_SEL_DDLOG_RECS'
      EXPORTING
        from_time      = lv_tstamp_from
        to_time        = lv_tstamp_to
        max_cnt        = 10000
        keep_db2_tstmp = 'X'
      CHANGING
        sync_tab       = lt_sync_tab.
    SORT lt_sync_tab BY tabname.

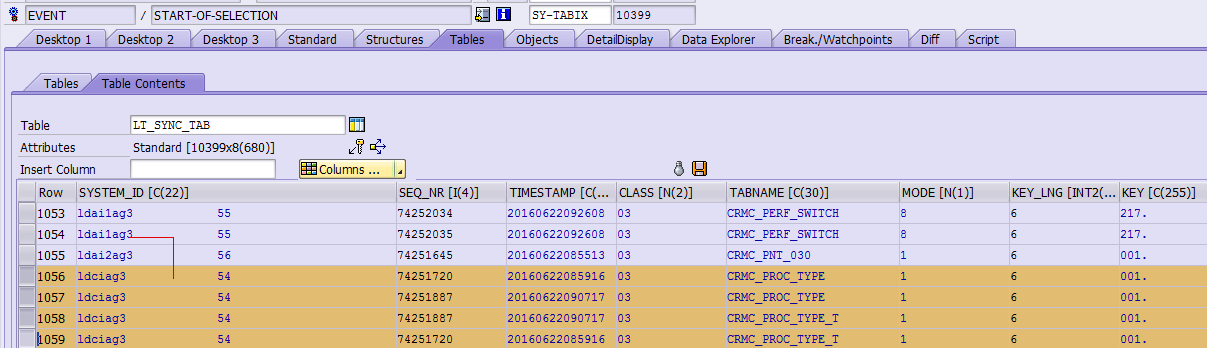

    Now I can find the corresponding entry for my changes from changing parameter lt_sync_tab by table name:
