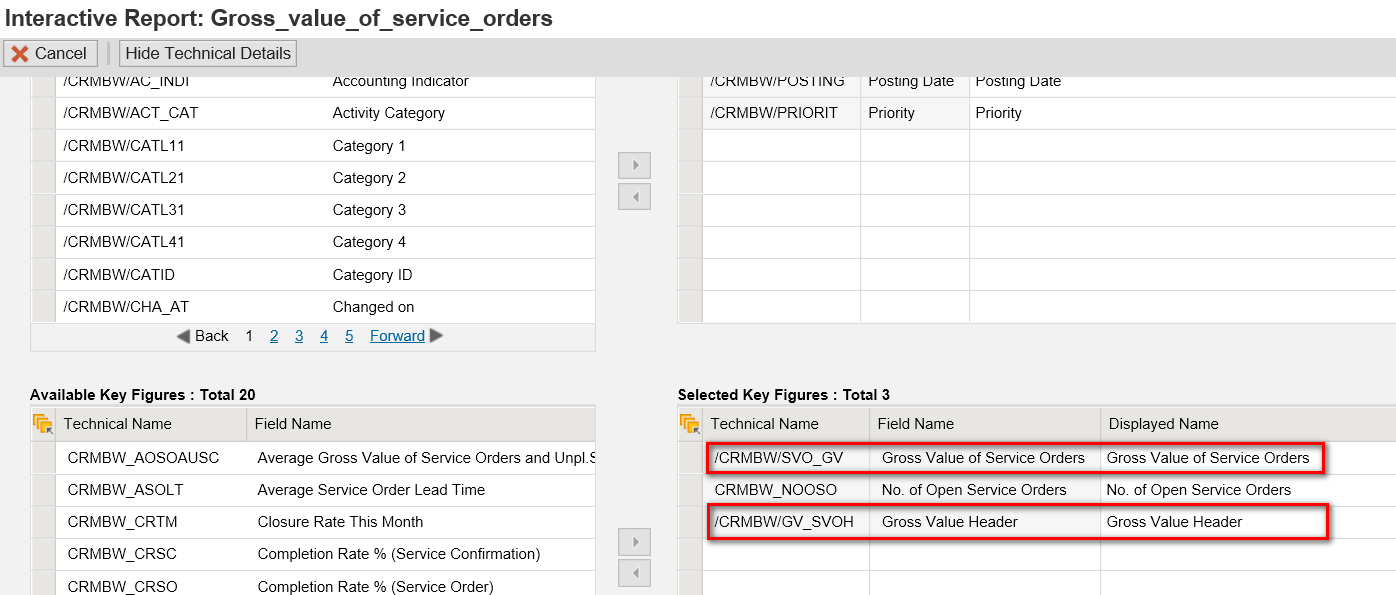

Recently I am working on CRM Interactive Report and I was quite confusing about the difference between these two key figures below:
This report is created based on Reporting Area: ServiceOrder
The technical name for “Gross Value of Service Orders”: /CRMBW/SVO_GV
“Gross Value Header”: /CRMBW/GV_SVOH

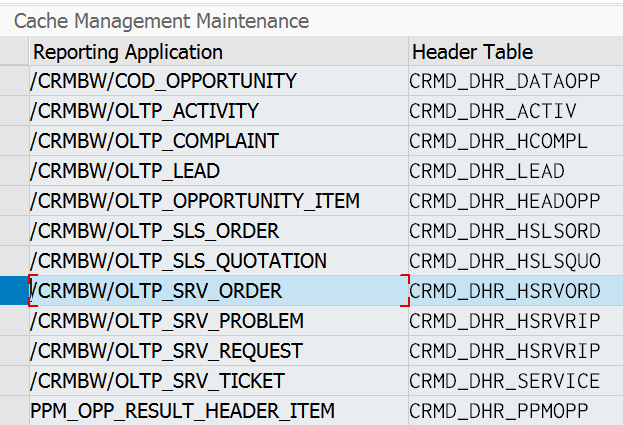

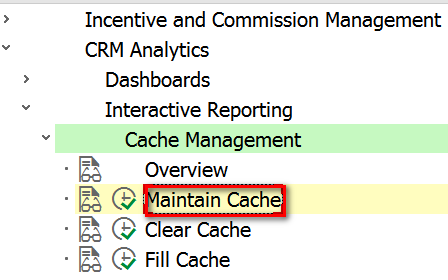

From this customizing I know the cache table to display report key figure values for Service Order is: CRMD_DHR_HSRVORD

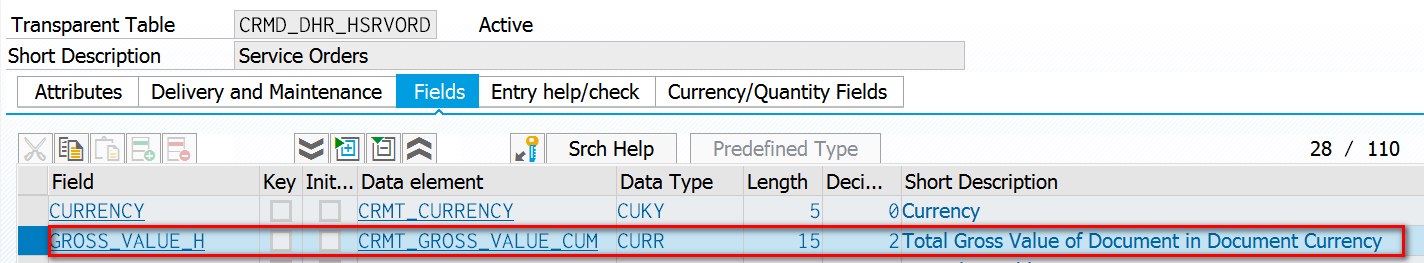

However in this table there is only one field GROSS_VALUE_H, and how can this single field serve two key figures mentioned in the title of this blog?
Via debugging I have figured out how the key figure values are retrieved from database table and rendered in WebUI.
It consists of two steps:
(1) the guid of orders which fulfills the specified search criteria in WebUI is fetched from CRMD_ORDER_INDEX via reporting framework API CRM_BSP_OIC_1O_SEARCH_FROM_RF.
I write a simple report to simulate the call sent from Reporting UI:
REPORT crm_bw_gross_value_header.
PARAMETERS: date TYPE sy-datum OBLIGATORY DEFAULT '20150127'.
DATA: lt_table TYPE TABLE OF crmd_dhr_hsrvord.
TYPES: BEGIN OF t_oltp_srv_order,
n_of_unplan_conf TYPE crmt_number_of_h,
predecessor_srv TYPE crmt_boolean,
n_of_srv_conf TYPE crmt_number_of_h,
n_of_srv_order TYPE crmt_number_of_h,
grval_unplan TYPE crmt_gross_value_cum,
object_type TYPE swo_objtyp,
gross_value_h TYPE crmt_gross_value_cum,
grval_srv_order TYPE crmt_gross_value_cum,
stat_open TYPE crmt_status_open,
changed_at TYPE crmt_changed_at_usr,
created_at TYPE crmt_created_at_usr,
lc_srv_duration TYPE crmt_bw_lifecycle,
lc_srv_dur_unit TYPE crmt_bw_lifecycle_unit,
srq_work_dura TYPE timedura,
srq_work_unit TYPE timeunitdu,
srq_tot_dura TYPE timedura,
srq_tot_unit TYPE timeunitdu,
srq_work_dura_qu TYPE crmt_srv_duration,
srq_work_unit_qu TYPE crmt_srv_duration_uom,
srq_tot_dura_qu TYPE crmt_srv_duration,
srq_tot_unit_qu TYPE crmt_srv_duration_uom,
END OF t_oltp_srv_order.
DATA: ls_oltp_srv_order TYPE t_oltp_srv_order,
lt_oltp_srv_order TYPE TABLE OF t_oltp_srv_order,
lt_single_filter_tab TYPE crmt_name_value_pair_tab,
lt_guid_list TYPE crmt_bsp_objectkey_tab,
lt_multi_filter_tab TYPE crmt_bsp_search_multi_val_tab,
ls_multi_filter LIKE LINE OF lt_multi_filter_tab,
ls_filter_item TYPE LINE OF crmt_bsp_range_tab,
lt_person TYPE crmt_report_gp_guid_intnum_ta,
lt_return TYPE bapiret2_t,
lv_gross_h TYPE crmt_gross_value_cum,
lv_sum_so TYPE crmt_gross_value_cum,
lt_guid TYPE crmt_object_guid_tab.
DATA(ls_template) = VALUE crmt_name_value_pair( name = 'TEMPLATE_TYPE' ).
APPEND ls_template TO lt_single_filter_tab.
ls_multi_filter-fieldname = 'OBJECT_TYPE'.
ls_filter_item = VALUE #( sign = 'I' option = 'EQ' low = 'BUS2000116' ).
APPEND ls_filter_item TO ls_multi_filter-searchvalues.
ls_filter_item-low = 'BUS2000117'.
APPEND ls_filter_item TO ls_multi_filter-searchvalues.
APPEND ls_multi_filter TO lt_multi_filter_tab.
CALL FUNCTION 'CRM_RESOLVE_RESPONSE_AREA'
EXPORTING
iv_my = ''
iv_team = ''
iv_group = 'X'
IMPORTING
ev_gp_guids_intnum = lt_person.
CLEAR: ls_multi_filter.
ls_multi_filter-fieldname = 'BU_PARTNER'.
LOOP AT lt_person ASSIGNING FIELD-SYMBOL(<person>).
ls_filter_item = VALUE #( sign = 'I' option = 'EQ' low = <person>-gp_extnum ).
APPEND ls_filter_item TO ls_multi_filter-searchvalues.
ENDLOOP.
APPEND ls_multi_filter TO lt_multi_filter_tab.
CLEAR: ls_multi_filter.
ls_multi_filter-fieldname = 'PARTNER_FCT'.
ls_filter_item = VALUE #( sign = 'I' option = 'EQ' low = '00000012' )."Sales Representative
APPEND ls_filter_item TO ls_multi_filter-searchvalues.
ls_filter_item = VALUE #( sign = 'I' option = 'EQ' low = '00000014' )."Employee Responsible
APPEND ls_filter_item TO ls_multi_filter-searchvalues.
APPEND ls_multi_filter TO lt_multi_filter_tab.
CLEAR: ls_multi_filter.
ls_multi_filter-fieldname = 'OBJECT_ID'.
APPEND ls_multi_filter TO lt_multi_filter_tab.
CLEAR: ls_multi_filter.
ls_multi_filter-fieldname = 'POSTING_DATE'.
ls_filter_item = VALUE #( sign = 'I' option = 'EQ' low = date ).
APPEND ls_filter_item TO ls_multi_filter-searchvalues.
APPEND ls_multi_filter TO lt_multi_filter_tab.
CALL FUNCTION 'CRM_BSP_OIC_1O_SEARCH_FROM_RF'
EXPORTING
it_search_tab = lt_single_filter_tab
it_multivalues = lt_multi_filter_tab
iv_extern_call = 'X'
iv_select_for_headerlevel = 'X'
iv_obj_il = '/CRMBW/OLTP_SRV_ORDER'
iv_report_area = 'SERVICEORDER'
IMPORTING
et_guidlist = lt_guid_list
et_return = lt_return.

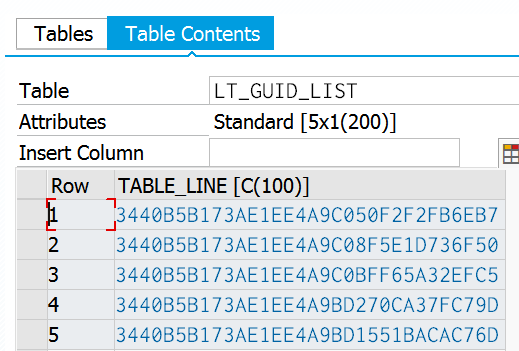

Execute the report, in my system for posting date 2015.01.27, there are five Service Orders & Service Confirmation:
(2) Buffer table CRMD_DHR_HSRVORD is then read with the guid fetched from step1, and key figure calculation is done in BAdI implementation class CL_CRM_RFQ1OCALC_STATUS_COMMON.

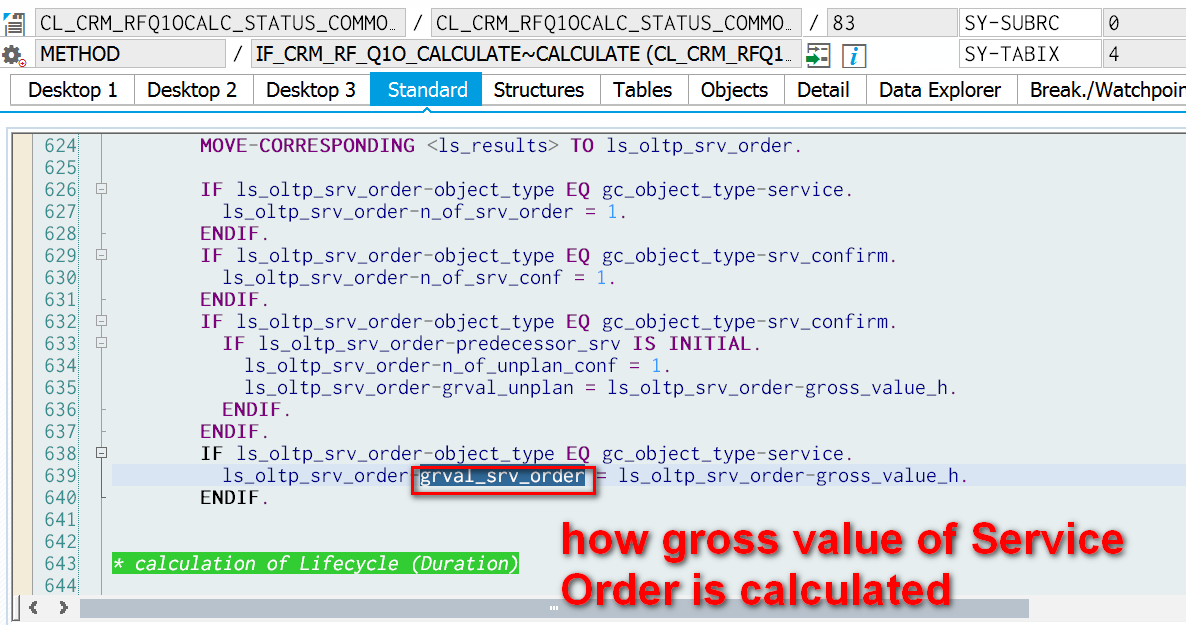

In line 638 the logic is clear: the gross value of Service Order key figure is only accumulated when the given order is a Service Order ( object_type = ‘BUS2000116’ ).

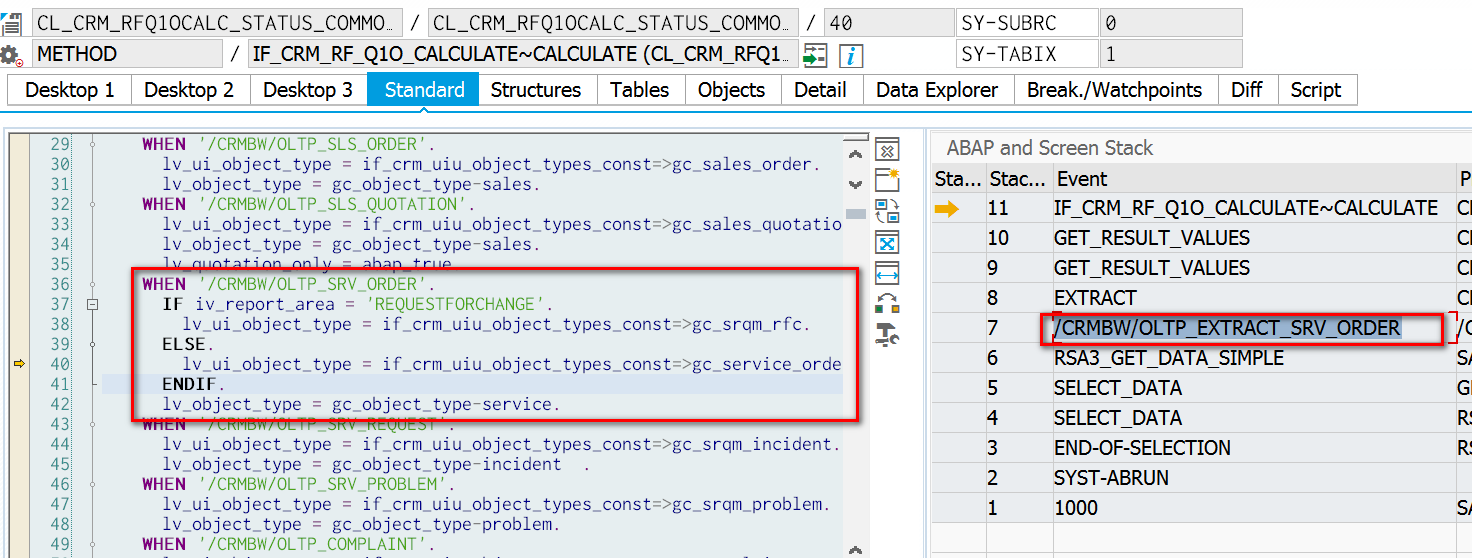

This BAdI is called within OLTP extractor belonging to Service Order Reporting Area: /CRMBW/OLTP_EXTRACT_SRV_ORDER
As a result I can now continue with my simulation report to calculate these two key figures with the same logic:
lt_guid = CORRESPONDING #( lt_guid_list ).
SELECT * INTO TABLE lt_table FROM crmd_dhr_hsrvord FOR ALL ENTRIES IN lt_guid
WHERE guid = lt_guid-table_line.
LOOP AT lt_table ASSIGNING FIELD-SYMBOL(<field>).
lv_gross_h = lv_gross_h + <field>-gross_value_h.
IF <field>-object_type = 'BUS2000116'.
lv_sum_so = lv_sum_so + <field>-gross_value_h.
ENDIF.
ENDLOOP.
WRITE:/ |Gross Value Header:{ lv_gross_h }| COLOR COL_NEGATIVE.
WRITE:/ |Gross Value of Service Order: { lv_sum_so }| COLOR COL_NEGATIVE.

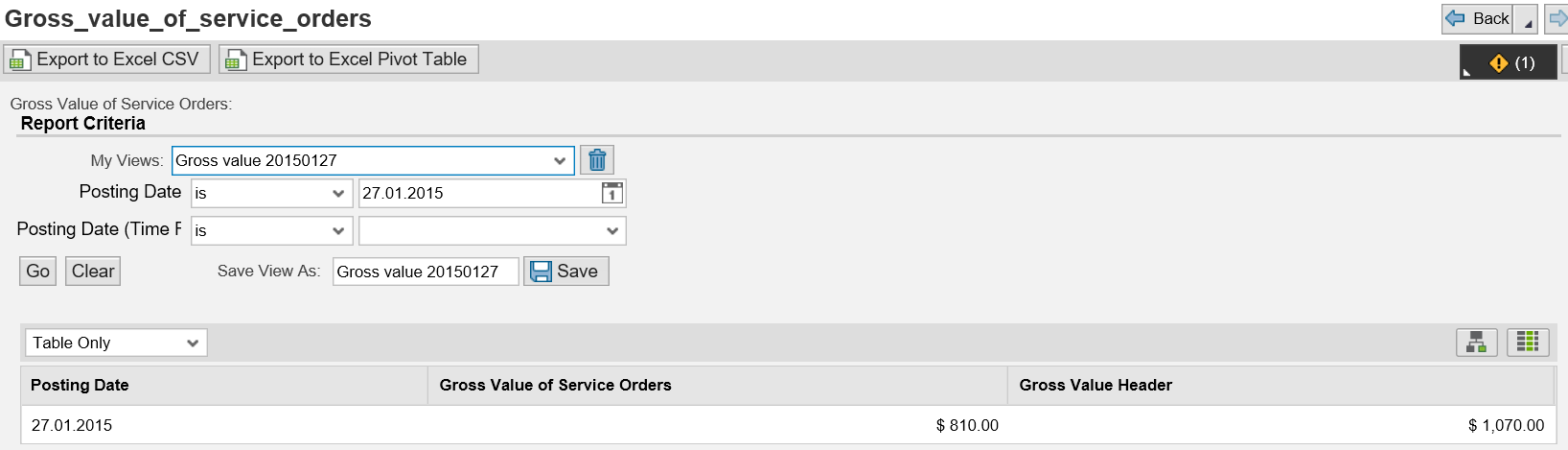

Now execute the report, and you can get the same calculated value as you see in WebUI for posting date 2015.01.27:
Alternatively I have written another report which calls the Reporing framework API from a higher level. The two steps mentioned above are embedded within API RSOA_DSOURCE_READ_REMOTE_DATA.
REPORT crm_bw_read_gross_value.
TYPES:
BEGIN OF rsurfcdata,
clustr TYPE indx_clstr,
clustd TYPE indx_clust,
END OF rsurfcdata,
lty_t_container TYPE STANDARD TABLE OF rsurfcdata WITH DEFAULT KEY.
DATA: lv_max TYPE int4,
l_t_selections TYPE sbiwa_t_select,
l_t_fields TYPE sbiwa_t_fields,
ls_field LIKE LINE OF l_t_fields,
l_t_container TYPE lty_t_container,
l_t_msg TYPE rs_t_msg.
PARAMETERS: logsys TYPE logsys OBLIGATORY DEFAULT 'QHDCLNT504',
date TYPE sy-datum OBLIGATORY DEFAULT '20150127'.
DATA: ls_selection LIKE LINE OF l_t_selections.
ls_selection = value #( fieldnm = 'APP_SERVER' sign = 'I' option = 'EQ' low = 'ldciqhd' ).
APPENd ls_selection TO l_t_selections.
ls_selection = value #( fieldnm = 'LOG_SYSTEM' sign = 'I' option = 'EQ' low = logsys ).
APPENd ls_selection TO l_t_selections.
ls_selection = value #( fieldnm = 'REPORT_AREA' sign = 'I' option = 'EQ' low = 'SERVICEORDER' ).
APPENd ls_selection TO l_t_selections.
ls_selection = value #( fieldnm = 'SELECTION_ID' sign = 'I' option = 'EQ' low = '0000' ).
APPENd ls_selection TO l_t_selections.
ls_selection = value #( fieldnm = 'USERNAME' sign = 'I' option = 'EQ' low = sy-uname ).
APPENd ls_selection TO l_t_selections.
ls_selection = value #( fieldnm = 'POSTING_DATE' sign = 'I' option = 'EQ' low = date ).
APPENd ls_selection TO l_t_selections.
ls_field-fieldnm = 'APP_SERVER'.
APPEND ls_field TO l_t_fields.
ls_field-fieldnm = 'LOG_SYSTEM'.
APPEND ls_field TO l_t_fields.
ls_field-fieldnm = 'REPORT_AREA'.
APPEND ls_field TO l_t_fields.
ls_field-fieldnm = 'SELECTION_ID'.
APPEND ls_field TO l_t_fields.
ls_field-fieldnm = 'USERNAME'.
APPEND ls_field TO l_t_fields.
ls_field-fieldnm = 'POSTING_DATE'.
APPEND ls_field TO l_t_fields.
ls_field-fieldnm = 'CURRENCY'.
APPEND ls_field TO l_t_fields.
ls_field-fieldnm = 'GROSS_VALUE_H'.
APPEND ls_field TO l_t_fields.
ls_field-fieldnm = 'GRVAL_SRV_ORDER'.
APPEND ls_field TO l_t_fields.
CALL FUNCTION 'RSOA_DSOURCE_READ_REMOTE_DATA'
EXPORTING
i_datasource = '/CRMBW/OLTP_SRV_ORDER'
i_slogsys = logsys
i_maxrows = lv_max
TABLES
i_t_selections = l_t_selections
i_t_fields = l_t_fields
e_t_container = l_t_container
e_t_msg = l_t_msg
EXCEPTIONS
remote_read_failed = 1
x_message = 2.
WRITE:/ lines( l_t_container ).

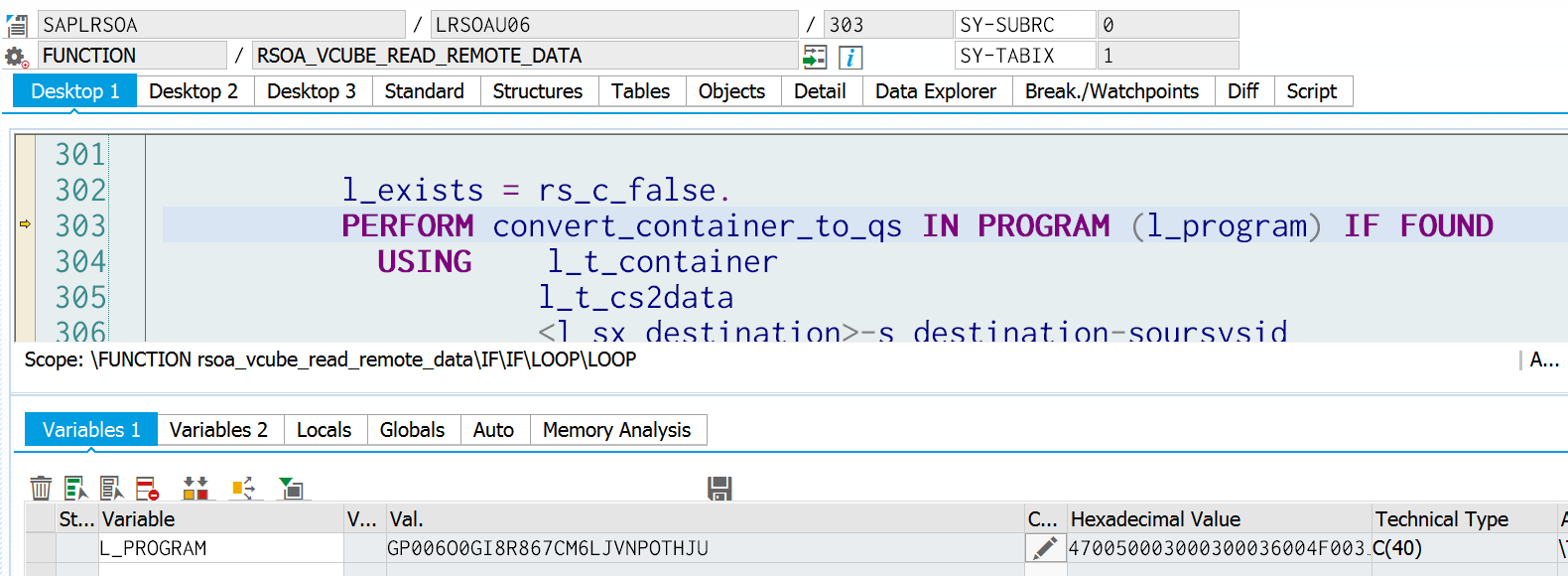

Of source the response stored in l_t_container has compressed format, which could be parsed by the corresponding program specified in variable l_program.
The name of this program could be read from function module RSAR_ISOURCE_MD_T_GET. See the following report as an example:
REPORT crm_bw_read_metadata.
PARAMETERS: oltp TYPE rsa_isource OBLIGATORY DEFAULT '/CRMBW/OLTP_SRV_ORDER',
logsys TYPE rsa_logsys OBLIGATORY DEFAULT 'QHDCLNT504'.
DATA: l_s_osoltp TYPE rsarc_s_rsosoltp,
l_t_fields TYPE rsarc_t_rsfield,
l_s_ts TYPE rsarc_s_rsts,
l_t_tsfields TYPE rsarc_t_rstsfield,
l_t_selfields TYPE rsarc_t_rsfield.
CALL FUNCTION 'RSAR_ISOURCE_MD_T_GET'
EXPORTING
i_isource = oltp
i_objvers = 'A'
i_logsys = logsys
i_tobjvers = 'A'
i_without_authority = rs_c_true
i_selfields_for_rc = rs_c_true
IMPORTING
e_s_osoltp = l_s_osoltp
e_t_field = l_t_fields
e_t_selfd = l_t_selfields
e_s_ts = l_s_ts
e_t_tsfield = l_t_tsfields
EXCEPTIONS
isource_not_found = 1
unauthorized = 2
OTHERS = 3.
WRITE:/ lines( l_t_fields ).

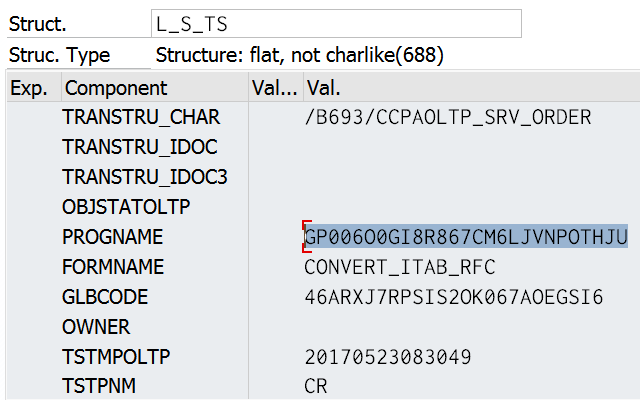

The program name to parse the reporting response into ABAP format is stored in variable l_s_ts:
