matlab 调用C程序进行simulink仿真

文章目录

• simulink仿真
• 创建C程序
• 编译C程序
• 运行结果

simulink仿真

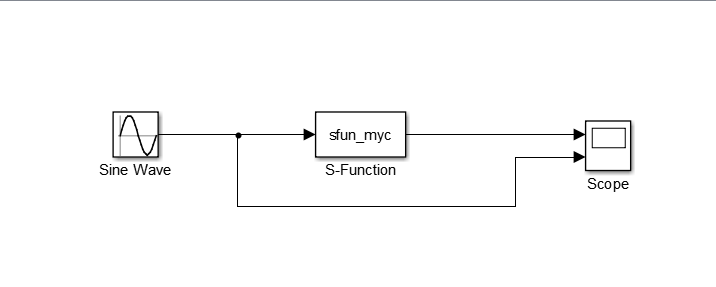

simulink仿真中需要使用S-Function模块，可以实现调用C程序进行仿真，下面先建立一个简单的仿真；
具体如下图所示；

创建C程序

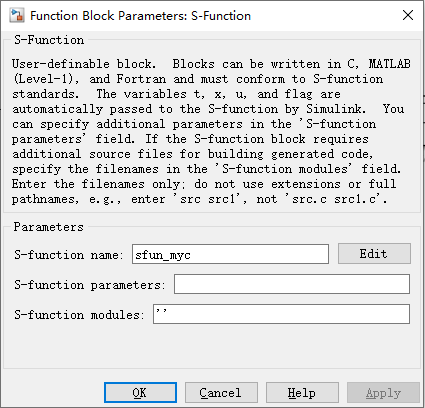

需要在S-Function模块的S-Function name一栏填写需要调用C程序文件名，注意不需要带文件名后缀；

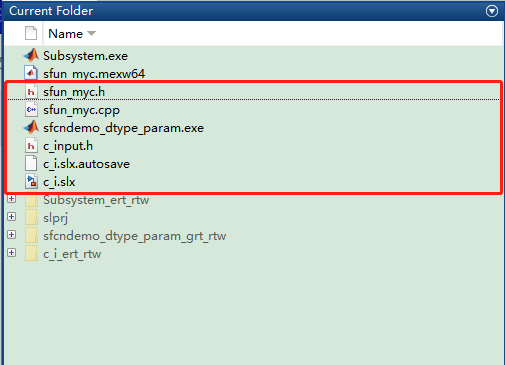

之后，新建文件sfun_myc.cpp和sfun_myc.h，放置在simulink仿真的同一级目录下，如下图所示；

sfun_myc.h如下；

/* Copyright 2003-2004 The MathWorks, Inc. */

#ifndef _SFUN_MYC_CPP_
#define _SFUN_MYC_CPP_

// Define a generic template that can accumulate
// values of any numeric data type
template <class DataType> class GenericAdder {
private:
    DataType Peak;
public:
    GenericAdder() {
        Peak = 0;
    }
    DataType AddTo(DataType Val) {
        Peak += Val;
        return Peak;
    }
    DataType GetPeak() const {
    	return Peak;
    }
    void SetPeak(DataType v) {
    	Peak = v;
    }
};

// Specialize the generic adder to a 'double'
// data type adder
class DoubleAdder : public GenericAdder<double> {};

#endif

sfun_myc.cpp如下；

/* Copyright 2003-2004 The MathWorks, Inc. */

// *******************************************************************
// **** To build this mex function use: mex sfun_cppcount_cpp.cpp ****
// *******************************************************************

#include "sfun_myc.h"

#define S_FUNCTION_LEVEL 2
#define S_FUNCTION_NAME  sfun_myc

// Need to include simstruc.h for the definition of the SimStruct and
// its associated macro definitions.
#include "simstruc.h"

#define IS_PARAM_DOUBLE(pVal) (mxIsNumeric(pVal) && !mxIsLogical(pVal) &&
!mxIsEmpty(pVal) && !mxIsSparse(pVal) && !mxIsComplex(pVal) && mxIsDouble(pVal))

// Function: mdlInitializeSizes ===============================================
// Abstract:
//    The sizes information is used by Simulink to determine the S-function
//    block's characteristics (number of inputs, outputs, states, etc.).
static void mdlInitializeSizes(SimStruct *S)
{
    // No expected parameters
    ssSetNumSFcnParams(S, 0);

    // Parameter mismatch will be reported by Simulink
    if (ssGetNumSFcnParams(S) != ssGetSFcnParamsCount(S)) {
        return;
    }

    // Specify I/O
    if (!ssSetNumInputPorts(S, 1)) return;
    ssSetInputPortWidth(S, 0, DYNAMICALLY_SIZED);
    ssSetInputPortDirectFeedThrough(S, 0, 1);
    if (!ssSetNumOutputPorts(S,1)) return;
    ssSetOutputPortWidth(S, 0, DYNAMICALLY_SIZED);

    ssSetNumSampleTimes(S, 1);

    // Reserve place for C++ object
    ssSetNumPWork(S, 1);

    ssSetSimStateCompliance(S, USE_CUSTOM_SIM_STATE);

    ssSetOptions(S,
                 SS_OPTION_WORKS_WITH_CODE_REUSE |
                 SS_OPTION_EXCEPTION_FREE_CODE);

}


// Function: mdlInitializeSampleTimes =========================================
// Abstract:
//   This function is used to specify the sample time(s) for your
//   S-function. You must register the same number of sample times as
//   specified in ssSetNumSampleTimes.
static void mdlInitializeSampleTimes(SimStruct *S)
{
    ssSetSampleTime(S, 0, INHERITED_SAMPLE_TIME);
    ssSetOffsetTime(S, 0, 0.0);
    ssSetModelReferenceSampleTimeDefaultInheritance(S);
}

// Function: mdlStart =======================================================
// Abstract:
//   This function is called once at start of model execution. If you
//   have states that should be initialized once, this is the place
//   to do it.
#define MDL_START
static void mdlStart(SimStruct *S)
{
    // Store new C++ object in the pointers vector
    DoubleAdder *da  = new DoubleAdder();
    ssGetPWork(S)[0] = da;
}

// Function: mdlOutputs =======================================================
// Abstract:
//   In this function, you compute the outputs of your S-function
//   block.
static void mdlOutputs(SimStruct *S, int_T tid)
{
    // Retrieve C++ object from the pointers vector
    DoubleAdder *da = static_cast<DoubleAdder *>(ssGetPWork(S)[0]);

    // Get data addresses of I/O
    InputRealPtrsType  u = ssGetInputPortRealSignalPtrs(S,0);
               real_T *y = ssGetOutputPortRealSignal(S, 0);

    // Call AddTo method and return peak value
    // y[0] = da->AddTo(*u[0]);
    y[0] = *u[0] + 100;
}

/* Define to indicate that this S-Function has the mdlG[S]etSimState mothods */
#define MDL_SIM_STATE

/* Function: mdlGetSimState =====================================================
 * Abstract:
 *
 */
static mxArray* mdlGetSimState(SimStruct* S)
{
    // Retrieve C++ object from the pointers vector
    DoubleAdder *da = static_cast<DoubleAdder*>(ssGetPWork(S)[0]);
    return mxCreateDoubleScalar(da->GetPeak());
}
/* Function: mdlGetSimState =====================================================
 * Abstract:
 *
 */
static void mdlSetSimState(SimStruct* S, const mxArray* ma)
{
    // Retrieve C++ object from the pointers vector
    DoubleAdder *da = static_cast<DoubleAdder*>(ssGetPWork(S)[0]);
    da->SetPeak(mxGetPr(ma)[0]);
}

// Function: mdlTerminate =====================================================
// Abstract:
//   In this function, you should perform any actions that are necessary
//   at the termination of a simulation.  For example, if memory was
//   allocated in mdlStart, this is the place to free it.
static void mdlTerminate(SimStruct *S)
{
    // Retrieve and destroy C++ object
    DoubleAdder *da = static_cast<DoubleAdder *>(ssGetPWork(S)[0]);
    delete da;
}


// Required S-function trailer
#ifdef  MATLAB_MEX_FILE    /* Is this file being compiled as a MEX-file? */
#include "simulink.c"      /* MEX-file interface mechanism */
#else
#include "cg_sfun.h"       /* Code generation registration function */
#endif

最终在static void mdlOutputs(SimStruct *S, int_T tid)函数中对输入的数据进行处理即可；

static void mdlOutputs(SimStruct *S, int_T tid)
{
    // Retrieve C++ object from the pointers vector
    DoubleAdder *da = static_cast<DoubleAdder *>(ssGetPWork(S)[0]);

    // Get data addresses of I/O
    InputRealPtrsType  u = ssGetInputPortRealSignalPtrs(S,0);	//	输入
               real_T *y = ssGetOutputPortRealSignal(S, 0);		//	输出

    // Call AddTo method and return peak value
    // y[0] = da->AddTo(*u[0]);
    y[0] = *u[0] + 100;	//增加100的偏移量
}

编译C程序

查看当前路径下是否已经存在C文件，sfun_myc.h，sfun_myc.cpp；

使用mex指令编译sfun_myc.cpp;

运行结果

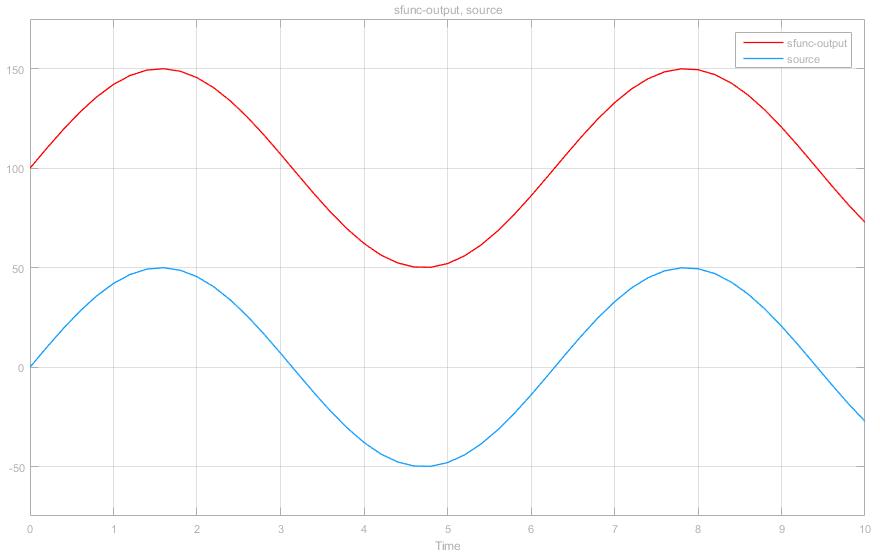

最终的运行结果，经过S-Function模块处理的波形比原来的波形偏移了100了，期望结果符合程序的逻辑，具体如下图所示；
