Nacos服务发现

基础配置初始化

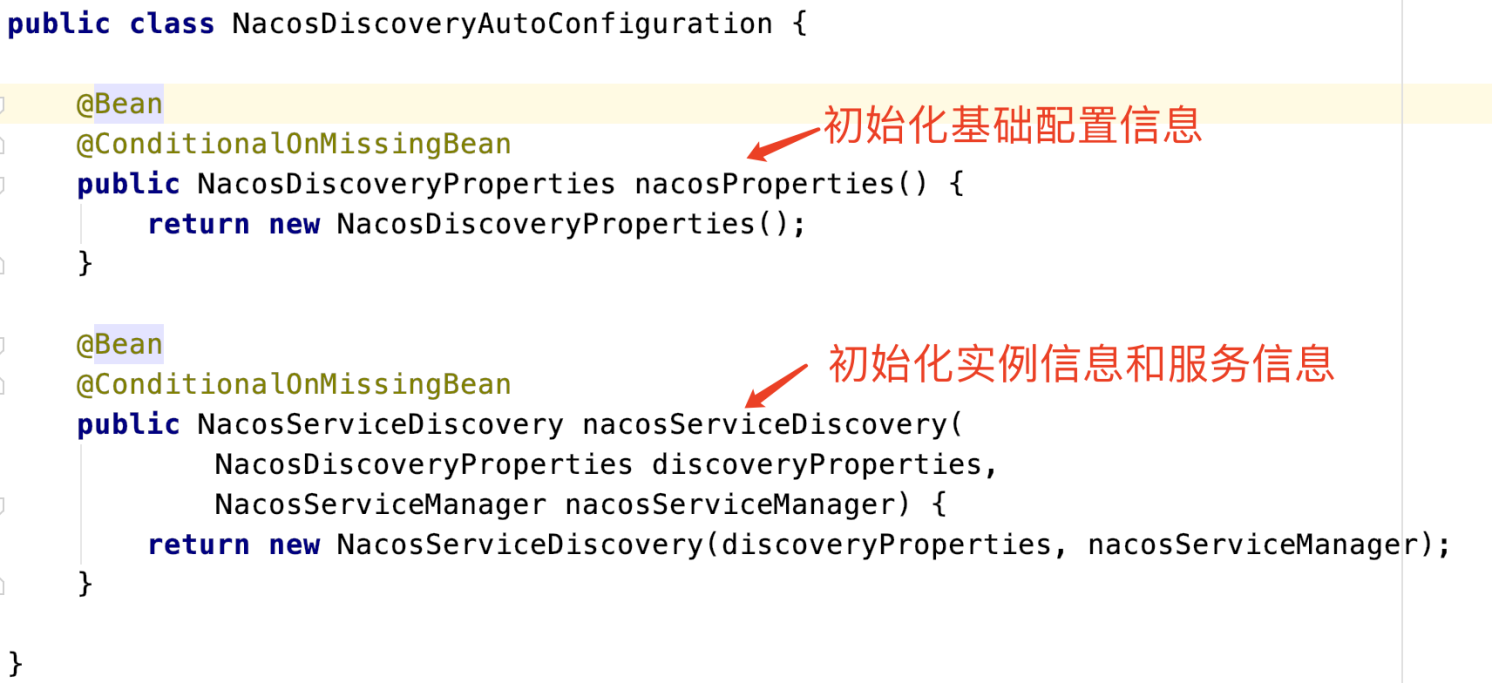

NacosDiscoveryClientConfiguration

NacosDiscoveryProperties

初始化Nacos基础配置信息的bean，主要指yaml中配置Nacos服务相关的信息。

NacosServiceDiscovery

初始化获取Nacos服务和实例的bean，通过该bean可以获取服务的信息和实例的信息。

NacosDiscoveryClientConfiguration

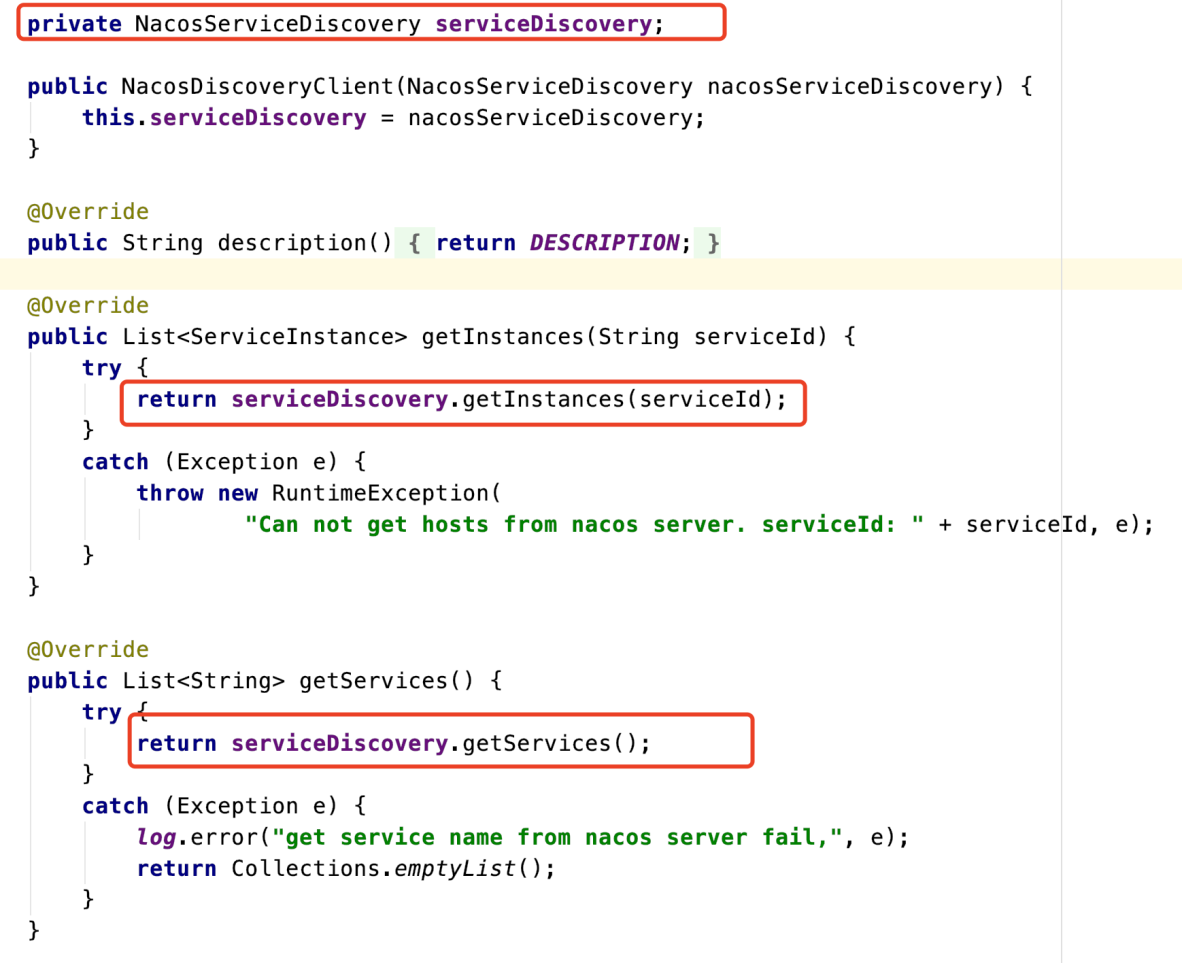

NacosDiscoveryClient

初始化NacosDiscoveryClient的bean,本质上就是实现NacosServiceDiscovery的实现。该类的作用就是获取到实例信息和服务信息。

NacosWatch

从继承结构上看，NacosWatch主要实现了SmartLifecycle和ApplicationEventPublisherAware，ApplicationEventPublisherAware就是发布事件，这里主要指的就是发布HeartbeatEvent
事件上报心跳。SmartLifecycle该接口主要是作用是所有的bean都创建完成之后，可以执行自己的初始化工作，或者在退出时执行资源销毁工作。NacosWatch的start方法，主要是完成以下四件事情:

1. 加入NamingEvent监听；
2. 获取NamingService；
3. 订阅NamingService监听事件；
4. 发布HeartbeatEvent事件；

 public void start() {
        //加入NamingEvent监听
        if (this.running.compareAndSet(false, true)) {
            //更新本地的Instance
            EventListener eventListener = listenerMap.computeIfAbsent(buildKey(),
                    event -> new EventListener() {
                        @Override
                        public void onEvent(Event event) {
                            if (event instanceof NamingEvent) {
                                List<Instance> instances = ((NamingEvent) event)
                                        .getInstances();
                                Optional<Instance> instanceOptional = selectCurrentInstance(
                                        instances);
                                instanceOptional.ifPresent(currentInstance -> {
                                    resetIfNeeded(currentInstance);
                                });
                            }
                        }
                    });
            //获取NamingService
            NamingService namingService = nacosServiceManager
                    .getNamingService(properties.getNacosProperties());
            try {
                //订阅相关NamingService的事件
                namingService.subscribe(properties.getService(), properties.getGroup(),
                        Arrays.asList(properties.getClusterName()), eventListener);
            }
            catch (Exception e) {
                log.error("namingService subscribe failed, properties:{}", properties, e);
            }
            //发布HeartbeatEvent事件
            this.watchFuture = this.taskScheduler.scheduleWithFixedDelay(
                    this::nacosServicesWatch, this.properties.getWatchDelay());
        }
    }

NacosWatch的stop方法主要是完成两件事情：

1. 释放掉监听的线程池资源；
2. 取消NamingService相关的监听事件;

    @Override
    public void stop() {
        if (this.running.compareAndSet(true, false)) {
            //关闭和释放watch的线程池
            if (this.watchFuture != null) {
                // shutdown current user-thread,
                // then the other daemon-threads will terminate automatic.
                ((ThreadPoolTaskScheduler) this.taskScheduler).shutdown();
                this.watchFuture.cancel(true);
            }

            EventListener eventListener = listenerMap.get(buildKey());
            try {
                //取消NamingService相关的订阅信息
                NamingService namingService = nacosServiceManager
                        .getNamingService(properties.getNacosProperties());
                namingService.unsubscribe(properties.getService(), properties.getGroup(),
                        Arrays.asList(properties.getClusterName()), eventListener);
            }
            catch (NacosException e) {
                log.error("namingService unsubscribe failed, properties:{}", properties,
                        e);
            }
        }
    }

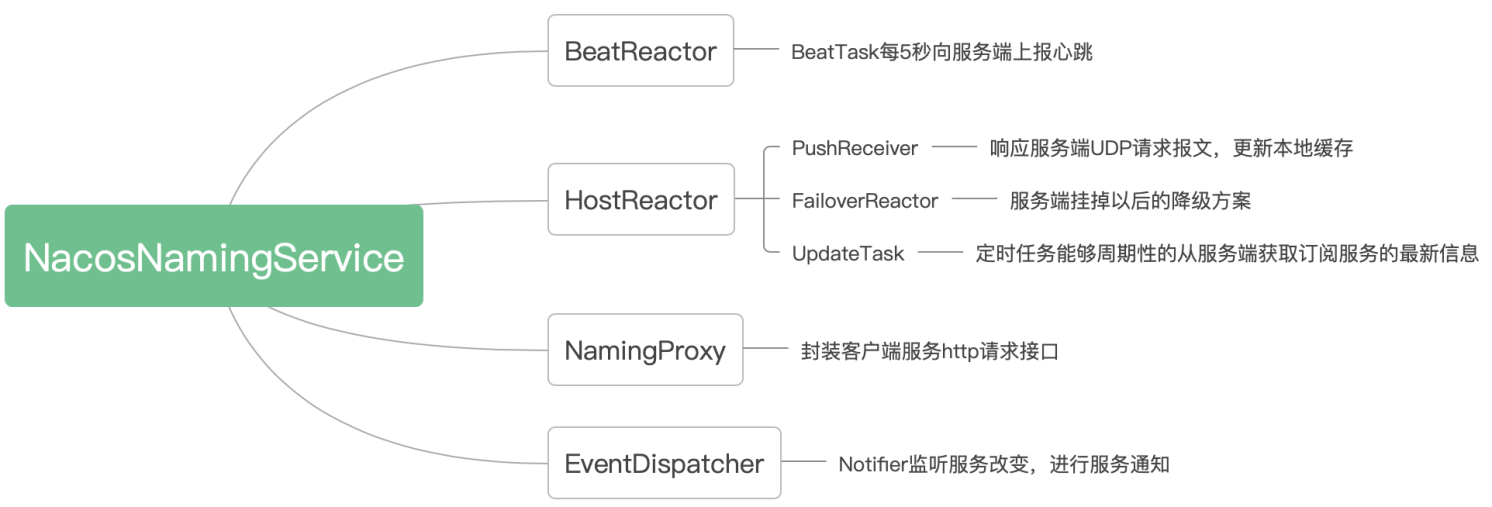

NacosNamingService

客户端信息的初始化发生在发起调用的时候，是一种懒加载的方式，并没有在初始化完成的时候就进行，这部分我们分析Ribbon源码的时候我们具体在讲解一下。我们的重点看的是NacosNamingService，从基础配置类中的NacosServiceDiscovery的getInstances的方法调用追踪到更下层我们会发现，与服务端交互的重点的类就是NacosNamingService，NacosNamingService在初始化的时候，主要做了以下10事件

1. initNamespaceForNaming：用于初始命名空间，在Nacos中命名空间用于租户粗粒度隔离，同时还可以进行环境的区别，如开发环境和测试环境等等;
2. initSerialization：序列化初始化；
3. initServerAddr：初始化服务器地址,其中涉及到的endpoint 等;
4. initWebRootContext:初始化web上下文，其支持通过阿里云EDAS进行部署;
5. initCacheDir:初始化缓存目录;
6. initLogName:从配置中获取日志文件;
7. EventDispatcher:监听事件分发，当客户端订阅了某个服务信息后，会以Listener的方式注册到EventDispatcher的队列中，当有服务变化的时候，会通知订阅者;
8. NamingProxy：服务端的代理，用于客户端与服务端的通信;
9. BeatReactor:用于维持与服务器之间的心跳通信，上报客户端注册到服务端的服务信息;
10. HostReactor:用于客户端服务的订阅，以及从服务端更新服务信息;


initNamespaceForNaming

//初始化获取Namespace
public static String initNamespaceForNaming(Properties properties) {
        String tmpNamespace = null;

        //是否使用阿里云上环境进行解析，默认为true,如果没有进行配置，
        //默认使用DEFAULT_USE_CLOUD_NAMESPACE_PARSING
        String isUseCloudNamespaceParsing = properties.getProperty(PropertyKeyConst.IS_USE_CLOUD_NAMESPACE_PARSING,
                System.getProperty(SystemPropertyKeyConst.IS_USE_CLOUD_NAMESPACE_PARSING,
                        String.valueOf(Constants.DEFAULT_USE_CLOUD_NAMESPACE_PARSING)));

        if (Boolean.parseBoolean(isUseCloudNamespaceParsing)) {

            tmpNamespace = TenantUtil.getUserTenantForAns();
            //从系统变量获取namespace
            tmpNamespace = TemplateUtils.stringEmptyAndThenExecute(tmpNamespace, new Callable<String>() {
                @Override
                public String call() {
                    String namespace = System.getProperty(SystemPropertyKeyConst.ANS_NAMESPACE);
                    LogUtils.NAMING_LOGGER.info("initializer namespace from System Property :" + namespace);
                    return namespace;
                }
            });

            tmpNamespace = TemplateUtils.stringEmptyAndThenExecute(tmpNamespace, new Callable<String>() {
                @Override
                public String call() {
                    String namespace = System.getenv(PropertyKeyConst.SystemEnv.ALIBABA_ALIWARE_NAMESPACE);
                    LogUtils.NAMING_LOGGER.info("initializer namespace from System Environment :" + namespace);
                    return namespace;
                }
            });
        }
        //如果不是上云环境，那么从系统变量获取namespace
        tmpNamespace = TemplateUtils.stringEmptyAndThenExecute(tmpNamespace, new Callable<String>() {
            @Override
            public String call() {
                String namespace = System.getProperty(PropertyKeyConst.NAMESPACE);
                LogUtils.NAMING_LOGGER.info("initializer namespace from System Property :" + namespace);
                return namespace;
            }
        });
        //从properties中获取namespace
        if (StringUtils.isEmpty(tmpNamespace) && properties != null) {
            tmpNamespace = properties.getProperty(PropertyKeyConst.NAMESPACE);
        }
        //获取系统默认的namespace
        tmpNamespace = TemplateUtils.stringEmptyAndThenExecute(tmpNamespace, new Callable<String>() {
            @Override
            public String call() {
                return UtilAndComs.DEFAULT_NAMESPACE_ID;
            }
        });
        return tmpNamespace;
    }

initServerAddr

//初始化服务器地址
private void initServerAddr(Properties properties) {
    //从properties中获取服务器地址
    serverList = properties.getProperty(PropertyKeyConst.SERVER_ADDR);
    //初始化endpoint,如果有endpoint,则废弃serverList
    endpoint = InitUtils.initEndpoint(properties);
    if (StringUtils.isNotEmpty(endpoint)) {
        serverList = "";
    }
}
public static String initEndpoint(final Properties properties) {
    if (properties == null) {

        return "";
    }
    // Whether to enable domain name resolution rules
    //是否使用endpoint解析，默认为true,也就是:USE_ENDPOINT_PARSING_RULE_DEFAULT_VALUE
    String isUseEndpointRuleParsing =
        properties.getProperty(PropertyKeyConst.IS_USE_ENDPOINT_PARSING_RULE,
            System.getProperty(SystemPropertyKeyConst.IS_USE_ENDPOINT_PARSING_RULE,
                String.valueOf(ParamUtil.USE_ENDPOINT_PARSING_RULE_DEFAULT_VALUE)));

    boolean isUseEndpointParsingRule = Boolean.valueOf(isUseEndpointRuleParsing);
    String endpointUrl;
    //使用endpoint解析功能
    if (isUseEndpointParsingRule) {
        // Get the set domain name information
        endpointUrl = ParamUtil.parsingEndpointRule(properties.getProperty(PropertyKeyConst.ENDPOINT));
        if (StringUtils.isBlank(endpointUrl)) {
            return "";
        }
    } else {
        //不使用的化，直接通过properties文件来获取
        endpointUrl = properties.getProperty(PropertyKeyConst.ENDPOINT);
    }

    if (StringUtils.isBlank(endpointUrl)) {
        return "";
    }

    //获取endpoint的端口
    String endpointPort = TemplateUtils.stringEmptyAndThenExecute(System.getenv(PropertyKeyConst.SystemEnv.ALIBABA_ALIWARE_ENDPOINT_PORT), new Callable<String>() {
        @Override
        public String call() {

            return properties.getProperty(PropertyKeyConst.ENDPOINT_PORT);
        }
    });

    endpointPort = TemplateUtils.stringEmptyAndThenExecute(endpointPort, new Callable<String>() {
        @Override
        public String call() {
            return "8080";
        }
    });

    return endpointUrl + ":" + endpointPort;
}

initWebRootContext

//阿里云EDAS相关的
public static void initWebRootContext() {
        // support the web context with ali-yun if the app deploy by EDAS
        final String webContext = System.getProperty(SystemPropertyKeyConst.NAMING_WEB_CONTEXT);
        TemplateUtils.stringNotEmptyAndThenExecute(webContext, new Runnable() {
            @Override
            public void run() {
                UtilAndComs.webContext = webContext.indexOf("/") > -1 ? webContext : "/" + webContext;

                UtilAndComs.nacosUrlBase = UtilAndComs.webContext + "/v1/ns";
                UtilAndComs.nacosUrlInstance = UtilAndComs.nacosUrlBase + "/instance";
            }
        });
    }

initCacheDir

   //初始化缓存目录，用于存放从服务端获取的服务信息，如果客户端与服务端断开了连接，将会使用缓存的信息
   private void initCacheDir() {
        cacheDir = System.getProperty("com.alibaba.nacos.naming.cache.dir");
        if (StringUtils.isEmpty(cacheDir)) {
            cacheDir = System.getProperty("user.home") + "/nacos/naming/" + namespace;
        }
    }

initLogName

//初始化日志存放路径
private void initLogName(Properties properties) {
        logName = System.getProperty(UtilAndComs.NACOS_NAMING_LOG_NAME);
        if (StringUtils.isEmpty(logName)) {

            if (properties != null && StringUtils
                    .isNotEmpty(properties.getProperty(UtilAndComs.NACOS_NAMING_LOG_NAME))) {
                logName = properties.getProperty(UtilAndComs.NACOS_NAMING_LOG_NAME);
            } else {
                logName = "naming.log";
            }
        }
  }

EventDispatcher

EventDispatcher维护一个阻塞队列，主要存储发生改变的服务的信息，维护了一个对于服务的监听队列的映射的Map，实时的将服务变化信息同步给监听者，这样客户端就可以通过注册监听者实现在服务变化后动态进行操作。

public class EventDispatcher implements Closeable {

    private ExecutorService executor = null;

    //发生了变化的服务队列
    private final BlockingQueue<ServiceInfo> changedServices = new LinkedBlockingQueue<ServiceInfo>();
    //监听者维护映射
    private final ConcurrentMap<String, List<EventListener>> observerMap = new ConcurrentHashMap<String, List<EventListener>>();

    private volatile boolean closed = false;

    public EventDispatcher() {

        this.executor = Executors.newSingleThreadExecutor(new ThreadFactory() {
            @Override
            public Thread newThread(Runnable r) {
                Thread thread = new Thread(r, "com.alibaba.nacos.naming.client.listener");
                thread.setDaemon(true);

                return thread;
            }
        });

        this.executor.execute(new Notifier());
    }

    /**
     * Add listener.
     *
     * @param serviceInfo service info
     * @param clusters    clusters
     * @param listener    listener
     */
    public void addListener(ServiceInfo serviceInfo, String clusters, EventListener listener) {

        NAMING_LOGGER.info("[LISTENER] adding " + serviceInfo.getName() + " with " + clusters + " to listener map");
        List<EventListener> observers = Collections.synchronizedList(new ArrayList<EventListener>());
        observers.add(listener);

        observers = observerMap.putIfAbsent(ServiceInfo.getKey(serviceInfo.getName(), clusters), observers);
        if (observers != null) {
            observers.add(listener);
        }

        serviceChanged(serviceInfo);
    }

    /**
     * Remove listener.
     *
     * @param serviceName service name
     * @param clusters    clusters
     * @param listener    listener
     */
    public void removeListener(String serviceName, String clusters, EventListener listener) {

        NAMING_LOGGER.info("[LISTENER] removing " + serviceName + " with " + clusters + " from listener map");

        List<EventListener> observers = observerMap.get(ServiceInfo.getKey(serviceName, clusters));
        if (observers != null) {
            Iterator<EventListener> iter = observers.iterator();
            while (iter.hasNext()) {
                EventListener oldListener = iter.next();
                if (oldListener.equals(listener)) {
                    iter.remove();
                }
            }
            if (observers.isEmpty()) {
                observerMap.remove(ServiceInfo.getKey(serviceName, clusters));
            }
        }
    }

    public boolean isSubscribed(String serviceName, String clusters) {
        return observerMap.containsKey(ServiceInfo.getKey(serviceName, clusters));
    }

    public List<ServiceInfo> getSubscribeServices() {
        List<ServiceInfo> serviceInfos = new ArrayList<ServiceInfo>();
        for (String key : observerMap.keySet()) {
            serviceInfos.add(ServiceInfo.fromKey(key));
        }
        return serviceInfos;
    }

    /**
     * Service changed.
     *
     * @param serviceInfo service info
     */
    public void serviceChanged(ServiceInfo serviceInfo) {
        if (serviceInfo == null) {
            return;
        }

        changedServices.add(serviceInfo);
    }

    @Override
    public void shutdown() throws NacosException {
        String className = this.getClass().getName();
        NAMING_LOGGER.info("{} do shutdown begin", className);
        ThreadUtils.shutdownThreadPool(executor, NAMING_LOGGER);
        closed = true;
        NAMING_LOGGER.info("{} do shutdown stop", className);
    }
    //服务变化通知线程
    private class Notifier implements Runnable {

        @Override
        public void run() {
            while (!closed) {

                ServiceInfo serviceInfo = null;
                try {
                    //从队列取出变化消息
                    serviceInfo = changedServices.poll(5, TimeUnit.MINUTES);
                } catch (Exception ignore) {
                }

                if (serviceInfo == null) {
                    continue;
                }

                try {
                    //获取监听者队列
                    List<EventListener> listeners = observerMap.get(serviceInfo.getKey());
                    //遍历监听者队列，调用其onEvent方法
                    if (!CollectionUtils.isEmpty(listeners)) {
                        for (EventListener listener : listeners) {
                            List<Instance> hosts = Collections.unmodifiableList(serviceInfo.getHosts());
                            listener.onEvent(new NamingEvent(serviceInfo.getName(), serviceInfo.getGroupName(),
                                    serviceInfo.getClusters(), hosts));
                        }
                    }

                } catch (Exception e) {
                    NAMING_LOGGER.error("[NA] notify error for service: " + serviceInfo.getName() + ", clusters: "
                            + serviceInfo.getClusters(), e);
                }
            }
        }
    }
}

NamingProxy

NamingProxy封装了与服务端的操作，代码相对比较简单，值得注意的是如果配置安全相关的内容，在初始化的时候该处会进行一个定时任务的查询，如果对安全要求比较高，可重SecurityProxy部分内容，当然服务端部分也需要重写，大部分的情况这注册中心一般暴露在内网环境下，基本上不需要重写的。

BeatReactor

BeatReactor负责将客户端的信息上报和下线，对于非持久化的内容采用周期上报内容，这部分在服务心跳的时候我们讲解过，这里不进行源码分析，大家重点关注addBeatInfo、removeBeatInfo和BeatTask的内容，相对比较简单。

HostReactor

HostReactor主要负责客户端获取服务端注册的信息的部分，主要分为三个部分:

1. 客户端需要调用NacosNamingService获取服务信息方法的时候，HostReactor负责把服务信息维护本地缓存的serviceInfoMap中，并且通过UpdateTask定时更新已存在的服务；
2. HostReactor内部维护PushReceiver对象，负责接收服务端通过UDP协议推送过来的服务变更的信息，并更新到本地缓存serviceInfoMap当中；
3. HostReactor内部维护FailoverReactor对象，负责当服务端不可用的时候，切换到本地文件缓存模式，从本地文件的缓存中获取服务信息；

public class HostReactor implements Closeable {

    private static final long DEFAULT_DELAY = 1000L;

    private static final long UPDATE_HOLD_INTERVAL = 5000L;

    private final Map<String, ScheduledFuture<?>> futureMap = new HashMap<String, ScheduledFuture<?>>();

    private final Map<String, ServiceInfo> serviceInfoMap;

    private final Map<String, Object> updatingMap;
    //接收UDP服务端UDP协议
    private final PushReceiver pushReceiver;
    //阻塞队列的变更消息处理
    private final EventDispatcher eventDispatcher;
    //心跳上报
    private final BeatReactor beatReactor;
    //HTTP请求消息的处理
    private final NamingProxy serverProxy;
    //服务不可用时本地降级文件的处理模式
    private final FailoverReactor failoverReactor;

    private final String cacheDir;
    //定时更新服务消息的定时任务
    private final ScheduledExecutorService executor;

    public HostReactor(EventDispatcher eventDispatcher, NamingProxy serverProxy, BeatReactor beatReactor,
            String cacheDir) {
        this(eventDispatcher, serverProxy, beatReactor, cacheDir, false, UtilAndComs.DEFAULT_POLLING_THREAD_COUNT);
    }

    public HostReactor(EventDispatcher eventDispatcher, NamingProxy serverProxy, BeatReactor beatReactor,
            String cacheDir, boolean loadCacheAtStart, int pollingThreadCount) {
        // init executorService
        this.executor = new ScheduledThreadPoolExecutor(pollingThreadCount, new ThreadFactory() {
            @Override
            public Thread newThread(Runnable r) {
                Thread thread = new Thread(r);
                thread.setDaemon(true);
                thread.setName("com.alibaba.nacos.client.naming.updater");
                return thread;
            }
        });
        this.eventDispatcher = eventDispatcher;
        this.beatReactor = beatReactor;
        this.serverProxy = serverProxy;
        this.cacheDir = cacheDir;
        if (loadCacheAtStart) {
            this.serviceInfoMap = new ConcurrentHashMap<String, ServiceInfo>(DiskCache.read(this.cacheDir));
        } else {
            this.serviceInfoMap = new ConcurrentHashMap<String, ServiceInfo>(16);
        }

        this.updatingMap = new ConcurrentHashMap<String, Object>();
        this.failoverReactor = new FailoverReactor(this, cacheDir);
        this.pushReceiver = new PushReceiver(this);
    }

    public Map<String, ServiceInfo> getServiceInfoMap() {
        return serviceInfoMap;
    }

    public synchronized ScheduledFuture<?> addTask(UpdateTask task) {
        return executor.schedule(task, DEFAULT_DELAY, TimeUnit.MILLISECONDS);
    }

    /**
     * Process service json.
     *
     * @param json service json
     * @return service info
     */
    //处理从服务端接收到的数据
    public ServiceInfo processServiceJson(String json) {
        ServiceInfo serviceInfo = JacksonUtils.toObj(json, ServiceInfo.class);
        ServiceInfo oldService = serviceInfoMap.get(serviceInfo.getKey());
        if (serviceInfo.getHosts() == null || !serviceInfo.validate()) {
            //empty or error push, just ignore
            return oldService;
        }

        boolean changed = false;
        //新老信息对比处理
        if (oldService != null) {
            //如果本地旧服务的获取时间比服务器端获取的时间新，则保留本地旧服务的时间
            if (oldService.getLastRefTime() > serviceInfo.getLastRefTime()) {
                NAMING_LOGGER.warn("out of date data received, old-t: " + oldService.getLastRefTime() + ", new-t: "
                        + serviceInfo.getLastRefTime());
            }
            //用新服务信息替换serviceInfoMap
            serviceInfoMap.put(serviceInfo.getKey(), serviceInfo);

            Map<String, Instance> oldHostMap = new HashMap<String, Instance>(oldService.getHosts().size());
            for (Instance host : oldService.getHosts()) {
                oldHostMap.put(host.toInetAddr(), host);
            }

            Map<String, Instance> newHostMap = new HashMap<String, Instance>(serviceInfo.getHosts().size());
            for (Instance host : serviceInfo.getHosts()) {
                newHostMap.put(host.toInetAddr(), host);
            }

            Set<Instance> modHosts = new HashSet<Instance>();
            Set<Instance> newHosts = new HashSet<Instance>();
            Set<Instance> remvHosts = new HashSet<Instance>();

            List<Map.Entry<String, Instance>> newServiceHosts = new ArrayList<Map.Entry<String, Instance>>(
                    newHostMap.entrySet());
            for (Map.Entry<String, Instance> entry : newServiceHosts) {
                Instance host = entry.getValue();
                String key = entry.getKey();
                if (oldHostMap.containsKey(key) && !StringUtils
                        .equals(host.toString(), oldHostMap.get(key).toString())) {
                    modHosts.add(host);
                    continue;
                }

                if (!oldHostMap.containsKey(key)) {
                    newHosts.add(host);
                }
            }

            for (Map.Entry<String, Instance> entry : oldHostMap.entrySet()) {
                Instance host = entry.getValue();
                String key = entry.getKey();
                if (newHostMap.containsKey(key)) {
                    continue;
                }

                if (!newHostMap.containsKey(key)) {
                    remvHosts.add(host);
                }

            }

            if (newHosts.size() > 0) {
                changed = true;
                NAMING_LOGGER.info("new ips(" + newHosts.size() + ") service: " + serviceInfo.getKey() + " -> "
                        + JacksonUtils.toJson(newHosts));
            }

            if (remvHosts.size() > 0) {
                changed = true;
                NAMING_LOGGER.info("removed ips(" + remvHosts.size() + ") service: " + serviceInfo.getKey() + " -> "
                        + JacksonUtils.toJson(remvHosts));
            }

            if (modHosts.size() > 0) {
                changed = true;
                updateBeatInfo(modHosts);
                NAMING_LOGGER.info("modified ips(" + modHosts.size() + ") service: " + serviceInfo.getKey() + " -> "
                        + JacksonUtils.toJson(modHosts));
            }

            serviceInfo.setJsonFromServer(json);

            if (newHosts.size() > 0 || remvHosts.size() > 0 || modHosts.size() > 0) {
                //服务信息变更写入阻塞队列
                eventDispatcher.serviceChanged(serviceInfo);
                //磁盘缓存希尔
                DiskCache.write(serviceInfo, cacheDir);
            }

        } else {
            //新服务的信息直接加入本地缓存
            changed = true;
            NAMING_LOGGER.info("init new ips(" + serviceInfo.ipCount() + ") service: " + serviceInfo.getKey() + " -> "
                    + JacksonUtils.toJson(serviceInfo.getHosts()));
            serviceInfoMap.put(serviceInfo.getKey(), serviceInfo);
            eventDispatcher.serviceChanged(serviceInfo);
            serviceInfo.setJsonFromServer(json);
            DiskCache.write(serviceInfo, cacheDir);
        }
        //上报数量
        MetricsMonitor.getServiceInfoMapSizeMonitor().set(serviceInfoMap.size());

        if (changed) {
            NAMING_LOGGER.info("current ips:(" + serviceInfo.ipCount() + ") service: " + serviceInfo.getKey() + " -> "
                    + JacksonUtils.toJson(serviceInfo.getHosts()));
        }

        return serviceInfo;
    }

    private void updateBeatInfo(Set<Instance> modHosts) {
        for (Instance instance : modHosts) {
            String key = beatReactor.buildKey(instance.getServiceName(), instance.getIp(), instance.getPort());
            if (beatReactor.dom2Beat.containsKey(key) && instance.isEphemeral()) {
                BeatInfo beatInfo = beatReactor.buildBeatInfo(instance);
                beatReactor.addBeatInfo(instance.getServiceName(), beatInfo);
            }
        }
    }

    //通过key获取服务对象
    private ServiceInfo getServiceInfo0(String serviceName, String clusters) {
        //得到ServiceInfo的key
        String key = ServiceInfo.getKey(serviceName, clusters);
        //从本地缓存中获取服务信息
        return serviceInfoMap.get(key);
    }
    //从服务器端获取Service信息，并解析为ServiceInfo对象
    public ServiceInfo getServiceInfoDirectlyFromServer(final String serviceName, final String clusters)
            throws NacosException {
        String result = serverProxy.queryList(serviceName, clusters, 0, false);
        if (StringUtils.isNotEmpty(result)) {
            return JacksonUtils.toObj(result, ServiceInfo.class);
        }
        return null;
    }

    public ServiceInfo getServiceInfo(final String serviceName, final String clusters) {

        NAMING_LOGGER.debug("failover-mode: " + failoverReactor.isFailoverSwitch());

        String key = ServiceInfo.getKey(serviceName, clusters);
        //是否开启本地文件缓存模式
        if (failoverReactor.isFailoverSwitch()) {
            return failoverReactor.getService(key);
        }

        ServiceInfo serviceObj = getServiceInfo0(serviceName, clusters);
        //从serviceInfoMap获取serviceObj,如果没有serviceObj,则新生成一个
        if (null == serviceObj) {
            serviceObj = new ServiceInfo(serviceName, clusters);

            serviceInfoMap.put(serviceObj.getKey(), serviceObj);

            updatingMap.put(serviceName, new Object());
            updateServiceNow(serviceName, clusters);
            updatingMap.remove(serviceName);

        } else if (updatingMap.containsKey(serviceName)) {
            //如果更新列表中包含服务，则等待更新结束
            if (UPDATE_HOLD_INTERVAL > 0) {
                // hold a moment waiting for update finish
                synchronized (serviceObj) {
                    try {
                        serviceObj.wait(UPDATE_HOLD_INTERVAL);
                    } catch (InterruptedException e) {
                        NAMING_LOGGER
                                .error("[getServiceInfo] serviceName:" + serviceName + ", clusters:" + clusters, e);
                    }
                }
            }
        }
        //添加更新调度任务
        scheduleUpdateIfAbsent(serviceName, clusters);

        return serviceInfoMap.get(serviceObj.getKey());
    }
    //从服务端更新服务
    private void updateServiceNow(String serviceName, String clusters) {
        try {
            updateService(serviceName, clusters);
        } catch (NacosException e) {
            NAMING_LOGGER.error("[NA] failed to update serviceName: " + serviceName, e);
        }
    }

    /**
     * Schedule update if absent.
     *
     * @param serviceName service name
     * @param clusters    clusters
     */
    //添加更新调度任务
    public void scheduleUpdateIfAbsent(String serviceName, String clusters) {
        if (futureMap.get(ServiceInfo.getKey(serviceName, clusters)) != null) {
            return;
        }

        synchronized (futureMap) {
            if (futureMap.get(ServiceInfo.getKey(serviceName, clusters)) != null) {
                return;
            }

            ScheduledFuture<?> future = addTask(new UpdateTask(serviceName, clusters));
            futureMap.put(ServiceInfo.getKey(serviceName, clusters), future);
        }
    }

    /**
     * Update service now.
     *
     * @param serviceName service name
     * @param clusters    clusters
     */
    public void updateService(String serviceName, String clusters) throws NacosException {
        ServiceInfo oldService = getServiceInfo0(serviceName, clusters);
        try {

            String result = serverProxy.queryList(serviceName, clusters, pushReceiver.getUdpPort(), false);

            if (StringUtils.isNotEmpty(result)) {
                processServiceJson(result);
            }
        } finally {
            if (oldService != null) {
                synchronized (oldService) {
                    oldService.notifyAll();
                }
            }
        }
    }

    /**
     * Refresh only.
     *
     * @param serviceName service name
     * @param clusters    cluster
     */
    public void refreshOnly(String serviceName, String clusters) {
        try {
            serverProxy.queryList(serviceName, clusters, pushReceiver.getUdpPort(), false);
        } catch (Exception e) {
            NAMING_LOGGER.error("[NA] failed to update serviceName: " + serviceName, e);
        }
    }

    @Override
    public void shutdown() throws NacosException {
        String className = this.getClass().getName();
        NAMING_LOGGER.info("{} do shutdown begin", className);
        ThreadUtils.shutdownThreadPool(executor, NAMING_LOGGER);
        pushReceiver.shutdown();
        failoverReactor.shutdown();
        NAMING_LOGGER.info("{} do shutdown stop", className);
    }

    //定时更新已存在的服务
    public class UpdateTask implements Runnable {

        long lastRefTime = Long.MAX_VALUE;

        private final String clusters;

        private final String serviceName;

        /**
         * the fail situation. 1:can't connect to server 2:serviceInfo's hosts is empty
         */
        private int failCount = 0;

        public UpdateTask(String serviceName, String clusters) {
            this.serviceName = serviceName;
            this.clusters = clusters;
        }

        private void incFailCount() {
            int limit = 6;
            if (failCount == limit) {
                return;
            }
            failCount++;
        }

        private void resetFailCount() {
            failCount = 0;
        }

        @Override
        public void run() {
            long delayTime = DEFAULT_DELAY;

            try {
                ServiceInfo serviceObj = serviceInfoMap.get(ServiceInfo.getKey(serviceName, clusters));

                if (serviceObj == null) {
                    updateService(serviceName, clusters);
                    return;
                }

                if (serviceObj.getLastRefTime() <= lastRefTime) {
                    updateService(serviceName, clusters);
                    serviceObj = serviceInfoMap.get(ServiceInfo.getKey(serviceName, clusters));
                } else {
                    // if serviceName already updated by push, we should not override it
                    // since the push data may be different from pull through force push
                    refreshOnly(serviceName, clusters);
                }

                lastRefTime = serviceObj.getLastRefTime();

                if (!eventDispatcher.isSubscribed(serviceName, clusters) && !futureMap
                        .containsKey(ServiceInfo.getKey(serviceName, clusters))) {
                    // abort the update task
                    NAMING_LOGGER.info("update task is stopped, service:" + serviceName + ", clusters:" + clusters);
                    return;
                }
                if (CollectionUtils.isEmpty(serviceObj.getHosts())) {
                    incFailCount();
                    return;
                }
                delayTime = serviceObj.getCacheMillis();
                resetFailCount();
            } catch (Throwable e) {
                incFailCount();
                NAMING_LOGGER.warn("[NA] failed to update serviceName: " + serviceName, e);
            } finally {
                executor.schedule(this, Math.min(delayTime << failCount, DEFAULT_DELAY * 60), TimeUnit.MILLISECONDS);
            }
        }
    }
}

总结

从NacosNamingService初始化的整个过程中，很重要的一点值得我们学习，就是单一职责这个理念在每个类的设计上表现的淋淋尽致。

结束

欢迎大家点点关注，点点赞，上海地区帮助团队招两个Java，其中两点比较重要：靠谱和全日制本科，正常的业务开发，整体技术栈Dubbo+GateWay网关，有意者私聊!
