  • 跳跃表 C#

               虽然avl树和红黑树在数据搜索和排序方面都是有效的数据结构,但是都显得特别麻烦,跳跃表就显得特别简单,虽然简单 不影响他性能,在平均情况下,其插入、删除、查找数据时间复杂度都是O(log(N)),其最坏情况下都为O(N)。                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                      跳跃表的构造源于一种用于查找的基础数据结构---链表。跳跃表就是在普通链表的情况下,随机在一些节点上增加几层链,用于指向后面的数据。

    普通链表    :

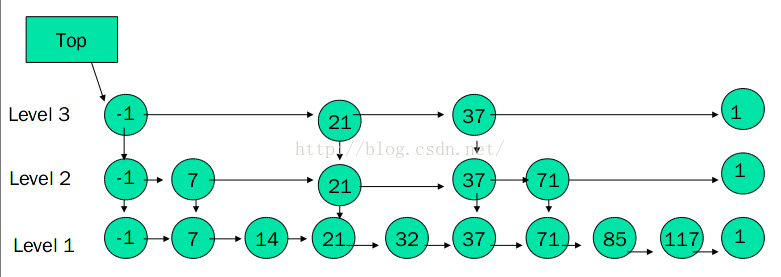

    跳跃表:





      链表就像走楼梯,普通链表一步一个阶梯,但是跳跃表可以达到一步好多个阶梯。所以效率比普通链表快多了。



    跳跃表实现需要两个类:一个节点类和一个跳跃表本身的类。

      =代码如果出错,欢迎指出=

    节点类代码:

    public class SkipNode

    {

    public int key;

    public Object value;

    public SkipNode[] link;

    public SkipNode(int level,int key , Object Value)

    {
    this.key=key;

    this.value=value;

    link=new SkipNode[level];

    }



    跳跃表类代码:

    public class SkipList

    {

    private int maxLevel;

    private int level;

    private SkipNode header;

    private const int NIL=Int32.MaxValue;

    private const int PROB =0.5F;

    }



    SkipList类的构造器包含两个部分:带单独一个参数的Public构造器,其中此参数是跳跃表内节点的总数量,以及一个完成大部分工作的Private构造器数。



     代码如下:

    public SkipList(long maxNodes)         //把节点总数量传递给构造器方法作为方法内的唯一参数。初始化跳跃表对象工作的,private构造器在调用时会有两个参数

    {
    this.SkipList2(PROB,(int)(Math.Ceiling(Math.Log(maxNodes)/Math.Log(1/PROB)-1)));

    }



    private void SkipList2(float probable,int maxLevel)   //设置了数据成员的数值,创建了跳跃表的头节点,创建了用于每个节点链的“空”节点,记忆初始化了该元素的链

    {
    this.proability=probable;

    this.maxLevel=maxLevel;

    level=0;

    header=new SkipNode(maxLevel,0,null);

    SkipNode nilElement=new Skip(maxLevel,NIL,null);

      for(int i=0;i<=maxLevel-1;i++)

       header.link[i]=nilElement;

    }



    概率方法代码:

    private int GenRandomLevel()                 //随机给链层数

    {

    int newLevel=0;

    Random r= new Random();

    int ran=r.Next(0);

    while((newLevel<maxLevel)&&ran<provavility))

         newLevel++;

    return newLevel;

    }



    插入代码:



    public void insert(int key,Object value)

    {
    SkipNode[] update=new SkipNode[maxLevel];

    SkipNode cursor=header;

    for( int i=level;i>=level;i--)            //从当前最高层到最底层

        {

     while (cursor.link[i].key<key)            //如果比要找的这个数值要小的话,就到指向下一个节点,用update【i】来接收每一层的最后一个节点

         cursor=cursor.link[i];

    update[i]=cursor;

        }

    cursor=cursor.link[0];

    if (cursor.key=key)                          //如果存在,那就覆盖

       cursor.value=value;

    else

     {

    int newLevel =GenRandomLevel();

       if (newLevel>level)                       //如果随机出来的链层比当前链层高的情况

         {

       for(int i=level+1;i<=newLevel-1;i++)

    update[i]=header;

    level=newLevel;

          }

    cursor = new SkipNode(newLevel,key,Value);            // 插入

       for(int i=0;i<=newLevel-1;i++)           //插入后改变自己的链指向的节点,和前面节点的链指向的节点变成自己

        {

    cursor.link[i]=update[i].link[i];

    update[i].link[i]=cursor;

         }

      }

    }



    删除代码:

    public void Delete(int key)

    {

    SkipNode[] update=new SkipNode[maxLevel+1];

    SkipNode cursor=header;

    for(Int i=level;i>=level;i--)

      {

       while(cursor.link[i].key<key)

    cursor=cursor.link[i];

    update[i]=cursor;

      }

    cursor=cursor.link[0];

    if(cursor.key==key)

      {

    for(int i=0;i<level-1;i++)

      if(update[i].link[i]==cursor)

    update[i].link[i]=cursor.link[i];                 //直接等于要删除节点的后面节点

    while((level>0)&&(header.link[level].key==NIL))             //删除当前节点的链层

       level--;

      }

    }



    遍历代码:

    public Object Search(int key)

    {

    SkipNode cursor=header;

    for(int i=level;i>0;i--)

     {

    SkipNode nexeElement=cursor.link[i];

    while(nextElement.key<key)

    {

    cursor=nextElement;

    nextElement=cursor.link[i];

    }

    }

    cursor=cursor.link[0];

    if(cursor.key==key)

      return cursor.value;

    else

      return "Object not found";

    }

    There are two ways of constructing a software design.One is to make it so simple that there are obviously no deficiencies;the other is to make it so complicated that there are no obvious deficiencies.
