  • 几种梯度下降方法对比(Batch gradient descent、Mini-batch gradient descent 和 stochastic gradient descent)

    https://blog.csdn.net/u012328159/article/details/80252012

    我们在训练神经网络模型时,最常用的就是梯度下降,这篇博客主要介绍下几种梯度下降的变种(mini-batch gradient descent和stochastic gradient descent),关于Batch gradient descent(批梯度下降,BGD)就不细说了(一次迭代训练所有样本),因为这个大家都很熟悉,通常接触梯队下降后用的都是这个。这里主要介绍Mini-batch gradient descent和stochastic gradient descent(SGD)以及对比下Batch gradient descent、mini-batch gradient descent和stochastic gradient descent的效果。

    一、Batch gradient descent
    Batch gradient descent 就是一次迭代训练所有样本,就这样不停的迭代。整个算法的框架可以表示为:

    X = data_input
    Y = labels
    parameters = initialize_parameters(layers_dims)
    for i in range(0, num_iterations): #num_iterations--迭代次数
        # Forward propagation
        a, caches = forward_propagation(X, parameters)
        # Compute cost.
        cost = compute_cost(a, Y)
        # Backward propagation.
        grads = backward_propagation(a, caches, parameters)
        # Update parameters.
        parameters = update_parameters(parameters, grads)
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12

    Batch gradient descent的优点是理想状态下经过足够多的迭代后可以达到全局最优。但是缺点也很明显,就是如果你的数据集非常的大(现在很常见),根本没法全部塞到内存(显存)里,所以BGD对于小样本还行,大数据集就没法娱乐了。而且因为每次迭代都要计算全部的样本,所以对于大数据量会非常的慢。

    二、stochastic gradient descent
            为了加快收敛速度,并且解决大数据量无法一次性塞入内存(显存)的问题,stochastic gradient descent(SGD)就被提出来了,SGD的思想是每次只训练一个样本去更新参数。具体的实现代码如下:

    X = data_input
    Y = labels
    permutation = list(np.random.permutation(m))
    shuffled_X = X[:, permutation]
    shuffled_Y = Y[:, permutation].reshape((1, m))
    for i in range(0, num_iterations):
        for j in range(0, m):  # 每次训练一个样本
            # Forward propagation
            AL,caches = forward_propagation(shuffled_X[:, j].reshape(-1,1), parameters)
            # Compute cost
            cost = compute_cost(AL, shuffled_Y[:, j].reshape(1,1))
            # Backward propagation
            grads = backward_propagation(AL, shuffled_Y[:,j].reshape(1,1), caches)
            # Update parameters.
            parameters = update_parameters(parameters, grads, learning_rate)
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15

    如果我们的数据集很大,比如几亿条数据,num_iterationsnum_iterations 基本上 设置1,2,(10以内的就足够了)就可以。但是SGD也有缺点,因为每次只用一个样本来更新参数,会导致不稳定性大些(可以看下图(图片来自ng deep learning 课),每次更新的方向,不想batch gradient descent那样每次都朝着最优点的方向逼近,会在最优点附近震荡)。因为每次训练的都是随机的一个样本,会导致导致梯度的方向不会像BGD那样朝着最优点。
    注意:代码中的随机把数据打乱很重要,因为这个随机性相当于引入了“噪音”,正是因为这个噪音,使得SGD可能会避免陷入局部最优解中。

    sgd和bgd对比

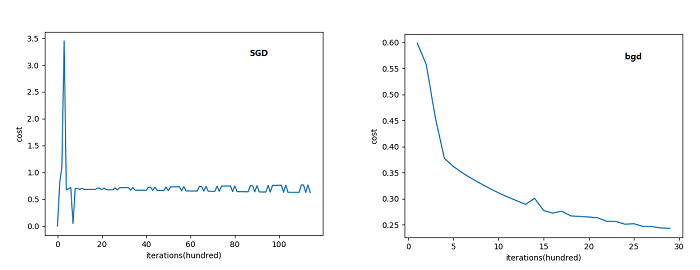

    下面来对比下SGD和BGD的代价函数随着迭代次数的变化图:

    sgd和bgd对比

    可以看到SGD的代价函数随着迭代次数是震荡式的下降的(因为每次用一个样本,有可能方向是背离最优点的)

    三、Mini-batch gradient descent
            mini-batch gradient descent 是batch gradient descent和stochastic gradient descent的折中方案,就是mini-batch gradient descent每次用一部分样本来更新参数,即 batch_sizebatch_size。因此,若batch_size=1batch_size=1 则变成了SGD,若batch_size=mbatch_size=m 则变成了batch gradient descent。batch_sizebatch_size通常设置为2的幂次方,通常设置2481632641282565122,4,8,16,32,64,128,256,512(很少设置大于512)。因为设置成2的幂次方,更有利于GPU加速。现在深度学习中,基本上都是用 mini-batch gradient descent,(在深度学习中,很多直接把mini-batch gradient descent(a.k.a stochastic mini-batch gradient descent)简称为SGD,所以当你看到深度学习中的SGD,一般指的就是mini-batch gradient descent)。下面用几张图来展示下mini-batch gradient descent的原理(图片来自ng deep learning 课):

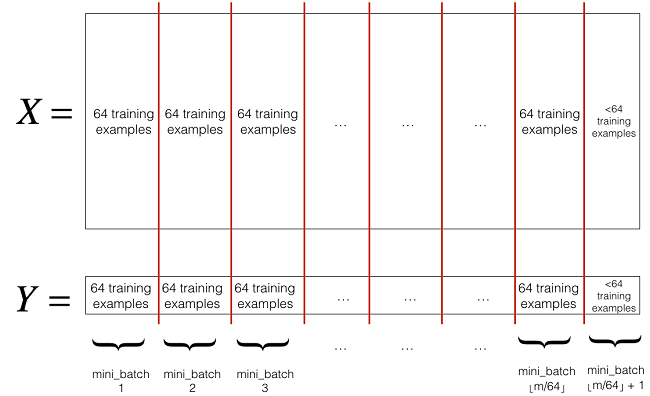

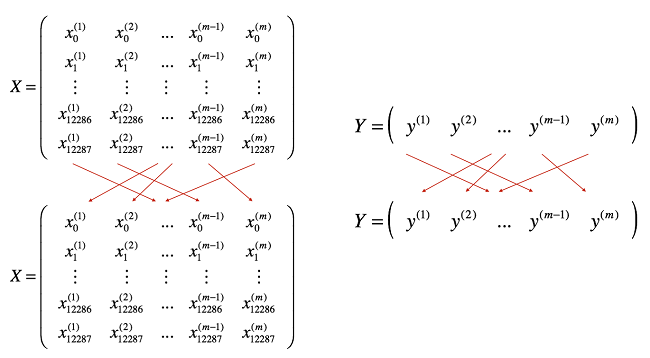

    mini-batch gradient descent
    mini-batch gradient descent2

    下面直接给出mini-batch gradient descent的代码实现:
    1.首先要把训练集分成多个batch

    # GRADED FUNCTION: random_mini_batches
    def random_mini_batches(X, Y, mini_batch_size = 64, seed = 0):
        """
        Creates a list of random minibatches from (X, Y)
        Arguments:
        X -- input data, of shape (input size, number of examples)
        Y -- true "label" vector (1 for blue dot / 0 for red dot), of shape (1, number of examples)
        mini_batch_size -- size of the mini-batches, integer

        Returns:
        mini_batches -- list of synchronous (mini_batch_X, mini_batch_Y)
        """
        np.random.seed(seed)            # To make your "random" minibatches the same as ours
        m = X.shape[1]                  # number of training examples
        mini_batches = []

        # Step 1: Shuffle (X, Y)
        permutation = list(np.random.permutation(m))
        shuffled_X = X[:, permutation]
        shuffled_Y = Y[:, permutation].reshape((1,m))

        # Step 2: Partition (shuffled_X, shuffled_Y). Minus the end case.
        num_complete_minibatches = m//mini_batch_size # number of mini batches
        for k in range(0, num_complete_minibatches):
            mini_batch_X = shuffled_X[:, k * mini_batch_size: (k + 1) * mini_batch_size]
            mini_batch_Y = shuffled_Y[:, k * mini_batch_size: (k + 1) * mini_batch_size]
            mini_batch = (mini_batch_X, mini_batch_Y)
            mini_batches.append(mini_batch)

        # Handling the end case (last mini-batch < mini_batch_size)
        if m % mini_batch_size != 0:
            mini_batch_X = shuffled_X[:, num_complete_minibatches * mini_batch_size : m]
            mini_batch_Y = shuffled_Y[:, num_complete_minibatches * mini_batch_size : m]
            mini_batch = (mini_batch_X, mini_batch_Y)
            mini_batches.append(mini_batch)

        return mini_batches
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 22
    • 23
    • 24
    • 25
    • 26
    • 27
    • 28
    • 29
    • 30
    • 31
    • 32
    • 33
    • 34
    • 35
    • 36
    • 37

    2.下面是在model中使用mini-batch gradient descent 进行更新参数


    seed = 0
    for i in range(0, num_iterations):
        # Define the random minibatches. We increment the seed to reshuffle differently the dataset after each epoch
        seed = seed + 1
        minibatches = random_mini_batches(X, Y, mini_batch_size, seed)
        for minibatch in minibatches:
            # Select a minibatch
            (minibatch_X, minibatch_Y) = minibatch
            # Forward propagation
            AL, caches = forward_propagation(minibatch_X, parameters)
            # Compute cost
            cost = compute_cost(AL, minibatch_Y)
            # Backward propagation
            grads = backward_propagation(AL, minibatch_Y, caches)
            parameters = update_parameters(parameters, grads, learning_rate)
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16

    下面来看mini-batch gradient descent 和 stochastic gradient descent 在下降时的对比图:

    mini-batch gradient descent 下降图

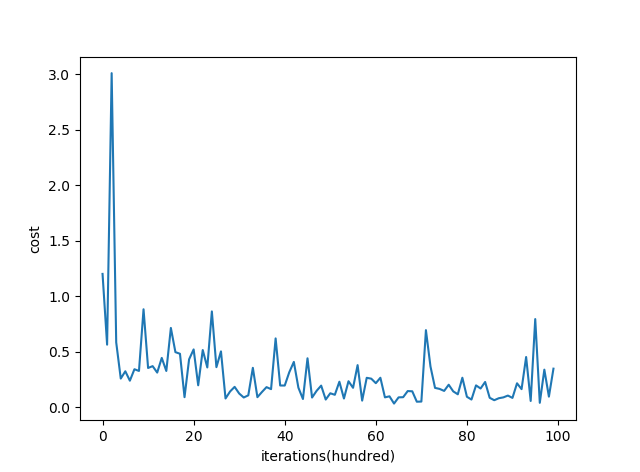

    下面是mini-batch gradient descent的代价函数随着迭代次数的变化图:

    mini-batch gradient descent cost function

    从图中能够看出,mini-batch gradient descent 相对SGD在下降的时候,相对平滑些(相对稳定),不像SGD那样震荡的比较厉害。mini-batch gradient descent的一个缺点是增加了一个超参数 batch_sizebatch_size ,要去调这个超参数。
    以上就是关于batch gradient descent、mini-batch gradient descent 和 stochastic gradient descent的内容。



    完整的代码放到github上了:deep_neural_network_with_gd.py
