iOS7 界面适配-NavigationBar StateBar



转 blog.csdn.net/ibcker/article/details/12115437

最近项目有个棘手的问题--适配IOS7....

由于IOS7把整个内容区都上移了20，所以很多不是全屏的应用都不能很好的兼容,换用苹果文档的一句话就是说：如果你们原来的app就是全屏模式运行的，那你们几乎不用改，如果不是，那·····



改之前很有必要去阅读下苹果官方的《ios7过渡指南》http://t.cn/zRv5lQT  ，当然，也有人翻译了一份··如果那什么可以看中文的·· http://t.cn/zHDbDCz （吐槽下“实现方法是在Info.plist中加入键UIViewControllerBasedStatusBarAppearance，并设置值为YES。”这句话好像翻译反了··）

来说说问题，由于主要问题界面给默认全屏了···也就是说原来statusbar的20像素没了，所以如果想比较快速的适配ios7，比较好的做法是：

step 1 写个UIViewController的Category让UIViewController默认的wantsFullScreenLayout返回YES，同时edgesForExtendedLayout默认返回All，目的是让所有版本都统一全屏

.h代码如下



    #import <UIKit/UIKit.h>

    #ifndef __IPHONE_7_0
    typedef NS_OPTIONS(NSUInteger, UIRectEdge) {
        UIRectEdgeNone   = 0,
        UIRectEdgeTop    = 1 << 0,
        UIRectEdgeLeft   = 1 << 1,
        UIRectEdgeBottom = 1 << 2,
        UIRectEdgeRight  = 1 << 3,
        UIRectEdgeAll    = UIRectEdgeTop | UIRectEdgeLeft | UIRectEdgeBottom | UIRectEdgeRight
    };
    #endif

    @interface UIViewController (UIRectEdge)

    //#ifndef __IPHONE_7_0
    - (BOOL)automaticallyAdjustsScrollViewInsets;
    - (void)setAutomaticallyAdjustsScrollViewInsets:(BOOL)b;
    - (UIRectEdge)edgesForExtendedLayout;
    - (void)setEdgesForExtendedLayout:(UIRectEdge)rect;
    //#endif
    @end



.m



    #import "UIViewController+UIRectEdge.h"

    #import <objc/runtime.h>

    @implementation UIViewController (UIRectEdge)

    static const charchar *kWantsFullScreenLayoutKey;

    - (BOOL)wantsFullScreenLayout
    {
        id v=objc_getAssociatedObject(self,&kWantsFullScreenLayoutKey);
        if (v!=nil) {
            return [v boolValue];
        }else{
            return YES;
        }
    }

    - (void)setWantsFullScreenLayout:(BOOL)b
    {
        objc_setAssociatedObject(self, &kWantsFullScreenLayoutKey, @(b), OBJC_ASSOCIATION_ASSIGN);
    }

    static const charchar *kAutomaticallyAdjustsScrollViewInsetsKey;

    - (BOOL)automaticallyAdjustsScrollViewInsets
    {
        id v=objc_getAssociatedObject(self,&kAutomaticallyAdjustsScrollViewInsetsKey);
        if (v!=nil) {
            return [v boolValue];
        }else{
            return NO;
        }
    }

    - (void)setAutomaticallyAdjustsScrollViewInsets:(BOOL)b
    {
        objc_setAssociatedObject(self, &kAutomaticallyAdjustsScrollViewInsetsKey, @(b), OBJC_ASSOCIATION_ASSIGN);
    }


    static const charchar *kEdgesForExtendedLayoutKey;

    - (UIRectEdge)edgesForExtendedLayout
    {
        id v=objc_getAssociatedObject(self,&kEdgesForExtendedLayoutKey);
        if (v!=nil) {
            return [v integerValue];
        }else{
            return UIRectEdgeAll;
        }
    }

    - (void)setEdgesForExtendedLayout:(UIRectEdge)rect
    {
        objc_setAssociatedObject(self, &kEdgesForExtendedLayoutKey, @(rect), OBJC_ASSOCIATION_ASSIGN);
    }

    @end

step 2 然后写个UIApplication的category让5，6上状态栏底色消失.

照例直接贴代码

.h



    #import <UIKit/UIKit.h>

    @interface UIApplication (UI7)
    + (void)inject;
    @end

.m



    #import "UIApplication+UI7.h"
    #import <objc/runtime.h>
    #import <QuartzCore/QuartzCore.h>

    #define _IOS_VERSION_UI7 ([[[UIDevice currentDevice] systemVersion] floatValue])

    #if __IPHONE_OS_VERSION_MIN_REQUIRED < __IPHONE_4_3
    #error UI7NavigationBar doesn't support Deployement Target version < 4.3
    #endif

    @implementation UIApplication (UI7)

    + (void)inject
    {
        Method originMethod=class_getInstanceMethod(self, @selector(setStatusBarStyle:));
        Method newMethod=class_getInstanceMethod(self, @selector(__setStatusBarStyle:));

        method_exchangeImplementations(originMethod, newMethod);

        originMethod=class_getInstanceMethod(self, @selector(setStatusBarStyle:animated:));
        newMethod=class_getInstanceMethod(self, @selector(__setStatusBarStyle:animated:));

        method_exchangeImplementations(originMethod, newMethod);
    }

    - (void)__setStatusBarStyle:(UIStatusBarStyle)style
    {
        [self __setStatusBarStyle:style];
        if (style==UIStatusBarStyleBlackTranslucent) {
            [self hiddenStatusBarBackground:YES];
        }
    }

    -(void)__setStatusBarStyle:(UIStatusBarStyle)style animated:(BOOL)animated
    {
        [self __setStatusBarStyle:style animated:animated];

        if (style==UIStatusBarStyleBlackTranslucent) {
            if (animated) {
                [self performSelector:@selector(hiddenStatusBarBackground:) withObject:@(YES) afterDelay:0.6];
            }else{
                [self hiddenStatusBarBackground:YES];
            }
        }
    }

    - (void)hiddenStatusBarBackground:(BOOL)hidden
    {
        if(_IOS_VERSION_UI7<7){
            BOOL isStatusBarHidden=[[UIApplication sharedApplication] isStatusBarHidden];
            if (isStatusBarHidden) {
                [[UIApplication sharedApplication] setStatusBarHidden:NO];
            }
            UIView *statusbar=[[UIApplication sharedApplication] valueForKey:@"_statusBar"];
            NSArray *vs=[statusbar subviews];
            for (UIView *v in vs) {
                if ([v isKindOfClass:NSClassFromString(@"UIStatusBarBackgroundView")]) {
                    statusbar=v;
                    break;
                }
            }
            if (isStatusBarHidden) {
                [[UIApplication sharedApplication] setStatusBarHidden:YES];
            }
            if (hidden) {
                [statusbar setHidden:YES];
            }else{
                [statusbar setHidden:NO];
            }
        }
    }

    @end



step 3实现一个UINavigationBar的子类，让自定义效果更加简单

.h



#import <UIKit/UIKit.h>

typedef NS_ENUM(NSUInteger, UI7NavBarSytle)
{
    UI7NavBarSytleLight, //0.4 alpha
    UI7NavBarSytleDark, //0.8 alpha
    UI7NavBarSytleBlack, //1.0
};

@interface TTNavigationController : UINavigationController

- (void)setNavBarBgWithImage:(UIImage *)image;
- (void)setNavBarBgWithColor:(UIColor *)cl;
- (void)setNavBarStyle:(UI7NavBarSytle)style;

@end

.m

#import "TTNavigationController.h"
#import "UIApplication+UI7.h"

@interface TTNavigationController ()
@property (nonatomic,strong)UIImageView *navColorOverly;
@end

@implementation TTNavigationController


- (void)viewDidLoad
{
    [super viewDidLoad];

    self.navigationBar.opaque = NO;
    if (kCFCoreFoundationVersionNumber>=kCFCoreFoundationVersionNumber_iOS_5_0) {
        NSArray *vs=[self.navigationBar subviews];
        Class clazz;
        if (kCFCoreFoundationVersionNumber>=kCFCoreFoundationVersionNumber_iOS_6_0) {
            clazz=NSClassFromString(@"_UINavigationBarBackground");
        }else{
            clazz=NSClassFromString(@"UINavigationBarBackground");
        }
        for (UIView *v in vs) {
            if ([v isKindOfClass:clazz]) {
                v.hidden=YES;
                break;
            }
        }
    }
    [self setNavBarStyle:UI7NavBarSytleDark];
    [self.navigationBar insertSubview:_navColorOverly atIndex:0];
}



- (UIImageView *)navColorOverly
{
    if (!_navColorOverly) {
        if (!_navColorOverly) {
            _navColorOverly=[[UIImageView alloc] initWithFrame:CGRectMake(0, 0, self.navigationBar.frame.size.width, self.navigationBar.frame.size.height+20)];
            _navColorOverly.frame=CGRectMake(0, -20, self.navigationBar.frame.size.width, 64);
        }
    }
    return _navColorOverly;
}

- (void)setNavBarStyle:(UI7NavBarSytle)style
{
    switch (style) {
        case UI7NavBarSytleLight:
            [self setNavBarBgWithColor:[UIColor colorWithRed:0 green:0 blue:0 alpha:0.4]];
            break;
        case UI7NavBarSytleBlack:
            [self setNavBarBgWithColor:[UIColor colorWithRed:0 green:0 blue:0 alpha:1]];
            break;
        default: //UI7NavBarSytleDark:
            [self setNavBarBgWithColor:[UIColor colorWithRed:0 green:0 blue:0 alpha:0.8]];
            break;
    }
}

- (void)setNavBarBgWithColor:(UIColor *)cl
{
    UIGraphicsBeginImageContext(CGSizeMake(1, 1));
    [cl set];
    UIRectFill(CGRectMake(0, 0, 1, 1));
    UIImage *image = UIGraphicsGetImageFromCurrentImageContext();
    UIGraphicsEndImageContext();
    self.navColorOverly.image=[image stretchableImageWithLeftCapWidth:1 topCapHeight:1];
}

- (void)setNavBarBgWithImage:(UIImage *)image
{
    self.navColorOverly.image=image;
}

@end
@implementation UINavigationBar (CustomImage)
- (void)drawRect:(CGRect)rect {}
@end

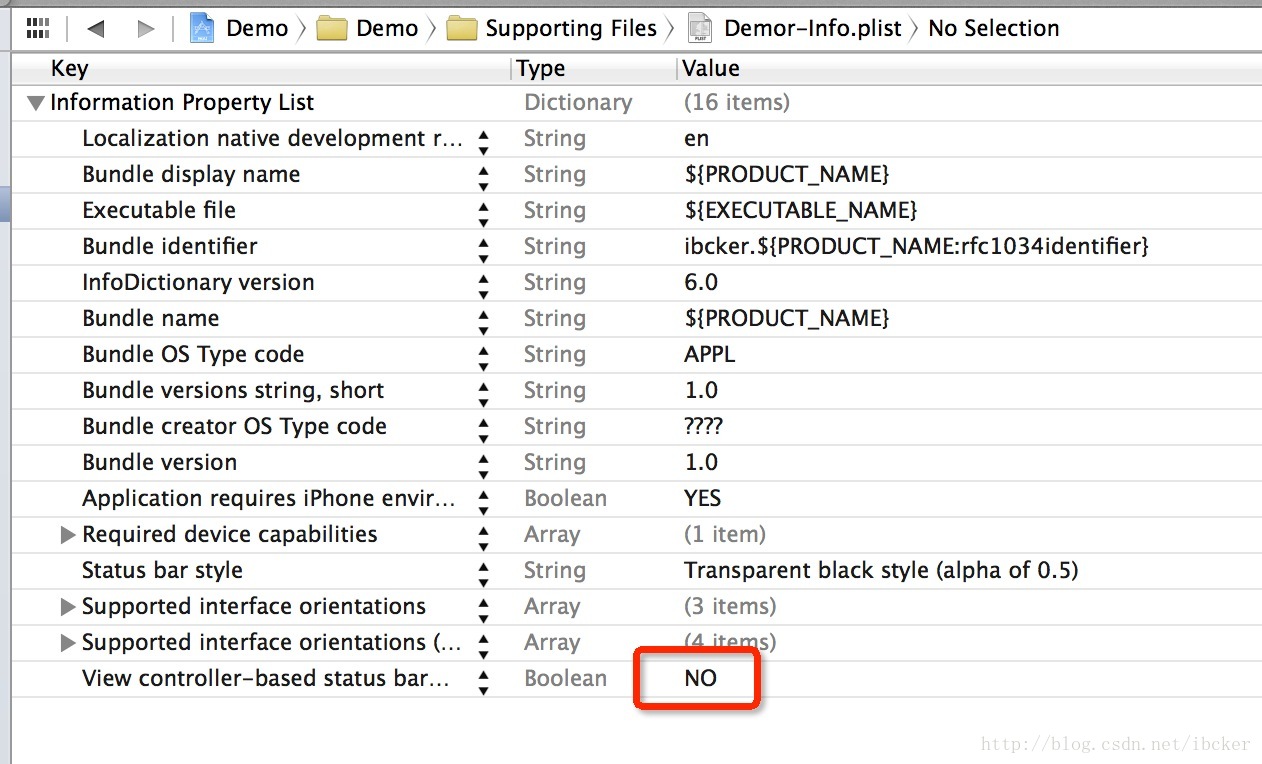

step 4接着是刚才提到的，在info.plist里加入UIViewControllerBasedStatusBarAppearance，设为NO

step 5接着就写个Demo试试效果吧。

记得appdelegate的application:didFinishLaunchingWithOptions:里记得调用[UIApplicationinject];作用就是注入状态栏，让其底色透明

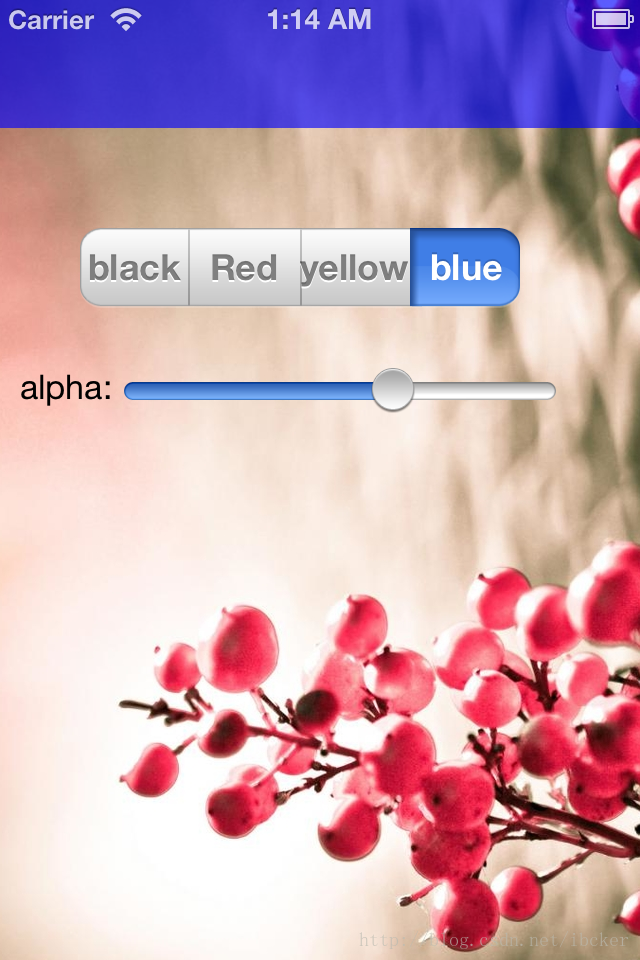

简单看下效果（iOS 5，6，7）：





https://github.com/iBcker/UI7NavigationBar
