  • SpringMVC 工作原理?

    SpimgMVC工作原理

    第1步:浏览器发送指定的请求都会交给DispatcherServlet,他会委托其他模块进行真正的业务和数据处理
    第2步:DispatcherServlet会查找到HandleMapping,根据浏览器的请求找到对应的Controller,并将请求交给目标Controller
    第3步:目标Controller处理完业务后,返回一个ModelAndView给DispatcherServlet
    第4步:DispatcherServlet通过ViewResolver视图解析器找到对应的视图对象View
    第5步:视图对象View负责渲染,并返回到浏览器

    案例分析

    下面通过案例图解的方式理解下上面的工作原理

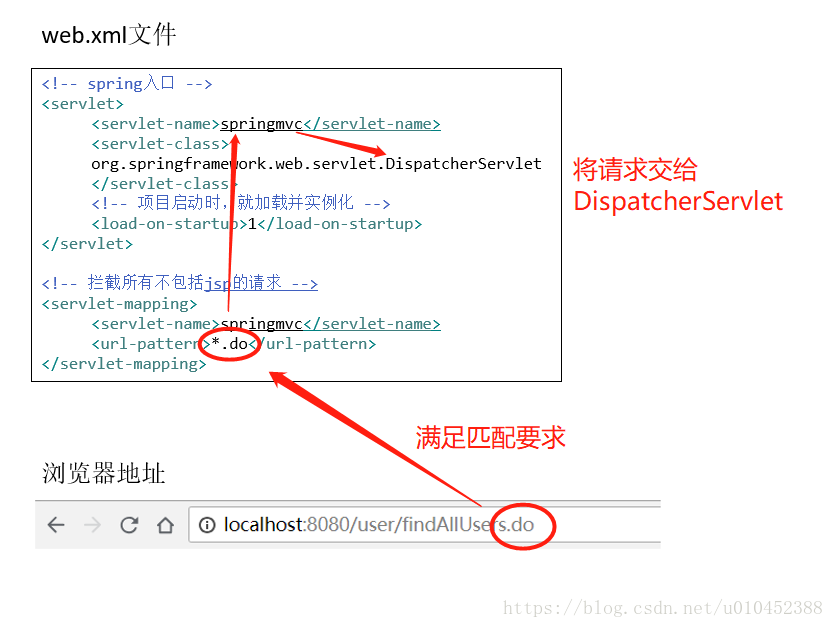

    第1步-浏览器请求

    这里写图片描述

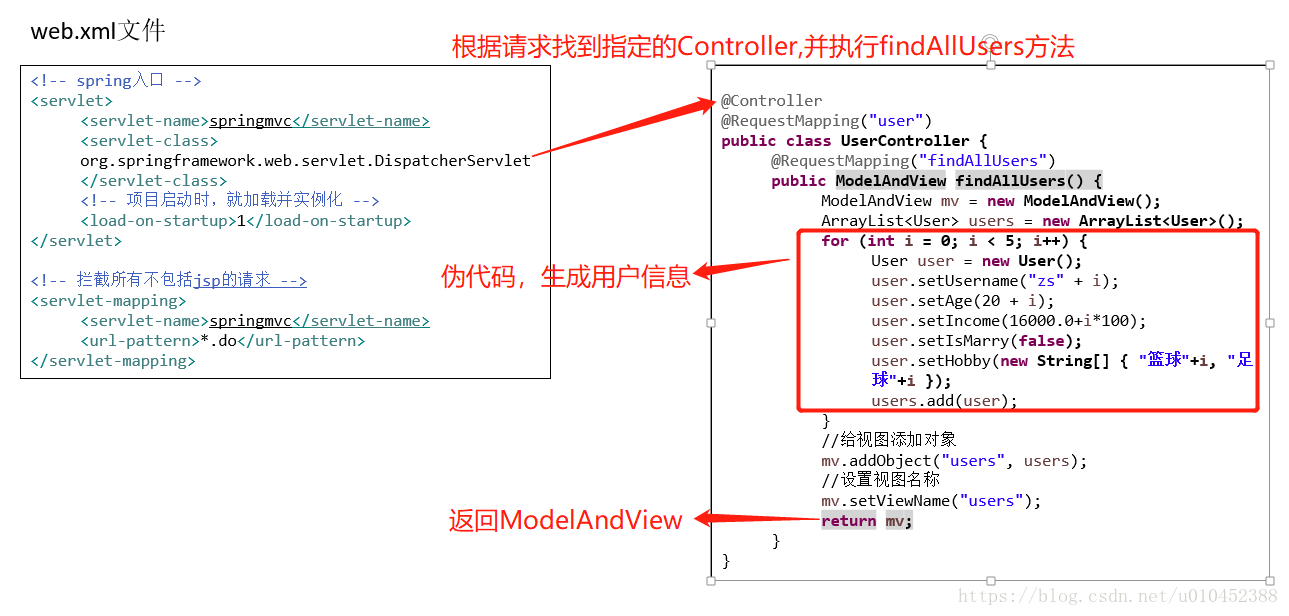

    第2、3步-找到对应Controller

    这里写图片描述

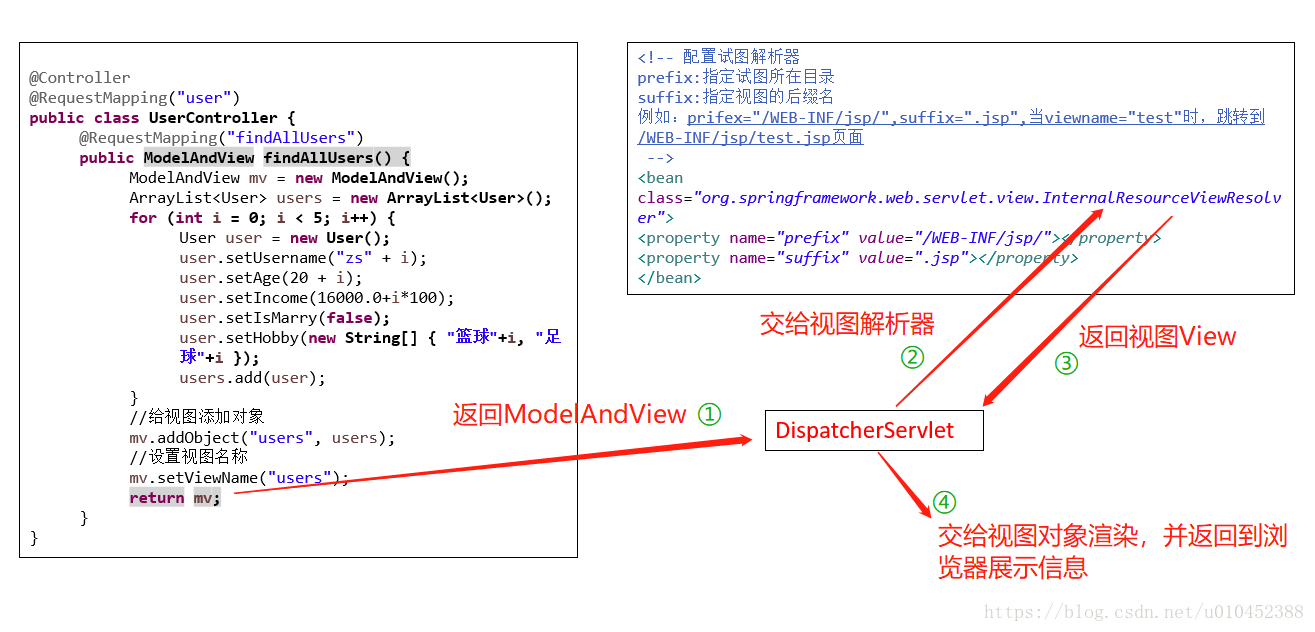

    第4、5步-解析视图对象,返回浏览器

    这里写图片描述

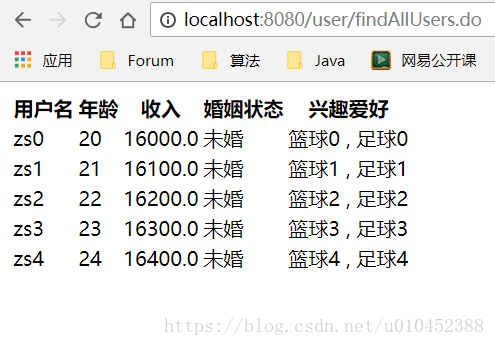

    浏览器结果

    这里写图片描述

    源码

    web.xml

    <?xml version="1.0" encoding="UTF-8"?>
    <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns="http://java.sun.com/xml/ns/javaee"
        xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
        version="2.5">
        <display-name>springmvc</display-name>
        <welcome-file-list>
            <welcome-file>index.html</welcome-file>
            <welcome-file>index.htm</welcome-file>
            <welcome-file>index.jsp</welcome-file>
            <welcome-file>default.html</welcome-file>
            <welcome-file>default.htm</welcome-file>
            <welcome-file>default.jsp</welcome-file>
        </welcome-file-list>
        <!-- spring入口 -->
        <servlet>
            <servlet-name>springmvc</servlet-name>
            <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
            <!-- 项目启动时,就加载并实例化 -->
            <load-on-startup>1</load-on-startup>
        </servlet>

        <!-- 拦截所有不包括jsp的请求 -->
        <servlet-mapping>
            <servlet-name>springmvc</servlet-name>
            <url-pattern>*.do</url-pattern>
        </servlet-mapping>

    </web-app>

    springmvc-servlet.xml

    <?xml version="1.0" encoding="UTF-8"?>

    <beans xmlns="http://www.springframework.org/schema/beans"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
        xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
        xmlns:mvc="http://www.springframework.org/schema/mvc"
        xsi:schemaLocation="http://www.springframework.org/schema/beans
            http://www.springframework.org/schema/beans/spring-beans.xsd
            http://www.springframework.org/schema/aop
            http://www.springframework.org/schema/aop/spring-aop.xsd
            http://www.springframework.org/schema/context
            http://www.springframework.org/schema/context/spring-context.xsd
            http://www.springframework.org/schema/tx
            http://www.springframework.org/schema/tx/spring-tx.xsd
            http://www.springframework.org/schema/mvc
            http://www.springframework.org/schema/mvc/spring-mvc.xsd">

            <!-- springmvc注解驱动 -->
            <mvc:annotation-driven></mvc:annotation-driven>

            <!-- 开启注解扫描 -->
            <context:component-scan base-package="cn.itcast.controller"></context:component-scan>

            <!-- 配置试图解析器
                prefix:指定试图所在目录
                suffix:指定视图的后缀名
                例如:prifex="/WEB-INF/jsp/",suffix=".jsp",当viewname="test"时,跳转到/WEB-INF/jsp/test.jsp页面
             -->
            <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
                <property name="prefix" value="/WEB-INF/jsp/"></property>
                <property name="suffix" value=".jsp"></property>
            </bean>
    </beans>

    UserControll类
    实体类

    public class User implements Serializable {

        /**
         *
         */
        private static final long serialVersionUID = 1L;

        private String username;
        private Integer age;
        private Boolean isMarry;
        private Double income;
        private String[] hobby;

        public String getUsername() {
            return username;
        }

        public void setUsername(String username) {
            this.username = username;
        }

        public Integer getAge() {
            return age;
        }

        public void setAge(Integer age) {
            this.age = age;
        }

        public Boolean getIsMarry() {
            return isMarry;
        }

        public void setIsMarry(Boolean isMarry) {
            this.isMarry = isMarry;
        }

        public Double getIncome() {
            return income;
        }

        public void setIncome(Double income) {
            this.income = income;
        }

        public String[] getHobby() {
            return hobby;
        }

        public void setHobby(String[] hobby) {
            this.hobby = hobby;
        }

        @Override
        public String toString() {
            return "User [username=" + username + ", age=" + age + ", isMarry=" + isMarry + ", income=" + income
                    + ", hobby=" + Arrays.toString(hobby) + "]";
        }

    }

    JSP页面
    <%@ page language="java" contentType="text/html; charset=UTF-8"
        pageEncoding="UTF-8"%>
    <%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
    <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
    <html>
    <head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <title>Insert title here</title>
    <link rel="stylesheet" type="text/css" href="/css/user.css" />
    </head>
    <body>
        <table id="customers">
            <tr>
                <th>用户名</th>
                <th>年龄</th>
                <th>收入</th>
                <th>婚姻状态</th>
                <th>兴趣爱好</th>
            </tr>
            <!-- 遍历后台传递的集合数据 -->
            <c:forEach items="${users}" var="user">
                <tr>
                    <td>${user.username}</td>
                    <td>${user.age}</td>
                    <td>${user.income}</td>
                    <!-- 判婚姻状态 -->
                    <td><c:choose>
                            <c:when test="${user.isMarry}">已婚</c:when>
                            <c:otherwise>未婚</c:otherwise>
                        </c:choose>
                    </td>

                    <td>
                    <!-- 再次遍历用户爱好 -->
                    <c:forEach items="${user.hobby}" var="hobby" varStatus="status">
                        ${hobby}
                        <!-- 如果不是最后一个爱好,则加上逗号,否则就不加 -->
                        <c:if test="${!status.last}">,</c:if>
                    </c:forEach>
                    </td>
                </tr>
            </c:forEach>
        </table>
    </body>
    </html>
