  • antrea

    root@ubuntu:~# kubectl apply -f  ./antrea/build/yamls/antrea.yml
    customresourcedefinition.apiextensions.k8s.io/antreaagentinfos.clusterinformation.antrea.tanzu.vmware.com created
    customresourcedefinition.apiextensions.k8s.io/antreaagentinfos.crd.antrea.io created
    customresourcedefinition.apiextensions.k8s.io/antreacontrollerinfos.clusterinformation.antrea.tanzu.vmware.com created
    customresourcedefinition.apiextensions.k8s.io/antreacontrollerinfos.crd.antrea.io created
    customresourcedefinition.apiextensions.k8s.io/clustergroups.core.antrea.tanzu.vmware.com created
    customresourcedefinition.apiextensions.k8s.io/clustergroups.crd.antrea.io created
    customresourcedefinition.apiextensions.k8s.io/clusternetworkpolicies.crd.antrea.io created
    customresourcedefinition.apiextensions.k8s.io/clusternetworkpolicies.security.antrea.tanzu.vmware.com created
    customresourcedefinition.apiextensions.k8s.io/egresses.crd.antrea.io created
    customresourcedefinition.apiextensions.k8s.io/externalentities.core.antrea.tanzu.vmware.com created
    customresourcedefinition.apiextensions.k8s.io/externalentities.crd.antrea.io created
    customresourcedefinition.apiextensions.k8s.io/networkpolicies.crd.antrea.io created
    customresourcedefinition.apiextensions.k8s.io/networkpolicies.security.antrea.tanzu.vmware.com created
    customresourcedefinition.apiextensions.k8s.io/tiers.crd.antrea.io created
    customresourcedefinition.apiextensions.k8s.io/tiers.security.antrea.tanzu.vmware.com created
    customresourcedefinition.apiextensions.k8s.io/traceflows.crd.antrea.io created
    customresourcedefinition.apiextensions.k8s.io/traceflows.ops.antrea.tanzu.vmware.com created
    serviceaccount/antctl created
    serviceaccount/antrea-agent created
    serviceaccount/antrea-controller created
    clusterrole.rbac.authorization.k8s.io/aggregate-antrea-clustergroups-edit created
    clusterrole.rbac.authorization.k8s.io/aggregate-antrea-clustergroups-view created
    clusterrole.rbac.authorization.k8s.io/aggregate-antrea-policies-edit created
    clusterrole.rbac.authorization.k8s.io/aggregate-antrea-policies-view created
    clusterrole.rbac.authorization.k8s.io/aggregate-traceflows-edit created
    clusterrole.rbac.authorization.k8s.io/aggregate-traceflows-view created
    clusterrole.rbac.authorization.k8s.io/antctl created
    clusterrole.rbac.authorization.k8s.io/antrea-agent created
    clusterrole.rbac.authorization.k8s.io/antrea-cluster-identity-reader created
    clusterrole.rbac.authorization.k8s.io/antrea-controller created
    clusterrolebinding.rbac.authorization.k8s.io/antctl created
    clusterrolebinding.rbac.authorization.k8s.io/antrea-agent created
    clusterrolebinding.rbac.authorization.k8s.io/antrea-controller created
    configmap/antrea-config-cbfh568k9m created
    service/antrea created
    deployment.apps/antrea-controller created
    apiservice.apiregistration.k8s.io/v1alpha1.stats.antrea.io created
    apiservice.apiregistration.k8s.io/v1alpha1.stats.antrea.tanzu.vmware.com created
    apiservice.apiregistration.k8s.io/v1beta1.controlplane.antrea.tanzu.vmware.com created
    apiservice.apiregistration.k8s.io/v1beta1.networking.antrea.tanzu.vmware.com created
    apiservice.apiregistration.k8s.io/v1beta1.system.antrea.io created
    apiservice.apiregistration.k8s.io/v1beta1.system.antrea.tanzu.vmware.com created
    apiservice.apiregistration.k8s.io/v1beta2.controlplane.antrea.io created
    apiservice.apiregistration.k8s.io/v1beta2.controlplane.antrea.tanzu.vmware.com created
    daemonset.apps/antrea-agent created
    mutatingwebhookconfiguration.admissionregistration.k8s.io/crdmutator.antrea.io created
    mutatingwebhookconfiguration.admissionregistration.k8s.io/crdmutator.antrea.tanzu.vmware.com created
    validatingwebhookconfiguration.admissionregistration.k8s.io/crdvalidator.antrea.io created
    validatingwebhookconfiguration.admissionregistration.k8s.io/crdvalidator.antrea.tanzu.vmware.com created
    root@ubuntu:~# kubectl get configmap -n kube-system
    NAME                                 DATA   AGE
    antrea-config-cbfh568k9m             3      14s
    coredns                              1      223d
    extension-apiserver-authentication   6      223d
    kube-proxy                           2      223d
    kubeadm-config                       2      223d
    kubelet-config-1.18                  1      223d
    root@ubuntu:~#
    root@ubuntu:~# kubectl get pods
    NAME                             READY   STATUS             RESTARTS   AGE
    kata-busybox                     1/1     Running            0          223d
    kata-nginx                       1/1     Running            0          221d
    my-deployment-68bdbbb5cc-bbszv   0/1     ImagePullBackOff   0          15d
    my-deployment-68bdbbb5cc-nrst9   0/1     ImagePullBackOff   0          15d
    my-deployment-68bdbbb5cc-rlgzt   0/1     ImagePullBackOff   0          15d
    my-nginx-5dc4865748-jqx54        1/1     Running            2          15d
    my-nginx-5dc4865748-pcrbg        1/1     Running            2          15d
    nginx                            0/1     ImagePullBackOff   0          15d

    root@ubuntu:~# kubectl get pods --all-namespaces
    NAMESPACE     NAME                                 READY   STATUS                  RESTARTS   AGE
    default       kata-busybox                         1/1     Running                 0          223d
    default       kata-nginx                           1/1     Running                 0          221d
    default       my-deployment-68bdbbb5cc-bbszv       0/1     ImagePullBackOff        0          15d
    default       my-deployment-68bdbbb5cc-nrst9       0/1     ImagePullBackOff        0          15d
    default       my-deployment-68bdbbb5cc-rlgzt       0/1     ImagePullBackOff        0          15d
    default       my-nginx-5dc4865748-jqx54            1/1     Running                 2          15d
    default       my-nginx-5dc4865748-pcrbg            1/1     Running                 2          15d
    default       nginx                                0/1     ImagePullBackOff        0          15d
    kube-system   antrea-agent-fzt9g                   0/2     Init:ImagePullBackOff   0          151m
    kube-system   antrea-controller-685ff89775-bv49m   0/1     ImagePullBackOff        0          151m
    kube-system   coredns-66bff467f8-54h8n             1/1     Running                 0          223d
    kube-system   coredns-66bff467f8-gkq4g             1/1     Running                 0          223d
    kube-system   etcd-ubuntu                          1/1     Running                 1          223d
    kube-system   kube-apiserver-ubuntu                1/1     Running                 1          223d
    kube-system   kube-controller-manager-ubuntu       1/1     Running                 3          223d
    kube-system   kube-proxy-896mz                     1/1     Running                 0          223d
    kube-system   kube-scheduler-ubuntu                1/1     Running                 5          223d
    root@ubuntu:~#
    root@ubuntu:~#  kubectl get pods -n kube-system | grep antrea
    antrea-agent-fzt9g                   0/2     Init:ImagePullBackOff   0          153m
    antrea-controller-685ff89775-bv49m   0/1     ImagePullBackOff        0          153m
    root@ubuntu:~#

       ImagePullBackOff

    root@ubuntu:~#  kubectl get pods -n kube-system | grep antrea
    antrea-agent-fzt9g                   0/2     Init:ImagePullBackOff   0          153m
    antrea-controller-685ff89775-bv49m   0/1     ImagePullBackOff        0          153m
    root@ubuntu:~# kubectl describe pod antrea-agent-fzt9g
    Error from server (NotFound): pods "antrea-agent-fzt9g" not found

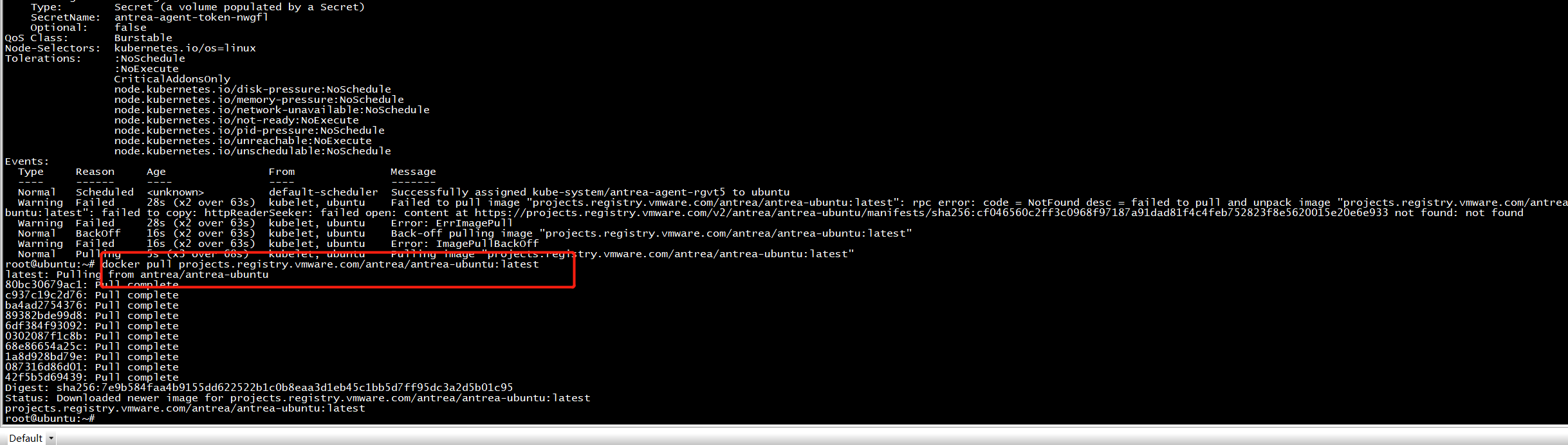

    root@ubuntu:~# kubectl describe pod antrea-agent-fzt9g -n kube-system

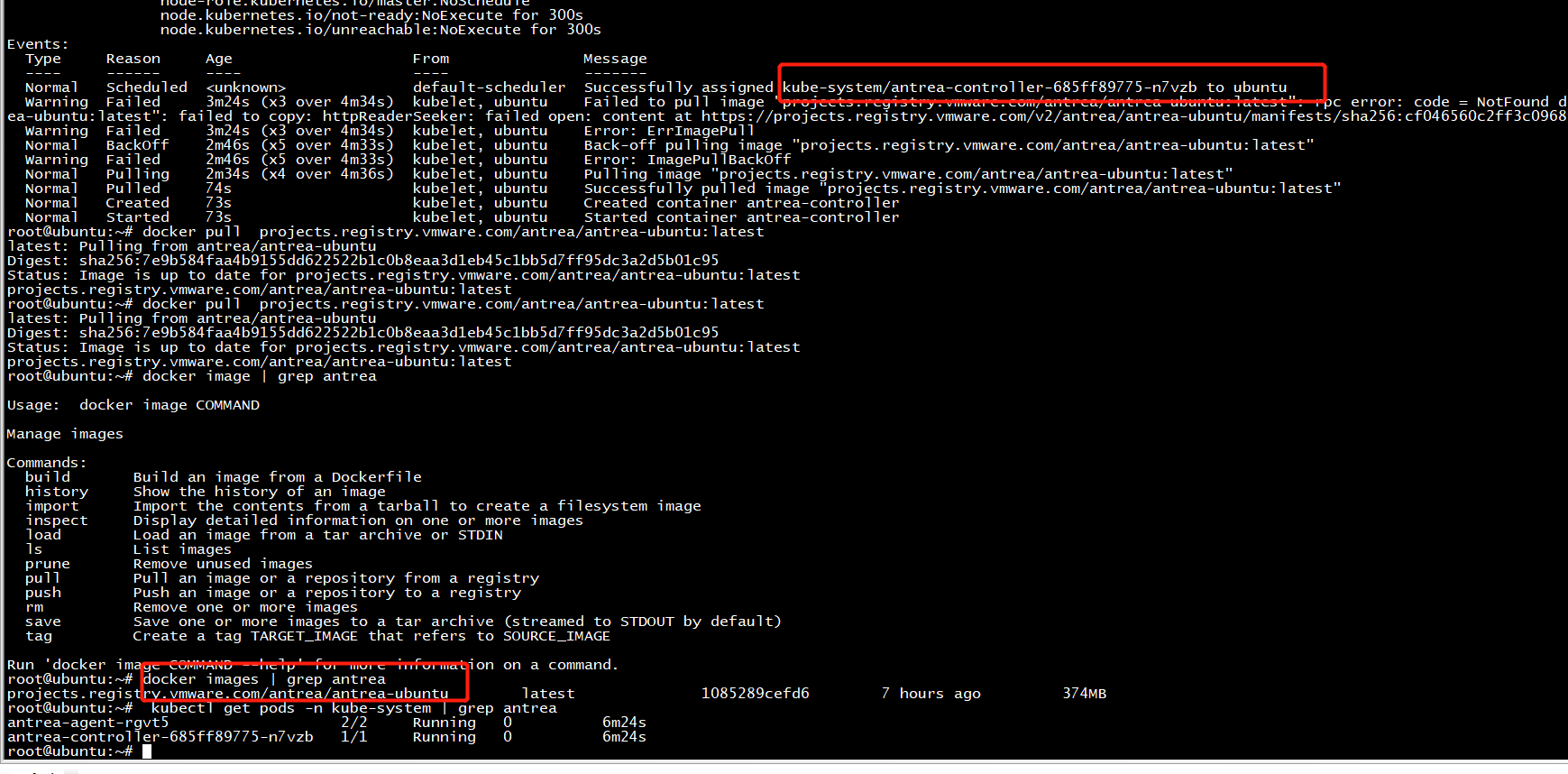

    root@ubuntu:~#  kubectl get pods -n kube-system | grep antrea
    antrea-agent-rgvt5                   2/2     Running   0          9m36s
    antrea-controller-685ff89775-n7vzb   1/1     Running   0          9m36s
    root@ubuntu:~# kubectl exec -it antrea-agent-rgvt5  -c antrea-agent ovs-vsctl show
    kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl kubectl exec [POD] -- [COMMAND] instead.
    Error from server (NotFound): pods "antrea-agent-rgvt5" not found
    root@ubuntu:~# kubectl logs -f pods/antrea-agent-rgvt5 -n kube-system | tail
    error: a container name must be specified for pod antrea-agent-rgvt5, choose one of: [antrea-agent antrea-ovs] or one of the init containers: [install-cni]
    root@ubuntu:~# kubectl logs -f pods/antrea-agent-rgvt5 -c antrea-agent  -n kube-system | tail
    root@ubuntu:~# kubectl logs -f pods/antrea-agent-rgvt5 -c antrea-agent  -n kube-system | more
    I0528 06:48:10.786331       1 log_file.go:99] Set log file max size to 104857600
    I0528 06:48:10.789887       1 agent.go:65] Starting Antrea agent (version v1.1.0-dev-9772276)
    I0528 06:48:10.789947       1 client.go:37] No kubeconfig file was specified. Falling back to in-cluster config
    I0528 06:48:10.803521       1 client.go:86] No kubeconfig file was specified. Falling back to in-cluster config
    I0528 06:48:10.805347       1 prometheus.go:161] Initializing prometheus metrics
    I0528 06:48:10.805897       1 ovs_client.go:67] Connecting to OVSDB at address /var/run/openvswitch/db.sock
    I0528 06:48:11.806138       1 ovs_client.go:86] Not connected yet, will try again in 2s
    I0528 06:48:11.807781       1 agent.go:215] Setting up node network
    I0528 06:48:11.830397       1 agent.go:686] Setting Node MTU=1450
    I0528 06:48:11.831832       1 ovs_client.go:118] Created bridge: cc512db6-0763-4a13-80d1-32ad79467ed1
    I0528 06:48:12.852556       1 agent.go:817] No round number found in OVSDB, using 1
    I0528 06:48:12.852598       1 agent.go:829] Using round number 1
    I0528 06:48:12.852783       1 ofctrl.go:170] Initialize connection or re-connect to /var/run/openvswitch/br-int.mgmt.
    I0528 06:48:12.921175       1 route_linux.go:125] Initialized iptables
    I0528 06:48:13.853233       1 ofctrl.go:185] Connected to socket /var/run/openvswitch/br-int.mgmt
    I0528 06:48:13.853627       1 ofctrl.go:247] New connection..
    I0528 06:48:13.853666       1 ofctrl.go:254] Send hello with OF version: 4
    I0528 06:48:13.854928       1 ofctrl.go:268] Received Openflow 1.3 Hello message
    Error from server (NotFound): pods "antrea-agent-rgvt5" not found

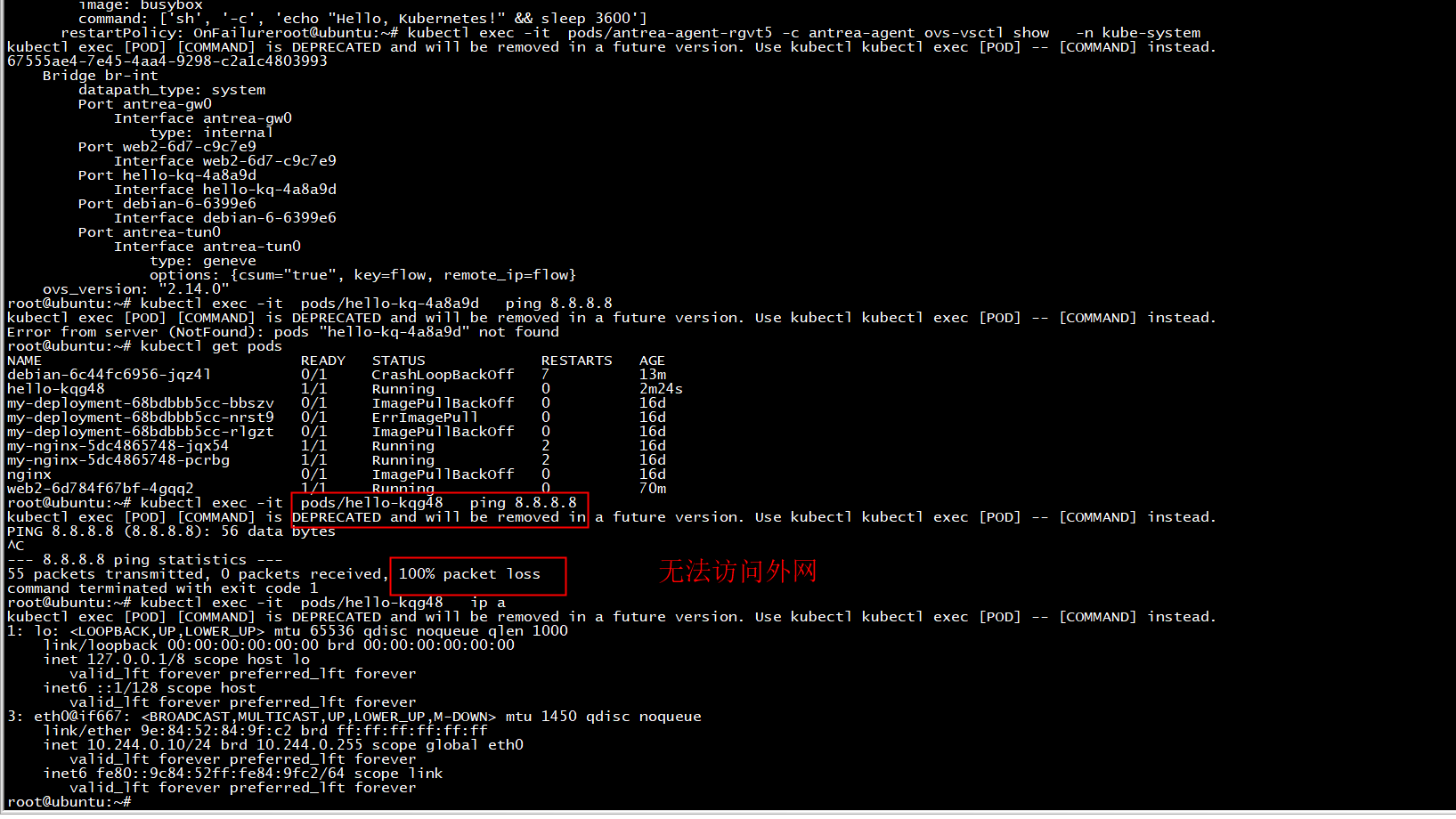

    root@ubuntu:~# kubectl exec -it  pods/antrea-agent-rgvt5 -c antrea-agent ovs-vsctl show   -n kube-system
    kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl kubectl exec [POD] -- [COMMAND] instead.
    67555ae4-7e45-4aa4-9298-c2a1c4803993
        Bridge br-int
            datapath_type: system
            Port antrea-gw0
                Interface antrea-gw0
                    type: internal
            Port antrea-tun0
                Interface antrea-tun0
                    type: geneve
                    options: {csum="true", key=flow, remote_ip=flow}
        ovs_version: "2.14.0"
    root@ubuntu:~#
    root@ubuntu:~# kubectl exec -it  pods/antrea-agent-rgvt5 -c antrea-ovs ovs-ofctl dump-flows br-int -n kube-system  | grep table=90
    kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl kubectl exec [POD] -- [COMMAND] instead.
     cookie=0x1000000000000, duration=945.430s, table=90, n_packets=0, n_bytes=0, priority=210,ct_state=-new+est,ip actions=resubmit(,101)
     cookie=0x1000000000000, duration=945.428s, table=90, n_packets=0, n_bytes=0, priority=210,pkt_mark=0x1/0x1 actions=resubmit(,105)
     cookie=0x1000000000000, duration=945.445s, table=90, n_packets=0, n_bytes=0, priority=0 actions=resubmit(,100)
    root@ubuntu:~# kubectl exec -it  pods/antrea-agent-rgvt5 -c antrea-agent ovs-ofctl dump-flows br-int -n kube-system  | grep table=90
    kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl kubectl exec [POD] -- [COMMAND] instead.
     cookie=0x1000000000000, duration=960.393s, table=90, n_packets=0, n_bytes=0, priority=210,ct_state=-new+est,ip actions=resubmit(,101)
     cookie=0x1000000000000, duration=960.391s, table=90, n_packets=0, n_bytes=0, priority=210,pkt_mark=0x1/0x1 actions=resubmit(,105)
     cookie=0x1000000000000, duration=960.408s, table=90, n_packets=0, n_bytes=0, priority=0 actions=resubmit(,100)
    root@ubuntu:~#
    flags的描述:

    0x01new 新建连接的开始,这个表示一般存在于uncommitted状态的连接中。
    0x02:est 这是已经存在,并且准备好的连接,存在于committed连接。
    0x04:rel 这是和一个存在连接相关的连接。比如ICMP 目的不可达消息或者FTP数据连接。存在于committed连接。
    0x08:rpl 这个流是反方向,意味着没有初始化连接。存在于committed连接。
    0x10:inv 无效状态,意味着连接跟踪不能识别连接。这个标志包含了一个连接跟踪可能遇到的任何问题,例如:L3/L4协议处理程序没有加载或者不可用。在Linux内核datapath,意味着nf_conntrack_ipv4或者nf_conntrack_ipv6模块没有加载。L3/L4协议处理程序确定报文分组格式不对。报文协议的长度不对。
    0x20:trk 报文状态是tracked,意味着他先前已经经历了连接跟踪。如果该标志没有设置,其他的标志也不会被设置。如果这个标志设置了,报文状态为tracked,其他的标志才会被设置。这个字段是Open vSwitch2.5才引入的。

    antrea-agent pk antrea-ovs

    root@ubuntu:~# kubectl logs antrea-agent-rgvt5 -c antrea-agent -n kube-system | grep error
    root@ubuntu:~# kubectl logs antrea-agent-rgvt5 -c antrea-agent -n kube-system | grep -i error
    root@ubuntu:~#
    root@ubuntu:~# kubectl logs antrea-agent-rgvt5 -c antrea-ovs -n kube-system
    [2021-05-28T06:48:10Z INFO antrea-ovs]: Starting ovsdb-server
     * /var/run/openvswitch/conf.db does not exist
     * Creating empty database /var/run/openvswitch/conf.db
     * Starting ovsdb-server
     * Configuring Open vSwitch system IDs
     * Enabling remote OVSDB managers
    [2021-05-28T06:48:11Z INFO antrea-ovs]: Started ovsdb-server
    [2021-05-28T06:48:11Z INFO antrea-ovs]: Starting ovs-vswitchd
    [2021-05-28T06:48:11Z INFO antrea-ovs]: ovs-vswitchd set hw-offload to false
     * Starting ovs-vswitchd
     * Enabling remote OVSDB managers
    [2021-05-28T06:48:11Z INFO antrea-ovs]: Started ovs-vswitchd
    [2021-05-28T06:48:11Z INFO antrea-ovs]: Started the loop that checks OVS status every 30 seconds
    root@ubuntu:~#

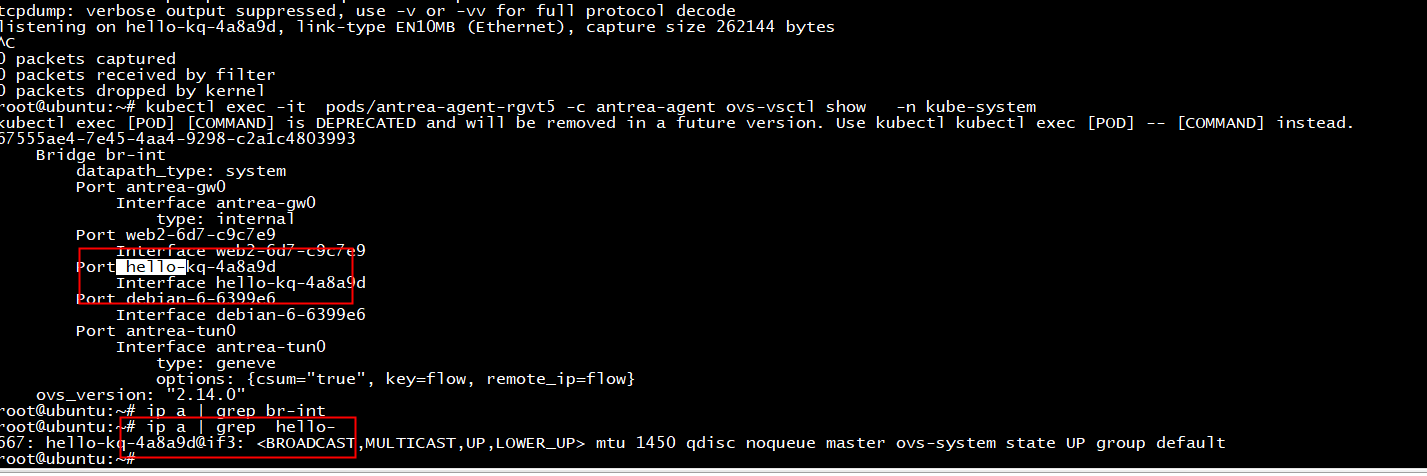

    antrea-gw0 tcpdump

    root@ubuntu:~# tcpdump -i cni0  icmp and host 8.8.8.8 -nv
    tcpdump: listening on cni0, link-type EN10MB (Ethernet), capture size 262144 bytes
    15:22:36.406718 IP (tos 0x0, ttl 64, id 28767, offset 0, flags [DF], proto ICMP (1), length 84)
        10.244.0.5 > 8.8.8.8: ICMP echo request, id 28928, seq 74, length 64
    15:22:36.418588 IP (tos 0x0, ttl 105, id 0, offset 0, flags [none], proto ICMP (1), length 84)
        8.8.8.8 > 10.244.0.5: ICMP echo reply, id 28928, seq 74, length 64
    ^C
    2 packets captured
    2 packets received by filter
    0 packets dropped by kernel
    root@ubuntu:~# tcpdump -i flannel.1  icmp and host 8.8.8.8 -nv
    tcpdump: listening on flannel.1, link-type EN10MB (Ethernet), capture size 262144 bytes
    ^C
    0 packets captured
    0 packets received by filter
    0 packets dropped by kernel
    root@ubuntu:~# tcpdump -i cni0  icmp and host 8.8.8.8 -nv
    tcpdump: listening on cni0, link-type EN10MB (Ethernet), capture size 262144 bytes
    15:22:49.408249 IP (tos 0x0, ttl 64, id 30622, offset 0, flags [DF], proto ICMP (1), length 84)
        10.244.0.5 > 8.8.8.8: ICMP echo request, id 28928, seq 87, length 64
    15:22:49.420240 IP (tos 0x0, ttl 105, id 0, offset 0, flags [none], proto ICMP (1), length 84)
        8.8.8.8 > 10.244.0.5: ICMP echo reply, id 28928, seq 87, length 64
    15:22:50.408351 IP (tos 0x0, ttl 64, id 30856, offset 0, flags [DF], proto ICMP (1), length 84)
        10.244.0.5 > 8.8.8.8: ICMP echo request, id 28928, seq 88, length 64
    15:22:50.420163 IP (tos 0x0, ttl 105, id 0, offset 0, flags [none], proto ICMP (1), length 84)
        8.8.8.8 > 10.244.0.5: ICMP echo reply, id 28928, seq 88, length 64
    ^C
    4 packets captured
    4 packets received by filter
    0 packets dropped by kernel
    root@ubuntu:~# brctl show antrea-gw0
    bridge name     bridge id               STP enabled     interfaces
    antrea-gw0              can't get info Operation not supported
    root@ubuntu:~# brctl show  antrea-gw0
    bridge name     bridge id               STP enabled     interfaces
    antrea-gw0              can't get info Operation not supported
    root@ubuntu:~#

    antrea service

    root@ubuntu:~#  kubectl get svc -A
    NAMESPACE     NAME          TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                  AGE
    default       kubernetes    ClusterIP   10.96.0.1        <none>        443/TCP                  223d
    default       my-nginx      ClusterIP   10.110.79.116    <none>        8280/TCP                 16d
    default       my-nginx-np   NodePort    10.99.1.231      <none>        8081:31199/TCP           15d
    kube-system   antrea        ClusterIP   10.108.137.187   <none>        443/TCP                  41m
    kube-system   kube-dns      ClusterIP   10.96.0.10       <none>        53/UDP,53/TCP,9153/TCP   223d
    root@ubuntu:~#



    root@ubuntu:~# kubectl exec -it  pods/antrea-agent-rgvt5 -c antrea-agent -n kube-system  -- bash
    root@ubuntu:/# ovs-vsctl show
    67555ae4-7e45-4aa4-9298-c2a1c4803993
        Bridge br-int
            datapath_type: system
            Port antrea-gw0
                Interface antrea-gw0
                    type: internal
            Port antrea-tun0
                Interface antrea-tun0
                    type: geneve
                    options: {csum="true", key=flow, remote_ip=flow}
        ovs_version: "2.14.0"
    root@ubuntu:/#  antctl get
    Get the status or resource of a topic

    Usage:
      antctl get [command]

    Available Commands:
      addressgroup   Print address groups
      agentinfo      Print agent's basic information
      appliedtogroup Print appliedto groups
      networkpolicy  Print control plane NetworkPolicies
      ovsflows       Dump OVS flows
      podinterface   Print Pod's network interface information

    Flags:
      -h, --help   help for get

    Global Flags:
      -k, --kubeconfig string   absolute path to the kubeconfig file
      -s, --server string       address and port of the API server, taking precedence over the default endpoint and the one set in kubeconfig
      -t, --timeout duration    time limit of the execution of the command
      -v, --verbose             enable verbose output

    Use "antctl get [command] --help" for more information about a command.
    root@ubuntu:/# antctl get podinterface
    Error: Get "https://127.0.0.1:10350/podinterfaces": dial tcp 127.0.0.1:10350: connect: connection refused
    root@ubuntu:/#

     添加一个pod

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: web2
      namespace: default
    spec:
      selector:
        matchLabels:
          run: web2
      template:
        metadata:
          labels:
            run: web2
        spec:
          containers:
          - image: nginx
            imagePullPolicy: IfNotPresent
            name: web2
            ports:
            - containerPort: 8087
              protocol: TCP
    root@ubuntu:~# kubectl exec -it  pods/antrea-agent-rgvt5 -c antrea-agent ovs-vsctl show   -n kube-system
    kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl kubectl exec [POD] -- [COMMAND] instead.
    67555ae4-7e45-4aa4-9298-c2a1c4803993
        Bridge br-int
            datapath_type: system
            Port antrea-gw0
                Interface antrea-gw0
                    type: internal
            Port web2-6d7-c9c7e9
                Interface web2-6d7-c9c7e9
            Port antrea-tun0
                Interface antrea-tun0
                    type: geneve
                    options: {csum="true", key=flow, remote_ip=flow}
        ovs_version: "2.14.0"

    root@ubuntu:~# cat debian-deployment-v2.yaml
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: debian
      namespace: default
    spec:
      selector:
        matchLabels:
          run: debian
      template:
        metadata:
          labels:
            run: debian
        spec:
          containers:
          - image: debian
            imagePullPolicy: IfNotPresent
            name: debian
            ports:
            - containerPort: 8087
              protocol: TCP
    root@ubuntu:~# kubectl get pods
    NAME                             READY   STATUS             RESTARTS   AGE
    debian-75ff5999c8-bbjsm          0/1     Completed          4          100s
    kata-busybox                     1/1     Running            0          223d
    kata-nginx                       1/1     Running            0          221d
    my-deployment-68bdbbb5cc-bbszv   0/1     ImagePullBackOff   0          16d
    my-deployment-68bdbbb5cc-nrst9   0/1     ImagePullBackOff   0          16d
    my-deployment-68bdbbb5cc-rlgzt   0/1     ImagePullBackOff   0          16d
    my-nginx-5dc4865748-jqx54        1/1     Running            2          16d
    my-nginx-5dc4865748-pcrbg        1/1     Running            2          16d
    nginx                            0/1     ImagePullBackOff   0          16d
    web2-6d784f67bf-4gqq2            1/1     Running            0          56m

    yaml 文件有问题

    apiVersion: batch/v1
    kind: Job
    metadata:
      name: hello
    spec:
      template:
        # 这里是 Pod 模版
        spec:
          containers:
          - name: hello
            image: busybox
            command: ['sh', '-c', 'echo "Hello, Kubernetes!" && sleep 3600']
          restartPolicy: OnFailure
    root@ubuntu:~# kubectl apply -f busybox.yaml
    job.batch/hello created
    root@ubuntu:~# kubectl get pods
    NAME                             READY   STATUS              RESTARTS   AGE
    debian-6c44fc6956-jqz4l          0/1     CrashLoopBackOff    6          10m
    hello-kqg48                      0/1     ContainerCreating   0          4s
    my-deployment-68bdbbb5cc-bbszv   0/1     ImagePullBackOff    0          16d
    my-deployment-68bdbbb5cc-nrst9   0/1     ImagePullBackOff    0          16d
    my-deployment-68bdbbb5cc-rlgzt   0/1     ErrImagePull        0          16d
    my-nginx-5dc4865748-jqx54        1/1     Running             2          16d
    my-nginx-5dc4865748-pcrbg        1/1     Running             2          16d
    nginx                            0/1     ImagePullBackOff    0          16d
    web2-6d784f67bf-4gqq2            1/1     Running             0          68m
    root@ubuntu:~# kubectl get pods



    root@ubuntu:~#  kubectl exec -it  pods/antrea-agent-rgvt5 -c antrea-ovs ovs-ofctl dump-flows br-int -n kube-system | grep  table=30
    kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl kubectl exec [POD] -- [COMMAND] instead.
     cookie=0x1000000000000, duration=9802.456s, table=30, n_packets=0, n_bytes=0, priority=200,ip actions=ct(table=31,zone=65520,nat)
     cookie=0x1000000000000, duration=9802.456s, table=30, n_packets=0, n_bytes=0, priority=200,ipv6 actions=ct(table=31,zone=65510,nat)

    trace-packet

    root@ubuntu:~# kubectl exec -it  pods/antrea-agent-rgvt5 -c antrea-agent antctl trace-packet -S  default/mc1  -D   10.244.0.1 -n kube-system
    Error: unknown shorthand flag: 'S' in -S
    See 'kubectl exec --help' for usage.
    root@ubuntu:~# kubectl exec -it  pods/antrea-agent-rgvt5 -c antrea-agent   -n kube-system  bash
    kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl kubectl exec [POD] -- [COMMAND] instead.
    root@ubuntu:/# antctl trace-packet -S  default/mc1  -D   10.244.0.1 -n kube-system
    Error: unknown shorthand flag: 'n' in -n
    root@ubuntu:/# antctl trace-packet -S  default/mc1  -D   10.244.0.1
    Error: Get "https://127.0.0.1:10350/ovstracing?destination=10.244.0.1&source=default%2Fmc1": dial tcp 127.0.0.1:10350: connect: connection refused
    root@ubuntu:/#

    ovs-appctl ofproto/trace

    10.244.0.13/24的mac:a6:d0:a7:be:73:fc
    root@ubuntu:~#  kubectl exec -it  pods/mc1  -c 2nd  ip a
    kubectl exec [POD] [COMMAND] is DEPRECATED and will be removed in a future version. Use kubectl kubectl exec [POD] -- [COMMAND] instead.
    1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
        link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
        inet 127.0.0.1/8 scope host lo
           valid_lft forever preferred_lft forever
        inet6 ::1/128 scope host
           valid_lft forever preferred_lft forever
    3: eth0@if670: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UP group default
        link/ether a6:d0:a7:be:73:fc brd ff:ff:ff:ff:ff:ff link-netnsid 0
        inet 10.244.0.13/24 brd 10.244.0.255 scope global eth0
           valid_lft forever preferred_lft forever
        inet6 fe80::a4d0:a7ff:febe:73fc/64 scope link
           valid_lft forever preferred_lft forever
    root@ubuntu:~#
    10.244.0.1的mac  f2:c9:55:a9:35:ad
     antrea-gw0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN group default qlen 1000
        link/ether f2:c9:55:a9:35:ad brd ff:ff:ff:ff:ff:ff
        inet 10.244.0.1/24 brd 10.244.0.255 scope global antrea-gw0
           valid_lft forever preferred_lft forever
        inet6 fe80::f0c9:55ff:fea9:35ad/64 scope link
           valid_lft forever preferred_lft forever

    ofport

    root@ubuntu:/# ovs-vsctl    --columns=external_ids,name,ofport list interface   mc1-36cb6d
    external_ids        : {}
    name                : mc1-36cb6d
    ofport              : 14
    root@ubuntu:/# ovs-vsctl    --columns=external_ids,name,ofport list interface   antrea-gw0
    external_ids        : {}
    name                : antrea-gw0
    ofport              : 2
    root@ubuntu:/#
    root@ubuntu:~# kubectl exec -it  pods/antrea-agent-rgvt5 -c antrea-ovs   -n kube-system  bash
    root@ubuntu:/# ovs-appctl  ofproto/trace br-int in_port=2,ct_state=new,dl_src=f2:c9:55:a9:35:ad,dl_dst=a6:d0:a7:be:73:fc,dl_type=0x0800,nw_proto=1,nw_src=10.244.0.1,nw_dst=10.244.0.13
    Flow: ct_state=new,icmp,in_port=2,vlan_tci=0x0000,dl_src=f2:c9:55:a9:35:ad,dl_dst=a6:d0:a7:be:73:fc,nw_src=10.244.0.1,nw_dst=10.244.0.13,nw_tos=0,nw_ecn=0,nw_ttl=0,icmp_type=0,icmp_code=0

    bridge("br-int")
    ----------------
     0. in_port=2, priority 200, cookie 0x1000000000000
        load:0x1->NXM_NX_REG0[0..15]
        goto_table:10
    10. ip,in_port=2, priority 200, cookie 0x1000000000000
        goto_table:29
    29. priority 0, cookie 0x1000000000000
        goto_table:30
    30. ip, priority 200, cookie 0x1000000000000
        ct(table=31,zone=65520,nat)
        nat
         -> A clone of the packet is forked to recirculate. The forked pipeline will be resumed at table 31.
         -> Sets the packet to an untracked state, and clears all the conntrack fields.

    Final flow: icmp,reg0=0x1,in_port=2,vlan_tci=0x0000,dl_src=f2:c9:55:a9:35:ad,dl_dst=a6:d0:a7:be:73:fc,nw_src=10.244.0.1,nw_dst=10.244.0.13,nw_tos=0,nw_ecn=0,nw_ttl=0,icmp_type=0,icmp_code=0
    Megaflow: recirc_id=0,eth,ip,in_port=2,nw_dst=0.0.0.0/1,nw_frag=no
    Datapath actions: ct(zone=65520,nat),recirc(0x1)

    packout 注入报文

    import binascii
    from scapy.all import*
    a=Ether(dst="f2:c9:55:a9:35:ad",src="a6:d0:a7:be:73:fc")/IP(dst="10.244.0.1",src="10.244.0.13", ttl=10)/ICMP()
    print binascii.hexlify(str(a))
    f2c955a935ada6d0a7be73fc08004500001c000100000a019aeb0af4000d0af400010800f7ff00000000
    ofport              : 14
    root@ubuntu:/# ovs-vsctl    --columns=external_ids,name,ofport list interface   mc1-36cb6d
    external_ids        : {}
    name                : mc1-36cb6d
    ofport              : 14
    root@ubuntu:/# ovs-vsctl    --columns=external_ids,name,ofport list interface   antrea-gw0
    external_ids        : {}
    name                : antrea-gw0
    ofport              : 2
    root@ubuntu:/# ovs-ofctl packet-out br-int "normal" 14 f2c955a935ada6d0a7be73fc08004500001c000100000a019aeb0af4000d0af400010800f7ff00000000
    2021-05-31T10:21:33Z|00001|ofp_packet|WARN|packet-out has bad input port 0xfffa
    OFPT_ERROR (xid=0x6): OFPBRC_BAD_PORT
    OFPT_PACKET_OUT (xid=0x6): ***decode error: OFPBRC_BAD_PORT***
    00000000  01 0d 00 42 00 00 00 06-ff ff ff ff ff fa 00 08 |...B............|
    00000010  00 00 00 08 00 0e 00 00-f2 c9 55 a9 35 ad a6 d0 |..........U.5...|
    00000020  a7 be 73 fc 08 00 45 00-00 1c 00 01 00 00 0a 01 |..s...E.........|
    00000030  9a eb 0a f4 00 0d 0a f4-00 01 08 00 f7 ff 00 00 |................|
    00000040  00 00                                           |..              |
    root@ubuntu:/#
    root@ubuntu:/# ovs-vsctl show
    67555ae4-7e45-4aa4-9298-c2a1c4803993
        Bridge br-int
            datapath_type: system
            Port antrea-gw0
                Interface antrea-gw0
                    type: internal
            Port web2-6d7-c9c7e9
                Interface web2-6d7-c9c7e9
            Port antrea-tun0
                Interface antrea-tun0
                    type: geneve
                    options: {csum="true", key=flow, remote_ip=flow}
            Port mc1-36cb6d
                Interface mc1-36cb6d
            Port debian-6-177c0e
                Interface debian-6-177c0e
        ovs_version: "2.14.0"
    root@ubuntu:/# ovs-vsctl    --columns=external_ids,name,ofport list interface   mc1-36cb6d
    external_ids        : {}
    name                : mc1-36cb6d
    ofport              : 14
    root@ubuntu:/# ovs-vsctl    --columns=external_ids,name,ofport list interface   mc1-36cb6d
    external_ids        : {}
    name                : mc1-36cb6d
    ofport              : 14
    root@ubuntu:/# ovs-vsctl    --columns=external_ids,name,ofport list interface   antrea-gw0
    external_ids        : {}
    name                : antrea-gw0
    ofport              : 2
    root@ubuntu:/# ovs-ofctl packet-out br-int "normal" 2 f2c955a935ada6d0a7be73fc08004500001c000100000a019aeb0af4000d0af400010800f7ff00000000
    2021-05-31T10:21:18Z|00001|ofp_packet|WARN|packet-out has bad input port 0xfffa
    OFPT_ERROR (xid=0x6): OFPBRC_BAD_PORT
    OFPT_PACKET_OUT (xid=0x6): ***decode error: OFPBRC_BAD_PORT***
    00000000  01 0d 00 42 00 00 00 06-ff ff ff ff ff fa 00 08 |...B............|
    00000010  00 00 00 08 00 02 00 00-f2 c9 55 a9 35 ad a6 d0 |..........U.5...|
    00000020  a7 be 73 fc 08 00 45 00-00 1c 00 01 00 00 0a 01 |..s...E.........|
    00000030  9a eb 0a f4 00 0d 0a f4-00 01 08 00 f7 ff 00 00 |................|
    00000040  00 00                                           |..              |
    root@ubuntu:/# ovs-ofctl packet-out br-int "normal" 14 f2c955a935ada6d0a7be73fc08004500001c000100000a019aeb0af4000d0af400010800f7ff00000000
    2021-05-31T10:21:33Z|00001|ofp_packet|WARN|packet-out has bad input port 0xfffa
    OFPT_ERROR (xid=0x6): OFPBRC_BAD_PORT
    OFPT_PACKET_OUT (xid=0x6): ***decode error: OFPBRC_BAD_PORT***
    00000000  01 0d 00 42 00 00 00 06-ff ff ff ff ff fa 00 08 |...B............|
    00000010  00 00 00 08 00 0e 00 00-f2 c9 55 a9 35 ad a6 d0 |..........U.5...|
    00000020  a7 be 73 fc 08 00 45 00-00 1c 00 01 00 00 0a 01 |..s...E.........|
    00000030  9a eb 0a f4 00 0d 0a f4-00 01 08 00 f7 ff 00 00 |................|
    00000040  00 00                                           |..              |
    root@ubuntu:/# ovs-ofctl packet-out br-int "normal" output:2 f2c955a935ada6d0a7be73fc08004500001c000100000a019aeb0af4000d0af400010800f7ff00000000
    2021-05-31T10:24:52Z|00001|ofp_packet|WARN|packet-out has bad input port 0xfffa
    OFPT_ERROR (xid=0x6): OFPBRC_BAD_PORT
    OFPT_PACKET_OUT (xid=0x6): ***decode error: OFPBRC_BAD_PORT***
    00000000  01 0d 00 42 00 00 00 06-ff ff ff ff ff fa 00 08 |...B............|
    00000010  00 00 00 08 00 02 00 00-f2 c9 55 a9 35 ad a6 d0 |..........U.5...|
    00000020  a7 be 73 fc 08 00 45 00-00 1c 00 01 00 00 0a 01 |..s...E.........|
    00000030  9a eb 0a f4 00 0d 0a f4-00 01 08 00 f7 ff 00 00 |................|
    00000040  00 00

    14是 mc1-36cb6d的ofport |.. | root@ubuntu:/# ovs-ofctl packet-out br-int 14 "normal" f2c955a935ada6d0a7be73fc08004500001c000100000a019aeb0af4000d0af400010800f7ff00000000 root@ubuntu:/#

    Packet out (注包)

    Tanzu Kubernetes Grid and Antrea

    A closer look at Antrea, the new CNI for vSphere with Tanzu guest clusters

    First look at Antrea: a CNI plugin based on Open vSwitch

  • 相关阅读:
    本周四,CODING DevOps 深度解析系列最后一课等你来
    CODING DevOps 深度解析系列第二课报名倒计时!
    9 月 22 日,CODING DevOps 深度解析系列第一课线上开讲!
    9 月直播课预告 | CODING DevOps 深度解析系列上线啦
    LNMP Wordpress phpMyAdmin的部署记录
    在centos上部署docker与wordpress
    flask项目集成swagger
    windows局域网搭建本地git代码版本管理仓库
    docker部署的经验
    现有 Vue.js 项目快速实现多语言切换的一种思路
  • 原文地址:https://www.cnblogs.com/dream397/p/14821668.html
Copyright © 2011-2022 走看看
